CINERGIA's most flexible and versatile products are now available in a 19-inch rack format: the Grid Simulator 4Q AC&DC, Electronic Load 4Q AC&DC and the All-Terrain Grid Simulator & Electronic Load 4Q AC&DC. The Rack Series family offers the highest efficiency on the market, resulting in greater energy savings and reduced installation size requirements. Entirely designed and manufactured in Europe, it excels in robustness, efficiency and cutting-edge technology for optimal performance.

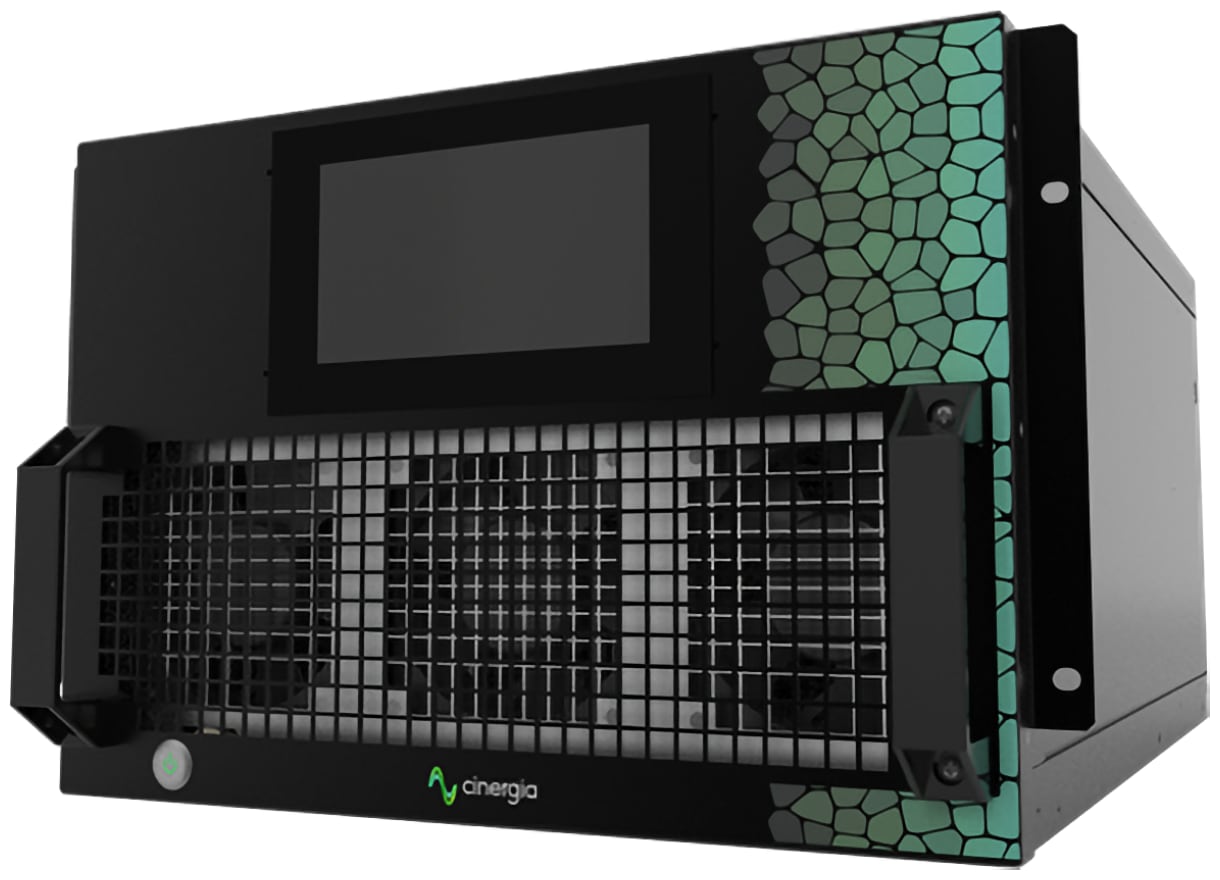

RACK SERIES FAMILY
19-inch rack format converters
CINERGIA launches its newest converter for the regenerative energy testing market, now in a 19" rack format, for easier integration in testing platforms and EOL.
HIGHEST EFFICIENCY
Highest efficiency in the market both sourcing and regenerating energy.
REGENERATIVE TECHNOLOGY
Reduction of the consumed energy and the power required.
COMPACT DESIGN
Space-saving design to fit 19" racks on burn-in and end-of-life testing.
RACK SERIES
The Rack Series (RS) family sets a new standard for performance, reliability and quality. Harnessing the power of cutting-edge SiC technology, it features lower switching losses and reduced size and weight, making it an ideal solution for applications where space and efficiency are critical.
The compatibility of the Rack Series with universal rack cabinets sets a new standard for space efficiency, modularity, and scalability, resulting in high versatility and easy integration into a comprehensive testing environment.

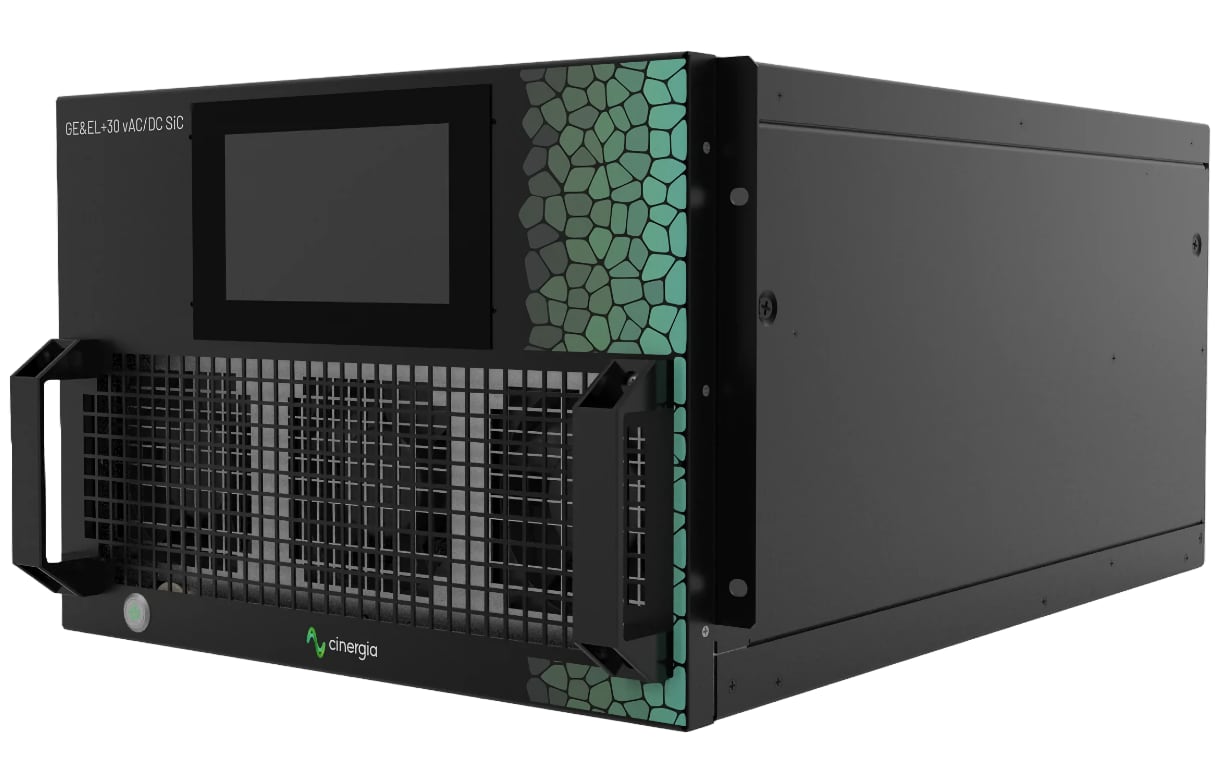

GE AC/DC SiC-RS
Grid Simulator 4Q AC&DC

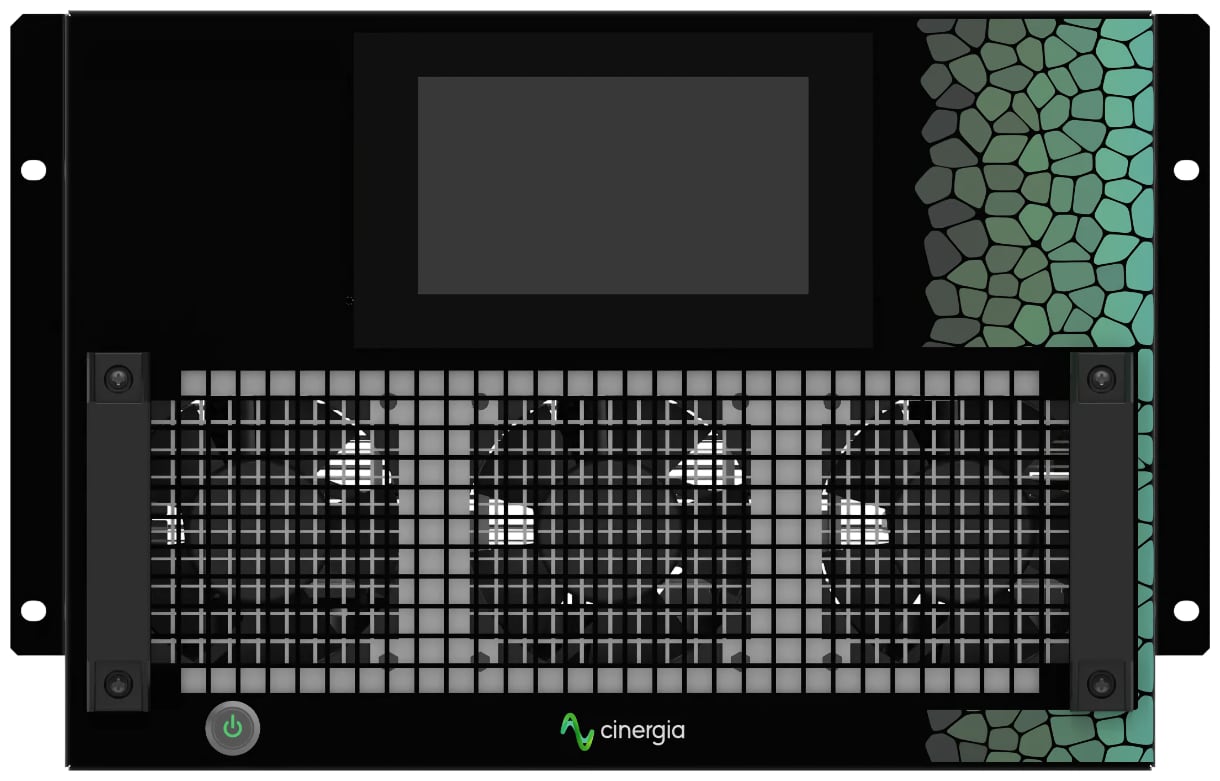

EL AC/DC SiC-RS
Electronic Load 4Q AC&DC

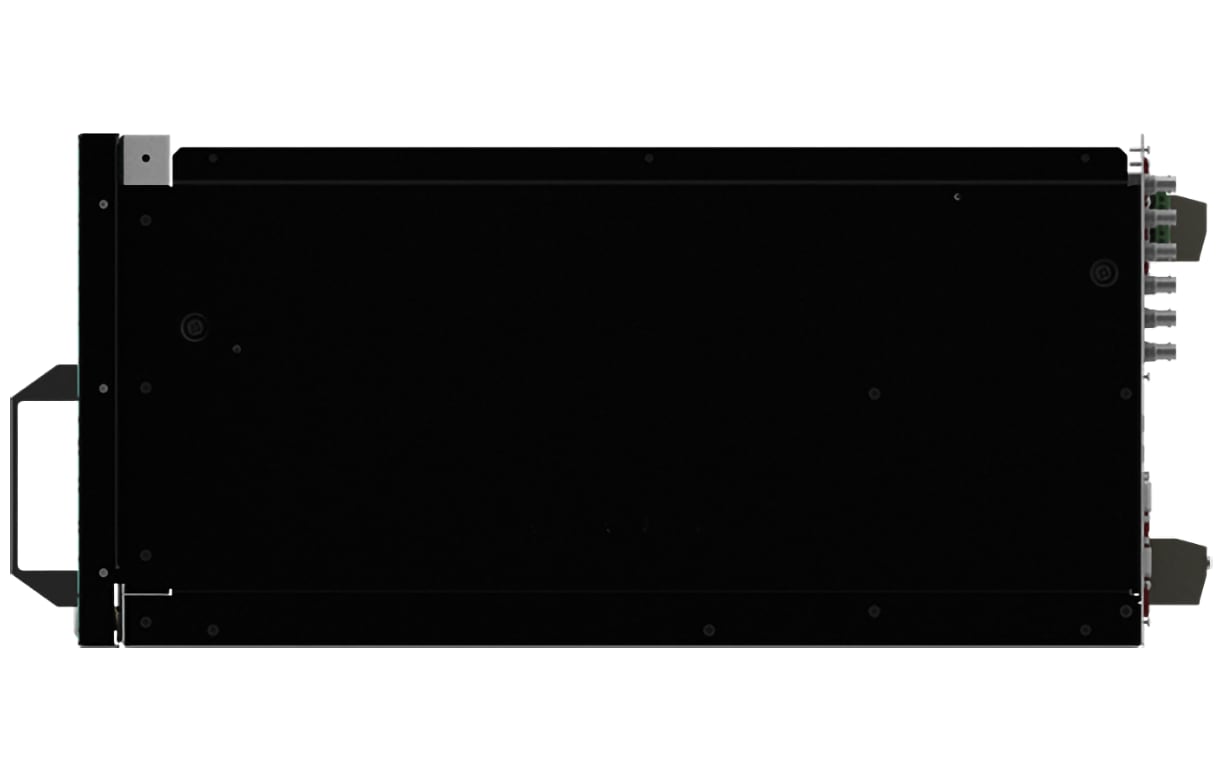

GE&EL AC/DC SiC-RS
Grid Simulator & Electronic Load 4Q AC&DC
MAIN APPLICATIONS
The Rack Series has been meticulously designed for R&D, validation, and End-of-Line testing in the fields of electromobility and charging infrastructures, smart grids, distributed energy resources, aerospace, Power HiL, battery inverter, and energy storage systems.
Electromobility
Smart Grids
Photovoltaic
Academic & Industrial Test
Power HIL
Energy Storage System
KEY FEATURES

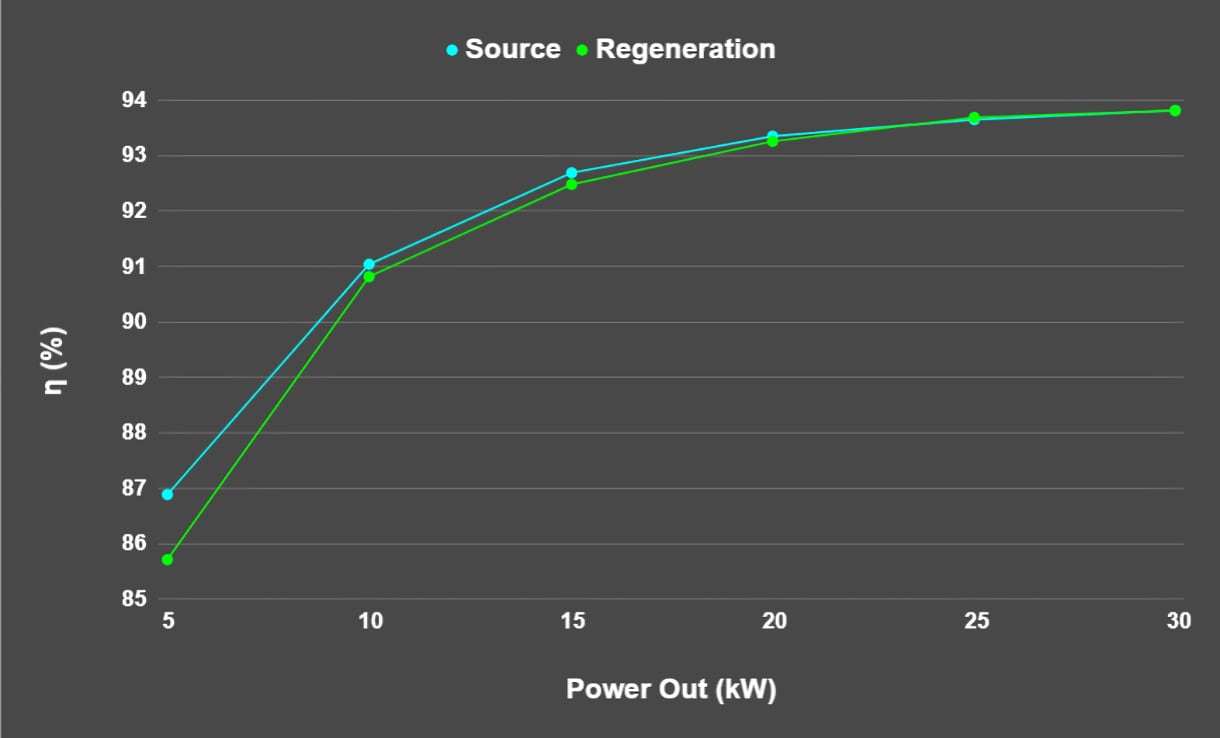

THE HIGHEST EFFICIENCY
The Rack Series offers the highest efficiency in the market in both sourcing and regenerating energy, resulting in greater energy savings, less environmental impact and a reduction in electrical installation rating.

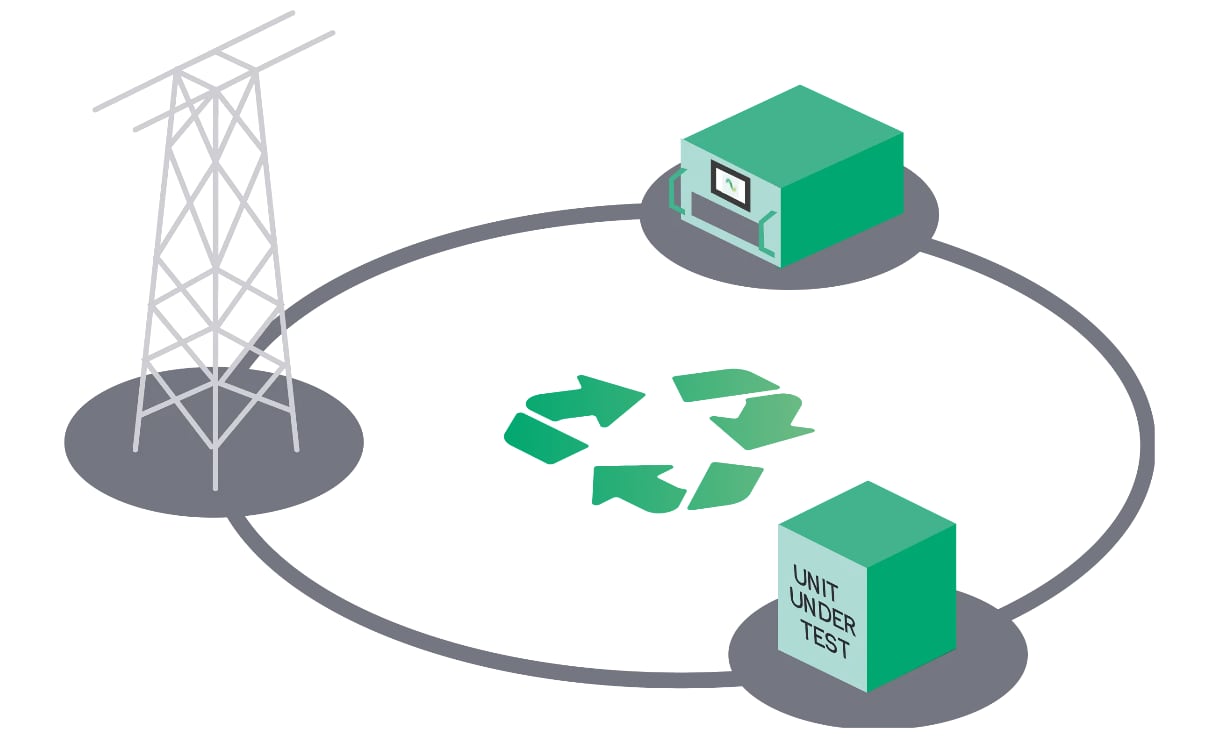

REGENERATIVE TECHNOLOGY
Like all CINERGIA products, the Rack Series product lineup allows the re-injection of the used power back to the grid, resulting in a reduction of both the consumed energy and the power required.

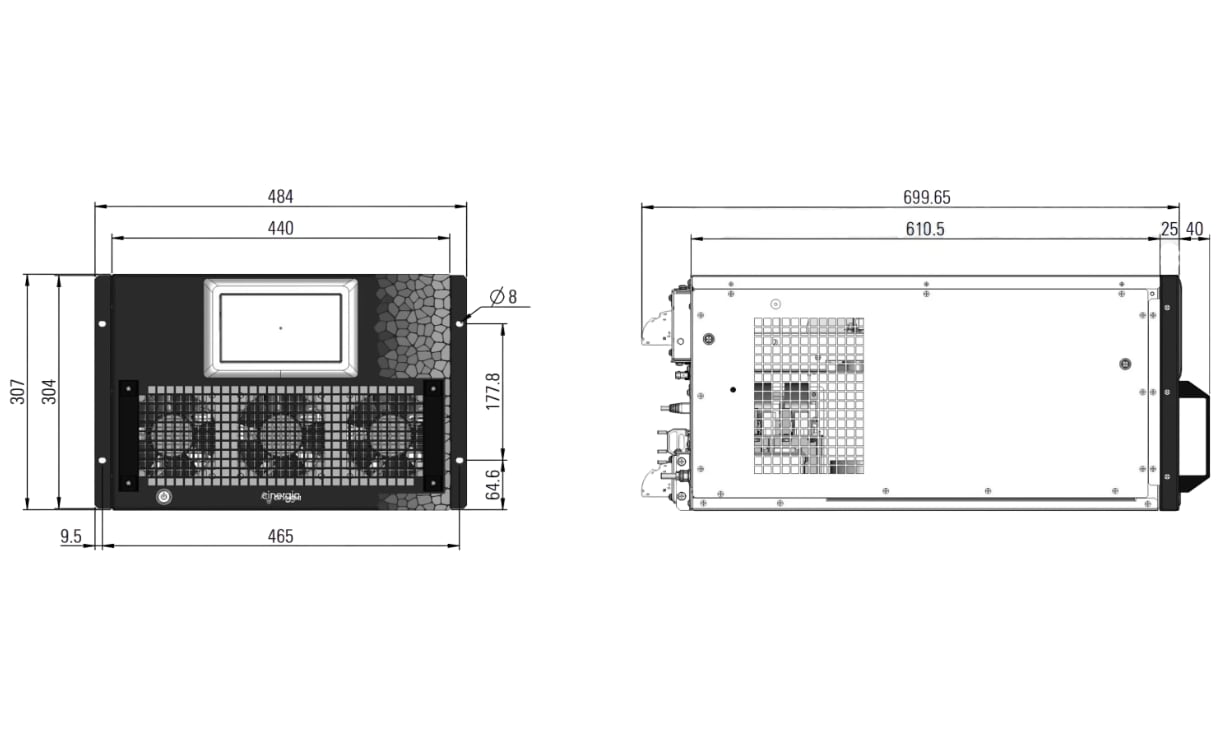

SPACE EFFICIENCY
Being designed to fit standard 19-inch racks, with 7 U and 675mm depth, is particularly advantageous for burn-in and end-of-life testing within production or systems integration environments.
SiC TECHNOLOGY
Built with cutting-edge SiC (Silicon Carbide) technology, the SiC-RS ensures exceptional efficiency, minimising energy losses and maximising performance.
HIGHER SWITCHING FREQUENCY
Thanks to the SiC MOSFETs, the switch increased up to 50kHz, reducing the current-voltage crossover duration and the losses at each commutation.
EASY INTEGRATION
The Rack Series units can be easily integrated into automated test lines thanks to the analog & digital IO and the open MODBUS/TCP protocol.
MADE IN EUROPE
SiC-RS family products are fully designed and manufactured in Europe, subject to the most rigorous testing, and complying with all CE and quality standards.

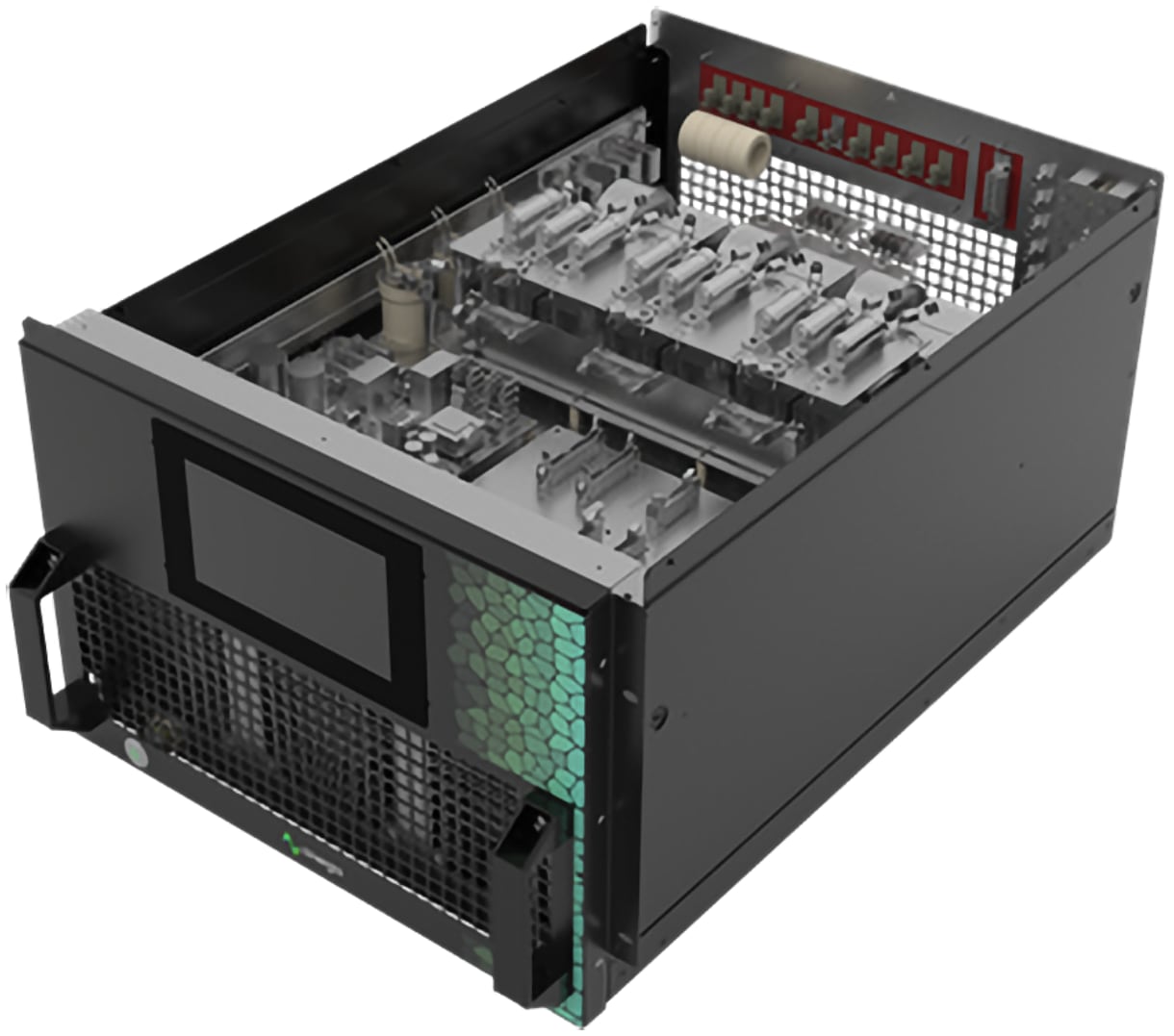

Discover Range & Specifications and Models
The most complete and versatile converter for the regenerative energy testing market, now in a 19" rack format.
