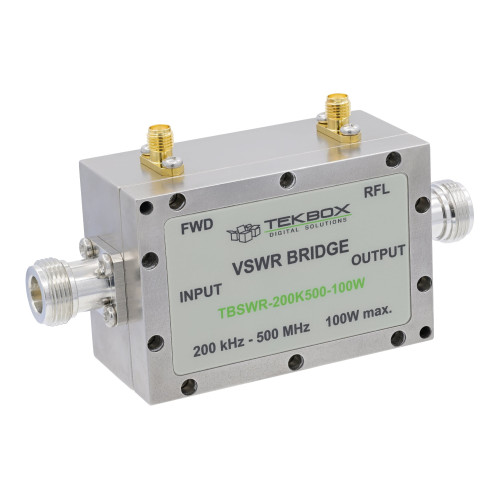

TekBox TBSWR-200K500 50Ω High Power VSWR Bridge 200kHz-500MHz, 100W
TekBox TBSWR-200K500 high power VSWR - bridge is designed for forward / reverse power measurement in EMC immunity test setups with BCI probes (Substitution Method) and general high power applications in the HF and VHF range. The bridge combines the wide frequency range and directivity of a directional bridge and the low insertion loss and power handling capability of a directional coupler.
The TBSWR-200K500 is characterized in the frequency range from 200 kHz to 500 MHz. The high power handling capability of up to 100W allows inline RF power measurements, and a variety of other applications. The insertion loss over the frequency range is typically between 0. 2 and 0.7 dB, which is significantly smaller than the average 7 dB associated with VSWR - bridges.
Specifications:
- Characterized frequency range: 200 kHz - 500 MHz
- Directivity:
- 200 kHz - 500 MHz > 20 dB
- 800 kHz - 50 MHz > 30 dB
- Coupling:
- 200 kHz - 300 MHz -40 dB ± 0.3 dB
- 300 MHz - 500 MHz -40 dB ± 1 dB
- Insertion loss:
- 200 kHz - 200 MHz < 0.3 dB
- 200 MHz - 500 MHz < 0.7 dB
- Maximum power:
- 200 kHz - 200 MHz 100 W CW, short time (max. 1 minute): 150W, output shorted or open: max. 35W
- 200 MHz - 500 MHz 70 W CW, short time (max. 1 minute): 150W, output shorted or open: max. 35W
- Operating temperature range: - 20 °C to + 40 °C
- Impedance: 50 Ω
- Port matching: > 20 dB
- RF connectors, through ports: N-female
- RF connectors, coupling ports: SMA-female
- Dimensions: 113 mm x 60 mm x 35 mm
- Weight: 290 g
| Model | TBSWR-60K500 | TBSWR-200K500 | TBSWR-600K700 | TBSWR-300K6000 |
| Frequency range | 60 kHz - 500 MHz | 200 kHz - 500 MHz | 600 kHz - 700 MHz | 300 kHz - 6 GHz |
| Maximum Power | 200 W | 100 W | 50 W | 4 W |
| Insertion loss | 60 kHz - 200 MHz: < 0.15 dB 200 MHz - 500 MHz: < 0.6 dB |
200 kHz - 200 MHz: < 0.3 dB 200 MHz - 500 MHz: < 0.7 dB |
200 kHz - 100 MHz: < 0.7 dB 100 MHz - 700 MHz: < 1.5 dB |
300 kHz - 1 GHz: < 1.8 dB 1 GHz - 6 GHz: < 2.6 dB |
| Coupling | 60 kHz - 100 MHz -50 dB ± 0.7 dB 100 - 500 MHz -50 dB + 0.7/- 10 dB |
200 kHz - 300 MHz -40 dB ± 0.3 dB 300 MHz - 500 MHz -40 dB ± 1 dB |
300 kHz - 700 MHz -30 dB ± 0.5 dB | 300 kHz - 3 GHz -20 dB ± 1 dB 3GHz - 6 GHz -19 dB + 0.5/- 3 dB |
| Directivity | 60 kHz - 500 MHz > 20 dB 150 kHz - 300 MHz > 25 dB 200 kHz - 30 MHz > 30 dB |
200 kHz - 500 MHz > 20 dB 800 kHz - 50 MHz > 30 dB |
600 kHz - 700 MHz > 20 dB 10 MHz - 500 MHz > 30 dB |
300 kHz - 700 kHz > 25 dB 700 kHz - 5 GHz > 30 dB 5 GHz - 6 GHz > 20 dB |
| Application | Immunity test setups General purpose |
Immunity test setups General purpose |
Immunity test setups General purpose |
General purpose |
| Standard accessories | Wooden box 2 pcs SMA 50 Ohm terminations |
Wooden box 2 pcs SMA 50 Ohm terminations |
Wooden box 2 pcs SMA 50 Ohm terminations |
Wooden box |
