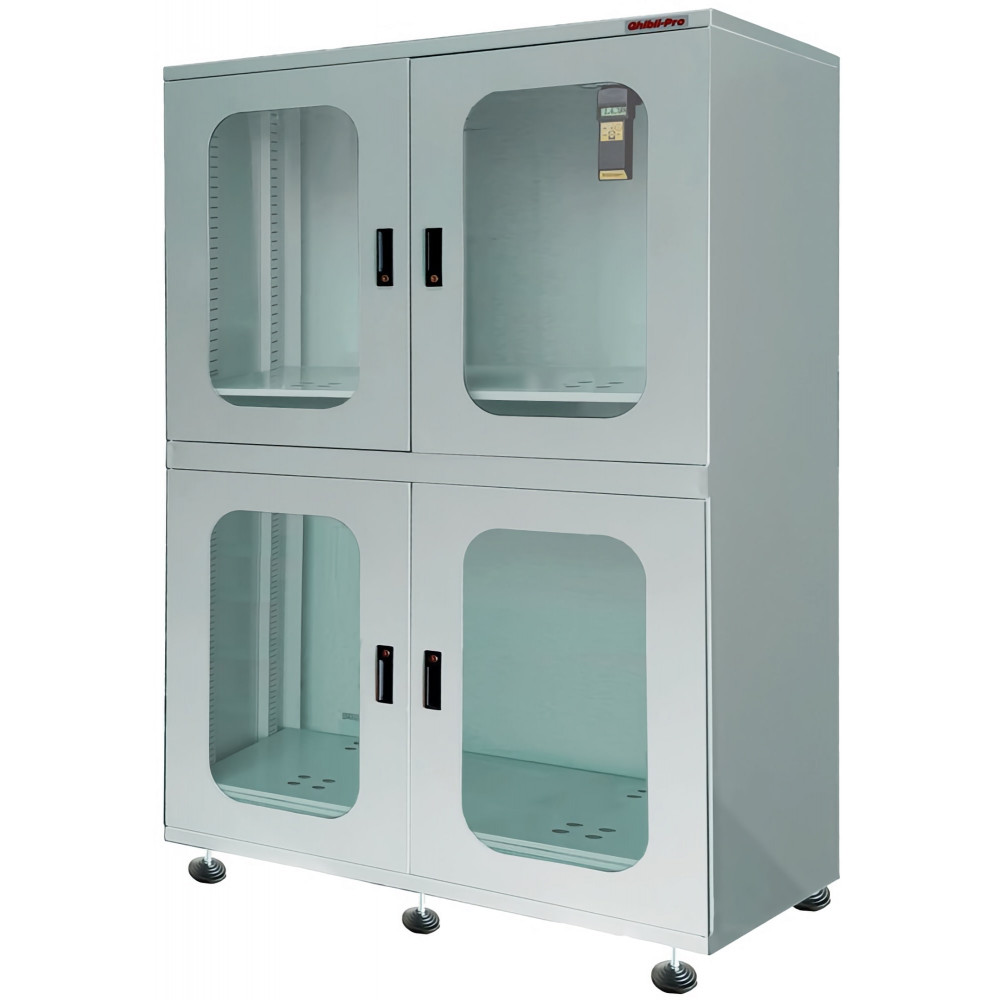

Iteco 8106.834 Ghibli PRO 1400L Cabinet with Baking 40°C
The Iteco Ghibli PRO 1400L BK (8106.834) dehumidifying cabinet is the high-capacity solution that combines two essential functions: safe storage at <5% RH and the Baking function at 40°C. This 1400L model is designed for companies with high production volumes that need to restore the "Floor Life" of MSD components without damaging the packaging.
The controlled temperature of 40°C allows for the baking of large batches of components (like BGAs, LEDs) and printed circuit boards (PCBs) without damaging tapes and reels, making them immediately ready to be inserted into the feeders of pick & place machines.
Main Advantages
- Dual Function: Dry Storage + 40°C Baking: Allows both long-term storage (<5% RH) and Floor Life restoration via 40°C baking, which is safe for packaging.
- Maximum Reliability (Always Active): The zeolite dehumidifying modules operate continuously and are not controlled by sensors, eliminating the risk of machine downtime.
- Ease of Use (Plug & Play): Simple to set up and use in both dehumidification and baking modes.
- Simple Monitoring and Calibration: Includes the DryLogger (cod.9265.302) portable instrument, a precise Datalogger that can be removed for calibration without stopping the cabinet.
- ESD Protection: Robust steel structure (1.2 mm) with dissipative paint (10³-10⁹ Ω) and ground cable.
Technical Specifications
- Code: 8106.834
- Model: Ghibli PRO 1400L BK (Baking)
- Functions: Dehumidification <5% RH, Baking 40°C
- Capacity: 1400L
- External dimensions (mm): 1160x767x1720
- Trays included: 5
- Tray size (mm): 1094x606x18
- Average consumption (no baking): 80W
- Average consumption (with baking): 580W
- Max consumption (no baking): 500W
- Max consumption (with baking): 1500W
- Weight: 198Kg
- Included: DryLogger portable datalogger (9265.302)
Ghibli PRO Line with Baking Model Comparison
| Feature | 8106.837 Ghibli PRO 700L BK |
8106.834 (Current) Ghibli PRO 1400L BK |
|---|---|---|
| Capacity | 700L | 1400L |
| External dimensions (mm) | 580x767x1755 | 1160x767x1720 |
| Trays | 5 | 5 |
| Average consumption (baking) | 330W | 580W |
| Max consumption (baking) | 1000W | 1500W |
| Weight | 128Kg | 198Kg |
