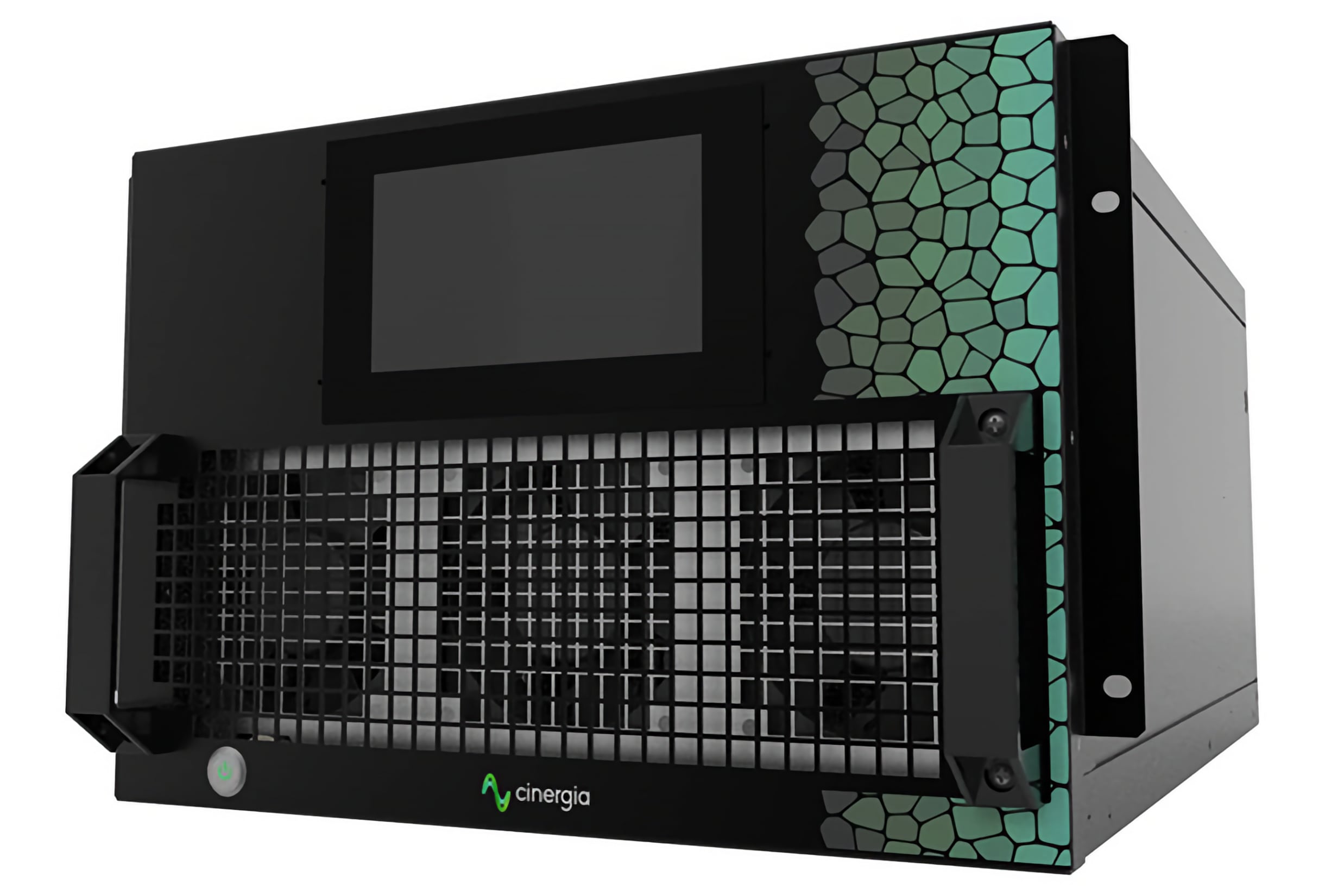

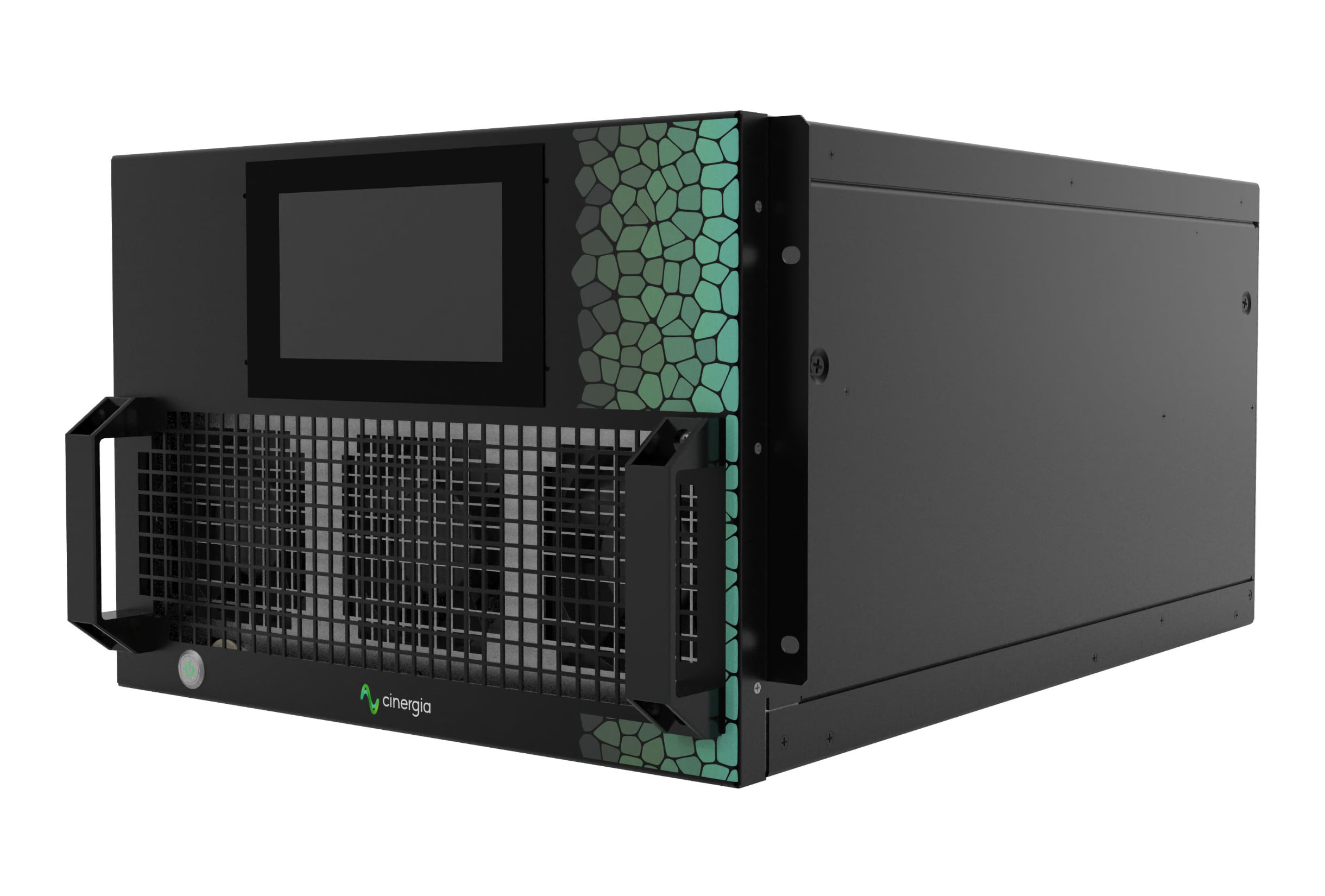

CINERGIA GE&EL AC/DC Sic RSe: AC and DC Grid Simulator Introduction
CINERGIA GE&EL AC/DC SiC-RSe represents a technological breakthrough in the field of regenerative power converters. This 3-in-1 rack system combines the functions of AC Grid Simulator, AC Electronic Load, and DC Power Supply in a single device, allowing simultaneous and independent use of all functionalities. Designed for R&D testing, validation, and End-of-Line testing, it offers precise control and reliable performance for applications ranging from electromobility to aerospace testing, from smart grids to renewable energy.
Thanks to the use of SiC technology, the SiC-RSe guarantees high efficiency, fast response, and a significant reduction in energy consumption, with the possibility to feed energy back into the grid and reduce environmental impact. The compact 19” rack format with 30 kW in just 7U and 715 mm depth ensures maximum integration in laboratories and automated test lines.
Main Features
- SiC Technology: Maximum efficiency and performance thanks to silicon carbide MOSFETs.
- High performance and efficiency: High efficiency in both source and regenerative mode, for energy savings and reduced operating costs.
- Touchscreen: 7-inch touch display for easy and intuitive local control.
- Mixed Mode: Independent channel control for simultaneous use of all functionalities.
- 19-inch Rack Format: Maximum compactness: 30 kW in 7U and 715 mm depth, ideal for integration in standard rack cabinets.
- Easy Integration: Analog and digital IO, open MODBUS/TCP protocol for easy integration into automated test lines.
Academic & RCP
The origins of the Cinergia founding team were in a university research and development center...
Aerospace
More electric and all-electric aircraft projects along with variable frequency generation...
Electromobility
Cinergia has thorough experience in providing solutions for Research and Development, Functional a...
Energy Storage Systems
Cinergia has vast experience in this field and can provide a comprehensive test solution.
Industrial Test
Cinergia devices are carefully designed to be part of manual and automated test benches for...
Power HiL
Cinergia includes the power amplifier functionality in some of our products that can be used in PHiL...
Photovoltaic
Cinergia provides all necessary power devices for PV Inverter testing in a closed energy loop.
Smart Grids
Cinergia range of products allow you to emulate the grid of the future and carry out tests on the...

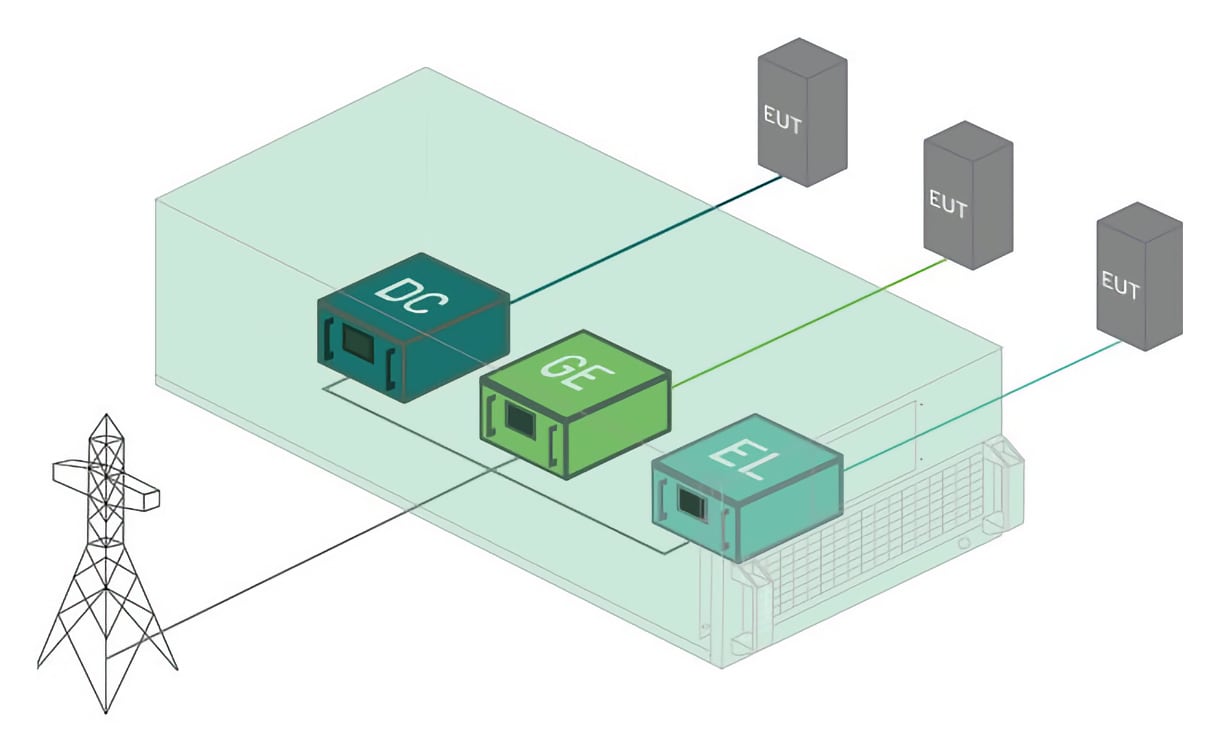

Mixed Mode
A unique feature of the GE&EL AC/DC SiC-RSe is the ability to use all functionalities simultaneously and independently: AC grid simulator, AC electronic load, bidirectional DC source/sink, battery tester/emulator or photovoltaic panel emulator. Each channel can be configured separately to run multiple tests in parallel, optimizing resources and ensuring maximum flexibility even in the most complex scenarios.

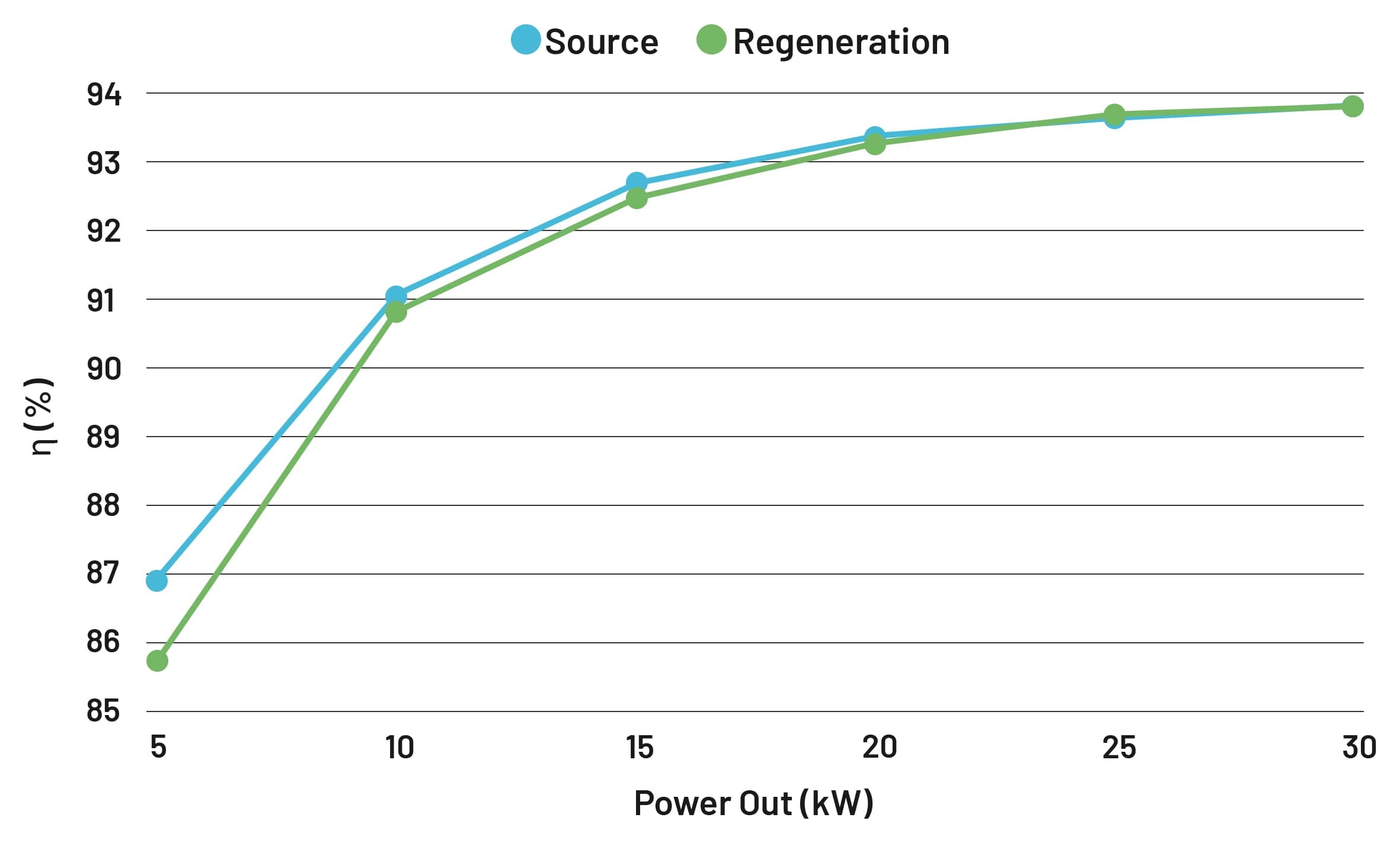

Highest Efficiency
The CINERGIA Rack series offers the highest efficiency on the market both in power delivery and energy regeneration. This results in significant energy savings and a reduction in the power required from the electrical system.
- Cost savings: lower electricity bills thanks to minimal energy losses
- Thermal dissipation: less heat generation simplifies thermal management
- Environmental impact: reduced carbon footprint thanks to energy regeneration
- Infrastructure optimization: lower current consumption and reduced cabling required

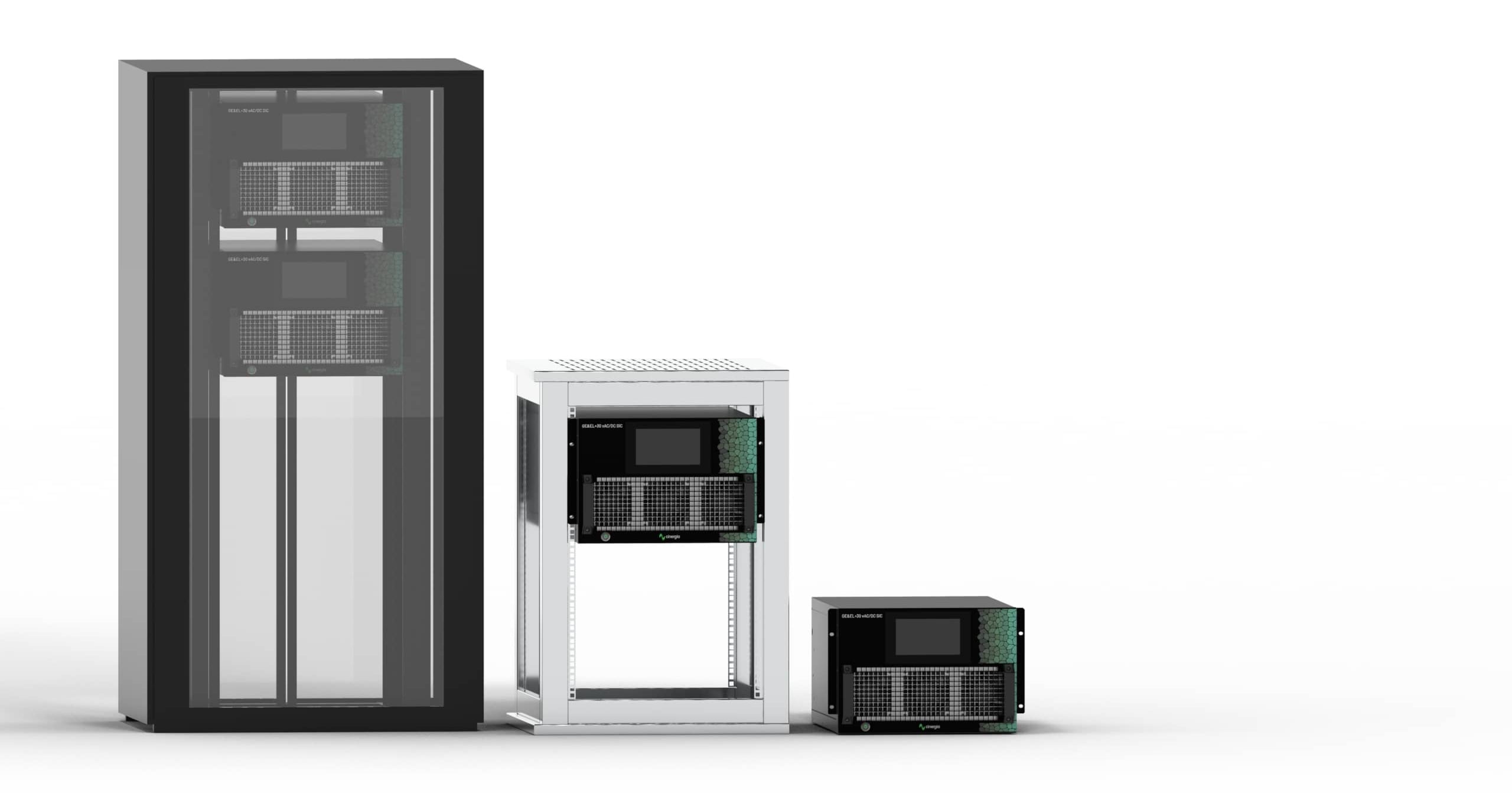

19” Rack Format
With 30 kW in just 7U and 715 mm depth, the GE&EL AC/DC SiC-RSe is designed for installation in standard 19” rack cabinets. Its compactness, modularity, and scalability make this unit ideal for laboratories and automated test lines, ensuring maximum versatility and easy integration.

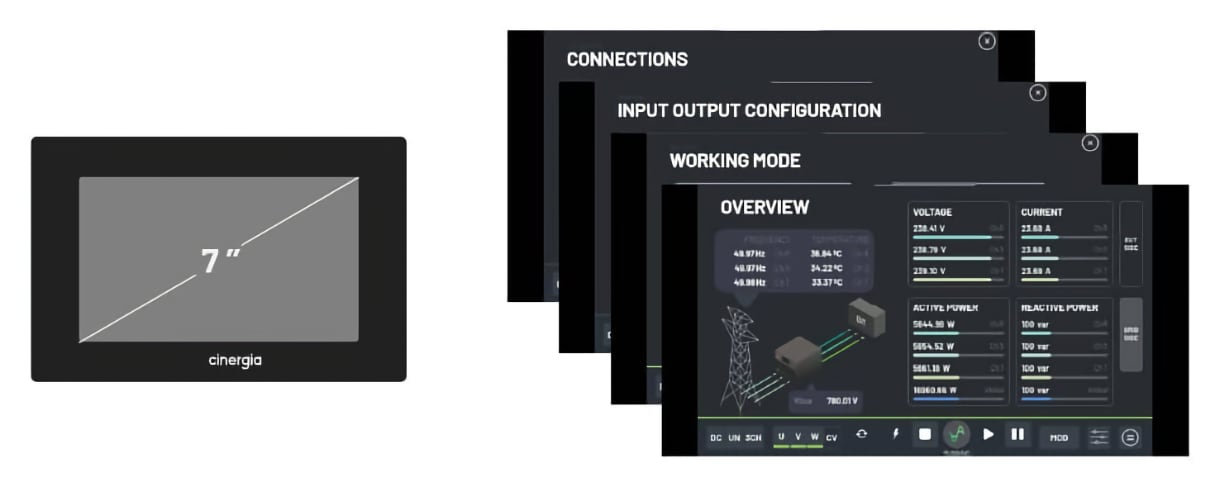

7-inch Touchscreen
Local control is simple and intuitive thanks to the 7-inch touchscreen display, the largest and brightest in its class. It allows access to all unit functions without the need for a PC: start/stop/reset, channel configuration, execution of test sequences, data display, and datalogging.

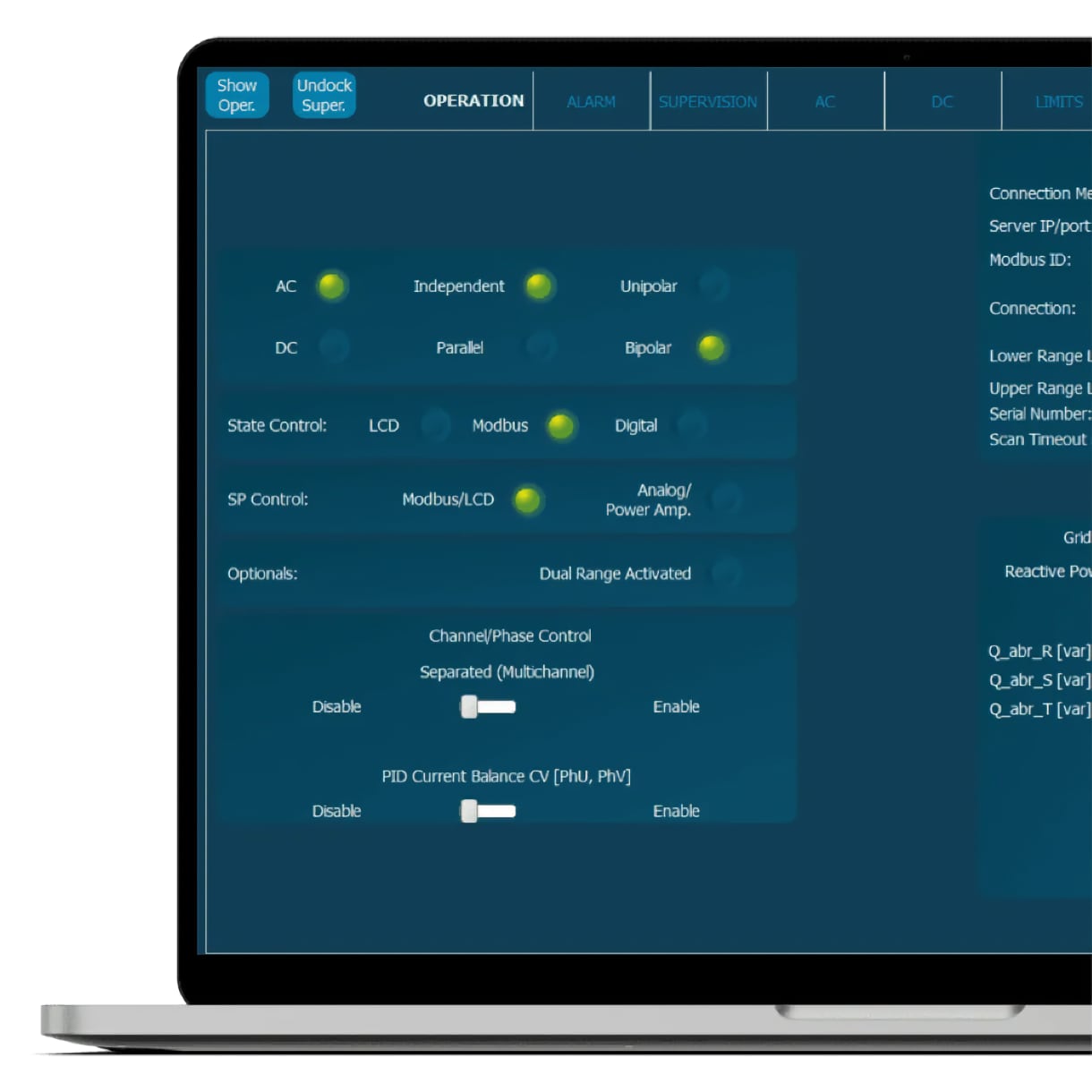

User-friendly Interface
The software interface, developed by CINERGIA's R&D team, offers complete and user-friendly control of the system, both locally and remotely. It allows you to take full advantage of all the device's capabilities and to program and execute standardized or custom tests with a minimal learning curve.
