KEYSIGHT PZ2100A Precision SMU (Source Measure Unit) Introduction
KEYSIGHT’s NEW PZ2100 Series, the best-in-industry automated test equipment (ATE) solution, uncompromisingly and densely integrates enormous source/measure unit (SMU) resources into your valuable rack space with flexible module options. It provides flexible scalability with multiple SMU module options covering a wide range of applications, from conventional static DC measurements down to 10 fA to emerging dynamic/pulsed measurements up to 15 MSa/s and down to 10 μs width. Uncompromisingly high-density integration that makes full use of available rack space, slots, or SMU module capabilities enables a lower cost per channel as well as 20x smaller rack space than conventional SMUs, thereby significantly reducing your test costs and saving valuable rack space.
Save cost and valuable rack space
- 5 SMU module options flexibly configurable and upgradable in 1U, 4 slot mainframe at lower cost/ch
- 1U, 4 slot mainframe at lower cost/ch
- Scalable up to 20 ch, 20x higher density than conventional SMU
- SMU integrating pulser/digitizer eliminates the need for additional instruments
Wide application coverage from DC to dynamic measurements
- Wide output range of up to 210 V / 3.5 A DC / 10.5 A pulse
- Low current measurement supported by minimum 10 fA high resolution
- Dynamic and pulsed measurement with 15 MSa/s sampling rate and 10 μs narrow pulse
- Wide dynamic range with auto ranging and seamless ranging
Simple integration and time efficiency
- Single box solution simplifies synchronization with multiple SMUs at < 50 ns accuracy
- User-friendly GUI accelerates the test prototyping, debugging, and troubleshooting
- SCPI programming via LAN / USB / GPIB for easy adoption to various environment
- PathWave IV Curve Software enables quick measurements without programming

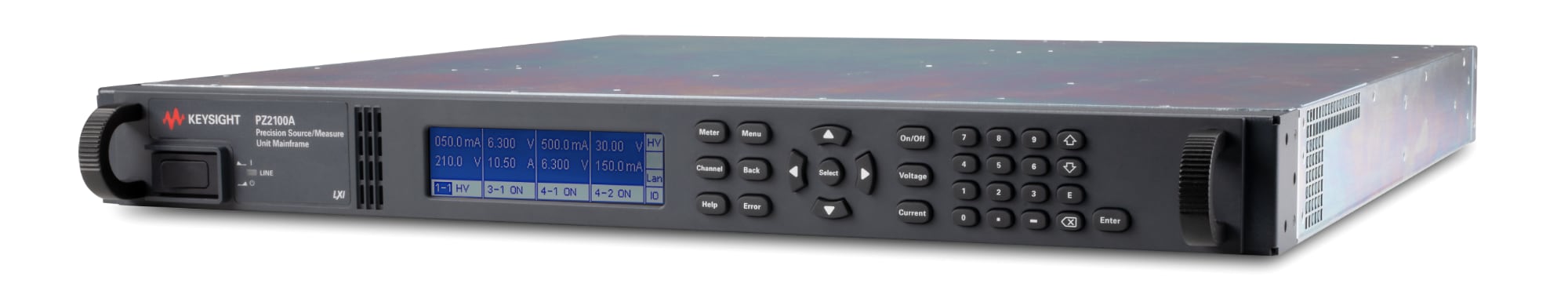

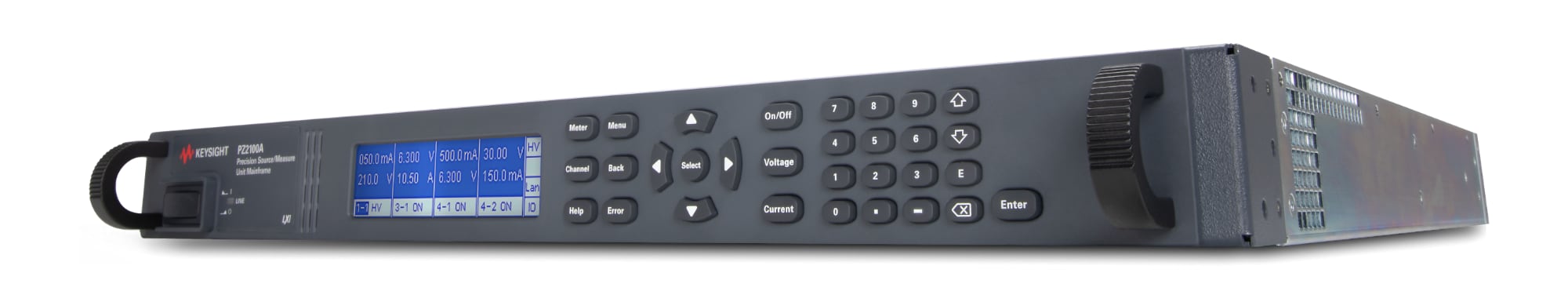

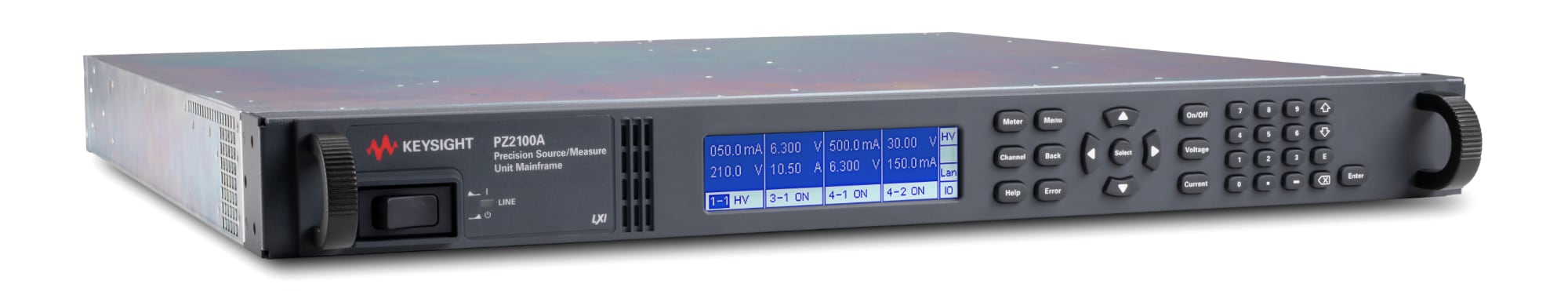

KEYSIGHT PZ2100A Precision SMU Mainframe

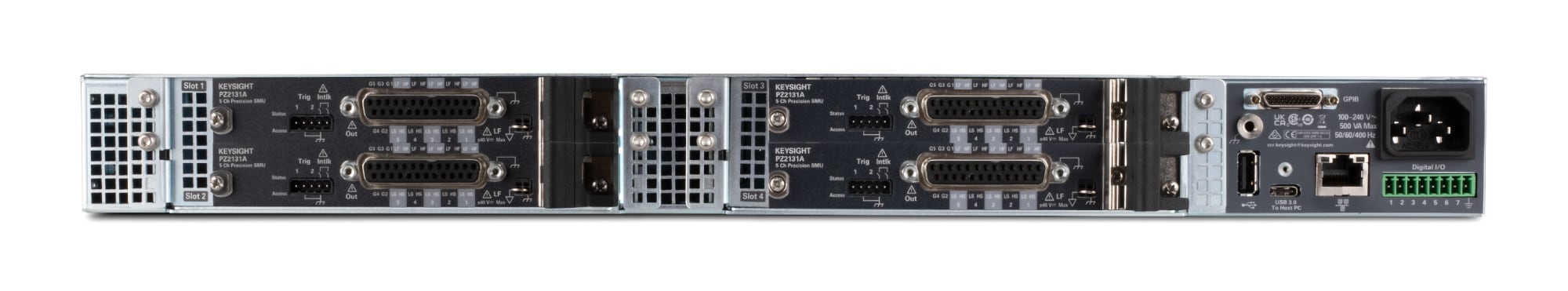

The KEYSIGHT PZ2100A is the precision Source Measure Unit (SMU) mainframe that uncompromisingly and densely integrates 20 SMU channels at maximum into valuable 1U height, full width, rack space with flexible module options at their best performance. It supports a variety of resources such as the KEYSIGHT PZ2110A High-Resolution SMU, PZ2120A and PZ2121A High-Speed SMUs, and PZ2130A and PZ2131A High-Channel Density SMUs with multiple functions such as pulser and digitizer, as well as precise voltage/current sourcing and measuring to adapt to a wide range of application requirements.
| Type |
Model |
Description & Key Features |
| Mainframe |
PZ2100A |
Precision SMU Mainframe, 4 slots, 1U
- Scalable up to 20 channels
- 5 SMU module options flexibly configurable and upgradable
- Simplified synchronization at <50 ns accuracy
- User-friendly GUI collectively managing up to 20 channels
|
| High-resolution SMU |
PZ2110A |
Precision SMU, 1.25 MSa/s, 10 fA, 210 V, 315 mA DC/pulse
- 10 fA resolution with 30 fArms measurement noise (1 PLC)
- Narrow pulse down to 20 μs pulse width
- Fast digitizer mode with sampling rate up to 1.25 MSa/s
- Fast transient with 1.4 V/μs slew rate at max
|
| High-speed SMU |

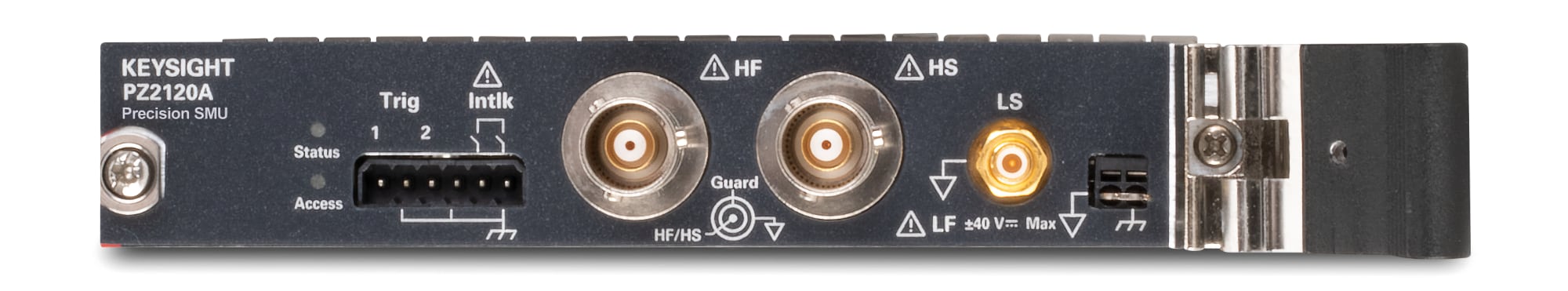

PZ2120A |
Precision SMU, 1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse
- Narrow pulse down to 50 μs pulse width
- Fast digitizer mode with 1 MSa/s sampling rate
- Wide output range up to 60V/3.5 A DC/10.5 A pulse
- Wide dynamic range with seamless measurement ranging
|

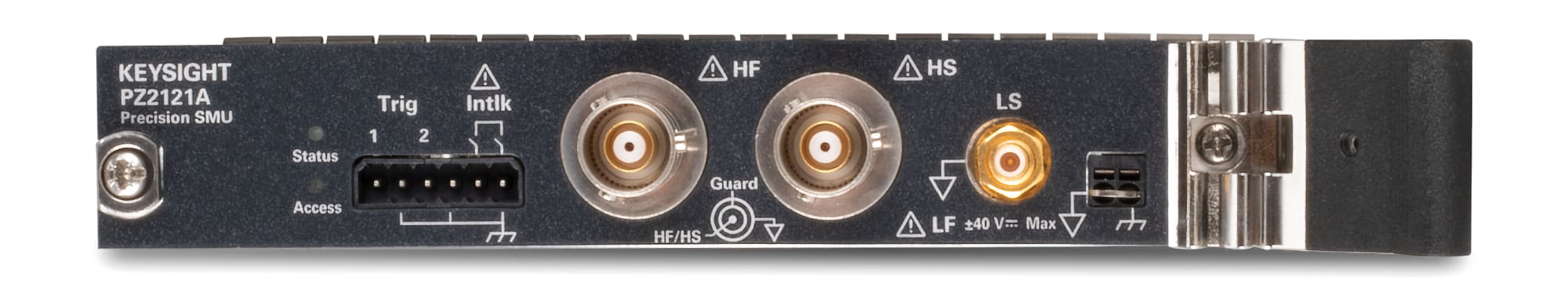

| PZ2121A |
Precision SMU, 15 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse
- Narrow pulse down to 10 μs pulse width
- Fast digitizer mode with 15 MSa/s sampling rate
- Wide output range up to 60V/3.5 A DC/10.5 A pulse
- Wide dynamic range with seamless measurement ranging
|
| High-channel Density SMU |

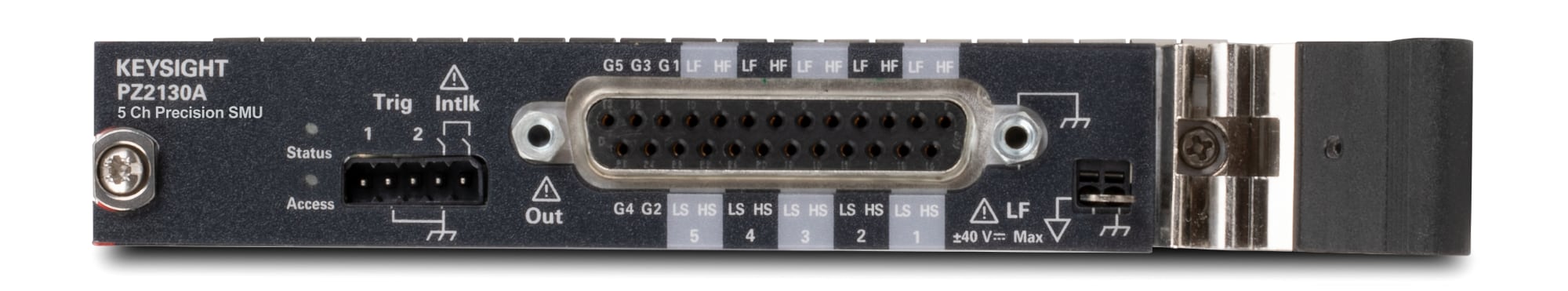

PZ2130A |
5-ch Precision SMU, 100 pA, 30 V, 500 mA DC (Ch1 and Ch2 expand the maximum current to +750 mA by over-range capability)
- High-density (20 Ch in 1U rack height, full width at max.)
- Low cost/ch for multi-ch applications
- Fast sampling measurement with sampling rate at 250 kSa/s
- Low voltage source noise down to 25 μVrms with PX0107A
|

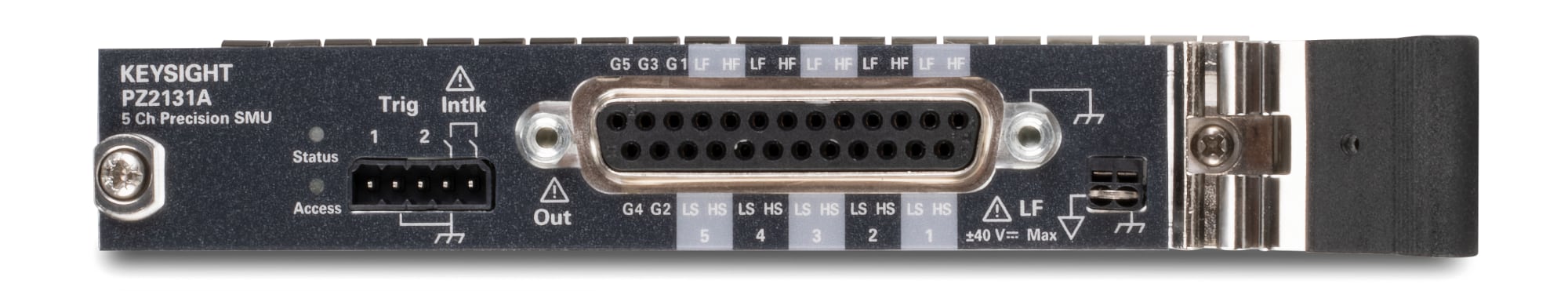

| PZ2131A |
5-ch Precision SMU, 500 kSa/s, 10 pA, 30 V, 500 mA DC/pulse (Ch1 and Ch2 expand the maximum current to +750 mA by over-range capability)
- High-density (20 Ch in 1U rack height, full width at max.)
- Narrow pulse down to 100 μs pulse width
- Fast digitizer mode with sampling rate at 500 kSa/s
- Low voltage source noise down to 25 μVrms with PX0107A
|
