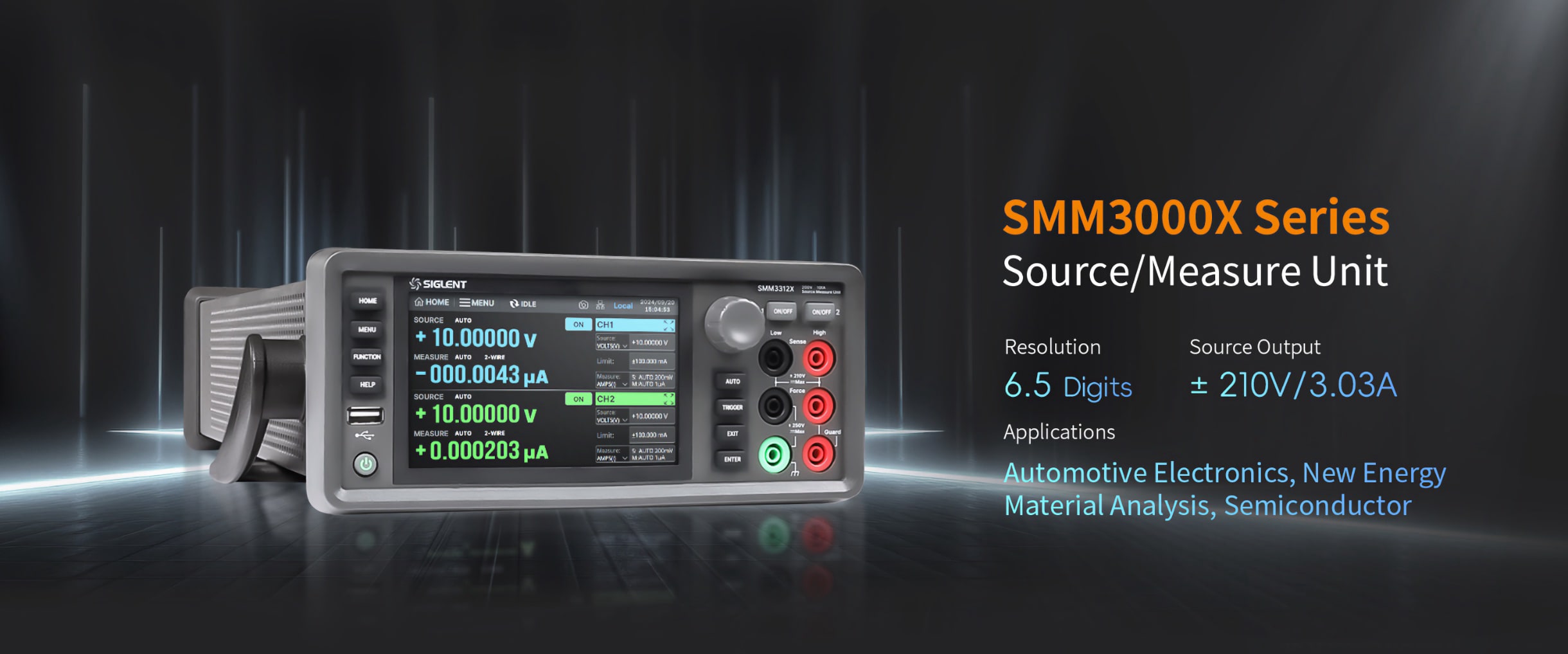

SIGLENT SMM3000X: Precision Source Measure UniT (SMU)
The SIGLENT SMM3000X series redefines measuring instrument standards by combining current source, voltage source, voltmeter, and ammeter functions into a single unit. This Source Measure Unit (SMU) allows you to supply and measure voltage and current simultaneously, offering a fast and seamless transition between different test modes.

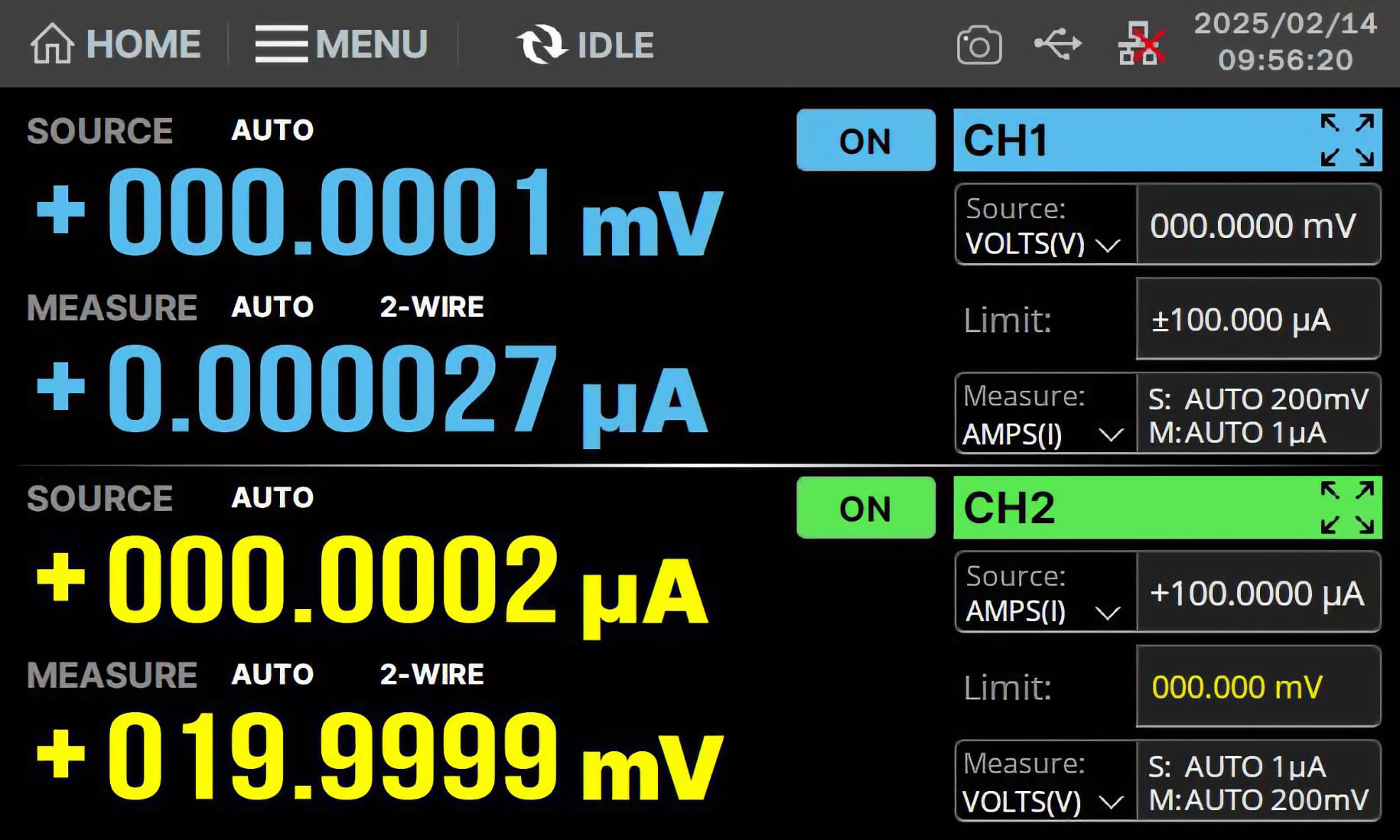

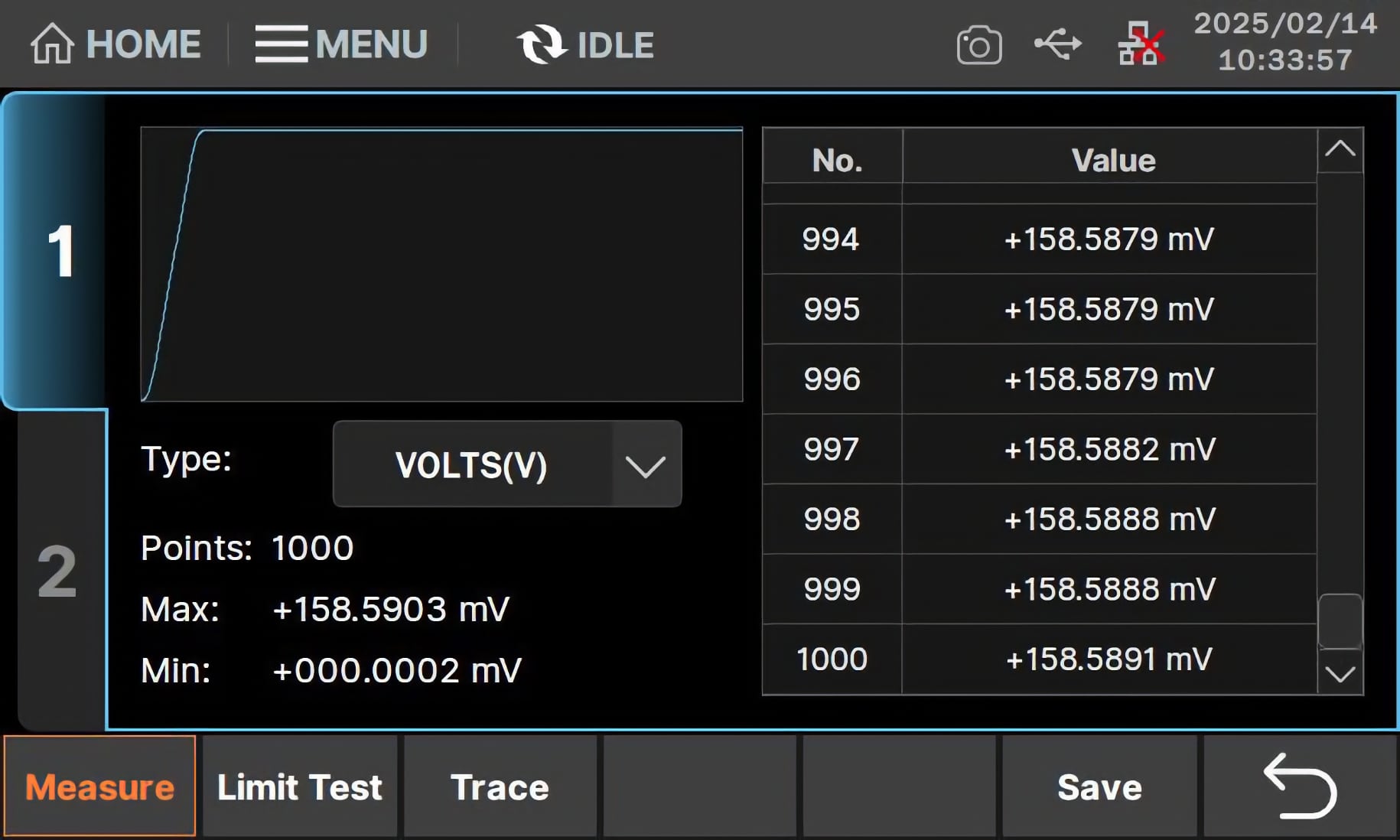

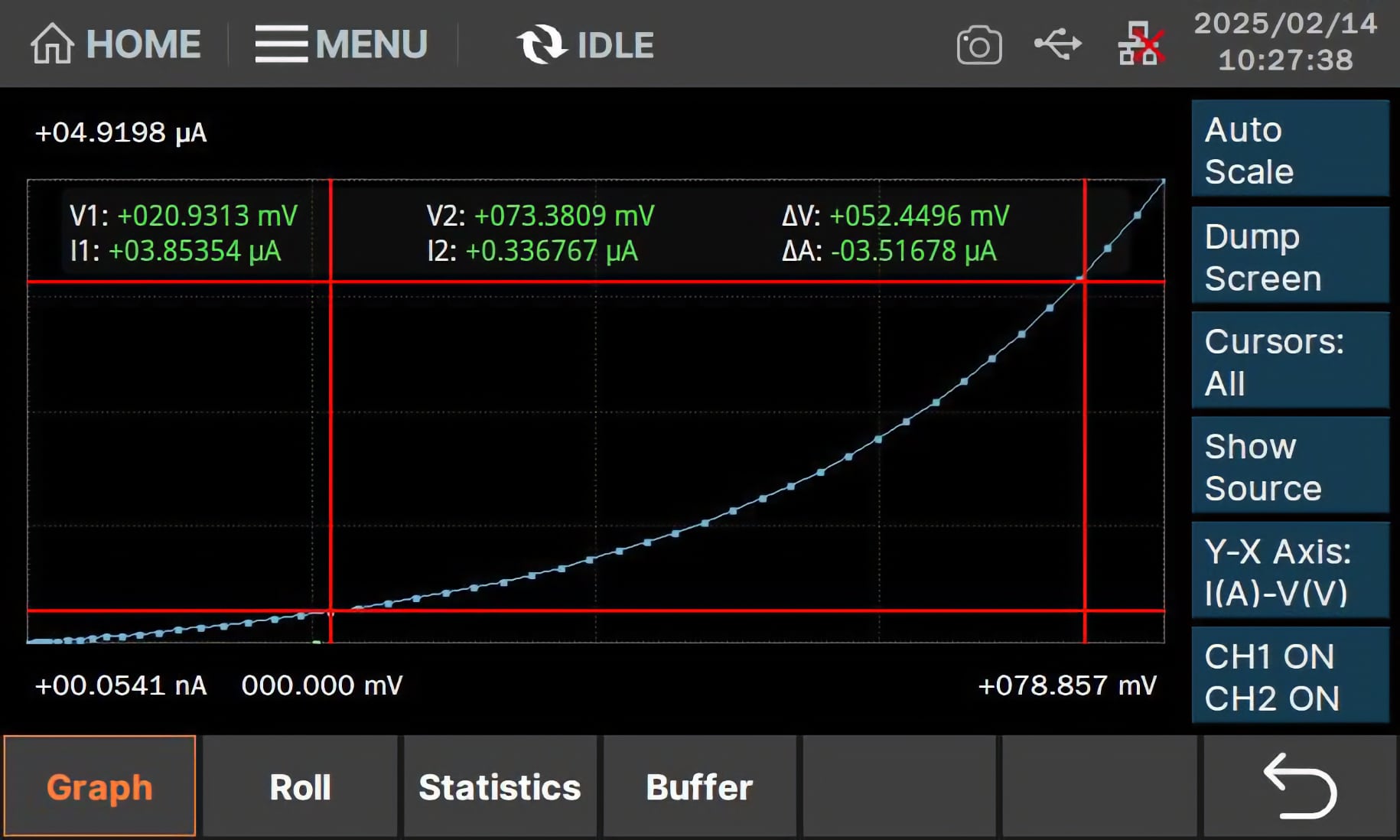

Equipped with an intuitive Graphical User Interface (GUI) on a high-resolution 5-inch capacitive touch screen display, SMM3000X is the ideal tool for characterizing modern semiconductors, nanoscale devices, organic materials, printed electronics, and low-power components. it is widely used in research, education, and industrial development.
Key Features

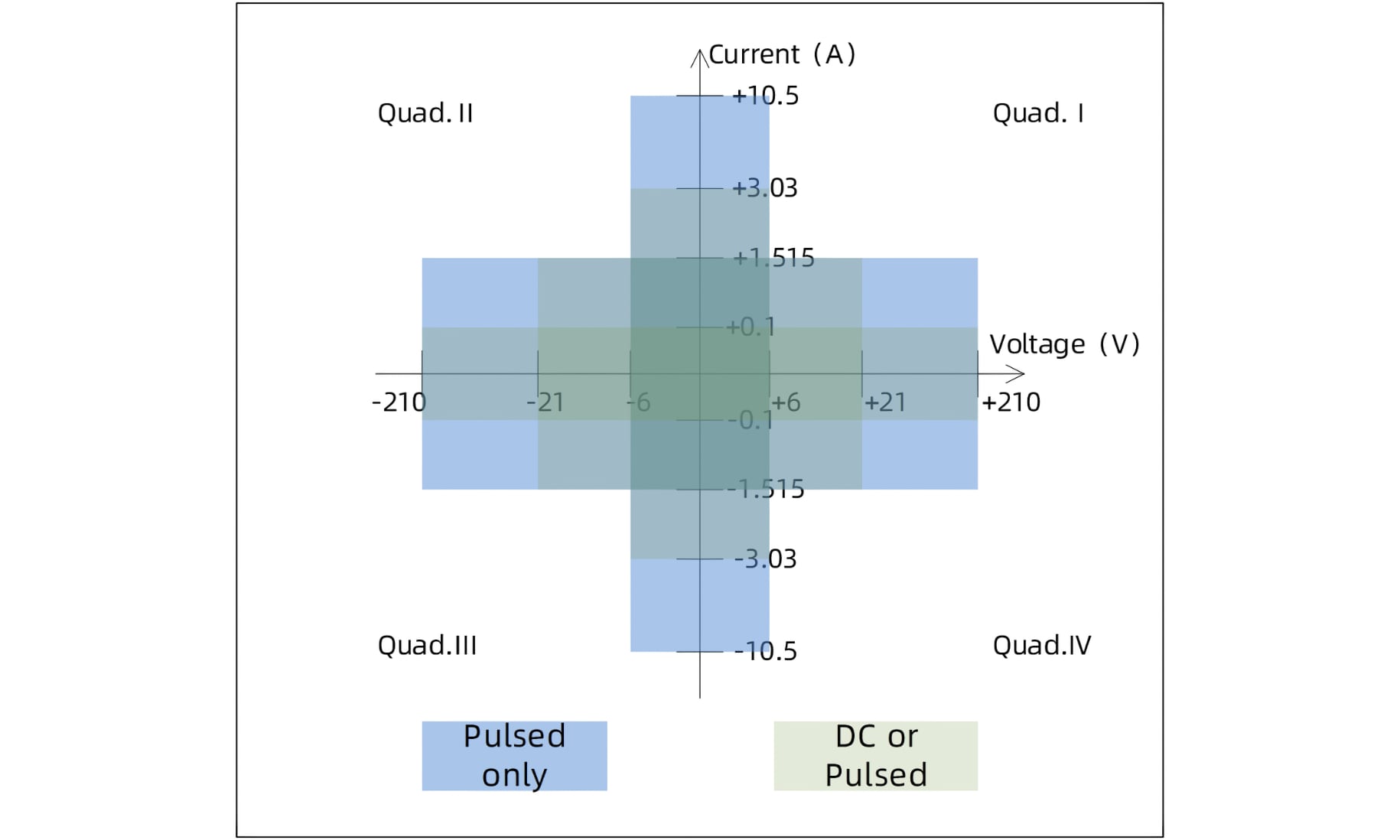

- 4-Quadrant Source and Measurement: Ability to operate on independent single or dual channels.
- Wide Operating Range: Voltage up to ±210 V, current up to ±3 A (DC) and ±10.5 A (pulsed).
- Extreme Resolution: Sourcing and measuring sensitivity up to 10 fA and 100 nV.
- High-Precision Display: Clear and detailed readings up to 6½ digits (2,100,000 counts).
- Fast Sampling: Maximum sampling rate of 100 ksps, with a minimum trigger interval of 10 μs.

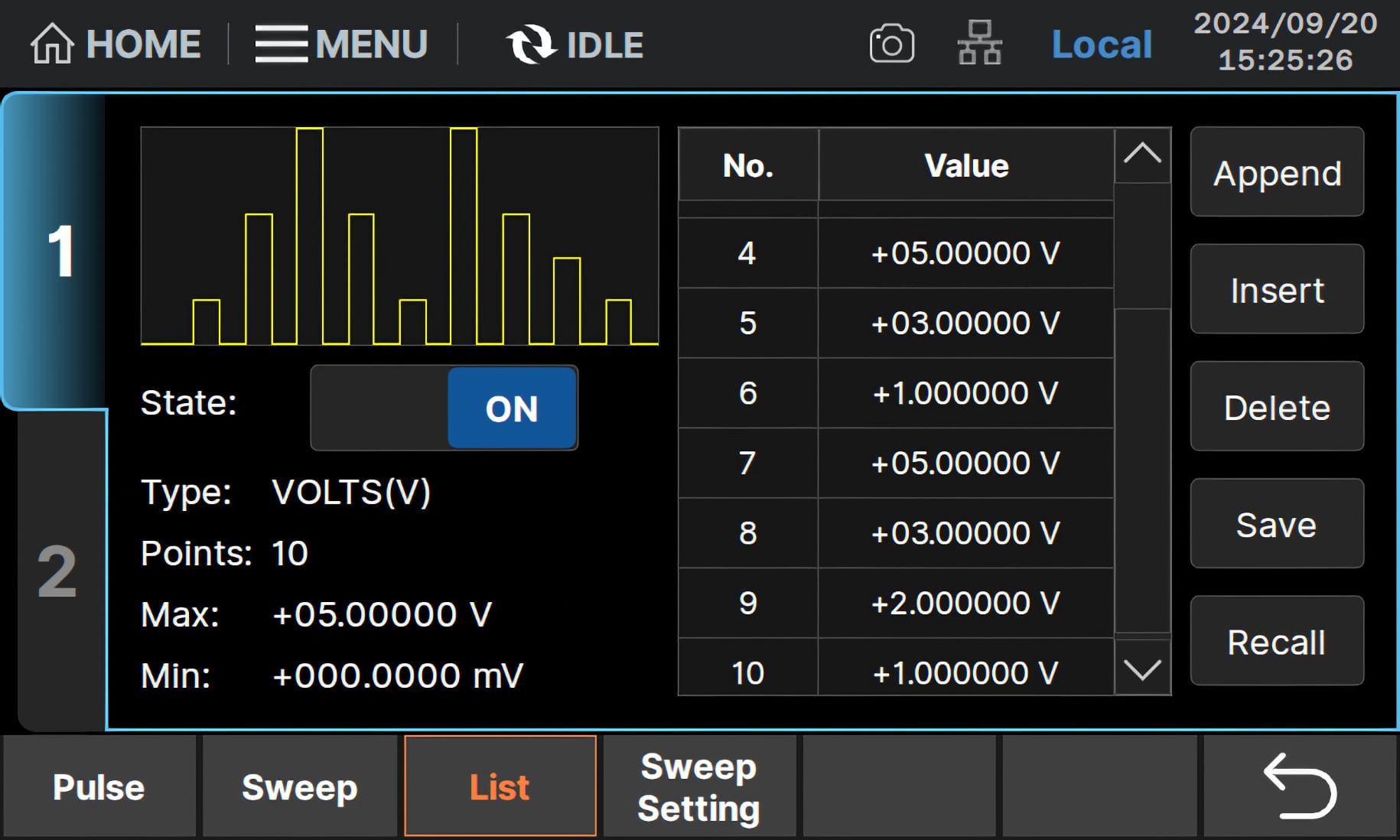

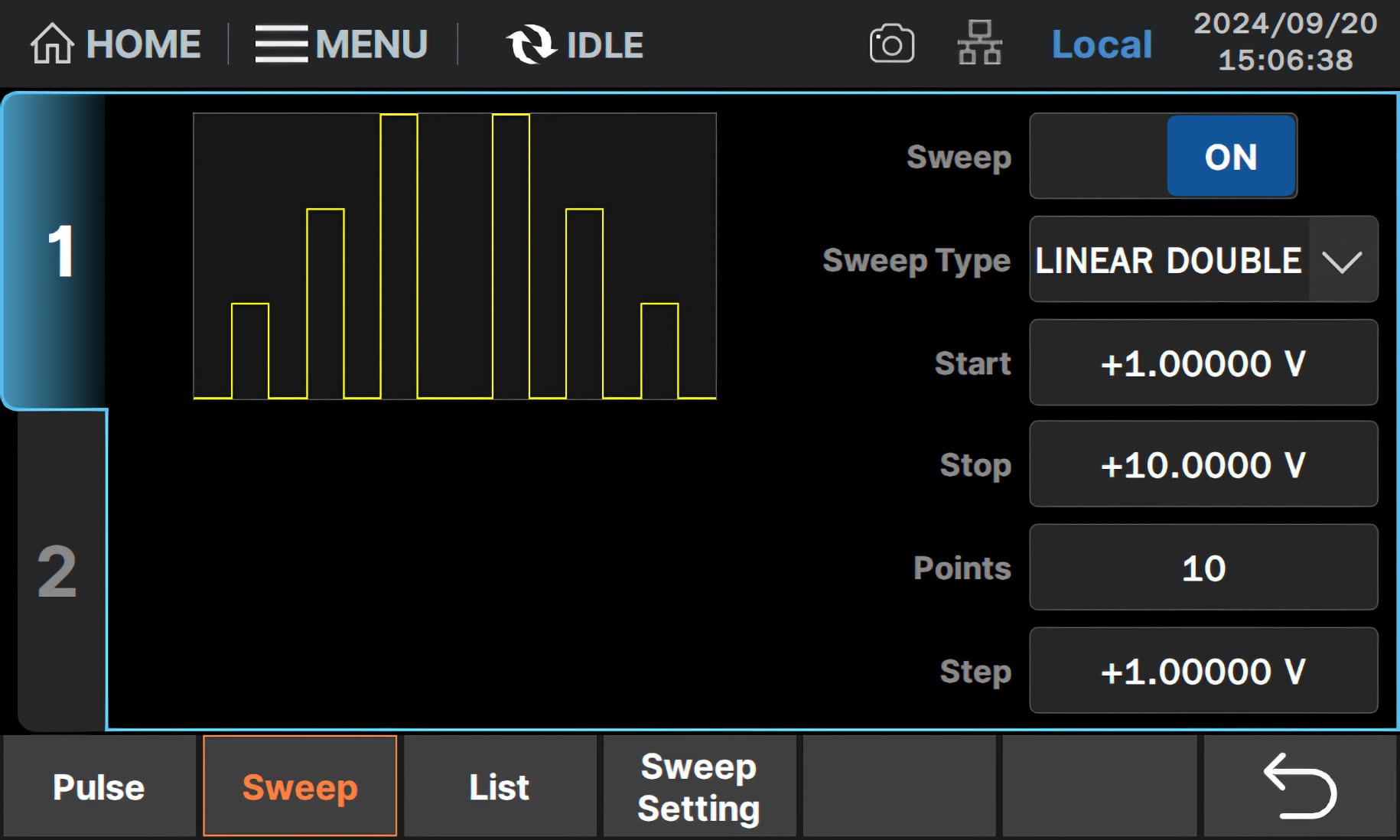

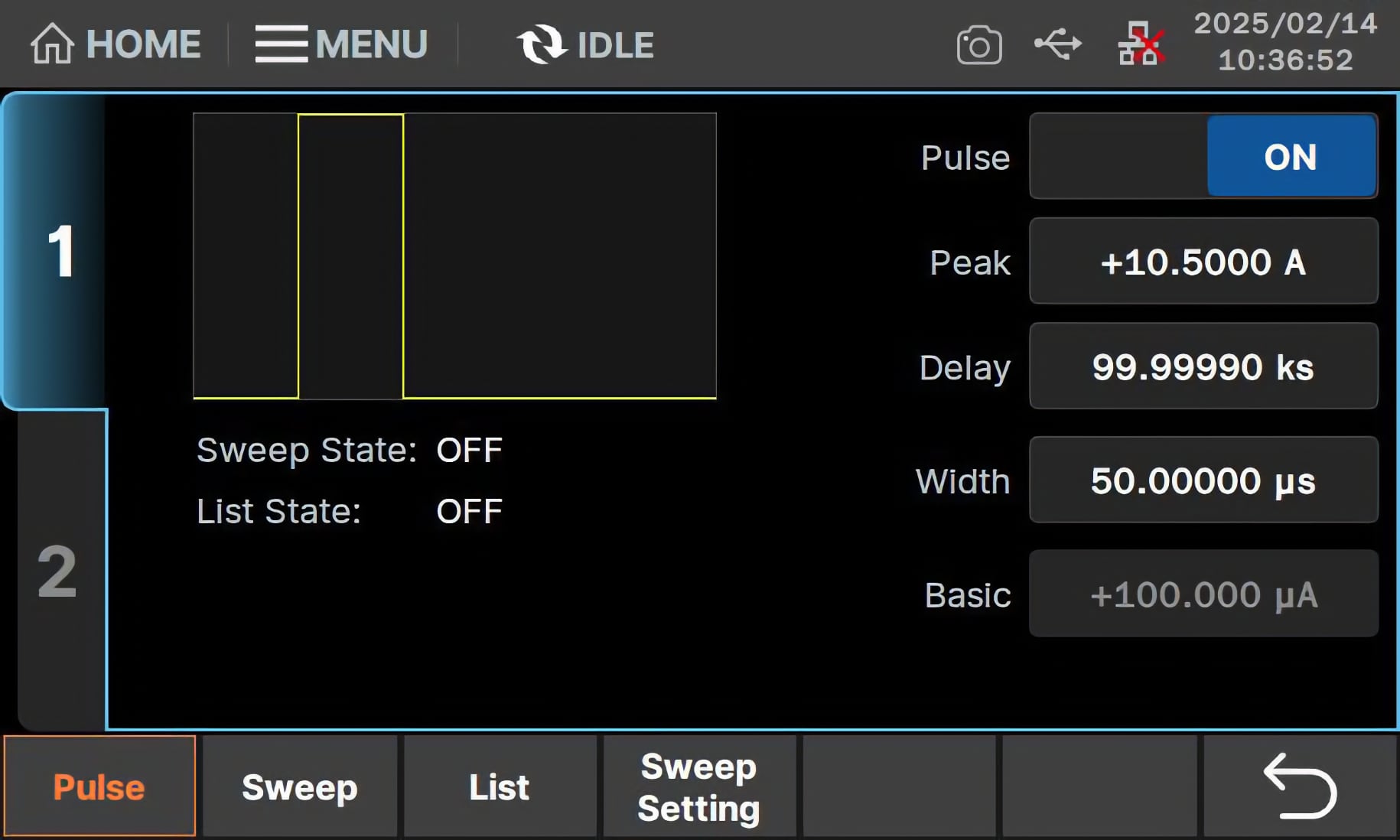

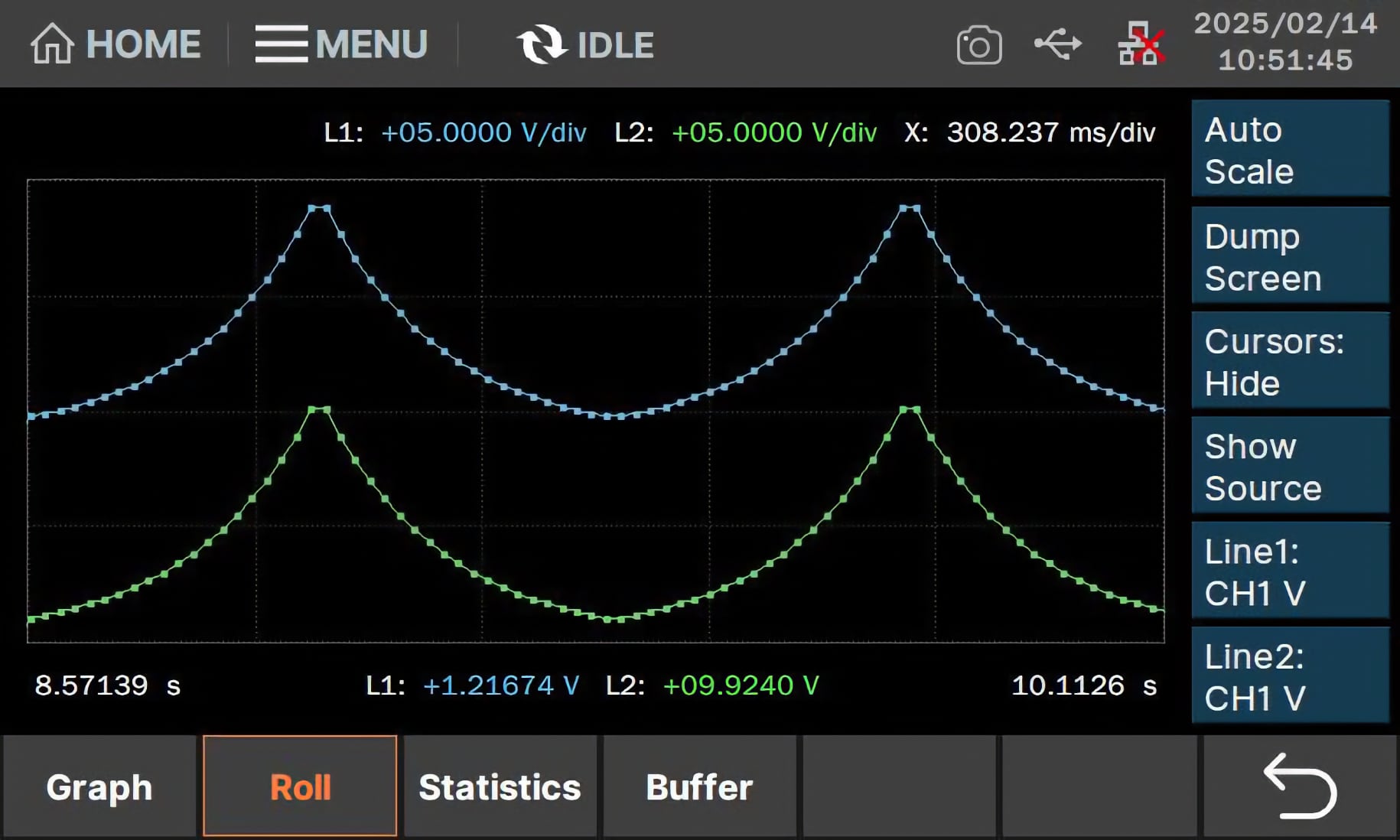

- Integrated Functionalities: Pulse, Sweep, List Sweep, Output Filter, Resistance Measurement, Math Expressions, Limit Test, Trace Buffer, and Advanced Trigger System.
- Complete Interfaces: USB Host/Device, LAN (with Web-server support), and optional USB-GPIB adapter.
- Advanced Measurement Support: 2 and 4-wire measurement modes.
Model Comparison
| Main Specifications |
SMM3311X |
SMM3312X |
| Number of Channels |
1 |
2 |
| Voltage (Source and Measure) |
±210 V |
±210 V |
| Current (DC / Pulsed) |
±3.03 A / ±10.5 A |
±3.03 A / ±10.5 A |
| Voltage Resolution |
100 nV |
100 nV |
| Current Resolution |
10 fA |
10 fA |
| Display Digits |
6½ (2,100,000 counts) |
6½ (2,100,000 counts) |
In-depth: STC6P Series Adapters
For critical applications requiring maximum noise shielding, SIGLENT has developed the STC6P adapter series. Designed natively to interface with the SMM3000X series, these connectors transform standard banana inputs into professional triaxial connections.
The STC6P adapters are essential for low-current measurements (below 1 nA), eliminating leakage currents thanks to the use of the "Guard" terminal. They are perfect for easily connecting the SMU to triaxial test fixtures or wafer inspection stations.
- STC6P4W: Banana to Triaxial Adapter, for 4-wire (Kelvin) connections.
- STC6P2W: Banana to Triaxial Adapter, for 2-wire connections.
- STC6P2W-B: Compact 2-wire Banana to Triaxial adapter.
