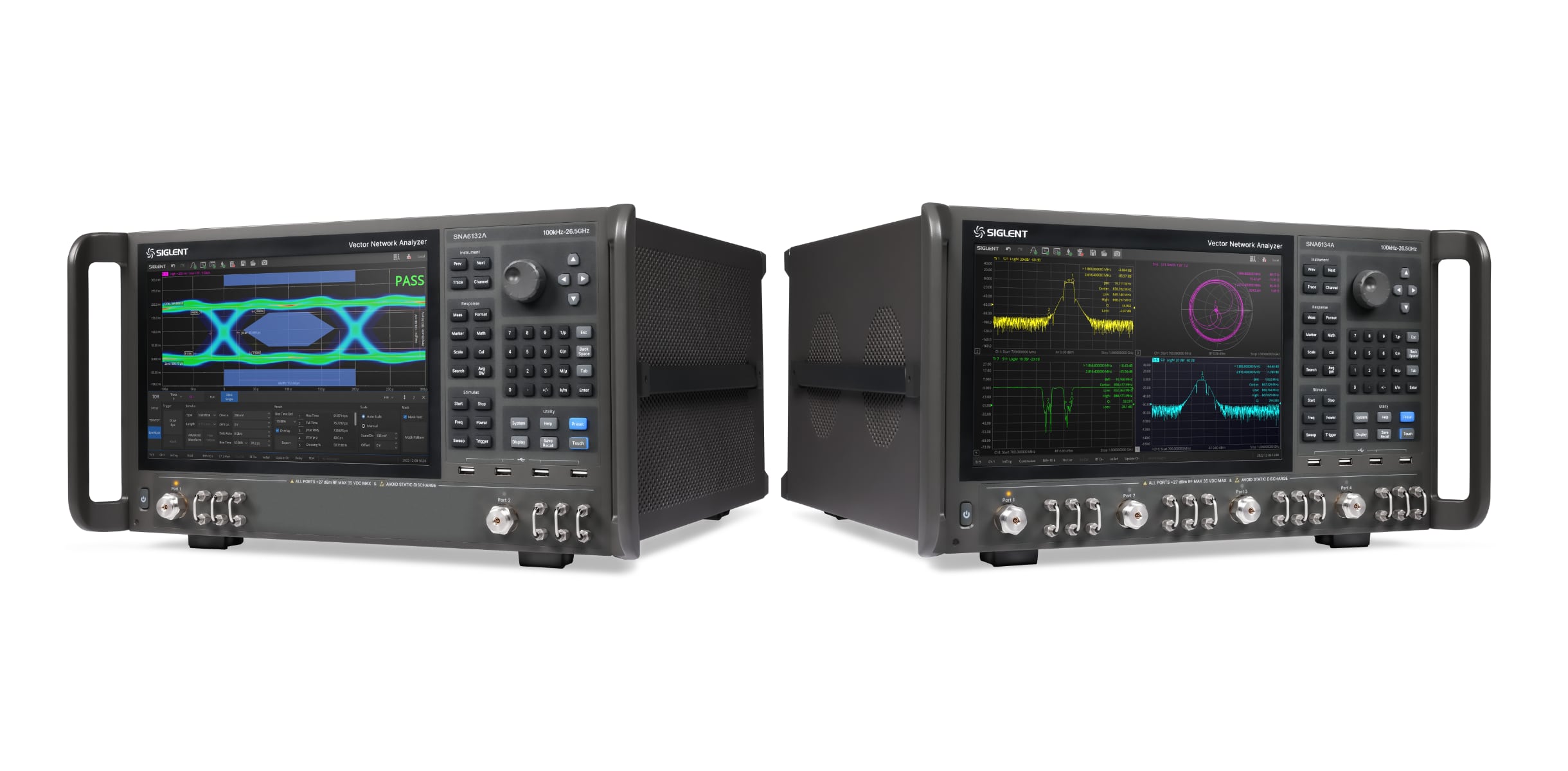

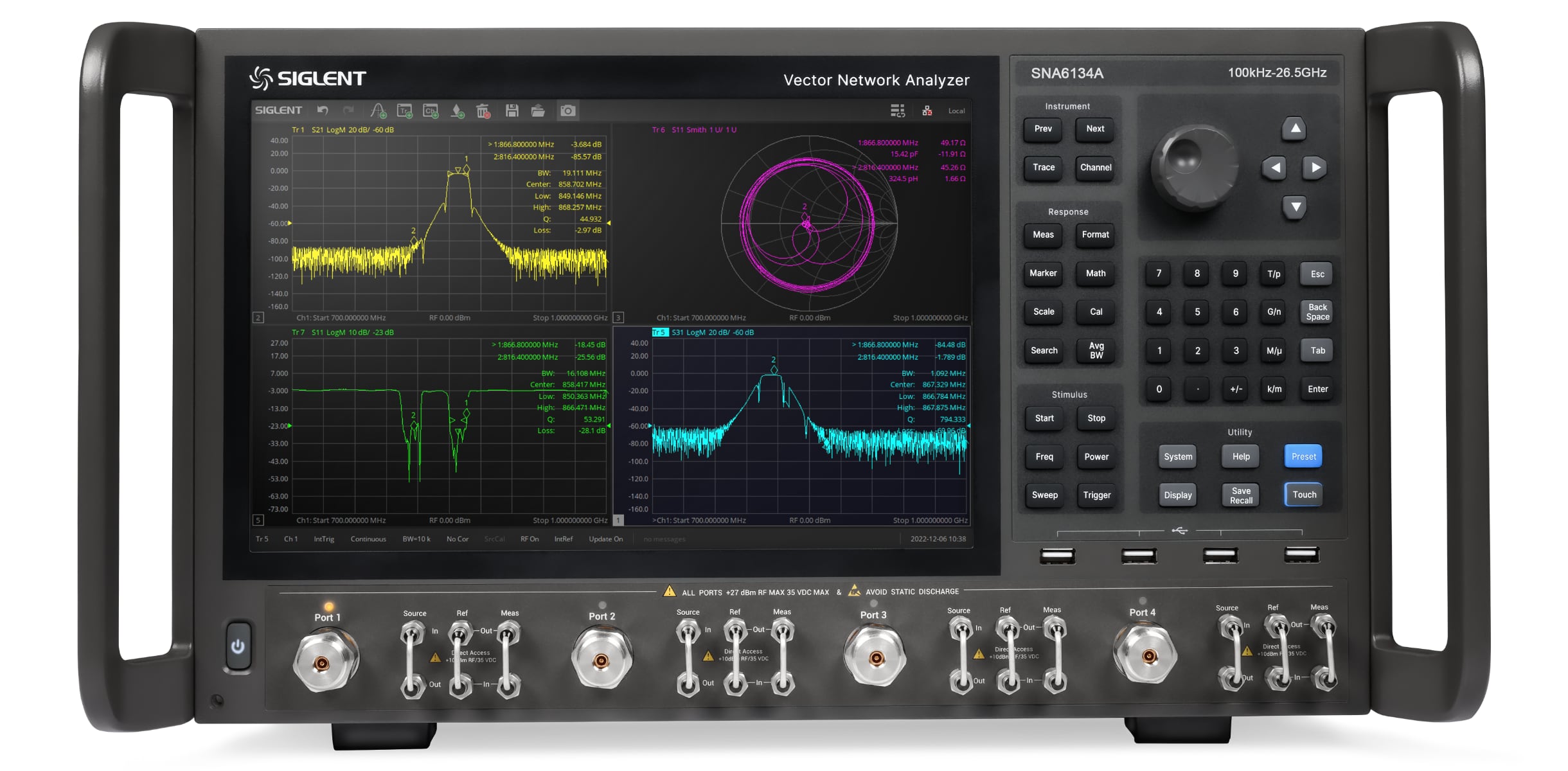

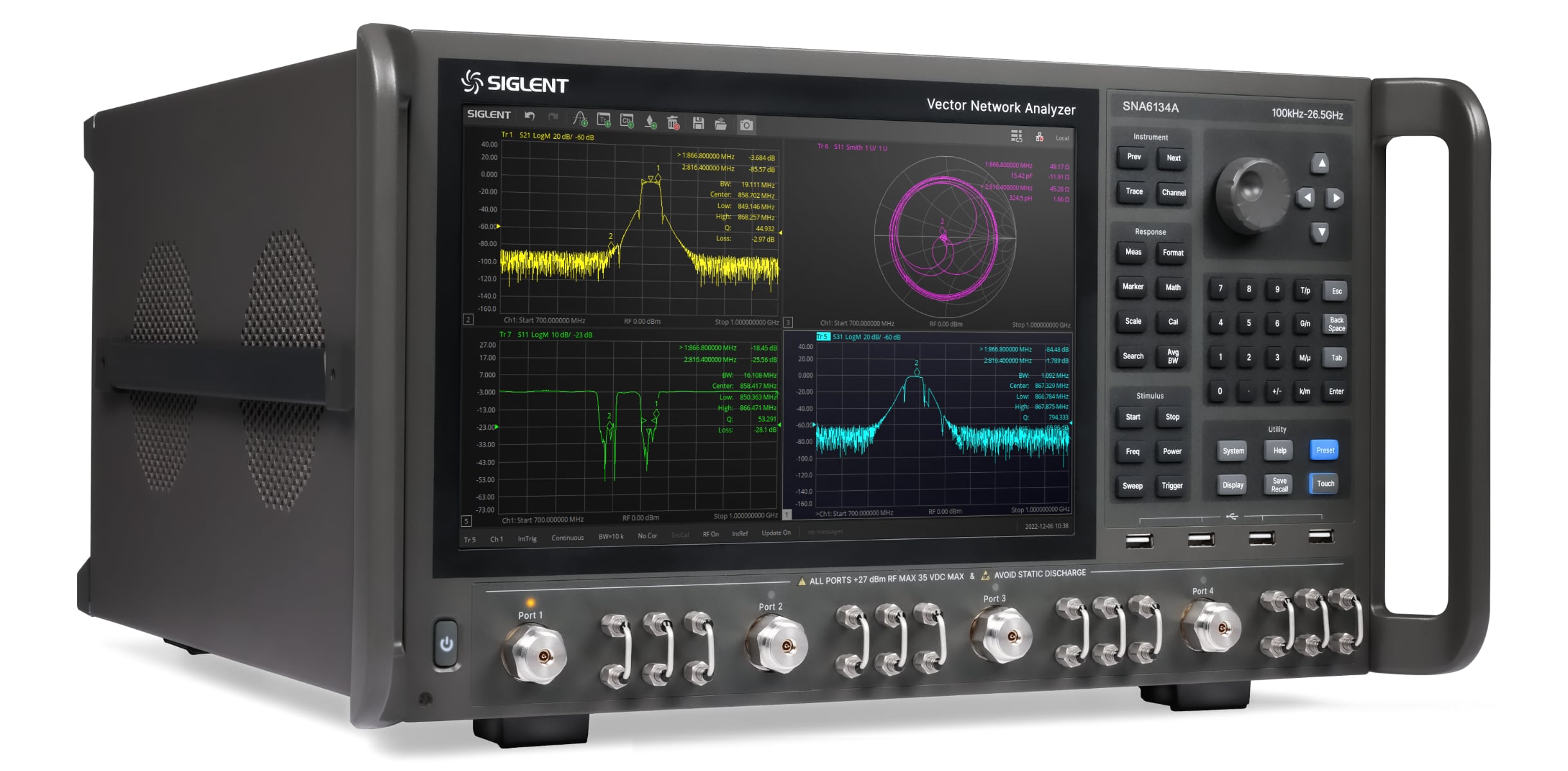

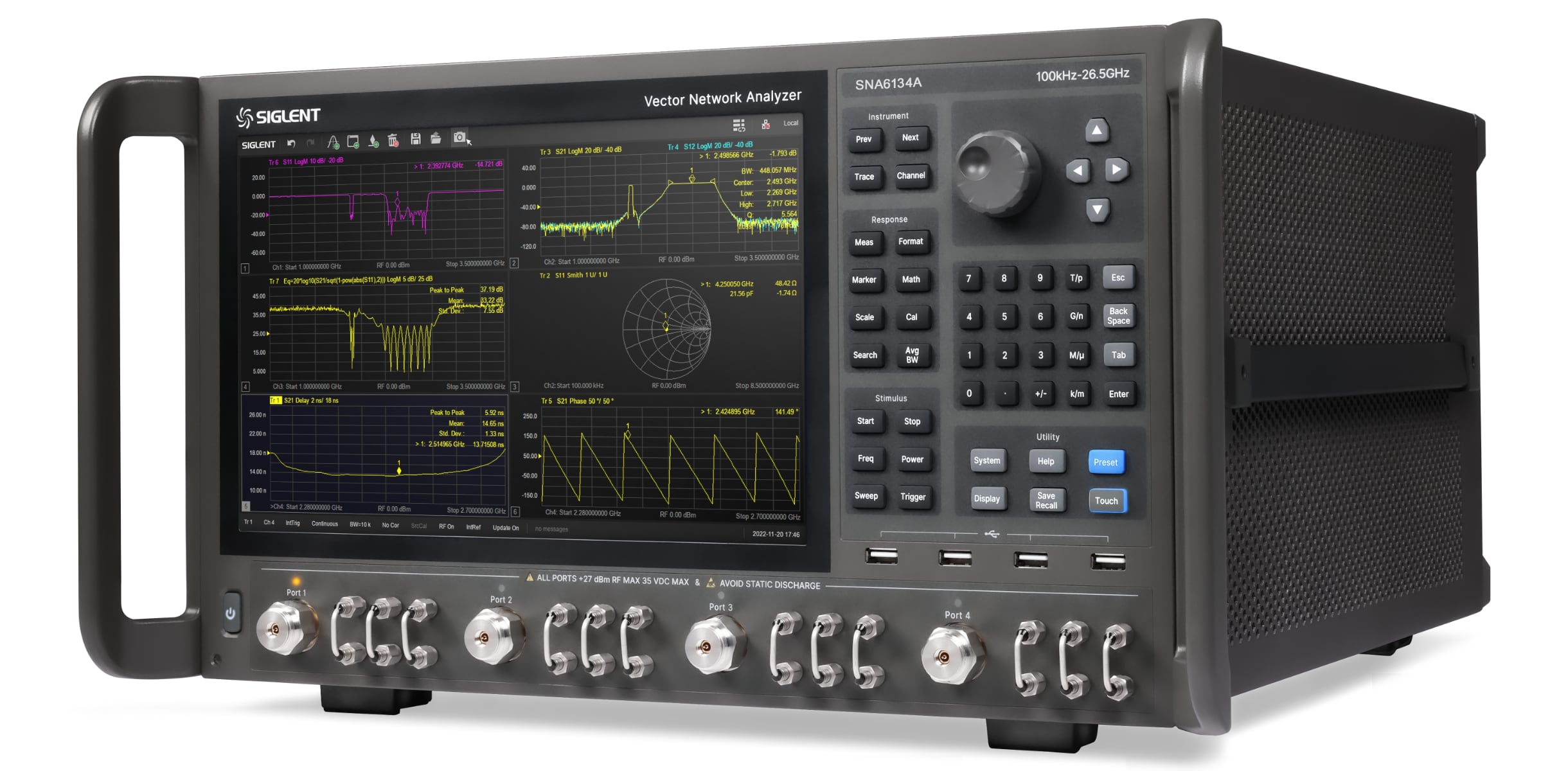

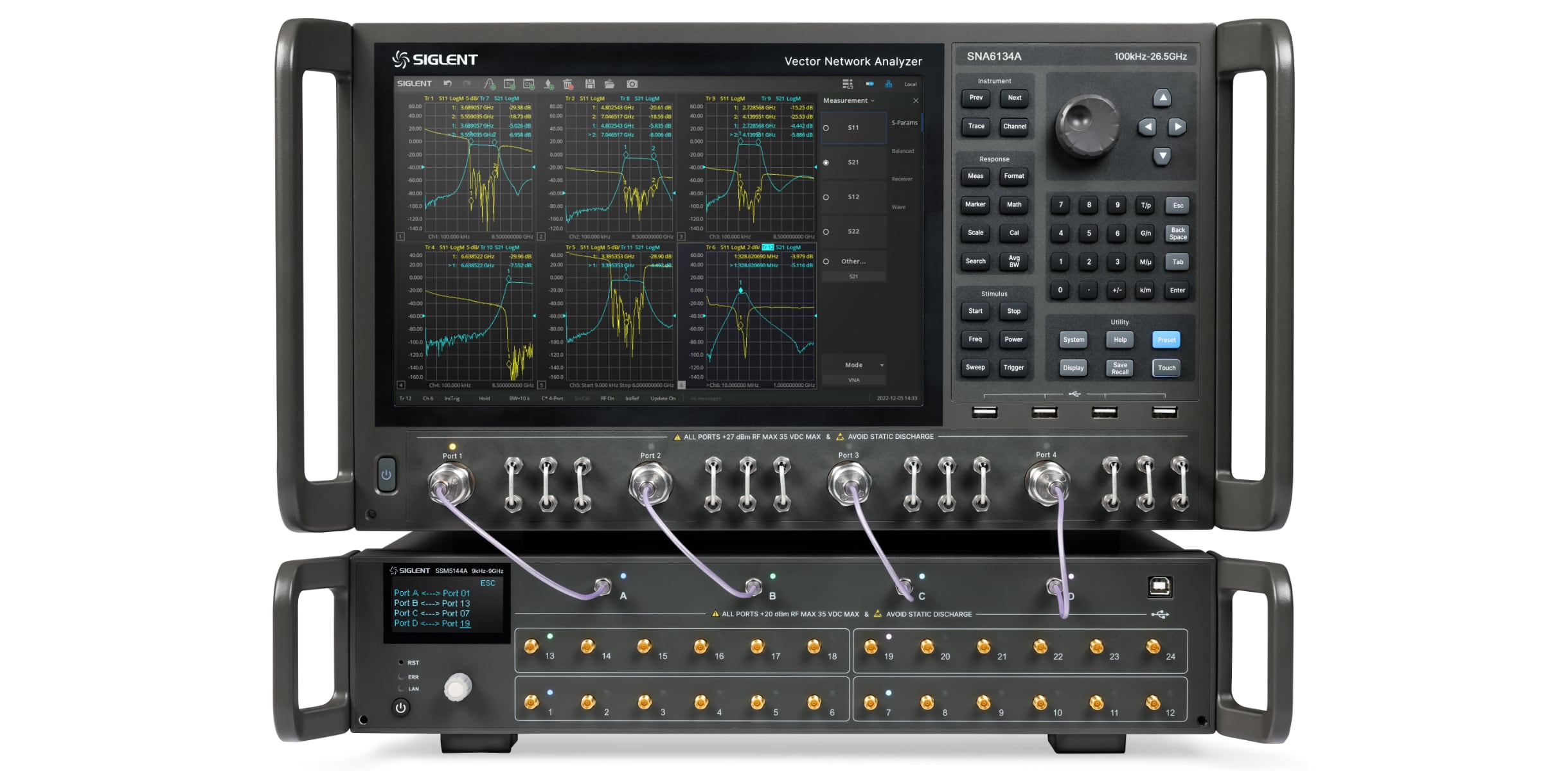

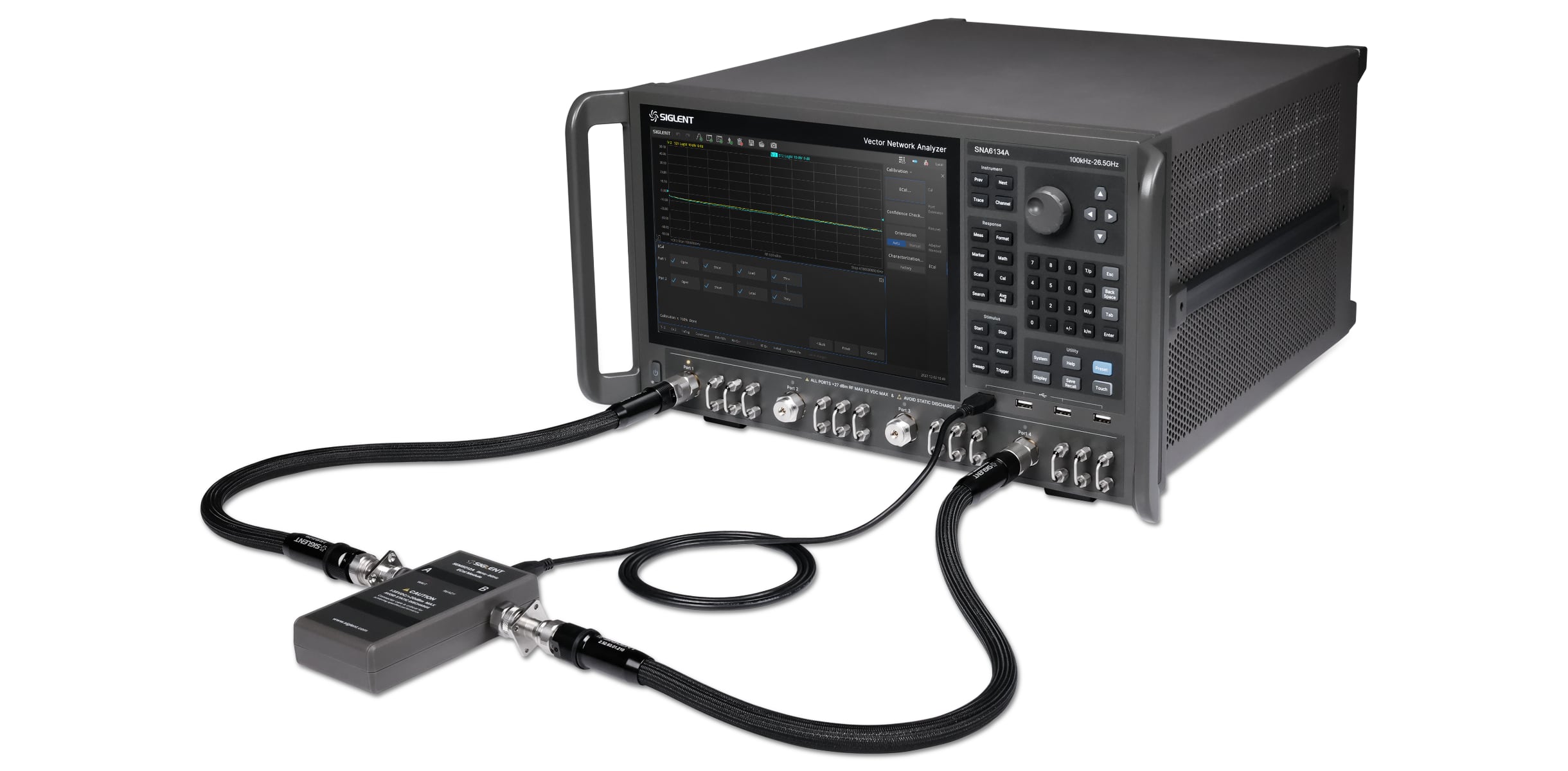

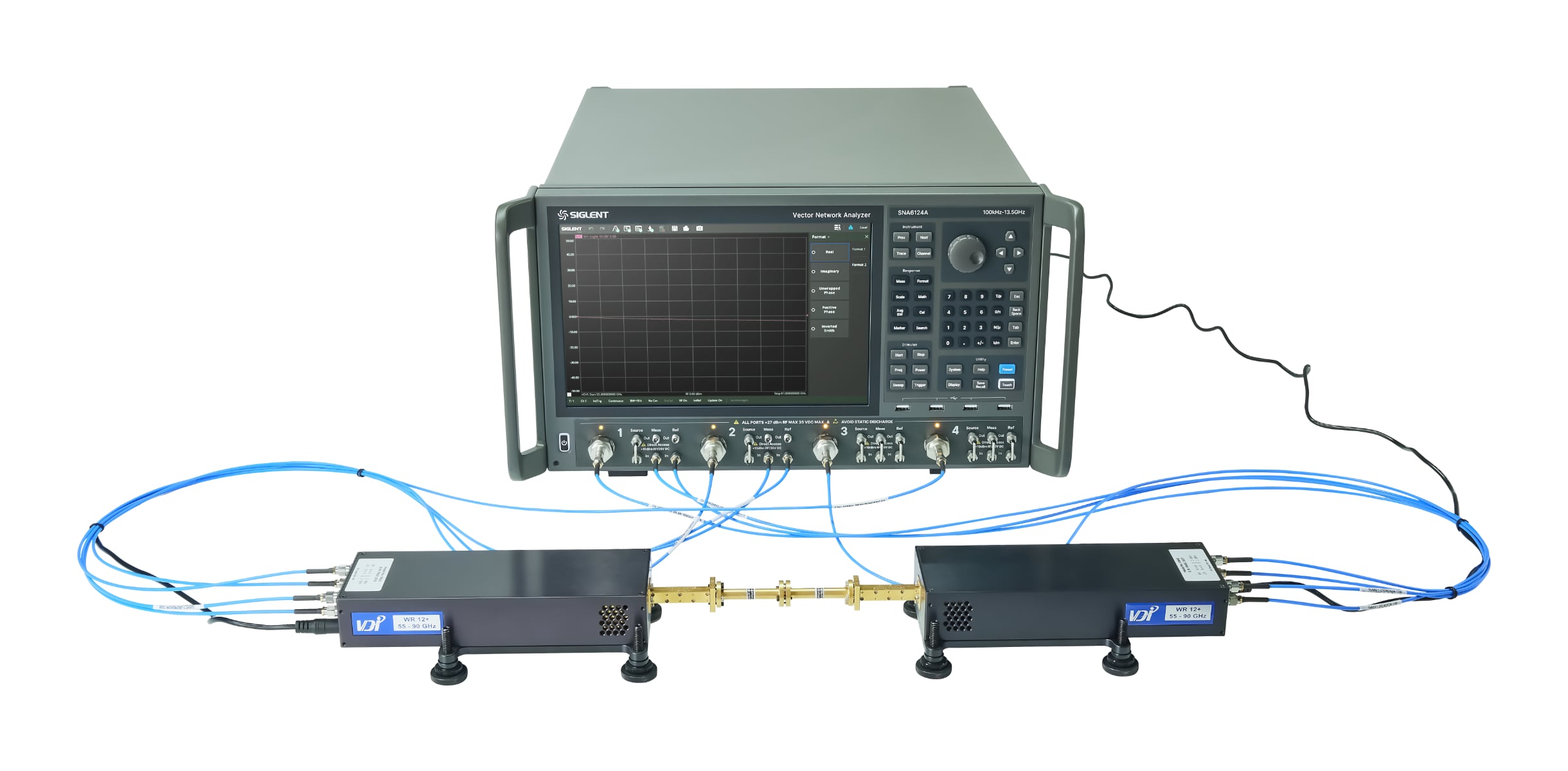

SIGLENT SNA6000A Series Vector Network Analyzers (VNA) Introduction
The SIGLENT SNA6000A series vector network analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter and time-domain parameter measurements. The SNA6000A series are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter. It features impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.
Series Features:
- Frequency range: 100 kHz - 13.5 GHz and 100 kHz - 26.5 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 1 Hz~10 MHz
- Setting range of output level: -55 dBm ~ +10 dBm
- Dynamic range: 135 dB
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
- Types of measurement: Scatteringparameter measurement, differentialparameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement, Material Measurement
- Internal Bias-Tee connections

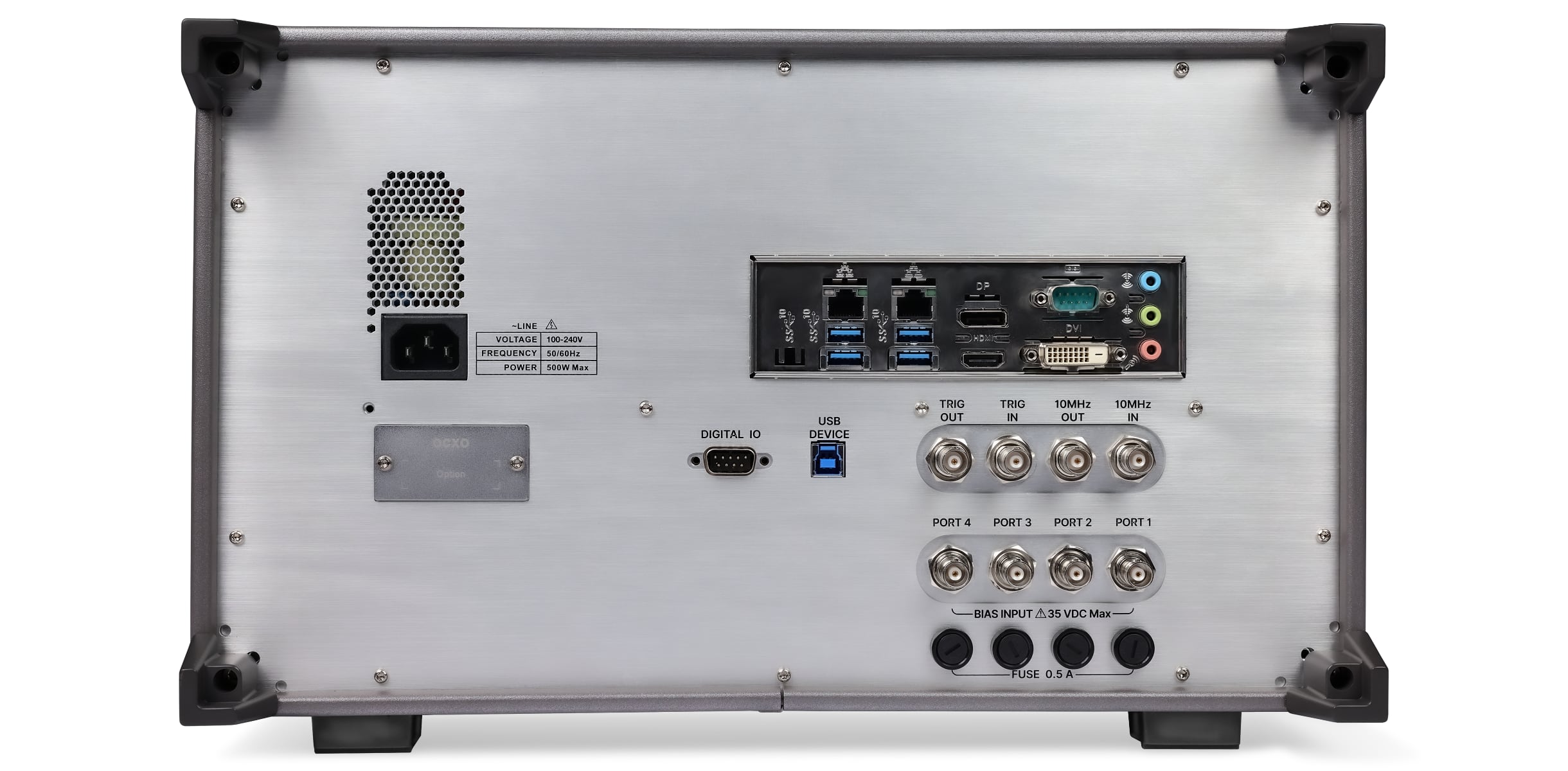

- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
- Display: 12.1" touch screen
- Video output: HDMI / DVI-D / DP
| Model |
SNA6134A |
SNA6132A |
SNA6124A |
SNA6122A |
SNA6034A |
SNA6032A |
SNA6024A |
SNA6022A |
| Frequency range |
100 kHz - 26.5 GHz |
100 kHz - 13.5 GHz |
100 kHz - 26.5 GHz |
100 kHz - 13.5 GHz |
| Ports |
4 |
2 |
4 |
2 |
4 |
2 |
4 |
2 |
| Front panel jumper interface |
✔ |
✔ |
✔ |
✔ |
- |
- |
- |
- |
| Frequency resolution |
1 Hz |
| Level resolution |
0.05 dB |
| Range of IFBW |
1 Hz ~ 10 MHz |
| Number of points |
2 to 100,001 |
| Setting range of output level |
-55 dBm ~ +10 dBm |
| Dynamic range |
135 dB |
| Types of calibration |
Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration |
| Types of measurement |
Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement, Material Measurement |
| Bias-Tees |
Support |
| Interface |
LAN, USB Device, USB Host (USB-GPIB) |
| Remote control |
SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer |
| Display |
12.1" touch screen |
| Video output |
HDMI / DVI-D / DP |
