Time Electronics 1007 DC Millivolt Potentiometer and Calibrator
Time Electronics 1007 is a handheld calibrator that can be used for potentiometric voltage measurement in addition to its operation as a millivolt source. The null zero and sensitivity are adjustable via front panel controls. Maximum sensitivity enables null balance to resolve 3 microvolt.
Three output ranges are provided to give adjustable output values from 1 μV to 1 V with a basic 0.02 % accuracy. For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The 1007 uses a precision reference diode and low temperature coefficient resistors to give a highly stable output.
Power is provided by 6 AA batteries. Battery life is several months, depending on usage. The battery condition is monitored by an indicator situated on the top of the unit. The 1007 has up to 20 mA drive current and is short circuit and overload protected. An off, normal or reverse output polarity switch is provided.
Features:
- 3 ranges up to 1 V
- Accuracy 0.02%
- 20 mA output current
- Short circuit and overload protection
- LED null measuring facility
- 100 hours typical battery life
- Portable with protective rubber cover
Safety Terminals
The instrument connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Added Protection

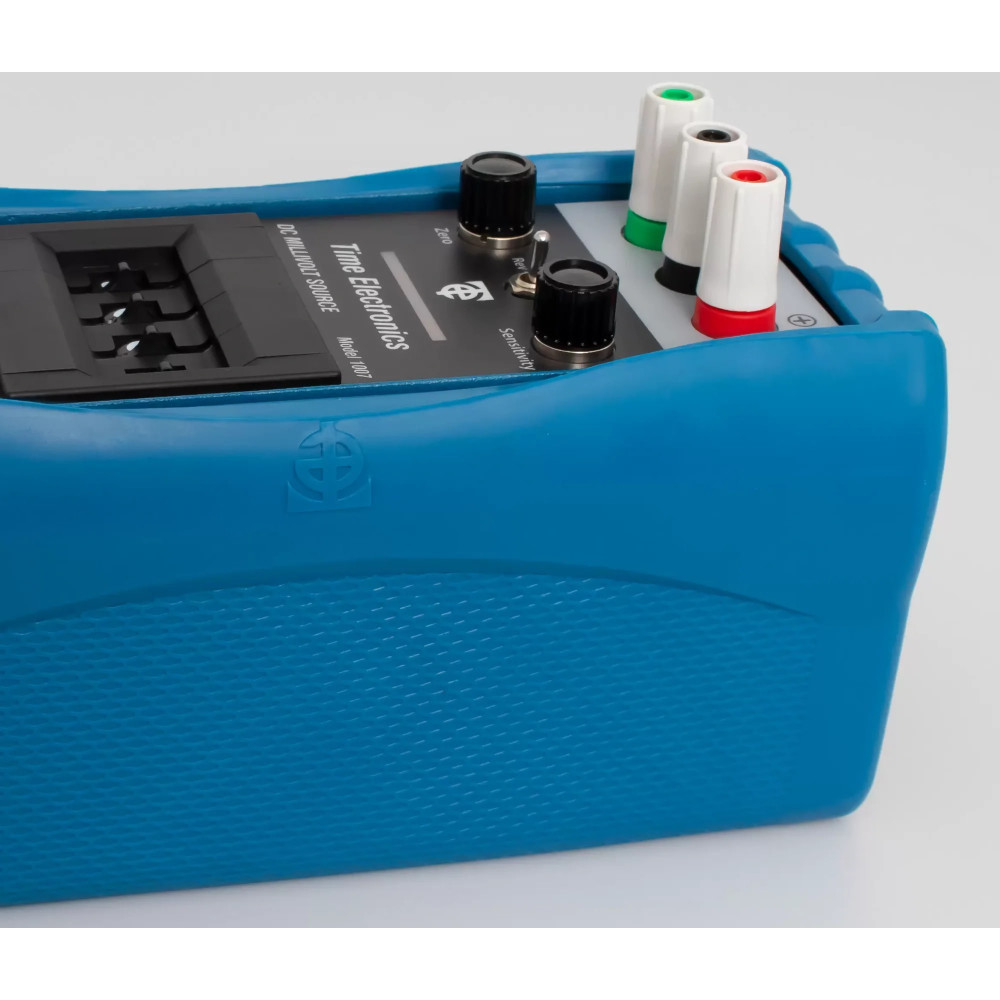

The 1007 DC mV potentiometer and source comes fitted with an ergonomic rubber cover providing increased protection and durability. It has a textured grip for comfortable handling and a top opening for access to the battery level indicator and cell compartments.
It is easy to remove if the user prefers a stand-alone unit or to house the instrument in the optional 9027 carry case.
Optionals:
9027 Carry case
9529 Rechargeable battery pack - (6 NiMH cells + mains charger)
C150 Traceable calibration certificate (Factory)
C101 Accredited calibration certificate (ISO 17025)
