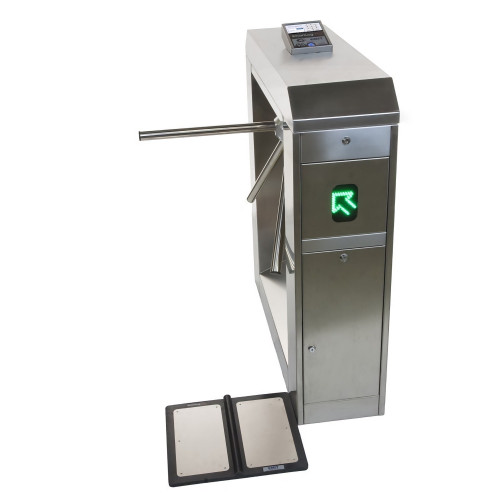

Desco Europe 50789 SMARTLOG PRO WITH TURNSTILE, 220VAC
- SmartLog Pro® with EDS EDSUKTHH28 Half Height Turnstile
Verifies the functionality of an operator’s wrist strap and footwear, logs their test results and controls access to an ESD Protected Area - Turnstile Activates When a User Passes Their Required ESD Test
Limits access to the ESD Protected Area to people wearing proper ESD grounding devices - Electronic Data Acquisition
Creates test record database for auditing and quality control - Operator Identification
Tests operators based on assigned test requirements - Simultaneous Testing in Less Than 2 Seconds
Reduces time spent testing personal grounding devices used in ESD Control Plans - Stand-Alone Operation
Operators can continue performing tests even in the event of a network failure - Embedded CCD Barcode Scanner
Reads code 39 and 128 by default; contact customer service for custom programming of other symbologies - Split Foot Plate for Testing Foot Grounders (or Shoes)
Tests both foot grounders independently at the same time - NIST Calibrated with Certificate Included
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of EMIT products, see the Calibration web page - Customer Checklist
- SmartLog Pro® Overview
- Made in the United States of America and the United Kingdom
The SmartLog Pro® is made in the USA; the Turnstile is made in the United Kingdom
SmartLog Pro® New Features
- 5 Inch Color Touchscreen Display
Intuitive user interface for easy test operation - Records Resistance Measurements, Temperature and Relative Humidity
Tracks the performance of ESD wrist straps and footwear - Software Programmable Test Limits
Use to meet the testing requirements of ANSI/ESD S20.20 or other standards - Embedded HID OMNIKEY® Proximity Reader
Compatible with the following badge formats:- HID Prox®
- Indala Prox
- MIFARE® Classic
- MIFARE DESFire® EV1
- iCLASS®
TEAM6 is the most powerful and accurate ESD Test Acquisition Software on the market. When used with the SmartLog Pro®, TEAM6 allows manufacturers and assemblers to automate the collection of ESD testing. TEAM6 Software is not included with the SmartLog Pro® and must be purchased separately.
U.S. Patent 6,809,522
“Compliance verification should be performed prior to each use (daily, shift change, etc.). The accumulation of insulative materials may increase the foot grounder system resistance. If foot grounders are worn outside the ESD protected area testing for functionality before reentry to the ESD protected area should be considered.” (ESD SP9.2 APPENDIX B - Foot Grounder Usage Guidance)
"Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements. The test equipment selected shall be capable of making the measurements defined in the Compliance Verification Plan." (ANSI/ESD S20.20-2014 section 7.4 Compliance Verification Plan)
