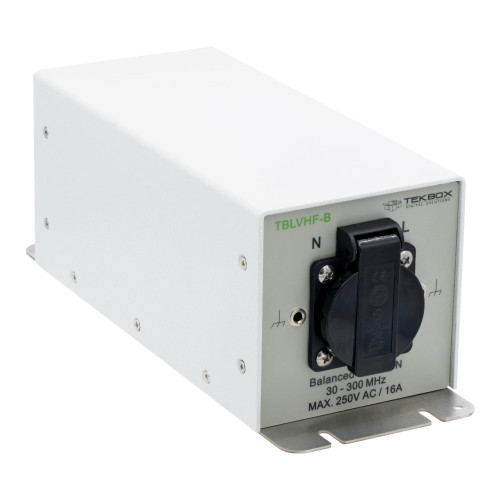

TekBox TBLVHF-B Balanced VHF Line Impedance Stabilization Network (30 MHz – 300 MHz)
TekBox TBLVHF-B is a Balanced VHF Line Impedance Stabilization Network (LISN) designed to provide a defined RF termination impedance for AC mains cables during radiated emission test setups. It covers the frequency range from 30 MHz to 300 MHz and is compliant with CISPR 16-1-4 standards.
This unit is suitable for mains-supplied Equipment Under Test (EUT) with or without protective earth, providing defined, symmetrical line impedances that result in a balanced load. It is equipped with power outlets (Schuko).
Key Features
- Frequency Range: 30 MHz – 300 MHz
- Line Impedance: 50 Ω +/- 10% (ref GND)
- Maximum Voltage: 250V AC (50/60 Hz)
- Maximum Current: 16 A RMS
- Isolation: > 40 dB
- Power Input Connector: IEC 60320 C19
- Compliance: CISPR 16-1-4
