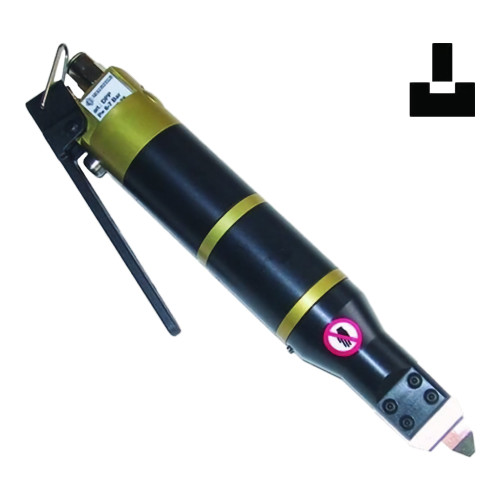

Piergiacomi DPP 25 N Pneumatic depaneling tool 2.5mm
Pneumatic depaneling tool (2.5 mm blade).
The DPP is designed to separate PCBs in a quick, economic and safe way, obtaining well-finished cut surfaces. The blades, made from special steel in various thicknesses, are interchangeable, so as to meet any customer needs (max. isthmus length 3 mm). The DPP is normally supplied with the "L" blade.
Technical specifications:
- Maximum PCB thickness: 1.6 mm
- Minimum isthmus distance: 11 mm
- Maximum cutting force: 80 kg
- Blade thickness: 2.5mm
- Custom blades on request (included the "T" blade)
- Dimensions: 210 x 35 mm
- Weight: 400 g
- Activated by lever
Size of blades are interchangeable, by buying the "set of blade" of the required size!
How to order:
- Replacement blade: LDPP25 (2.5 mm)
- Set of blade: LPDPP...(specify size of blade 2/2.3/2.4 mm)
