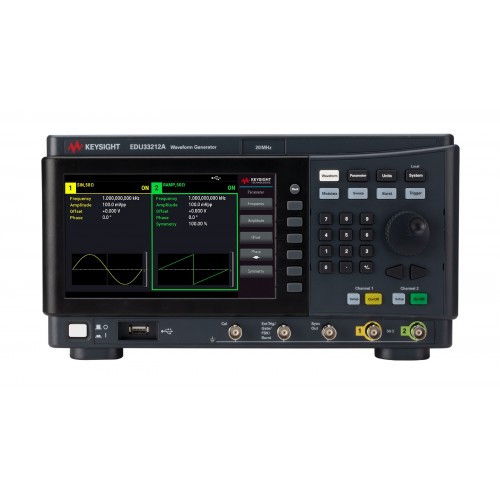

KEYSIGHT EDU33212A Waveform Generator 20MHz, 2 Channels
KEYSIGHT EDU33212A is a 20 MHz, dual channel waveform generator with up to 8 MSa per channel and up to 1Msa per waveform.
Key features and benefits:
- Signature 7" color display offers simultaneous parameter setup, signal viewing and editing for easy operation
- Six built-in modulation types and 17 popular waveforms to simulate common application for testing
- 16-bit arbitrary waveform capability with memory of up to 8 M samples per channel
- Two independent channels that can be coupled in amplitude and frequency
- Excellent usability
- Front-panel USB thumb drive port for file management
- External triggering
- USB and LAN IO interface for remote connectivity
- PathWave BenchVue software included to enable full potential with PC control
KEYSIGHT EDU33210 series function/arbitrary waveform generators brings uncompromising performamce to an entry-level function generator. Get all the basic functions and waveforms with the most stable, lowest distortion function generator in its class. It also provides features that give you the capabilities and flexibility you need to get your job done quickly, no matter how complex. An intuitive, information-packed front-panel interface enables you to easily recall where you left off when your attention is focused elsewhere.
Models and options:
| Model number | EDU33211A | EDU33212A |
| Maximum frequency | 20 MHz | |
| Number of channels | 1 | 2 |
| Standard waveforms | Sine, square, ramp, pulse, triangle, Gaussian noise, pseudorandom binary sequence (PRBS), DC | |
| Built-in arbitrary waveforms | Cardiac, exponential fall, exponential rise, Gaussian pulse, haversine, Lorentz, D-Lorentz, negative ramp, sinc | |
| User-defined arbitrary waveforms | Up to 8 MSa per channel; with up to 1 MSa per waveform | |
| Bandwidth increase | From 20 MHz (Standard) to 25 MHz (Optional upgrade) | |
