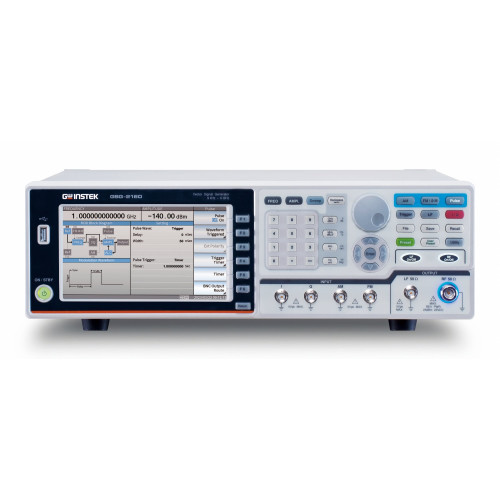

GW Instek GSG-2160 (GPIB) 6GHz RF Signal Generator with Digital IQ Modulation
GW Instek GSG-2160 is a RF signal generator with GPIB interface, 9kHz to 6GHz frequency range, built-in AM, FM, PM analog modulation and ASK, PSK, APSK, QAM, FSK, MSK, user-defined IQ, user-defined FSK digital modulation.
Model with GPIB and AUX (OCXO) interfaces also available: GSG-2160 (GPIB+AUX).
Included accessories:
1 x Power cord
1 x CD (user manual)
Optional accessories:
GRA-447 Rack mount kit (19", 3U)
Key features:
- Frequency range: 9kHz ~ 6GHz
- Frequency resolution: 1mHz
- Standard 10ppm frequency stability, 2ppm aging rate
- Optional AUX (OCXO): 10ppb frequency stability, 0.1ppm aging rate
- Amplitude range: -140dBm to +20dBm
- Amplitude setting resolution: 0.01dBm
- Amplitude setting unit: dBm, dBµV, Vrms
- Phase noise: <-117dBc/Hz (real) @1GHz output and 20kHz offset
- The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s
- Frequency/amplitude switching speed: ≤ 5ms
- Built-in LF/RF signal output, Pulse signal output
- The series has built-in AM, FM, PM analog signal modulation functions
- Supports IQ modulation signal output:
- Up to 60MHz baseband I or Q modulation signal output
- Up to 120MHz RF I+Q modulation signal output
- Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions
- Provides USB, LAN and GPIB interfaces, commands comply with SCPI standards
The GSG-2000 series is available in four models and the main differences are shown in the following table:
| Model | GSG-2060 (GPIB) | GSG-2060 (GPIB+AUX) | GSG-2160 (GPIB) | GSG-2160 (GPIB+AUX) |
| Included interfaces | GPIB | GPIB and AUX (OCXO) | GPIB | GPIB and AUX (OCXO) |
| Frequency range | 9kHz ~ 6GHz | 9kHz ~ 6GHz | 9kHz ~ 6GHz | 9kHz ~ 6GHz |
| Analog modulation | AM, FM, PM | |||
| Digital IQ modulation | – | ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK |
||
| LF output | ✔ | |||
| Pulse output | ✔ | |||
