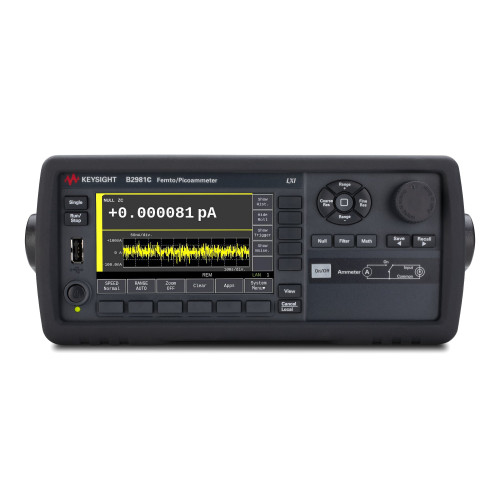

KEYSIGHT B2981C Femto and Picoammeter, 0.01 fA
KEYSIGHT B2981C Femto/Picoammeter, 0.01 fA
The KEYSIGHT B2981C is a state-of-the-art femto/picoammeter capable of measuring ultra-low currents down to 0.01 fA (10-17 A) with 6½-digit resolution. Featuring a 4.3" color graphical LCD, it offers numeric, graphical, histogram, and trend views for instant data and statistical analysis, even without a PC.
Main features:
- Current measurement range: 0.01 fA to 20 mA
- Minimum resolution: 0.01 fA
- High-speed reading rate: up to 20,000 readings/s
- Low burden voltage: <20 μV in the lowest range
- Data buffer up to 100,000 points
- Display modes: Meter, Graph, Histogram, Roll View
- Measurement assist functions and optional Setup Integrity Checker
- Interfaces: USB, LAN, GPIB, LXI Core
- Free PC control software and IVI/LabVIEW drivers
- Power supply: 100–240 V, 50/60 Hz
- Dimensions: 88 × 213 × 348 mm; Weight: 4.1 kg
Typical applications: materials characterization, electronic devices and semiconductor testing, sensor measurements, leakage and bias current tests, ultra-low noise system analysis.
Included accessories: power cable, USB cable, 1.5 m triaxial cable, ground cable, banana adapter, quick reference guide.
