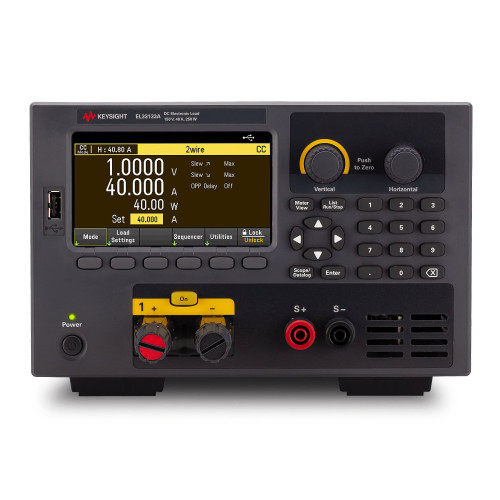

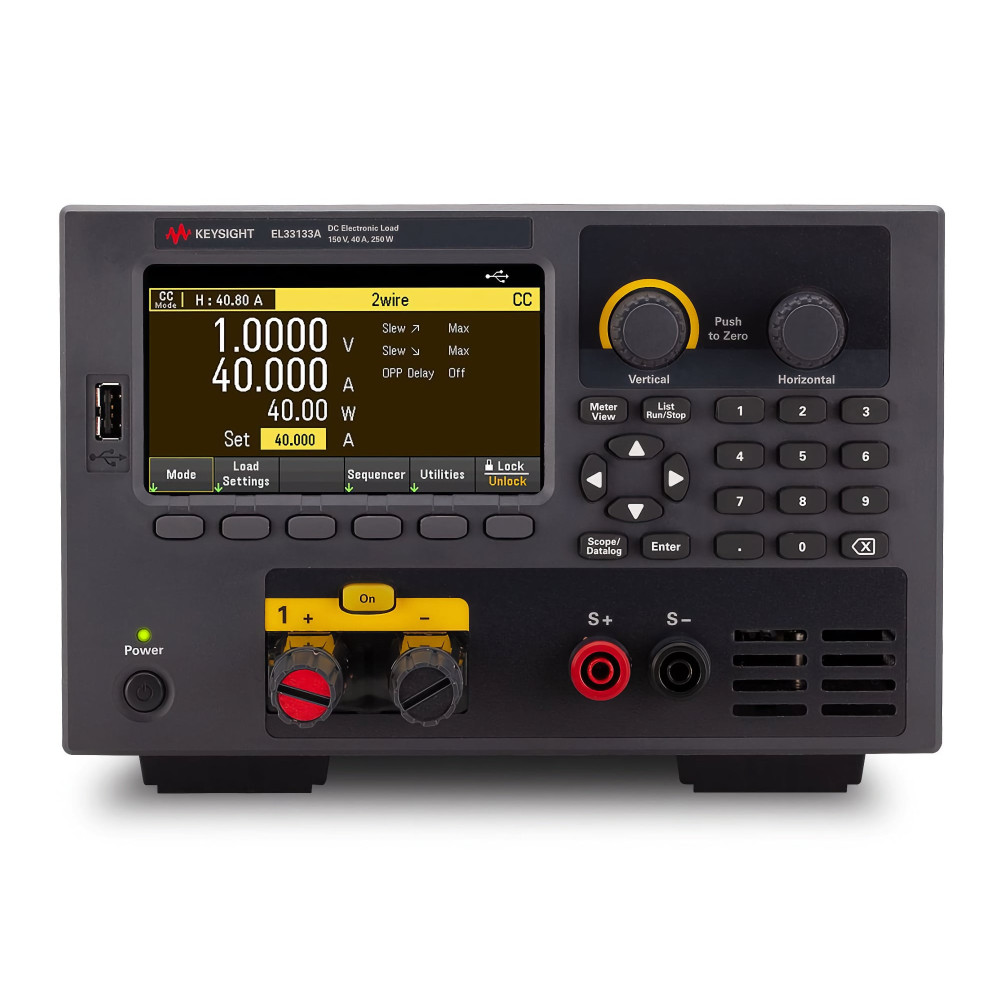

KEYSIGHT EL33133A DC Electronic Load, Single-Input: 150V, 40A, 250W: LAN, USB
KEYSIGHT EL33133A is a bench DC electronic load that provides a single input and a built-in data logger. Provide static or dynamic load test up to 40 A and 150 V. Display results in a meter view or over time using the built-in data logger.
Input Rating:
- 0-150 V, 0-40 A, 250W
Operating Modes:
- Constant Current, Constant Voltage, Constant Resistance, Constant Power
Constant Current Programming Accuracy ± (% of output + offset):
- Medium, 4 A; 0.05% + 820 µA
- High, 40 A; 0.05% + 7.2 mA
Constant Current Readback Accuracy ± (% of output + offset):
- Medium, 4 A; 0.05% + 820 µA
- High, 40 A; 0.05% + 7.2 mA

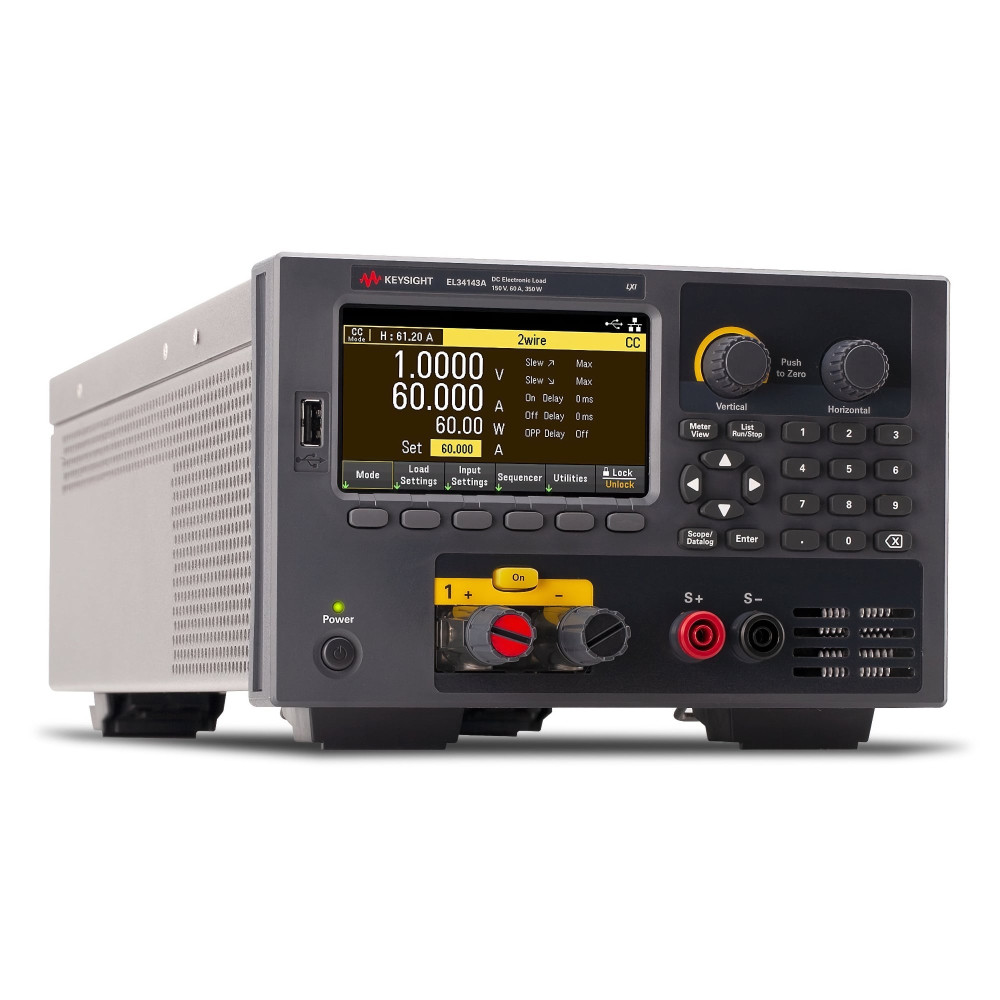

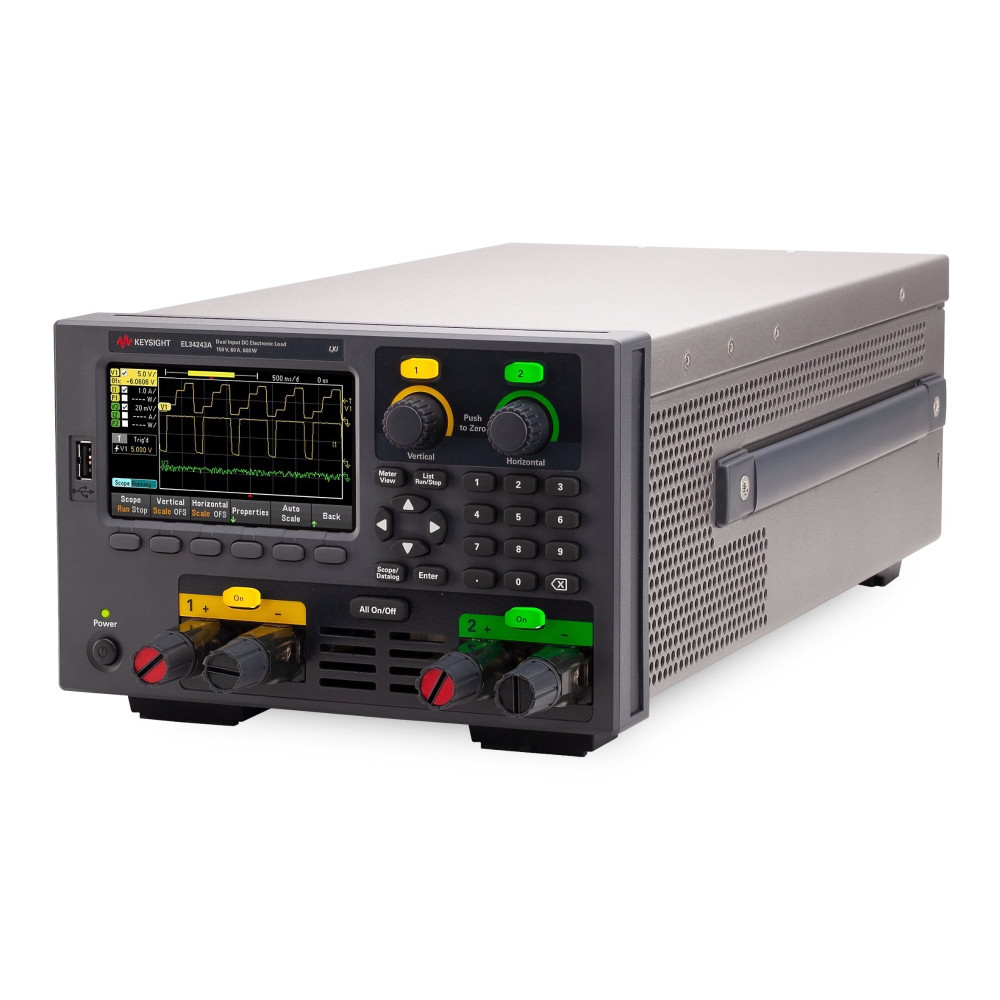

KEYSIGHT’s EL30000 Series bench electronic loads consist of three models, all with a built-in data logger. The EL33133A basic performance electronic load offers an economical price, a limited range, and a single 40 A, 150 V, and 250 W input. Two performance models offer additional ranges, the EL34143A single input 60 A, 150 V, 350 W, and EL34243A dual input 60A, 150V, 600 W.
