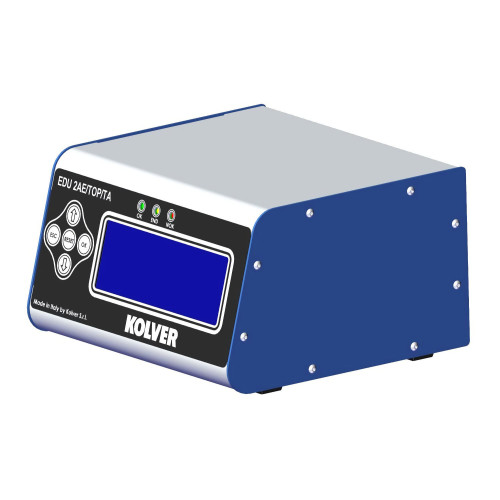

Kolver EDU2AE/TOP/TA Control Unit for PLUTO TA
EDU2AE/TOP/TA Control unit for PLUTO TA, stores up to 8 adjustment programs, torque and angle display, screw counting, 15 I/O signals
| Model | Code | Torque Nm | RPM (min) | RPM (max) | To be used with |
| NATO50D/TA | 160050/TA | 0,05 - 0,50 | 50 | 700 | EDU2AE/TOP/TA/NT |
| PLUTO3D/TA | 134203/TA | 0,5 - 2,5 | 370 | 1300 | EDU2AE/TOP/TA |
| PLUTO3P/TA | 130204/TA | 0,5 - 2,5 | 370 | 1300 | EDU2AE/TOP/TA |
| PLUTO6D/TA | 134206/TA | 0,85 - 6,0 | 200 | 850 | EDU2AE/TOP/TA |
| PLUTO6P/TA | 130207/TA | 0,85 - 6,0 | 200 | 850 | EDU2AE/TOP/TA |
| PLUTO10D/TA | 134211/TA | 1,5 - 10,0 | 110 | 600 | EDU2AE/TOP/TA |
| PLUTO10P/TA | 130210/TA | 1,5 - 10,0 | 110 | 600 | EDU2AE/TOP/TA |
| PLUTO15D/TA | 134216/TA | 2,0 - 15,0 | 60 | 320 | EDU2AE/TOP/TA |
| PLUTO15P/TA | 130215/TA | 2,0 - 15,0 | 60 | 320 | EDU2AE/TOP/TA |
| EDU2AE/TOP/TA | 034000/TOP/TA | - | - | - | Any PLUTO../TA |
| EDU2AE/TOP/NT/TA | 031000/TOP/NT/TA | - | - | - | NATO../TA Series |
Industrial tightening requires precise control strategies. TA systems feature Torque and Angle monitoring, making it possible to manage both torque and rotation angle of the screw.
The Torque/Angle Control
The main parameters to be controlled are the tightening torque and the rotation angle of the screw, either with torque or angle priority. The screwdriver stops automatically when the pre-set angle and torque value have been reached and an indication of OK cycle (green led turned on) is given, otherwise a red led turns on if the tightened screw doesn’t match the pre-set parameters. The final torque and angle values are also displayed.
Main features:
• Latest generation ergonomic ESD-safe housing
• Automatic model recognition
• ‘EDU Expand’ software for remote programming via USB port and PC
• USB port on front panel for uploading and downloading programs
• Easy to program user interface screens
• Password protected
• Torque value in Nm, lbf.in and kgf.cm
• Angle value in degrees. • Precision comparable to class 'A' torque scatter performance class (as defined in ISO5393-2017, between 25% to 75% of the torque range)
• 8 independent programs including the options:
- Min/Max torque value
- Min/Max angle value
- Rundown speed
- Slow start/Soft stop
- Hard/soft joint
- Min/Max rundown time
- Prevailing torque (threadcutting)
- Auto reverse if required
• 6 Torque & Angle strategies:
- Torque priority: angle count from torque threshold (T) or from remote input (T/I) or from lever input (T/L)
- Angle priority: driver stops when angle is reached from threshold torque (A) or from remote input (A/I) or from lever (A/L)
PLUTO ANG screwdrivers are available in TA (torque & angle) version too.
IMPORTANT: Continuous use over 80% of torque range is not recommended.
