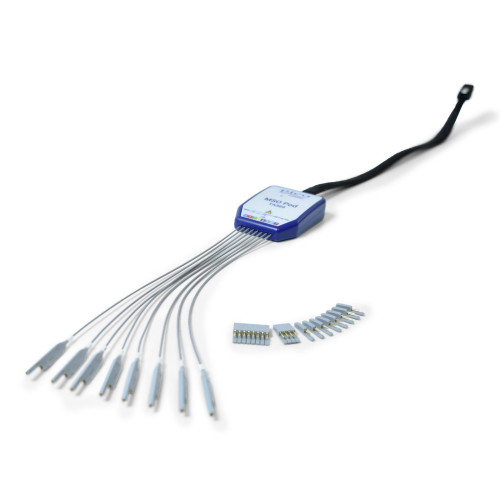

Pico TA369 8-Channel MSO Logic Probe
The PicoScope 6000E Series MSO capability consists of a detachable active MSO pod, powered by the scope, with eight permanently attached flying leads terminating in MSO probes for connection to the circuit under test. The MSO pod connects to either of two digital interface ports on the scope front panel using a 0.5 m digital interface cable. All PicoScope 6000E Series models support the MSO pod.
Features:
- 8 digital inputs per pod
- 500 MHz bandwidth, 1 Gb/s
- 5 GS/s sampling on 16 digital channels
- 1 ns minimum pulse width
- Minimal load on the device under test
- Selection of ground clips for easy connection to 2-row, 2.54 mm (0.1")-pitch headers
- Ground leads and mini test hooks included
Ground leads and clips
The TA369 MSO pod includes a range of ground clips and leads. To achieve the highest performance with high-speed signals, connect the ground terminal of each probe to the circuit ground as close as possible to the signal under test. The ground clips enable the probe to fit on a pair of 0.1"-pitch header pins and are supplied as 1-way, 4-way and 8-way blocks. The ground leads fit on standard header pins. Any ungrounded MSO probes will share the ground path with grounded probes, lowering performance and causing crosstalk between digital channels.
TA369 MSO pod kit contents:
- TA369 8-channel MSO pod
- Sprung test hooks (pack of 12 pieces)
- Ground leads, 94 mm (8 pieces)
- 1-way ground clip, converts flying lead to 2 x 1 2.54 mm pitch header (8 pieces)
- 4-way ground clip, converts flying leads to 2 x 4 2.54 mm pitch header (1 piece)
- 8-way ground clip, converts flying leads to 2 x 8 2.54 mm pitch header (1 piece)
- MSO pod to oscilloscope interface cable
- MSO pod carry case
| TA369 MSO pod for PicoScope 6000E Series specifications | ||
| Input channels | Up to 16 channels (2 ports of 8 channels) | |
| Maximum detectable input frequency | 500 MHz (1 Gb/s) | |
| Minimum detectable pulse width | 1 ns | |
| Input connector (probe tip) | Staggered signal and ground pin sockets for each channel, to accept 0.64 to 0.89 mm round or 0.64 mm square pin, 2.54 mm pitch | |
| Input impedance | 101 kΩ ±1% in parallel with 3.5 pF ±0.5 pF | |
| Threshold range and resolution | ±8 V in 5 mV steps | |
| Threshold accuracy | ±(100 mV + 3% of threshold setting) | |
| Threshold grouping | PicoScope 6: Two independent threshold controls, one per 8-channel port PicoSDK: Individual threshold for each channel |
|
| Threshold selection | TTL, CMOS, ECL, PECL, user-defined | |
| Maximum input voltage at probe tip | ±40 V up to 10 MHz, derated linearly to ±5 V at 500 MHz | |
| Minimum input voltage swing (at 500 MHz) | 400 mV peak-to-peak | |
| Hysteresis (at DC) | PicoScope 6: Fixed hysteresis ~100 mV PicoSDK: Selectable hysteresis per port ~50 mV, ~100 mV, ~200 mV, ~400 mV |
|
| Minimum input slew rate | No minimum slew rate requirement | |
| MSO digital interface cable length | 500 mm (scope to pod) | |
| MSO probe flying lead length | 225 mm (pod to probe tip) | |
| MSO pod size | 75 x 55 x 18.2 mm | |
| MSO probe size | 34.5 x 2.5 x 6.7 mm (including ground pin) | |
| Signal voltage limits of EN61010-1:2010 | ±70 V DC, 33 V AC RMS, ±46.7 V pk max | |
| Temperature | Storage: -20 °C to +60 °C Operating: 0 °C to +40 °C For quoted accuracy: 15 °C to 30 °C |
|
| Maximum humidity (non-condensing) | Storage: 5 to 95 %RH Operating: 5 to 80 %RH For quoted accuracy: 5 to 80 %RH |
|
| Maximum altitude | 2000 m | |
| Pollution degree | 2 (As defined in IEC 61010-031. Non-conductive pollution with occasional temporary conductivity due to condensation.) | |
| Compliance | EN 61010‑1: 2010 (Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use). | |
