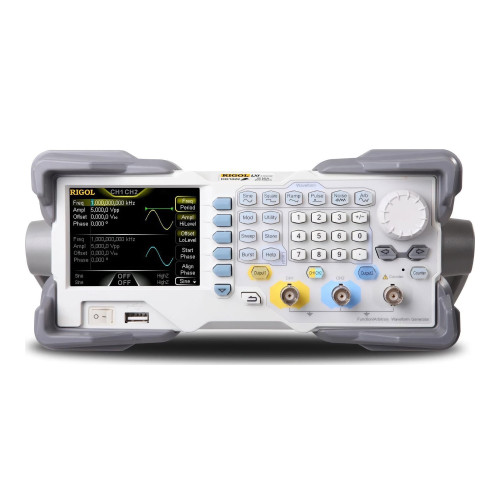

RIGOL DG1032Z Arbitrary Function Generator 30MHz, 2 Channels
RIGOL DG1032Z Arbitrary Function Generator, dual channels 30MHz, sampling 200MSa/s and 8Mpts of memory.
RIGOL DG1000Z Series Main Specifications:
- Innovative SiFi (Signal Fidelity): generate arb waveform point-by-point, restore signal distortionless, precisely - adjustable sample rate and low jitter (200ps)
- Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)
- Standard 2 full functional channels can be used as two independent generators
- ±1ppm frequency stability, -125dBc/Hz phase noise
- Built-in 8 orders harmonics generator
- Built-in 7 digits/s full function frequency counter with 200MHz bandwidth Up to 160 built-in waveforms
- 200MSa/s sample rate, 14bits vertical resolution
- Convenient arbitrary waveform editing interface
- Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM Standard waveform summing function
- Standard channel track function
- Standard interfaces: USB Host& Device, LAN(LXI Core Device 2011)
- 3.5 inches TFT color display
RIGOL DG1000Z Standard Delivery Includes:
1x USB cable
1x BNC capbe
1x Power cord
1x Quick Guide
1x Resource CD (including User’s Guide and etc.)
| Model | Maximum Output Frequency | Sample Rate | Vertical Resolution | Channels | Arbitrary Wave Length |
| DG1062Z | 60 MHz | 200 MSa/s | 14 bits | 2 | 8Mpts (16Mpts Option) |
| DG1032Z | 30 MHz | 200 MSa/s | 14 bits | 2 | 8Mpts (16Mpts Option) |
| DG1022Z | 25 MHz | 200 MSa/s | 14 bits | 2 | 8Mpts (16Mpts Option) |
RIGOL DG1000Z introduction:
DG1000Z series function/arbitrary waveform generator is a multi-functional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.
