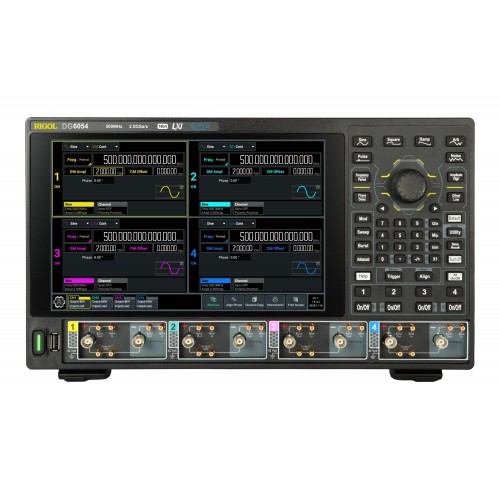

RIGOL DG6054 Arbitrary Waveform Generator 500 MHz, 4 Channels
The RIGOL DG6054 is a high-performance function/arbitrary waveform generator from the DG6000 series, designed to meet the most advanced testing requirements. With a bandwidth of 500 MHz, 4 independent channels, and a sample rate of up to 2.5 GSa/s, this all-in-one instrument integrates a function generator, pulse generator, noise generator, harmonics generator, and analog/digital modulator. Built on SiFi technology, it guarantees faithful reproduction of arbitrary waveforms without point loss.
The user interface is managed via a large 10.1-inch color HD touch screen that allows for simultaneous parameter configuration and viewing. All channels feature an electrical isolation design to protect the devices under test (DUT) and eliminate ground loops. It supports advanced output modes such as Sequence, IQ modulation, PRBS, and Pattern, and is specifically suitable for multi-channel synchronous physical experiments and complex automotive bus simulations.
Key Features:
- Bandwidth: Up to 500 MHz with 16-bit vertical resolution.
- Configuration: 4 channels with support for differential outputs or up to 8 single-ended outputs in SND mode.
- Sampling and Memory: Up to 2.5 GSa/s sample rate and standard 256 Mpts/channel memory (expandable to 512 Mpts).
- Differential Output: Supports high-voltage differential signals up to 20 Vpp without the need for external amplifiers.
- Fast Rise Times: Square wave transition time as low as 350 ps.
- Connectivity: Standard Web Control interface, HDMI for external monitors, USB 3.0, and LAN (LXI CORE 2011 compliant).
Included Accessories:
- Power cord
- USB cable (CB-USBA-USBB-FF-150)
- 8 BNC cables (CB-BNC-BNC-MM-100)
- SMB pin insertion/extraction tool
