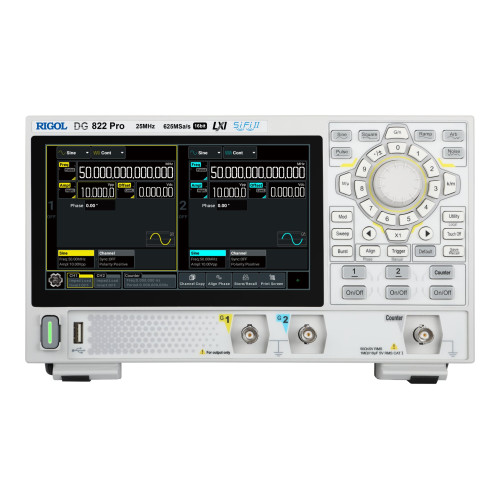

RIGOL DG822 Pro Arbitrary Waveform Generator 25MHz, 2 Channels, 625MSa/s, 16bits
RIGOL DG822 Pro is a function/arbitrary waveform generator with 25 MHz maximum frequency, 2 channels, 625MSa/s sample rate and 16 bits vertical resolution.
RIGOL DG800 Pro Series features:
- Maximum sample rate: 625 MSa/s
- Maximum output frequency: 50 MHz
- 16-bit vertical resolution
- Arbitrary waveform editing function with a maximum arbitrary waveform length of 2 Mpts/Channel (8 Mpts/Channel optional)
- Built-in high-order harmonic generator (maximum 20th order)
- Independent signal frequency measurement channel with a maximum frequency of 500 MHz
- USB and LAN interfaces for remote connection
- Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
- Standard Web Control function for easier remote cooperation
Standard accessories:
1 x Power adaptor conforming to the standard of the destination country
1 x USB cable
1 x BNC cable (CB-BNC-BNC-MM-100)
Upgrade options:
DG800Pro-3RL 8 Mpts/channel memory depth upgrade option
Optional accessories:
RA5040K 40dB attenuator (50 Ω, 1 W)
RIGOL DG800 Pro series of function/arbitrary waveform generator provides up to 625 MSa/s sample rate and 2 Mpts/Channel memory depth (standard). It is a cost-effective function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.
