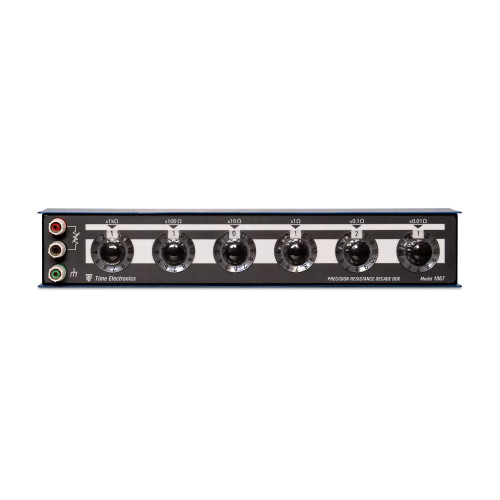

Time Electronics 1067 Precision Resistance Decade Box (10 mΩ to 12 kΩ)
Time Electronics 1067 is a precision resistance decade box suitable for a wide range of simulation work. High accuracy, long term stability, and low temperature coefficient make the 1067 ideal for simulating and calibrating precision Pt100 sensors and temperature indicators/meters that use resistive sensors.
Special care has been taken in the construction of this precision decade box to ensure that the residual end resistance is as low and as stable as possible. Multiple self-cleaning silver alloy contacts are used for each position to ensure outstanding performance and long life.
Housed in a robust metal case the 1067 is fully screened and low thermal EMF terminals are used. The slimline design means it takes up minimum bench space and is easily transportable.
Safety Terminals
The 1067 connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Simple Operation and In-line Readout
Resistance is selected by dialling the value required using the rotary switches. This enables precise setting with a clear unambiguous indication.
Each decade is scaled from 0 to 11. This allows a convenient overlap of the set values. The maximum value settable is 12,222.21 Ω.
Features:
- 10 mΩ to 12 kΩ
- 0.01 % accuracy
- Precision Pt100 simulation
- 6 digit resolution
- Better than 20 ppm/year stability
- Residual resistance < 10 mΩ
- Fully screened
Optionals:
C114 UKAS Calibration Certificate (ISO 17025)
C161 Traceable Calibration Certificate (factory)
| Decade | 0.01 Ω | 0.1 Ω | 1 Ω | 10 Ω | 100 Ω | 1 kΩ |
| Accuracy | ± 0.01 % | ± 0.01 % | ± 0.01 % | ± 0.01 % | ± 0.01 % | ± 0.01 % |
