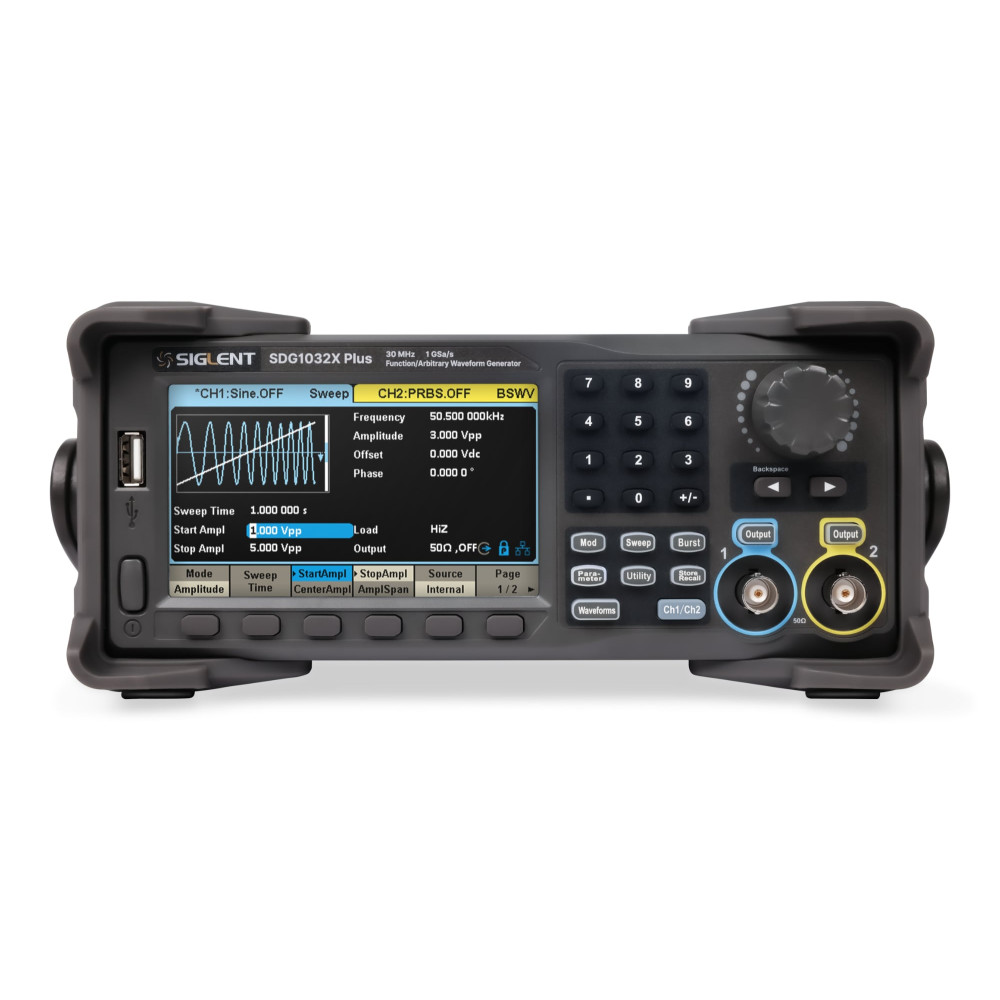

SIGLENT SDG1032X Plus 30MHz, 16bit Arbitrary Waveform Generator
SIGLENT SDG1032X Plus is a 30MHz, 2 channels arbitrary waveform generator with 1 GSa/s sampling rate, 16-bits vertical resolution, 8 Mpts per channel arbitrary waveform length, ±10 V maximum amplitude and 4.3'' display.
Included accessories:
1 x Quick start guide
1 x Power cord
1 x USB cable
1 x Calibration certificate
Key features:
- Dual channel, maximum output frequency 30 MHz, maximum output amplitude 20 Vpp
- 1 GSa/s digital-to-analog converter sampling rate, 16-bit vertical resolution
- Innovative TrueArb technology, based on a point-by point architecture, supports any 24pts ~ 8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 250 MSa/s
- Supports sequence wave playback function, maximum storage depth per channel 8 Mpts
- Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
- Multi-pulse output function can be used to measure the switching parameters of power equipment and evaluate its dynamic characteristics
- Supports PRBS up to 40 Mbps
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst function
- Harmonic function
- Waveform Combining function
- High precision Frequency Counter
- 196 built-in arbitrary waveforms
- Built-in WebServer supports instrument control via web browser
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
- Optional interface: GPIB (USB-GPIB adaptor)
- 4.3" LCD display
Product overview
SIGLENT's SDG1000X Plus series dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 60MHz, has excellent sampling system of 1GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses. It can provide users with high-fidelity, low jitter signals. In addition, SDG1000X Plus also provides PRBS pattern generation, sequence wave output, and dual pulse output functions to meet a wider range of application needs.
| Model | SDG1022X Plus | SDG1032X Plus | SDG1062X Plus |
| Maximum output frequency | 25 MHz | 30 MHz | 60 MHz |
| Number of channels | 2 | ||
| Sampling rate | 1 GSa/s (4X Interpolation) | ||
| Vertical resolution | 16 bits | ||
| Arbitrary waveform length | 8 Mpts per channel | ||
| Maximum amplitude | ±10 V | ||
| Display | 4.3” RGB display with 480 x 272 pixel resolution | ||
| Interfaces | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) |
||
