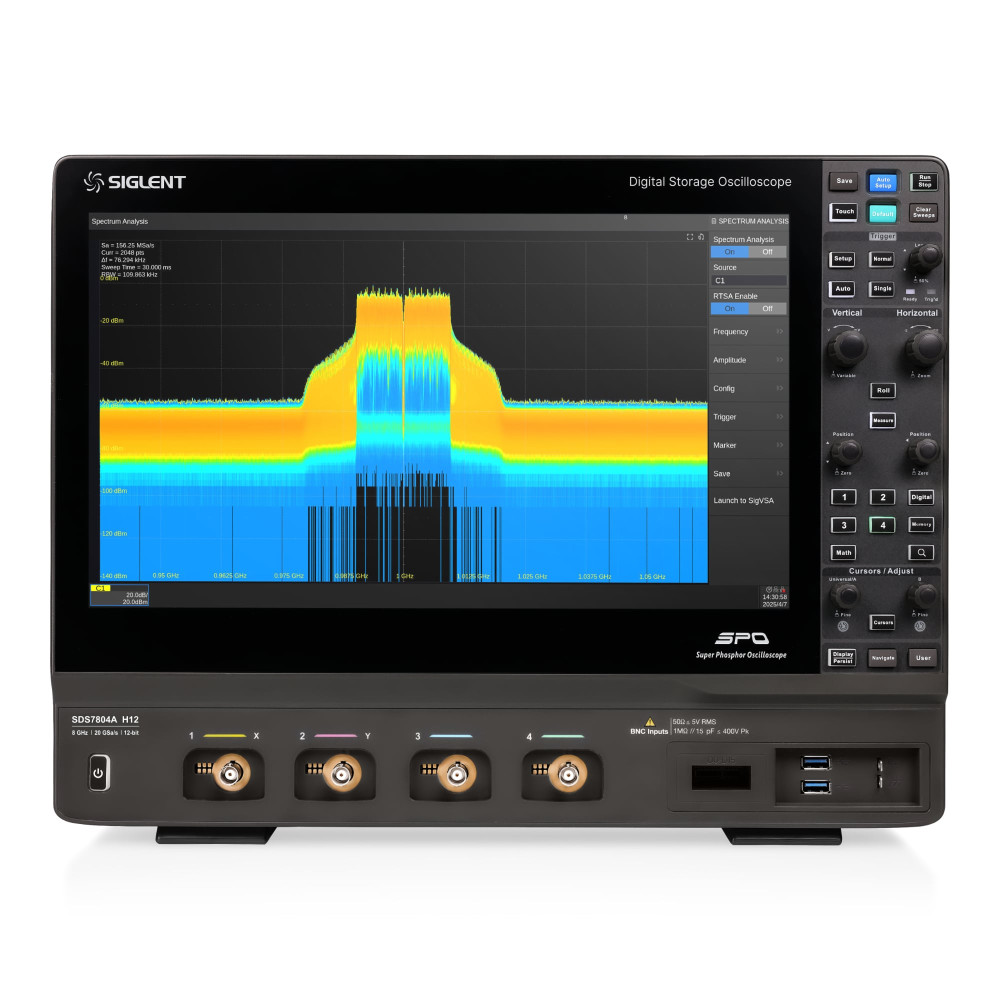

SIGLENT SDS7804A H12 Oscilloscope 8GHz, 4 Channels
SIGLENT SDS7804A H12 is a high-end digital oscilloscope with 8 GHz bandwidth, 4 analog channels + 16 digital channels, sampling rate up to 20 GSa/s, maximum record length of 1 Gpts/ch, and a large 15.6" capacitive TFT-LCD touch screen (1920 x 1080 pixels).
Included accessories:
1 x USB cable
1 x Quick start
4 x SP3150A Passive probes
1 x Certificate of calibration
1 x Wireless mouse
1 x Power cord
1 x Protective cover
Series features:
- Bandwidth: 3 GHz, 4 GHz, 6 GHz, and 8 GHz
- Channels: 4 analog and 16 digital
- Maximum sample rate: 20 GSa/s (dual-channel), 10 GSa/s (3 or 4 channels)
- Vertical resolution: 12-bit ADC, up to 16-bit in ERES mode
- Memory depth: 500 Mpts/ch standard, 1 Gpts/ch optional
- Waveform capture rate: up to 1 million frames/second
- 4 Math traces: 32 Mpts FFT, supports formula editor
- Measurement: over 50 parameters, supports histogram and trend chart statistics
- Digital channel: 16 channels, 1 GSa/s sampling rate, 50 Mpts/ch memory depth
- Screen: 15.6" HD TFT-LCD capacitive touch display (1920 x 1080 pixels), multi-touch
Standard serial trigger and decode: I2C, SPI, UART, CAN, LIN.
Optional serial trigger and decode: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only).
Math on 4 traces: 32 Mpts FFT, +, -, x, +, Jdt, d/dt, V, Identity, Negation, Absolute, Sign, ex, 10x, In, Ig, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor.
| Model | SDS7304A H12 | SDS7404A H12 | SDS7604A H12 | SDS7804A H12 | SDS7604AP | SDS7804AP |
|---|---|---|---|---|---|---|
| Bandwidth | 3 GHz | 4 GHz |
6 GHz |
8 GHz (limited to 4 GHz in 3 or 4 channels modes) |
6 GHz | 8 GHz |
| Sample rate (Max.) | 20 GSa/s (dual-channel) 10 GSa/s (3 or 4 channels) |
20 GSa/s (all channels) | ||||
| Standard Memory depth (Max.) | 500 Mpts/ch | 1 Gpts/ch (1 or 2 channels) 500 Mpts/ch (3 or 4 channels) |
||||
| Optional Memory depth (Max.) | 1 Gpts/ch in dual-channel mode | 2 Gpts/ch (1 channel) 1 Gpts/ch (2 channels) 500 Mpts/ch (3 or 4 channels) |
||||
| Vertical Resolution | 12-bit Up to 16-bit in ERES mode |
|||||
The SIGLENT SDS7000A series offers high-performance digital oscilloscopes with bandwidths from 3 GHz up to 8 GHz, 4 analog channels and 16 digital channels, sampling rates up to 20 GSa/s, and a maximum memory depth of 1 Gpts/ch. All models feature a large 15.6" capacitive TFT-LCD touch display (1920 x 1080 pixels) with multitouch support, enhancing operational efficiency and user experience. SIGLENT's SPO technology enables an acquisition rate up to 1,000,000 wfm/s, 256-level intensity grading display, and color temperature mode. The advanced digital trigger system ensures high sensitivity and low jitter, supporting numerous trigger modes including serial bus triggers. Advanced tools such as history waveform recording, search and navigation, signal scan, mask test, Bode plot, power analysis, jitter/eye analysis, and compliance testing are available. All models also support standard and optional serial decoding, advanced math functions on 4 traces, and options for a 50 MHz arbitrary waveform generator. Remote control is possible via mouse, LAN, and built-in web server.
