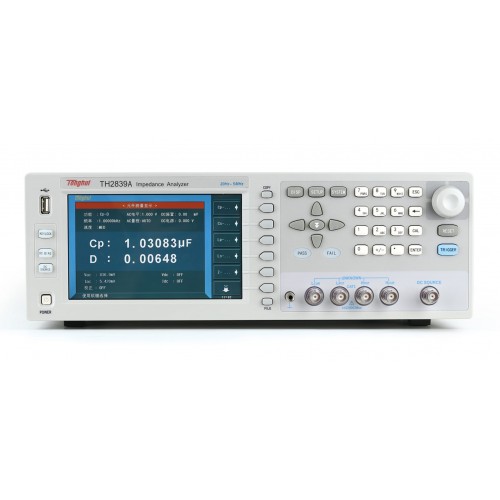

TECHMIZE TH2839A, LCR Meter, Basic accuracy: 0.05%, Frequency up to 5MHz
TECHMIZE TH2839A, Impedance Analyzer, Basic accuracy: 0.05%, Frequency: 20Hz-5MHz
Main Features:
- Freq: 20Hz-5MHz, max. resolution 1mHz
- Test Accuracy: 0.05%
- AC Test parameters Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, R, X, G, B, θ, D, Q, Vac, Iac
- DC Test parameters Rdc, Vdc, Idc
- Test Speed: Max.7.7ms
- Auto-balance bridge technology, 4-terminal pair
- High stability and consistency: up to 15 test ranges
- High resolution: 7-inch, 800*600
- 201 Points List Sweep Function
- Multi-parameter Graphic Sweep Function
- Varactor diode automatic polarity function
- Simultaneous testing for Ls-RDC
- 10 bins sorting, sorting result with sound and light alarm
- Storage space:
Internal: 40 groups of setting file
USB External: 500 groups of setting files, data log
files and image files
- High compatibility: Support SCPI commands, compatible with KEYSIGHT E4980A, E4980AL, HP4284A etc
| Included accessories | |
| Four-end clamp with card | TH26005C |
| Fixture | TH26047 |
| Short circuit | TH26010 |
| Kelvin test lead with box four-terminal insulation and lock | TH26011BS |
| Test Report Certificate | See example |
| Optional accessories | |
| Magnetic ring fixture | TH26008A |
| Box patch test cable | TH26009B |
| Dielectric test fixture | TH26077 |
