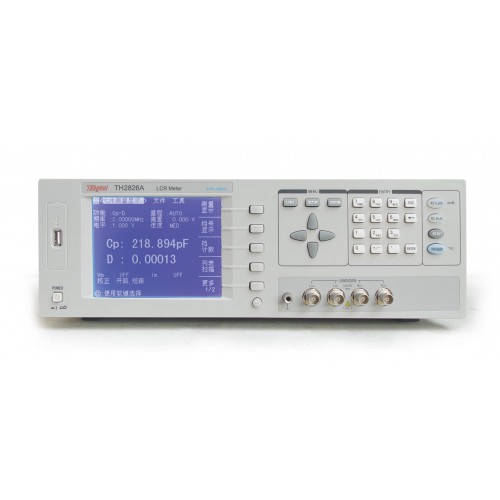

TECHMIZE TH2826A, LCR Meter, Basic accuracy: 0.1%, Frequency up to 2MHz
TECHMIZE TH2826A, LCR Meter, Basic accuracy: 0.1%, Frequency: 20Hz-2MHz
Main Features:
-Freq: 20Hz-2MHz,max.resolution10mHz
-Test Accuracy: 0.1%
- Test Parameters: C, L, R, |Z|, Y, X, B, G, D, Q, θ, DCR
-Test Speed:200 times/s
-Multi-parameter with multi-frequencylist sweep function
-Test level:10mV-5V with the resolution of 1mV
-320×240 dot-matrix large graphic LCD display
-5-digit display resolution
-22 parameter combinations available
-4 signal source output impedance
-10 points list sweep function
-Built-in DC bias source
-External AC bias up to 40A (option)
-Auto level control (ALC) function of voltage or current
-V,I test signal level monitor function
-Graphic scanning and analyzing function
-20 groups of setting for storage/load
-Built-in comparator, 10-bins and bin counters
-Multiple communication interfaces
-2m/4m cable length extension
-Optional Chinese and English language operating interface
-Software upgrade through USB HOST
| Included accessories | |
| Fixture | TH26048 |
| Short circuit | TH26010 |
| Kelvin test lead with box four-terminal insulation and lock | TH26011BS |
| Test Report Certificate | See example |
