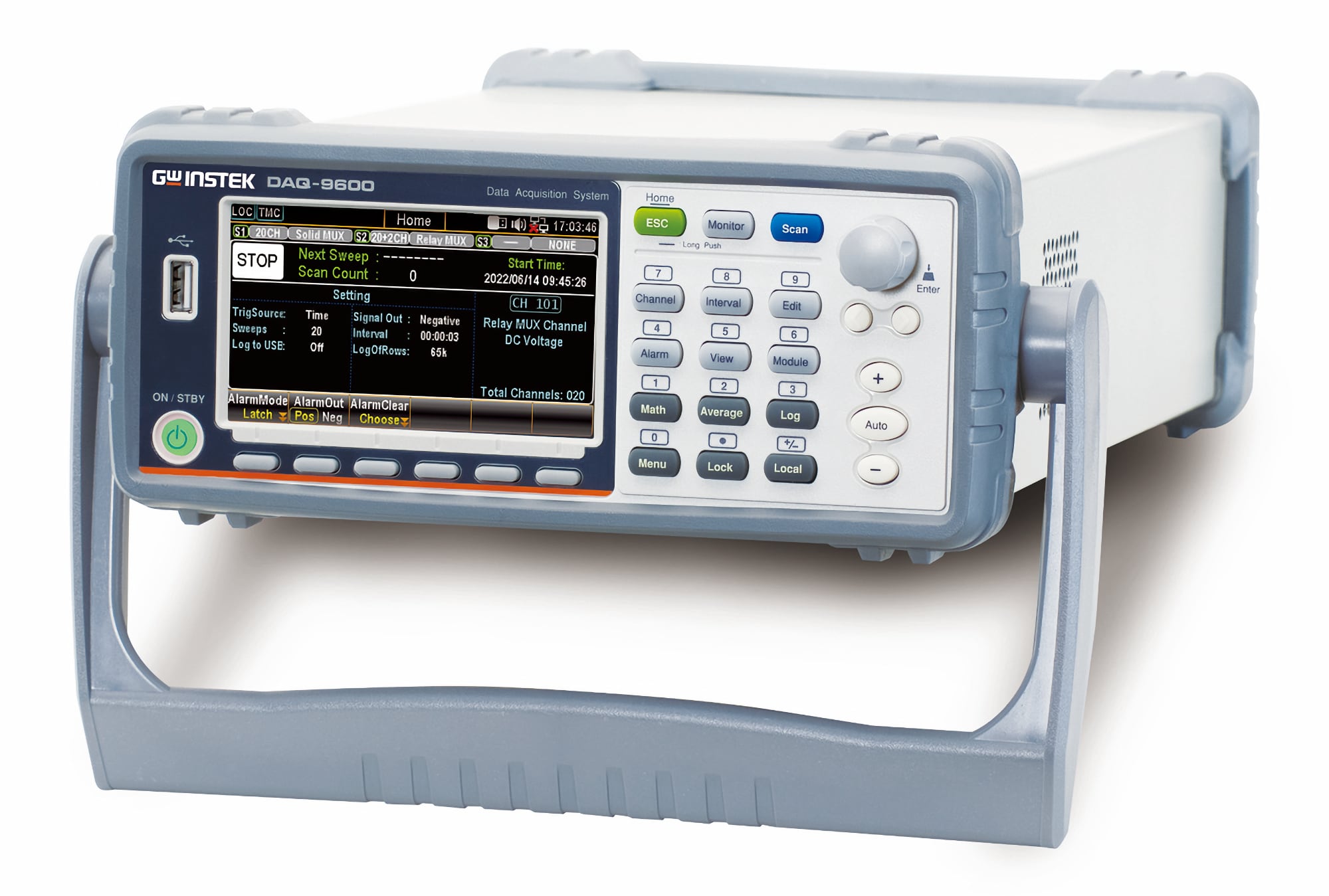

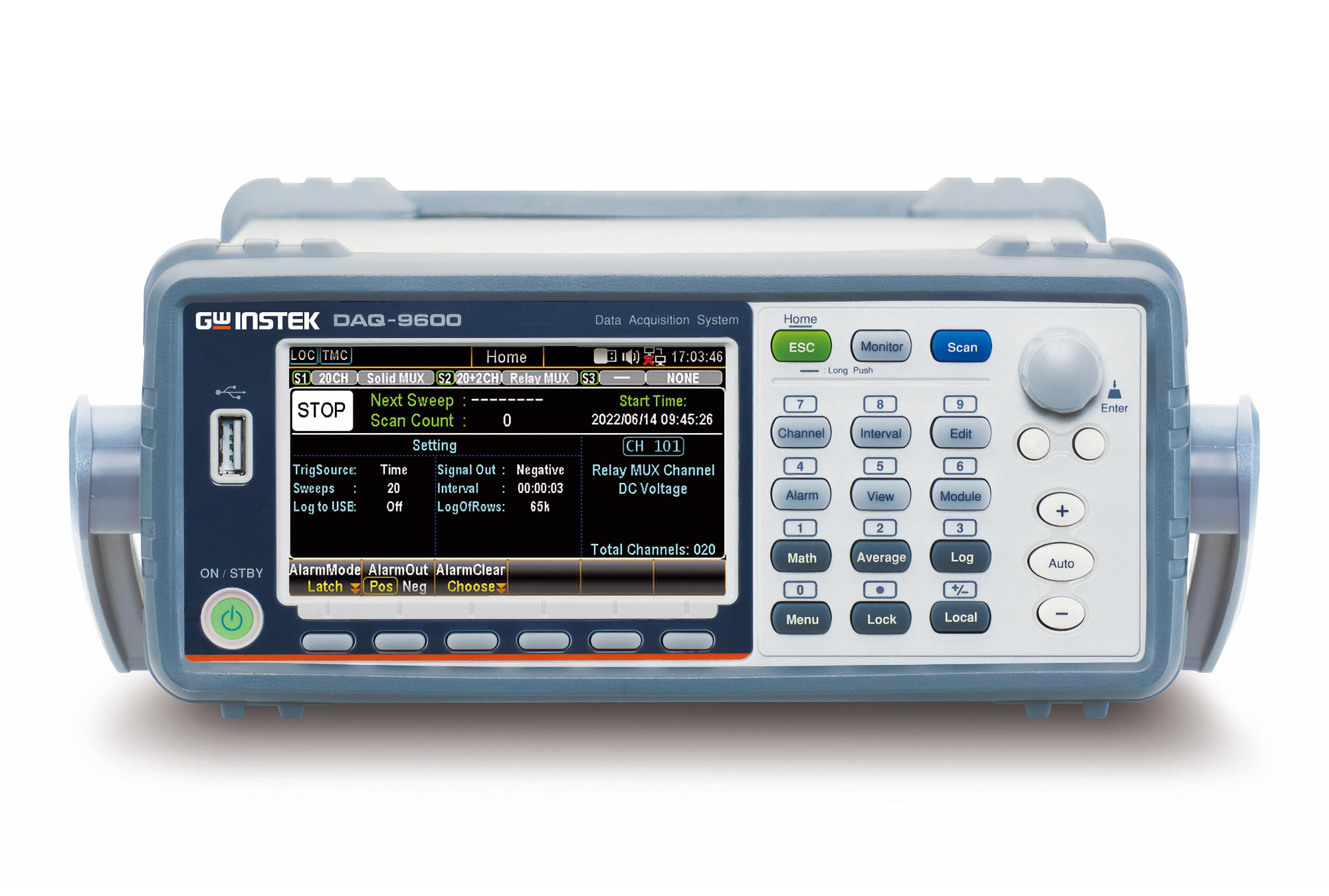

The DAQ-9600 data acquisition system has five high-quality modules and a built-in 6.5 digit multimeter to provide you with an efficient and accurate data acquisition.
The system measures and converts 14 different input signals:
Temperature with thermocouples, RTDs and thermistors; DC/AC voltage; 2-wire and 4-wire resistance; frequency and period; DC/AC current and capacitance; direct strain and bridge strain.
Your data acquisition is controlled by logging and observing results in a variety of display options for easier analysis. A free DAQ software assists you in controlling measurement channels for your specific test configurations from multiple data acquisition units.
6.5 digits Accuracy

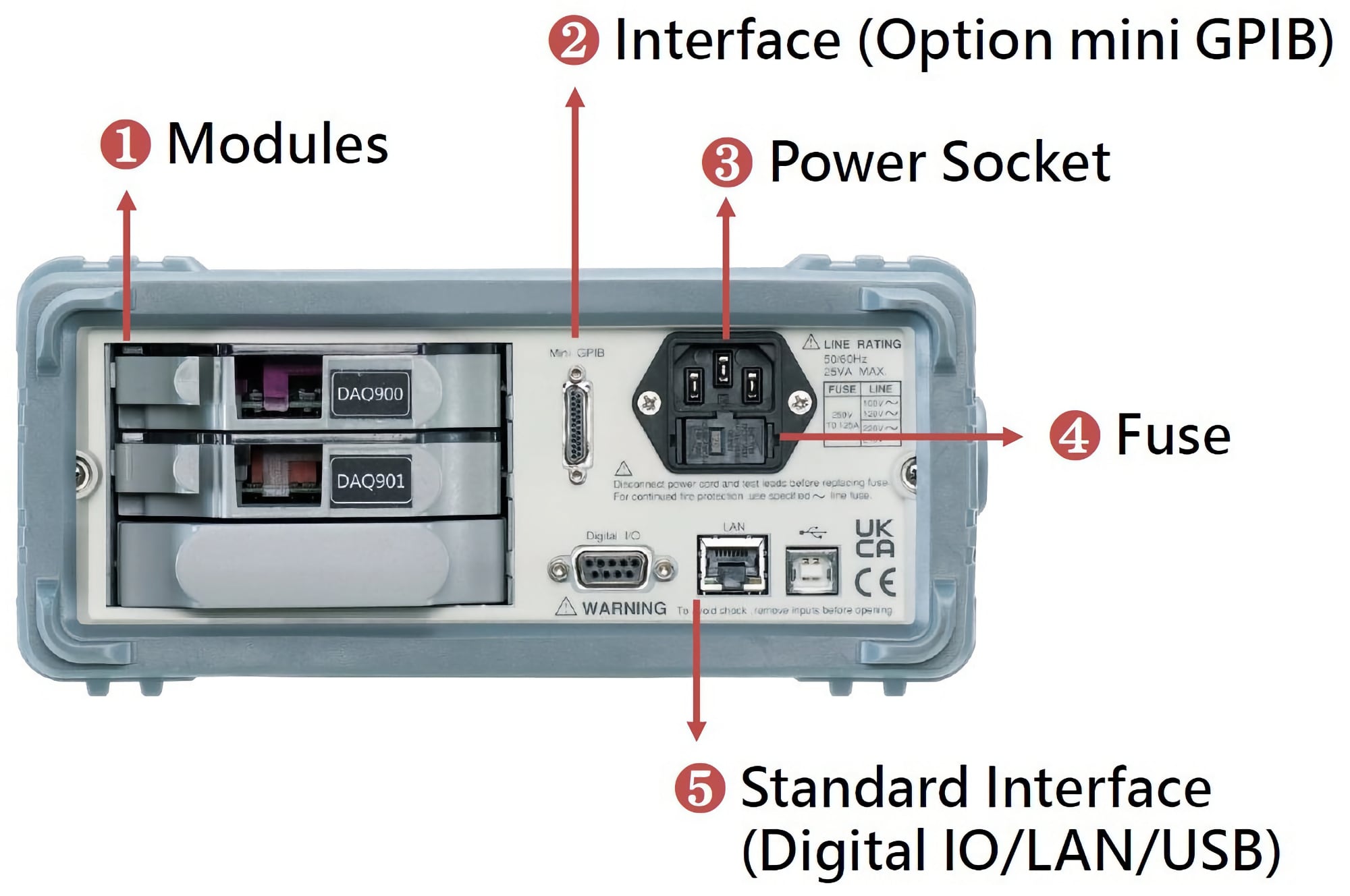

3-slot Mainframe
Mainframe features:

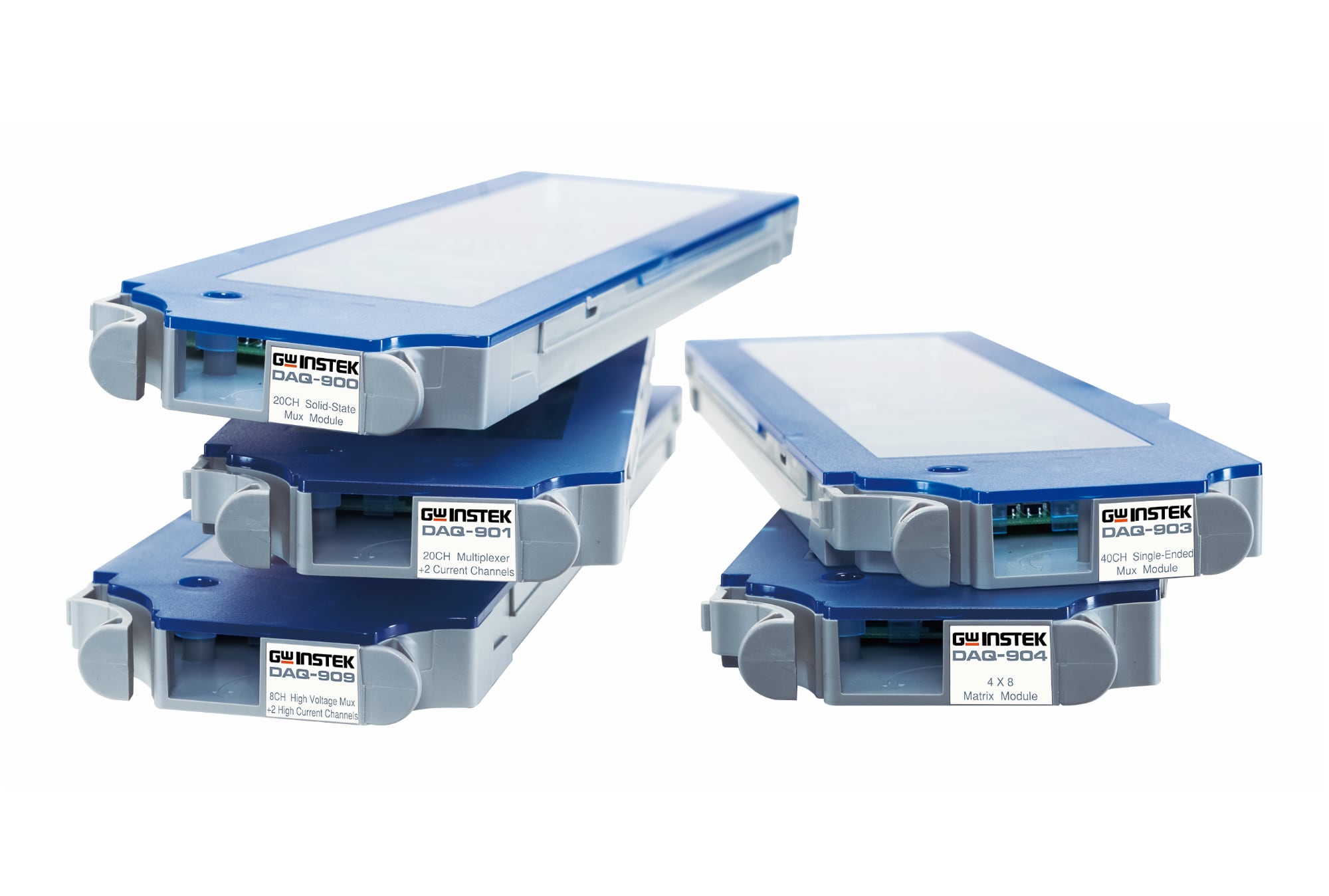

Modules features:
DAQ-900
20-Channel Universal Multiplexer (Solid State Relay)
DAQ-900 is a solid state relay module that provides two groups (A/B) of 10 2-wire channels each. All 20 channels are switchable to high (HI) and low (LO) inputs, providing fully isolated inputs for the built-in digital meter or external instruments. During 4-wire resistance measurements, the channels of group A are automatically paired with the channels of group B to provide power and sense connections. The module has a built-in cold junction reference, which can greatly reduce errors caused by thermal gradients when measuring thermocouples.
DAQ-901
20+2 Channels Universal Multiplexer (Armature Relay)
DAQ-901 is a comprehensive multiplexer for general scanning. The same module can mix 2-wire and 4-wire channels; at the same time, the additional 2 current input channels can be used for AC and DC current measurement without external shunt resistors (maximum 1A per channel).
DAQ-901, a total of 22 channels, intensive multifunction switching and a scan rate of up to 80 channels per second, is suitable for various data acquisition applications.
DAQ-903
40-Channel Single-Ended Multiplexer
DAQ-903 can switch 40 single-wire inputs per module. It can be used for common-low applications such as battery testing, component characterization and desktop testing. The low-voltage connection is isolated from ground and can be floated up to 300 V.
DAQ-903 also supports all 2-wire internal measurements except current.
DAQ-904
4 x 8 2-Wire Matrix
DAQ-904 module can provide the most flexible connection path between your DUT and the test system, allowing different test instruments to be connected to multiple points on the DUT at the same time.
DAQ-904 can connect the rows and columns of multiple modules to build larger matrices, such as 8 x 8, 4 x 16, and so on. Up to 96 crosspoints can be built in a single instrument.
DAQ-909
8+2 Channels High Voltage High Current Multiplexer
DAQ-909 is a multiplexer specially designed for high voltage, providing 8 channels for DC 600V / AC 400Vrms voltage measurement. The additional 2 current input channels can be used for AC and DC current measurement, external shunt resistors are not required (maximum 2A / per channel).
