KEYSIGHT DM34460A Series, 6.5 Digit Truevolt Digital Multimeters Introduction
KEYSIGHT DM34460A Series Truevolt digital multimeters represent a new generation of benchtop instruments for engineering labs, production testing, and education. With a metrology-grade architecture, these digital multimeters offer outstanding accuracy, fast measurements, built-in data security, and a user-friendly 7" color display that visualizes waveforms, trends, and statistics at a glance.

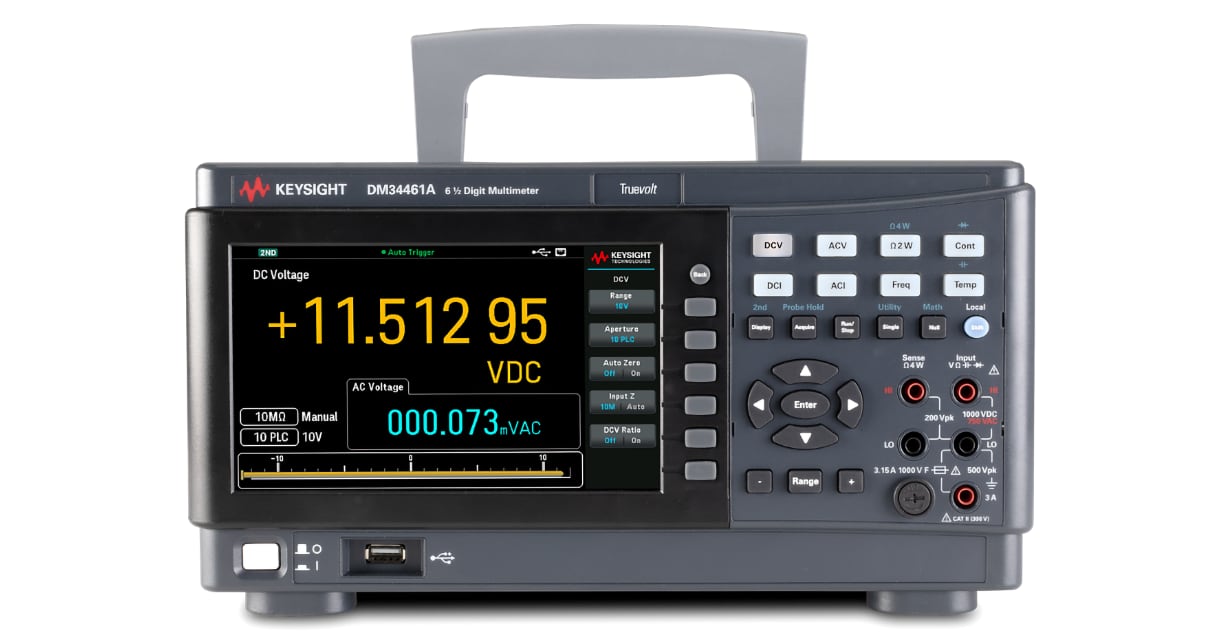

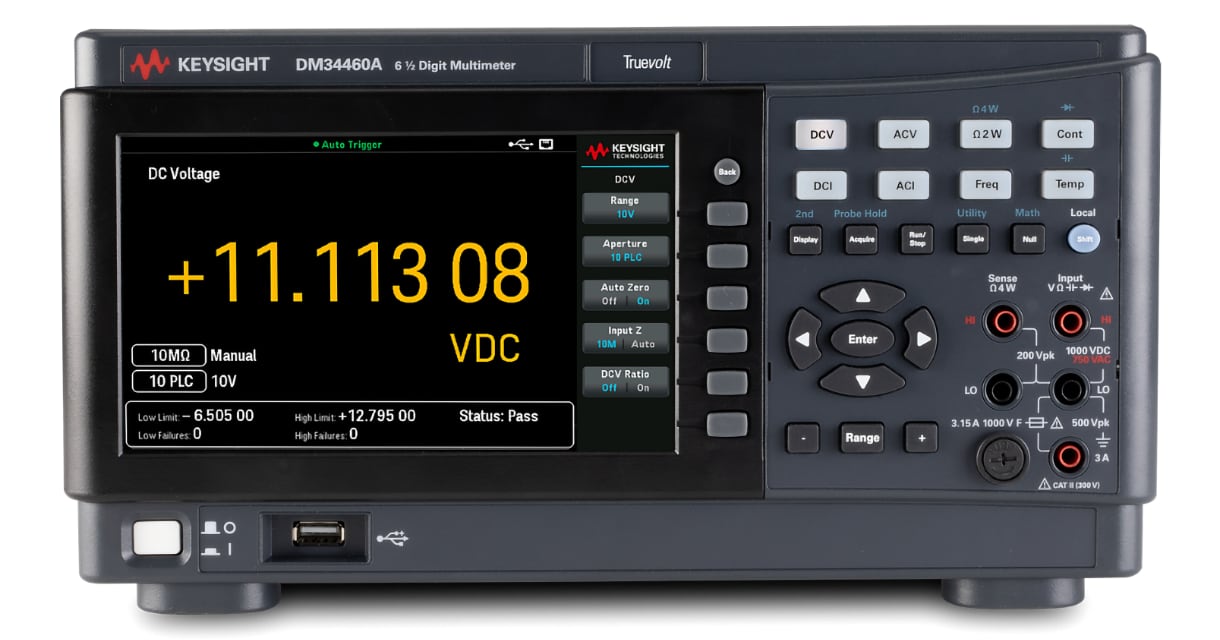

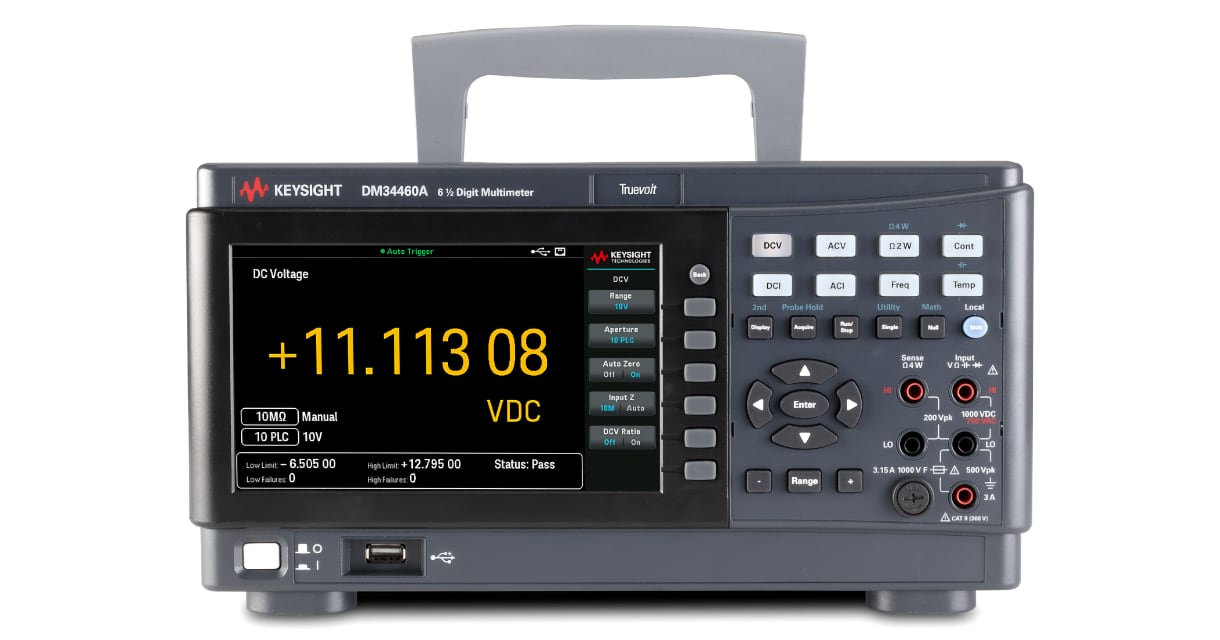

- 2 models available: DM34460A (6½ digits, 50,000 readings memory), DM34461A (6½ digits, 2 million readings memory)

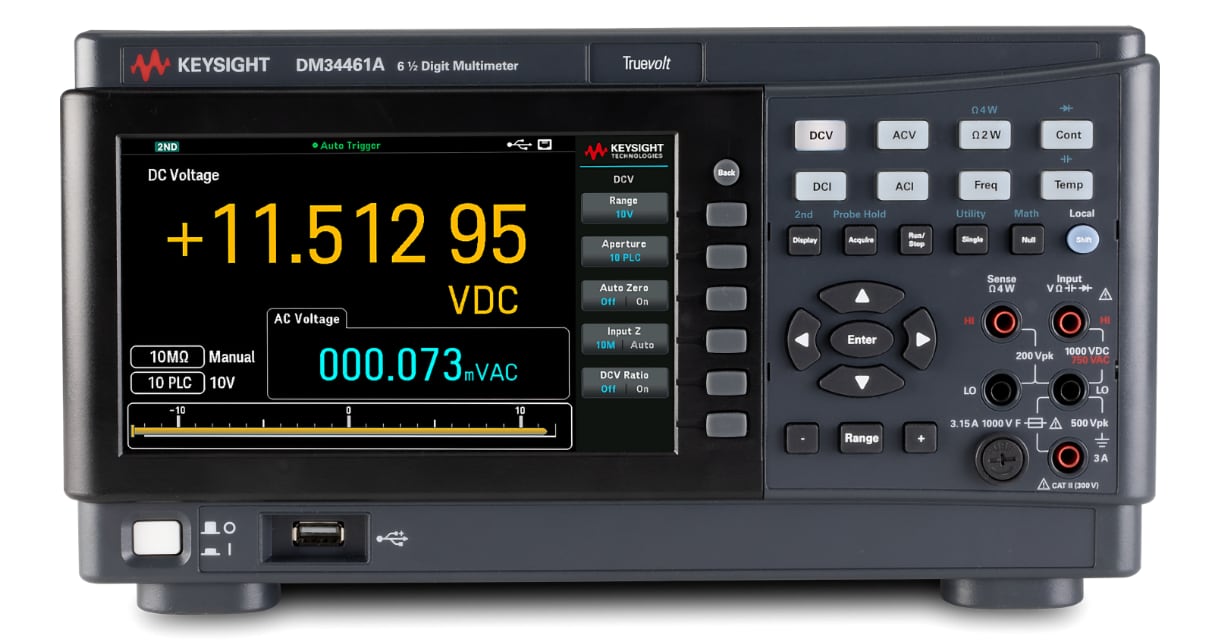

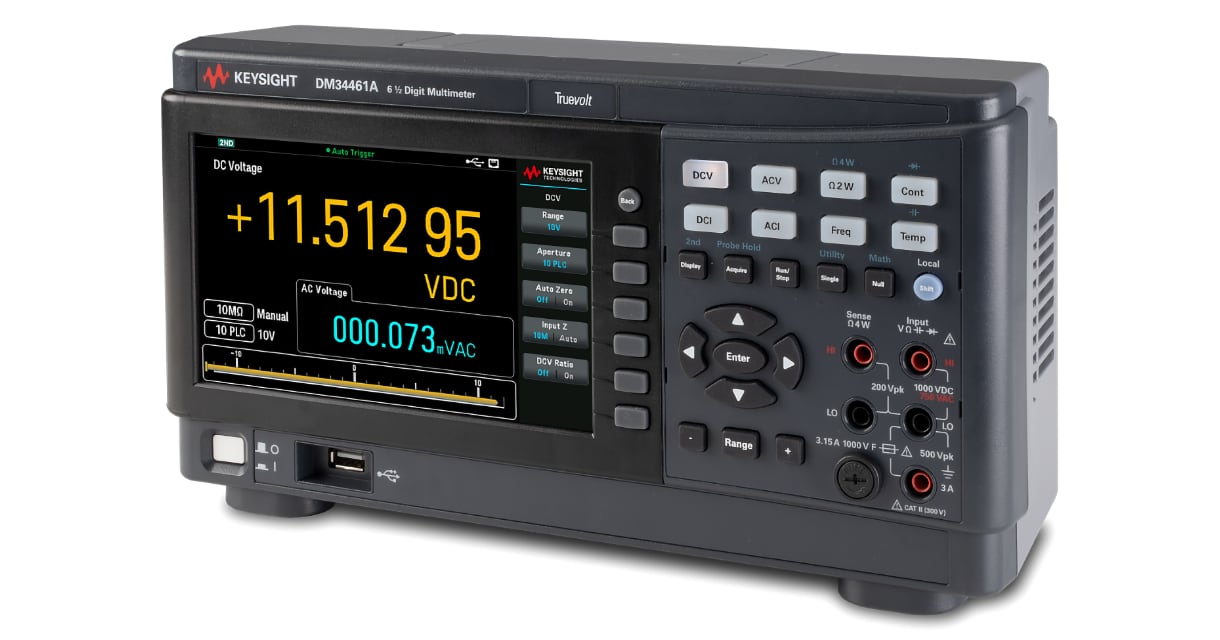

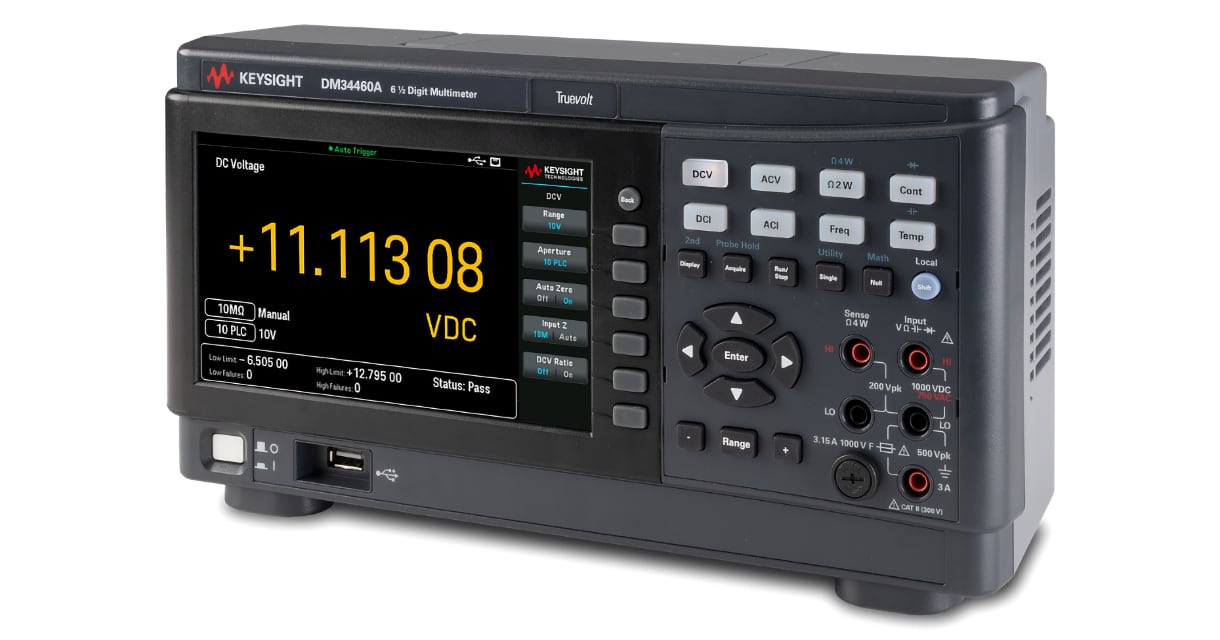

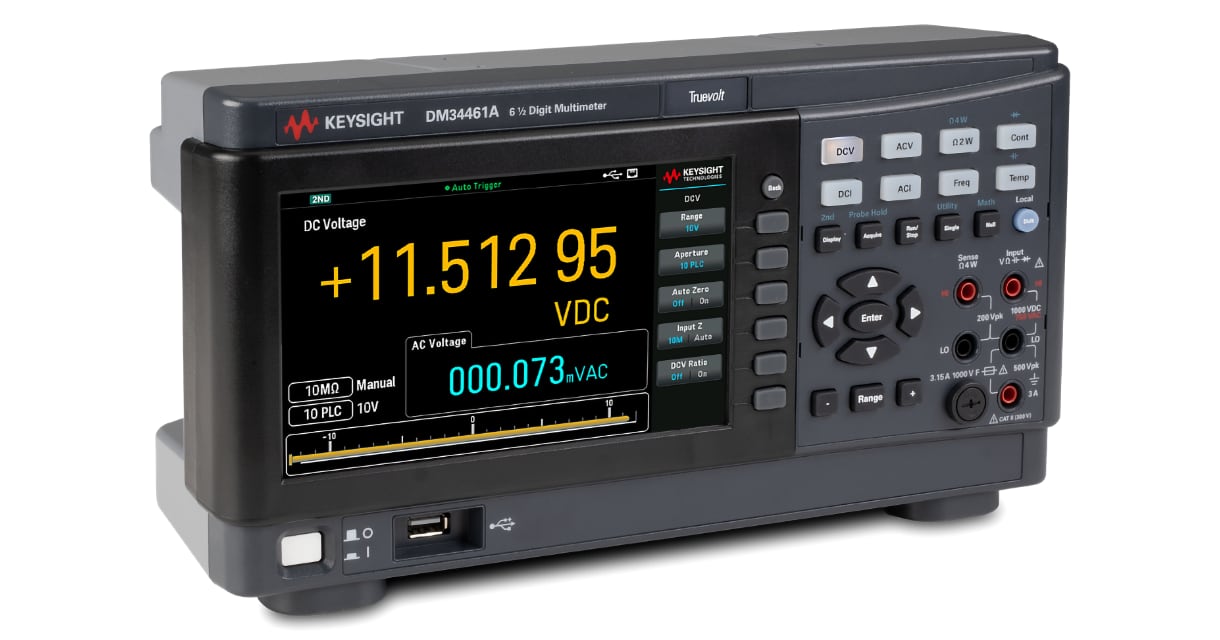

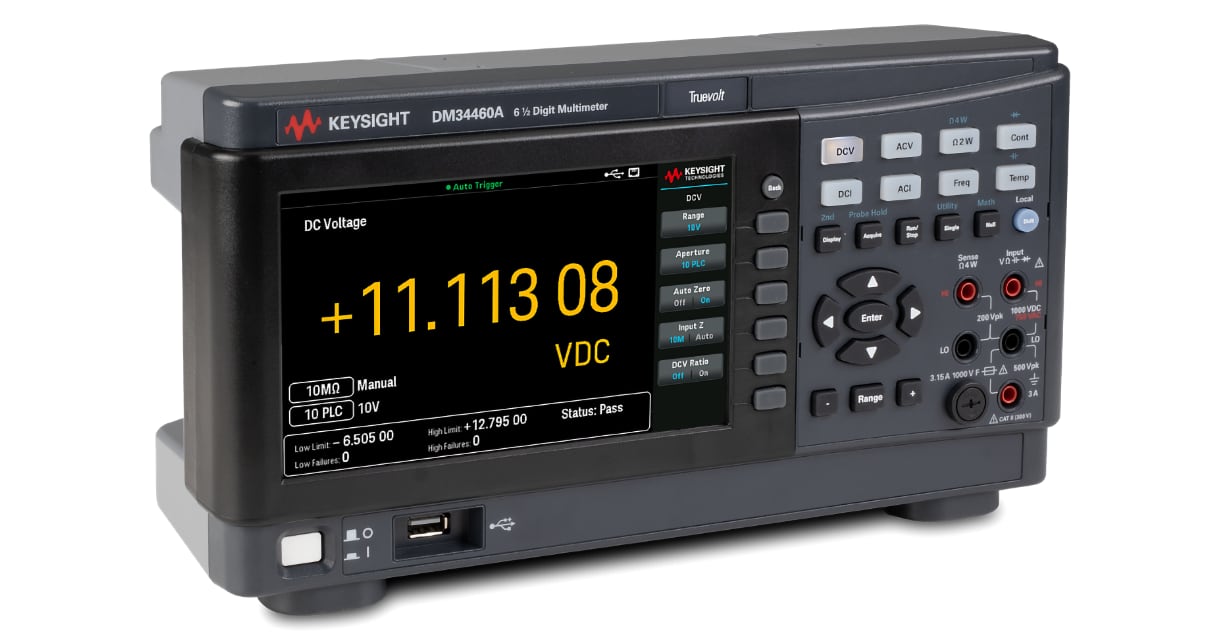

- Large 7-inch color display with dedicated keys for logging and digitizing, plus bar meter, histogram, and trend chart views
- Truevolt technology for high accuracy, superior noise rejection, and reliable data for all measurements
- Wide measurement functions: DCV, ACV True RMS, DCI, ACI, 2- & 4-wire resistance, continuity, diode, frequency, period, capacitance, temperature (RTD, thermistor)
- USB and LAN/LXI Core interfaces, exportable data, and full security with NISPOM-compliant memory erase
Target Applications
- Engineering and R&D labs
- Production test and quality control
- Educational and teaching environments
- Component, sensor, and board verification
- Data logging and trend/statistical monitoring
- Energy labs and calibration with demanding security compliance
Competitive Advantages
- Metrology-grade Truevolt architecture: Eliminates power line and environmental noise, ensuring trustworthy, accurate results
- High-speed digitizing (DM34461A): Capture and analyze fast transients up to 50,000 readings/second
- 7-inch color LCD with statistical tools: View readings as bar meters, histograms, or trend charts directly on the instrument
- Comprehensive security: NISPOM-compliant memory erase to sanitize data quickly and safely
- Flexible connectivity: USB, LAN/LXI Core, and BenchVue software for easy logging, exporting, and remote operation
| Specification |
DM34460A |
DM34461A |
| Resolution (digits) |
6½ |
| Basic DCV accuracy |
40 ppm |
| Max reading rate |
1,000 readings/s |
50,000 readings/s |
| Memory |
50,000 readings |
2 million readings |
| Display |
7" Color, bar meter |
7" Color, bar meter, histogram, trend chart |
| Data logging |
Yes |
| Security (NISPOM, file erase) |
Yes |
| Voltage ranges |
100 mV – 1,000 V |
| Current ranges |
100 μA – 3 A (DC/AC) |
| Resistance |
100 Ω – 100 MΩ (2- and 4-wire) |
| Frequency/period |
3 Hz – 300 kHz |
| Capacitance |
1 nF – 100 μF |
| Temperature |
RTD/PT100, thermistor |
| Interfaces |
USB, LAN/LXI Core |
Complete Measurement Functions
- Voltage and current: DCV, ACV (True RMS), DCI, ACI with wide dynamic range and fast autorange
- Resistance: 2- and 4-wire measurement with offset compensation for low-resistance accuracy
- Other: Capacitance, frequency, period, continuity, diode test, temperature (RTD, thermistor)
- Integrated math/statistics: Min/max, average, standard deviation, null, dB/dBm, power
Automation and Data Management
- Flexible interfaces: USB and LAN/LXI for easy integration, SCPI programming, and remote control
- PathWave BenchVue software: Log and export data, recall states, automate reporting with no coding
- Secure operation: Fast NISPOM-compliant erase of memory and settings
- Remote logging: Save up to 2 million readings internally or to USB drive
Standard Equipment
- Test leads with safety connectors
- Power cord
- Quick start guide
