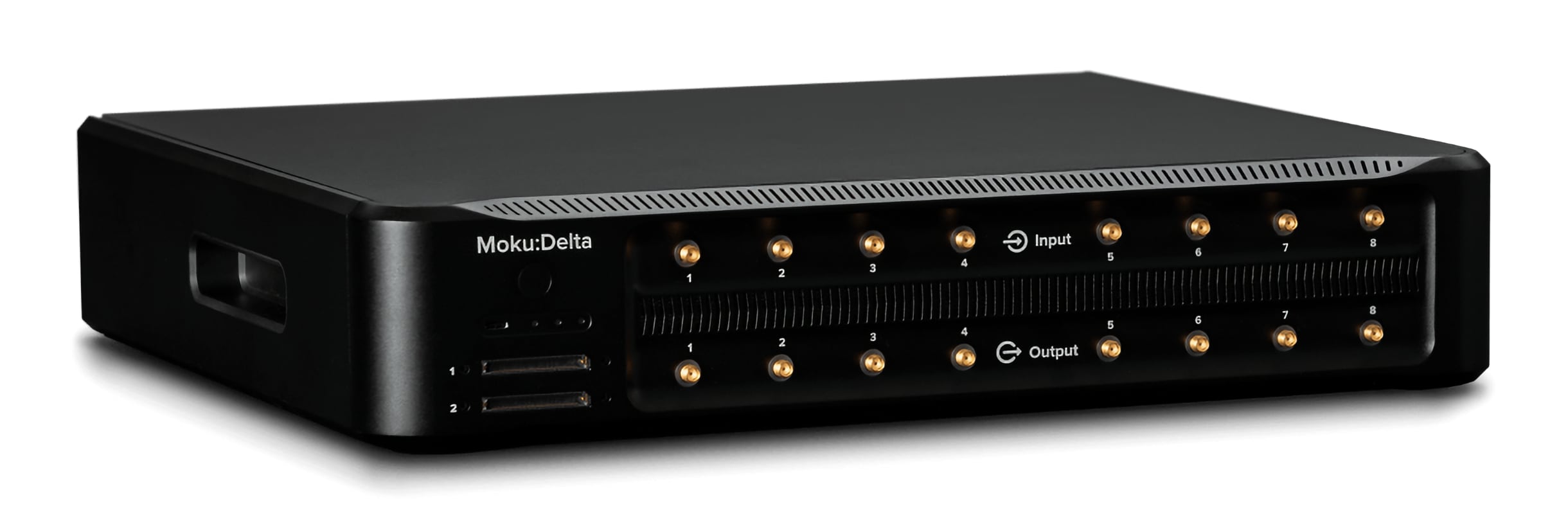

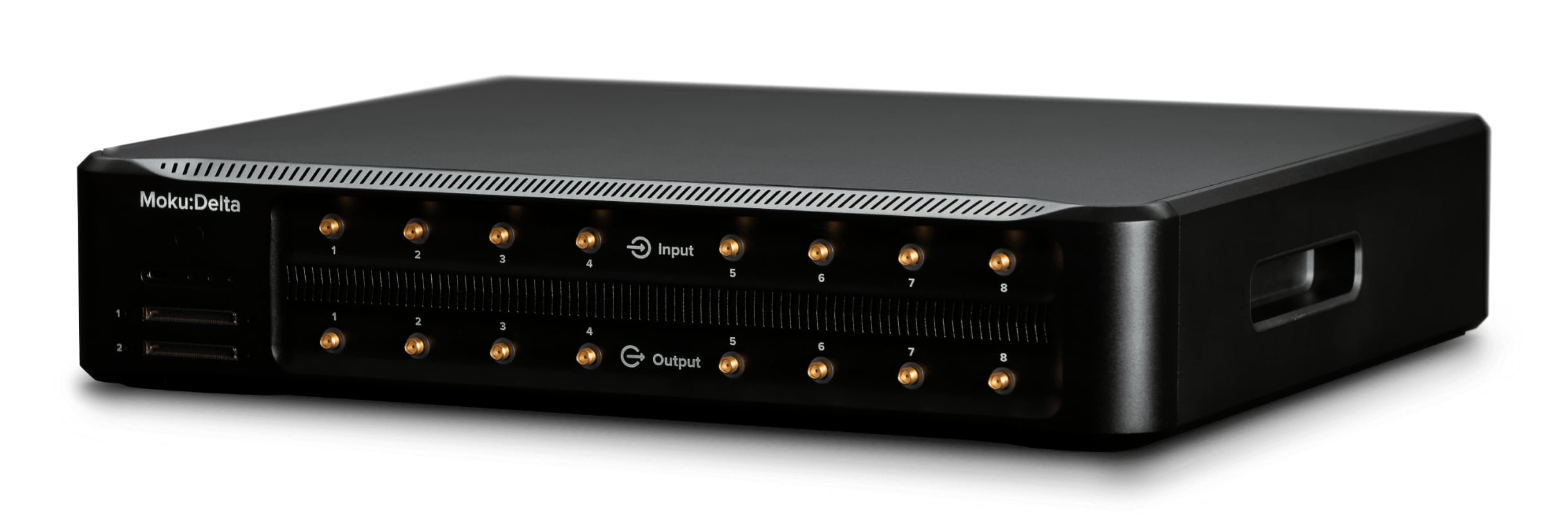

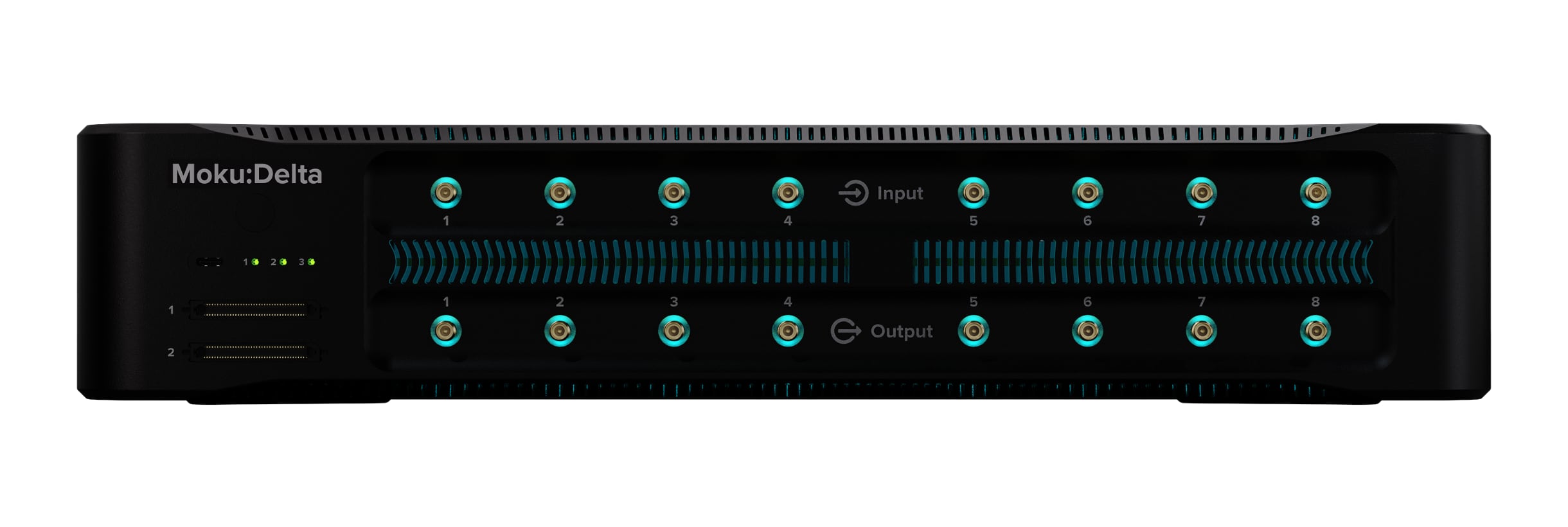

Liquid Instruments Moku:Delta is the most advanced measurement platform for accelerating the design and validation of electronic products. With a 2 GHz bandwidth, eight analog inputs and outputs, 32 high-speed digital channels, and an input noise floor below 10 nV/√Hz, it delivers exceptional performance and versatility in a compact device.
Multiple instruments in a single platform
With support for 15 different instruments and the ability to use up to eight simultaneously, Moku:Delta delivers over 2 billion test configurations in a single 2U device. Partial reconfiguration of the RFSoC FPGA brings software flexibility and hardware performance together.
8 analog inputs
2 GHz, 5 GSa/s
8 analog outputs
2 GHz, 10 GSa/s
Noise floor
< 10 nV/√Hz at
100 Hz
Clock stability
1 ppb OCXO
FPGA powered
Third-generation Xilinx RFSoC

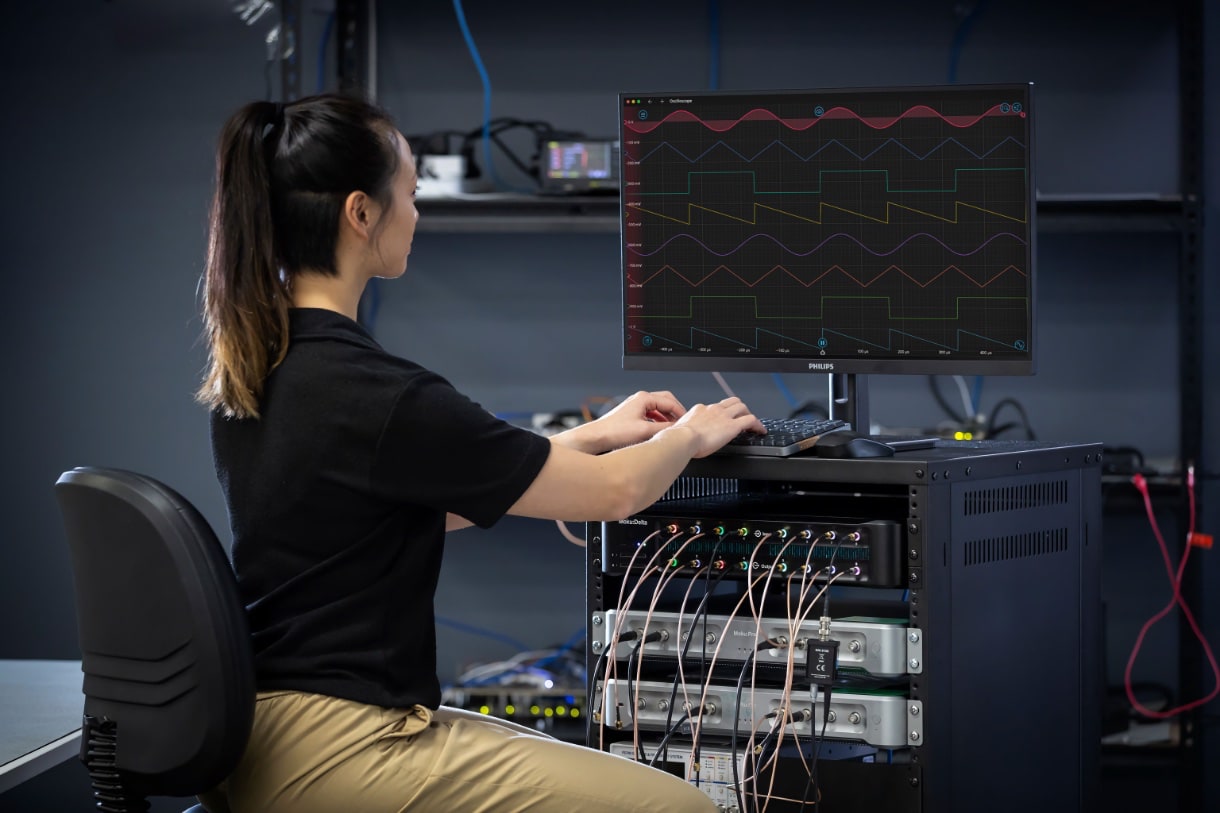

The most precise 2 GHz oscilloscope
Liquid Instruments' algorithms automatically blend high- and low-speed signals from the eight independent 14- and 20-bit ADCs to optimize noise performance across the entire 2 GHz range. Thanks to this exclusive blending technology, Moku:Delta achieves extremely low and consistent noise across the spectrum.
Advanced clocking system: ultra-low phase noise and maximum stability
Moku:Delta combines up to four clock sources at the same time to achieve even more accurate phase, frequency, and interval measurements over extended time scales. A low-phase-noise VCXO is paired with a 1ppb stability OCXO to achieve the best balance between phase noise and stability. In addition, an external frequency reference and GPS option ensure global synchronization.

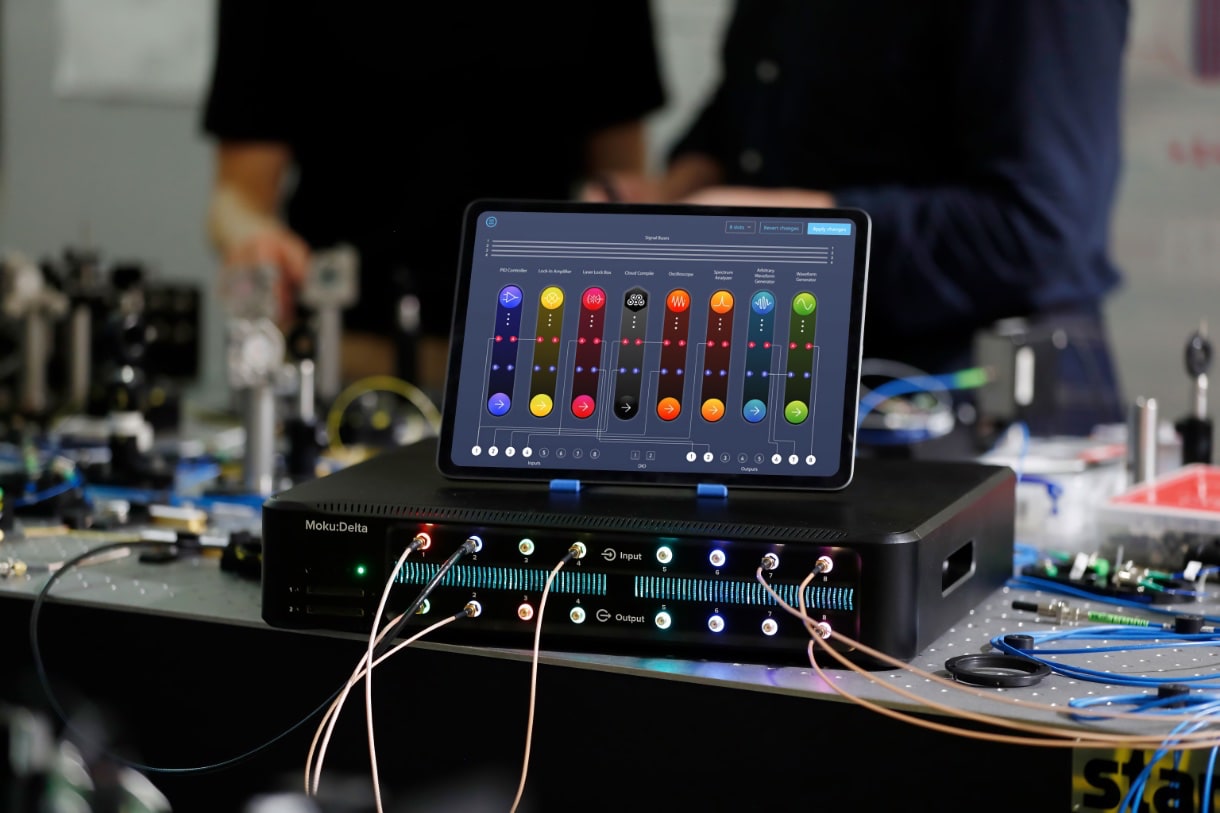

Extreme customization: more than 2 billion instrument configurations
Moku:Delta is the most flexible 2 GHz measurement device on the market: a reconfigurable FPGA for total instrument customization. With Multi-Instrument Mode you create your own tailor-made test system in a single unit and, thanks to Moku Cloud Compile, you can deploy new functions directly to the user-programmable FPGA with minimal wait times.

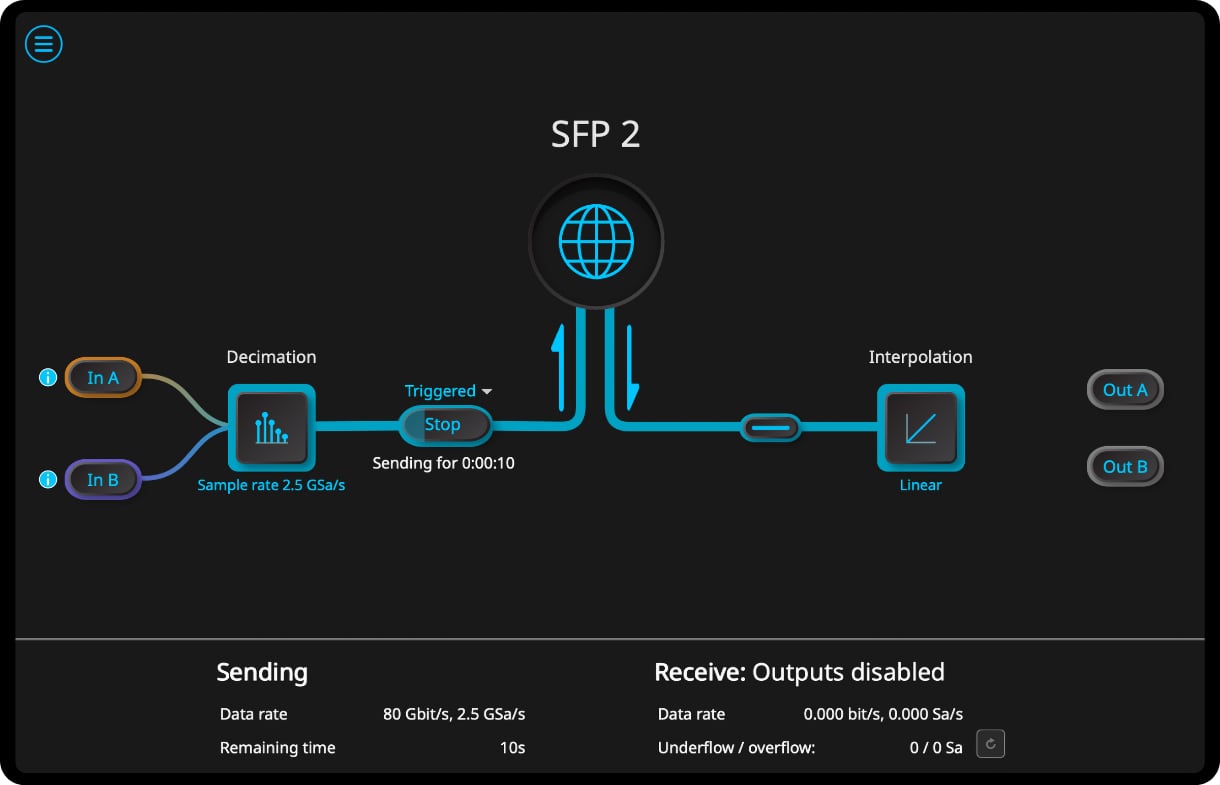

Coming Soon: Gigabit Streamer
Unlock the full potential of Moku:Delta with the new Gigabit Streamer software tool. This powerful feature will enable Moku:Delta's 100 GbE QSFP+ port, allowing data streaming at speeds up to 80 Gbps. Broadband recording and playback is essential for cutting-edge applications such as artificial intelligence and machine learning (AI/ML) training, L-band direct injection testing for GNSS, and RF spectrum monitoring. You can stream data to network storage or even from one Moku to another to expand your test system.
Generative Instrumentation: Your Test Setup, Created with AI
Generative Instrumentation introduces a revolutionary approach to test and measurement. By combining the power of AI with Moku:Delta, you can now build custom instruments, automate complex system setups, and respond to new requirements faster than ever. Instead of spending hours wiring, coding, or searching for the right configuration, simply describe what you want in natural language — Moku and AI handle the rest, unlocking a new level of AI-powered customization and automation.
