RIGOL introduces the ultra-portable 16-bit high-resolution waveform generators DG800 Pro / DG900 Pro Series, and 5.5-bits digital multimeters DM858 Series.

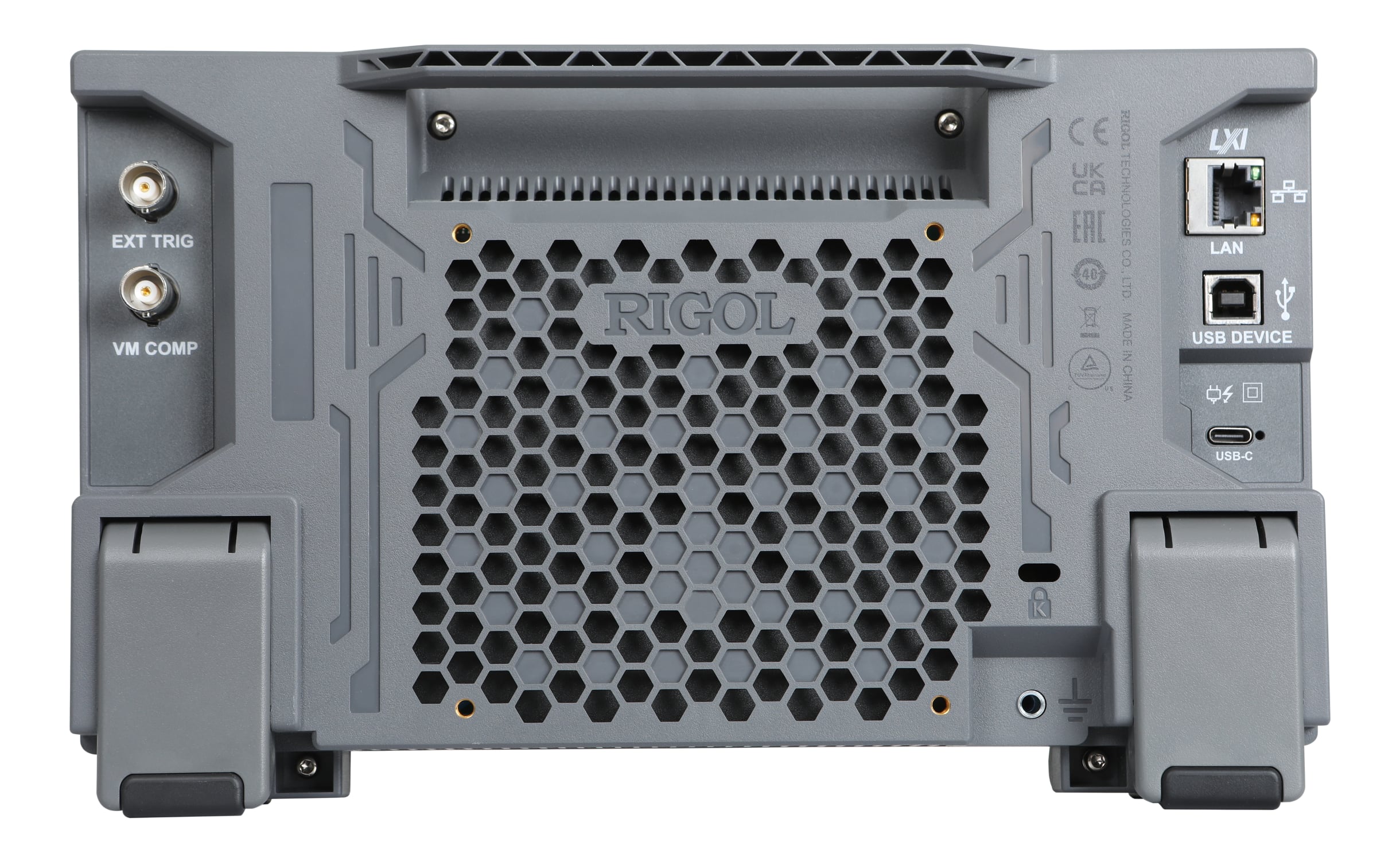

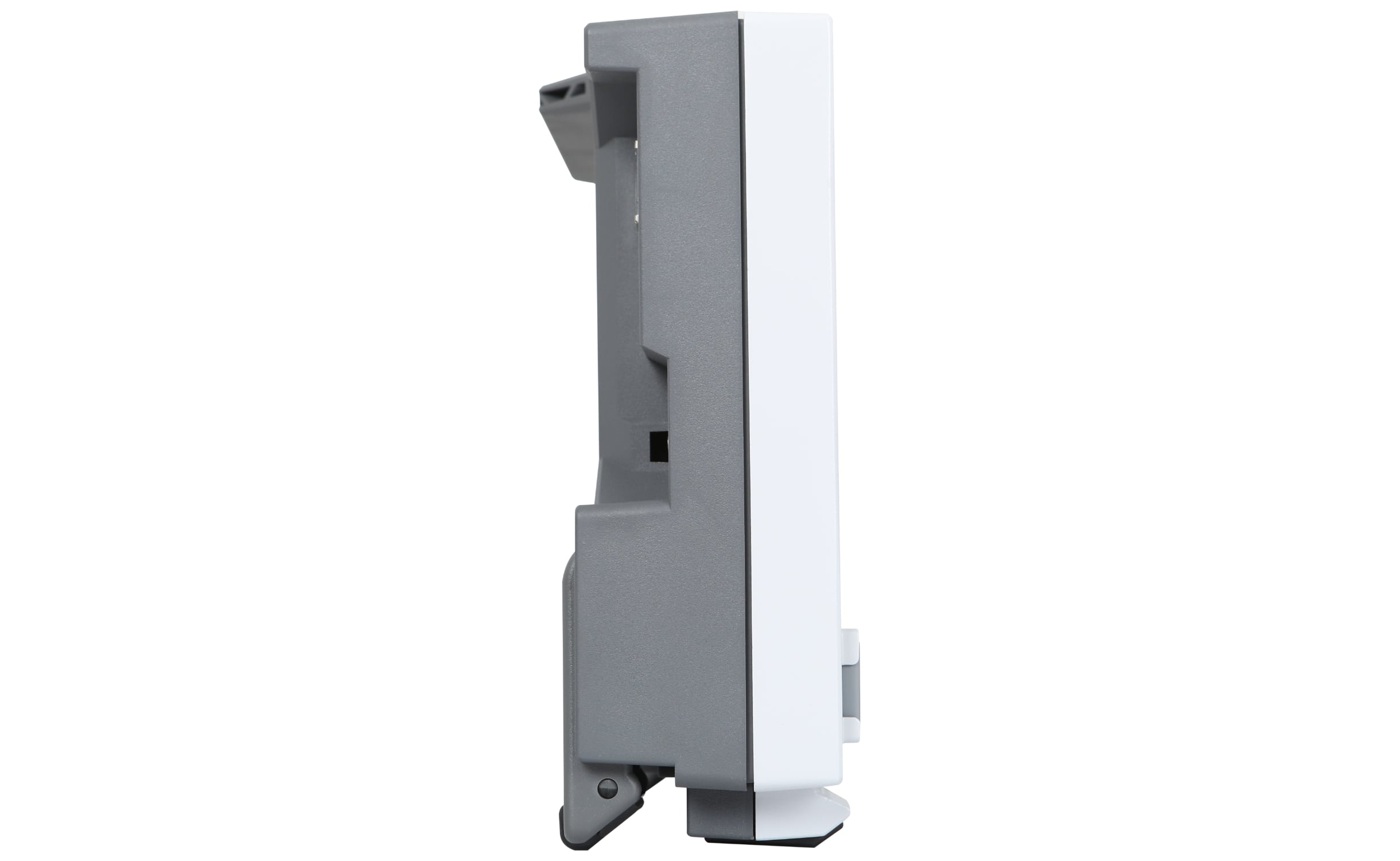

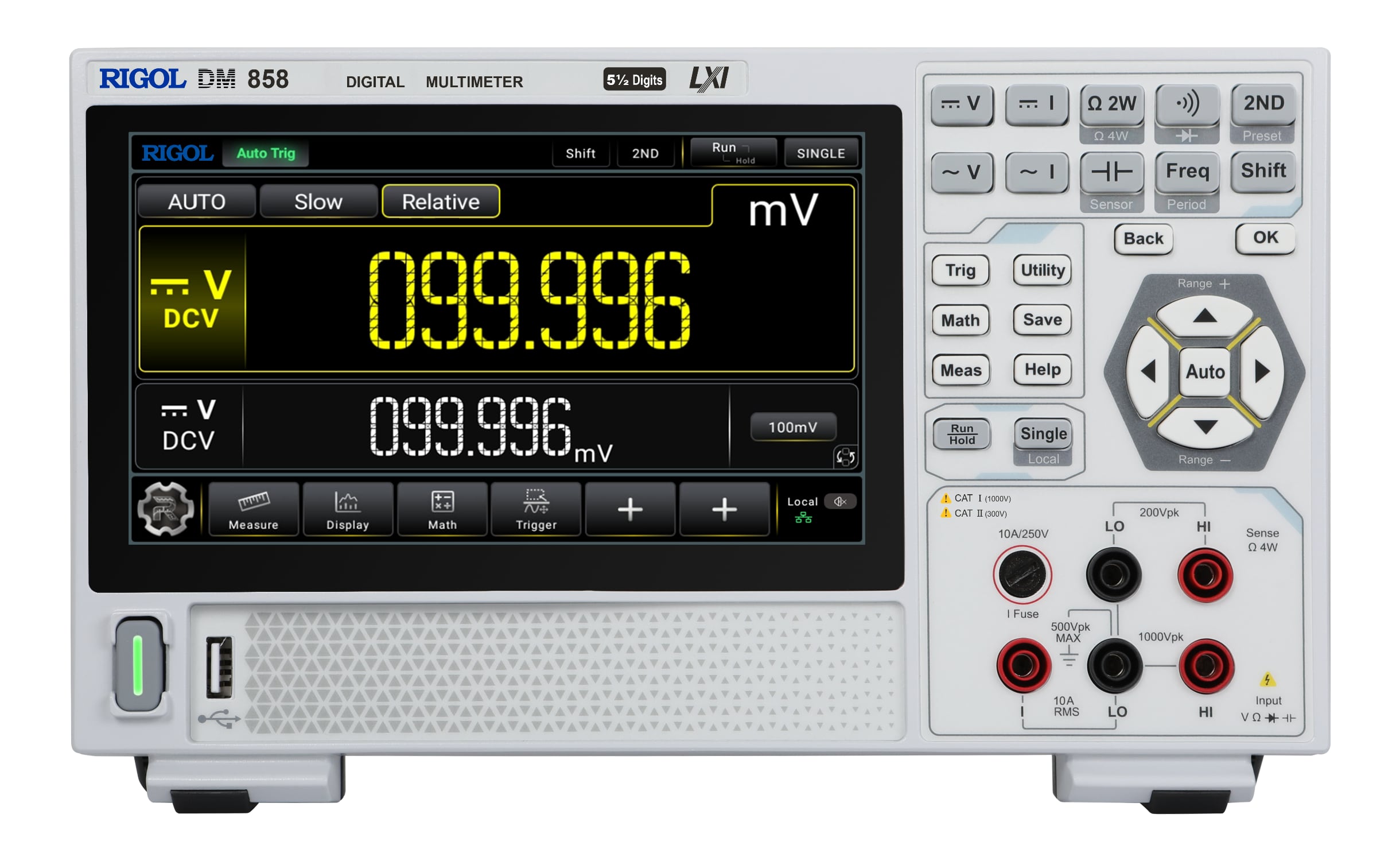

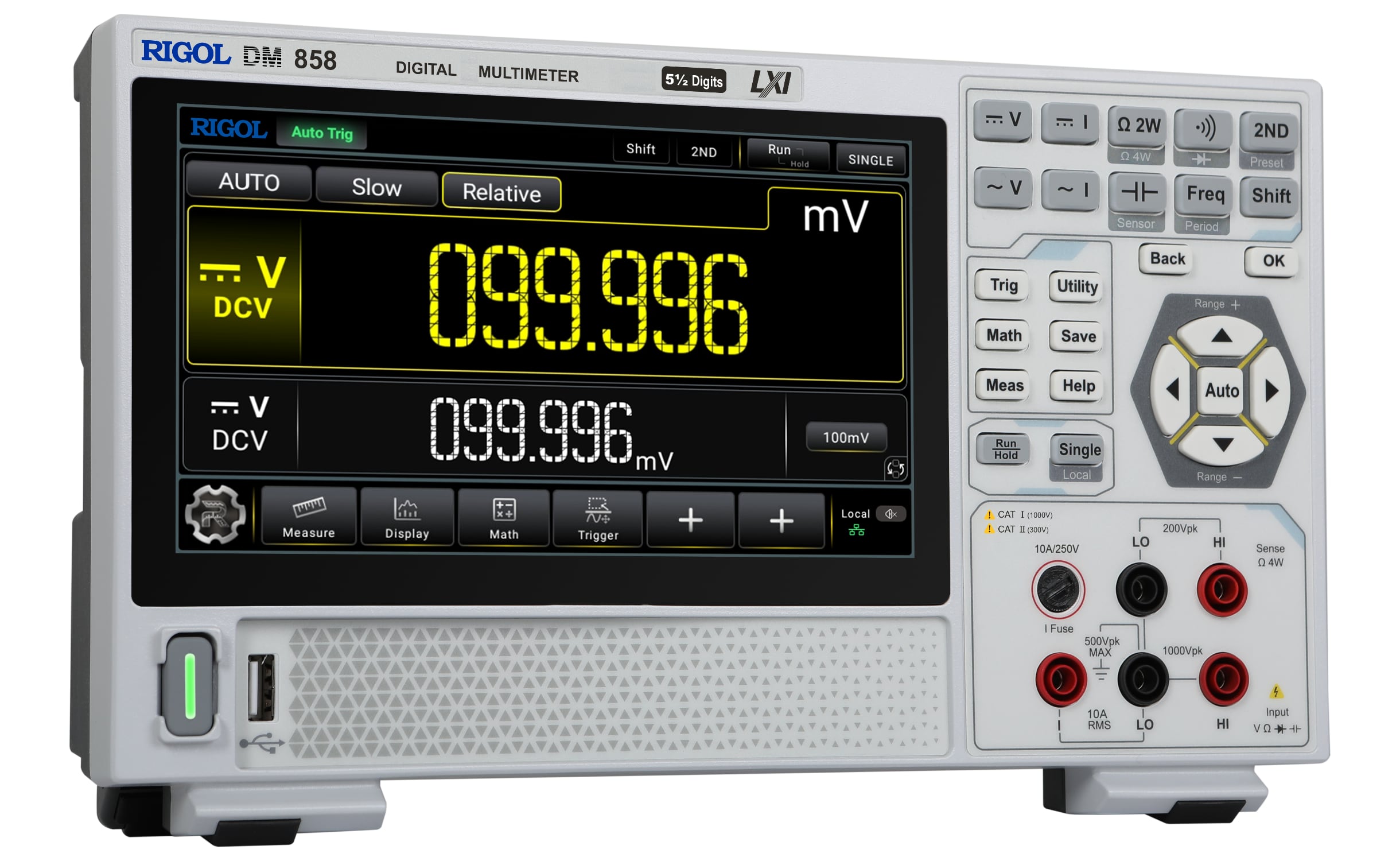

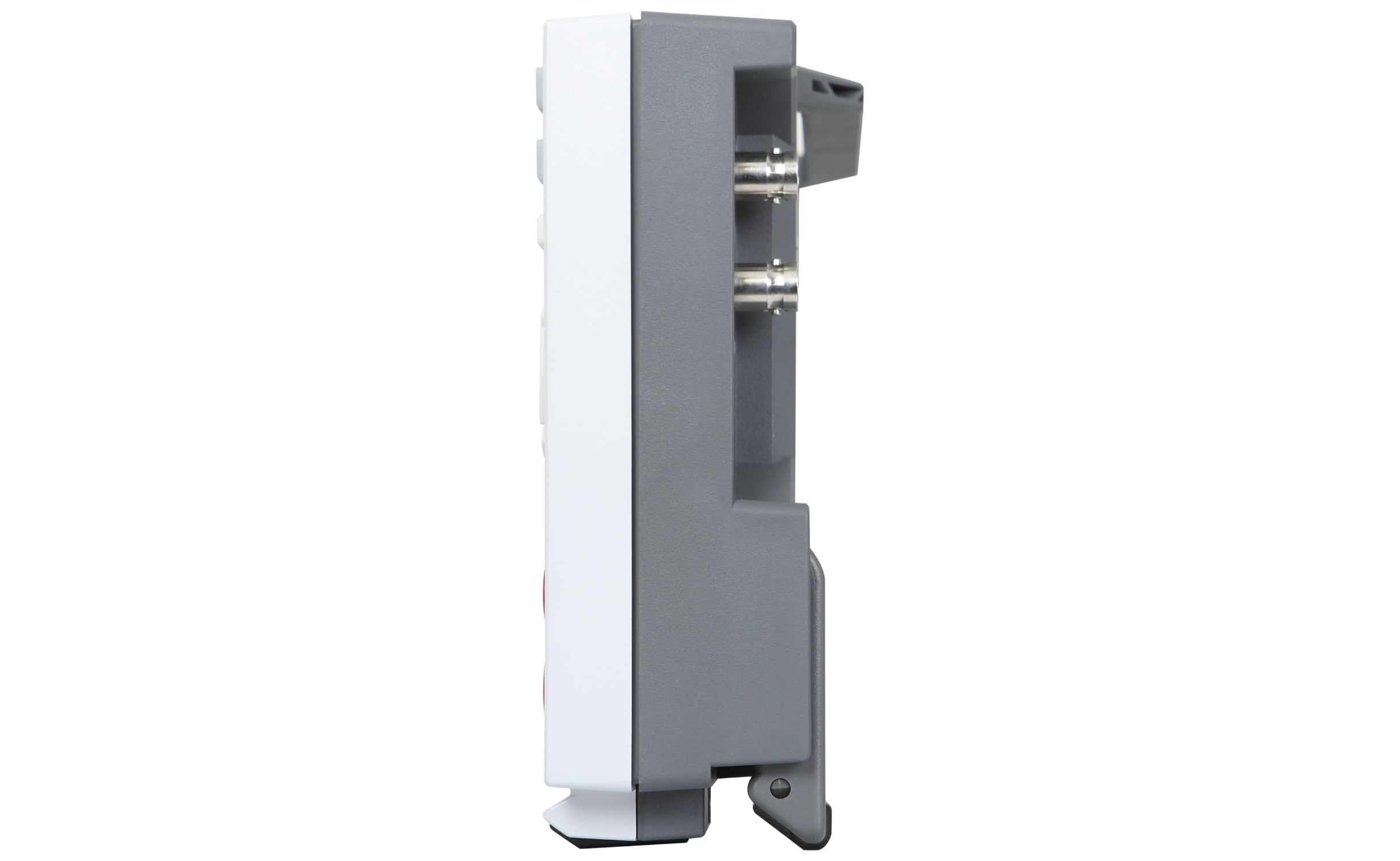

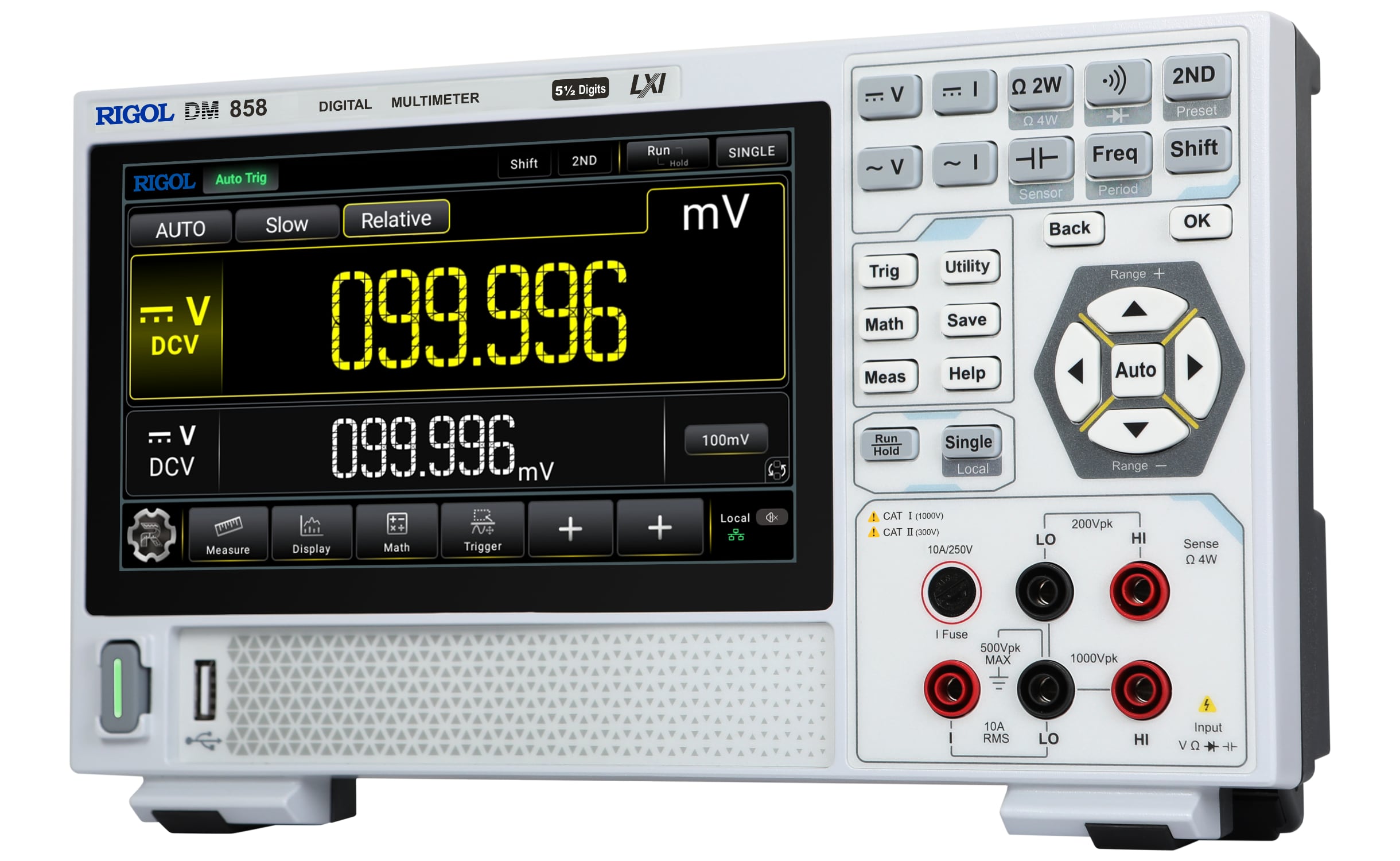

RIGOL DM858 - Digital Multimeters Series
RIGOL DM858, a benchtop digital multimeters series, provides a highly cost-effective test tool for engineers. It features 5.5-digit resolution, max. 125 readings/s, data logging memory of 500,000 points, and 0.03% DCV accuracy (1 year). It provides 11 measurement functions for input signals, 5 Math operations, and 3 graphical display types, satisfying what most experiments and tests require of a multimeter. The 7'' touch screen allows a clear view on measurement results. Its provides USB and LAN interfaces (standard) as well as the Web Control function for you to control the instrument directly, bringing smoother interaction. It is equipped with a Type-C interface for power input. In addition, it has a compact size and supports the attachment to a bracket, saving valuable bench space for engineers.
Product Features:
- Maximum reading rate: 125 readings/s
- Up to 500,000 points logging memory to record and analyze more data
- 5½-digit reading resolution
- True-RMS AC Voltage and AC Current measuring
- Built-in 10 groups of data storage and 10 groups of setup storage
- Strong Math functions, supporting various application protocols
- 7'' color touch screen, displaying dual-measurement results concurrently
- Type-C interface for power input; compact in size, freeing up your bench space
- Standard USB and LAN interfaces, supporting Web Control
| Model |
DM858 |
DM858E |
| DCV Accuracy (1 year) |
0.030% |
0.060% |
| Reading Rate |
125 readings/s |
80 readings/s |
| Number of Points in Data Logging Memory |
500,000 |
20,000 |
| Maximum Current Measurement Range |
10 A |
3 A |
| Maximum Capacitance Measurement Range |
10 mF |
1 mF |

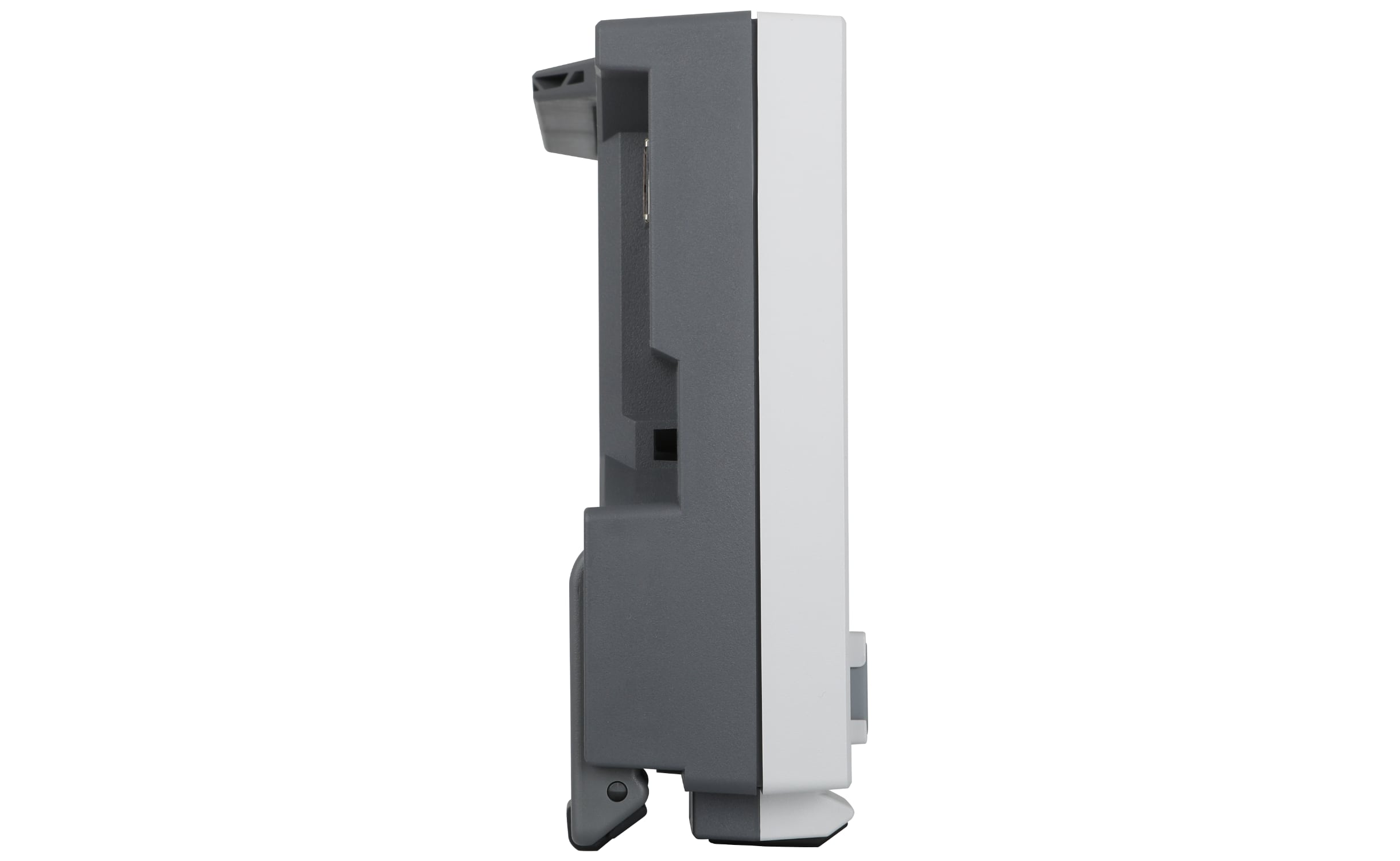

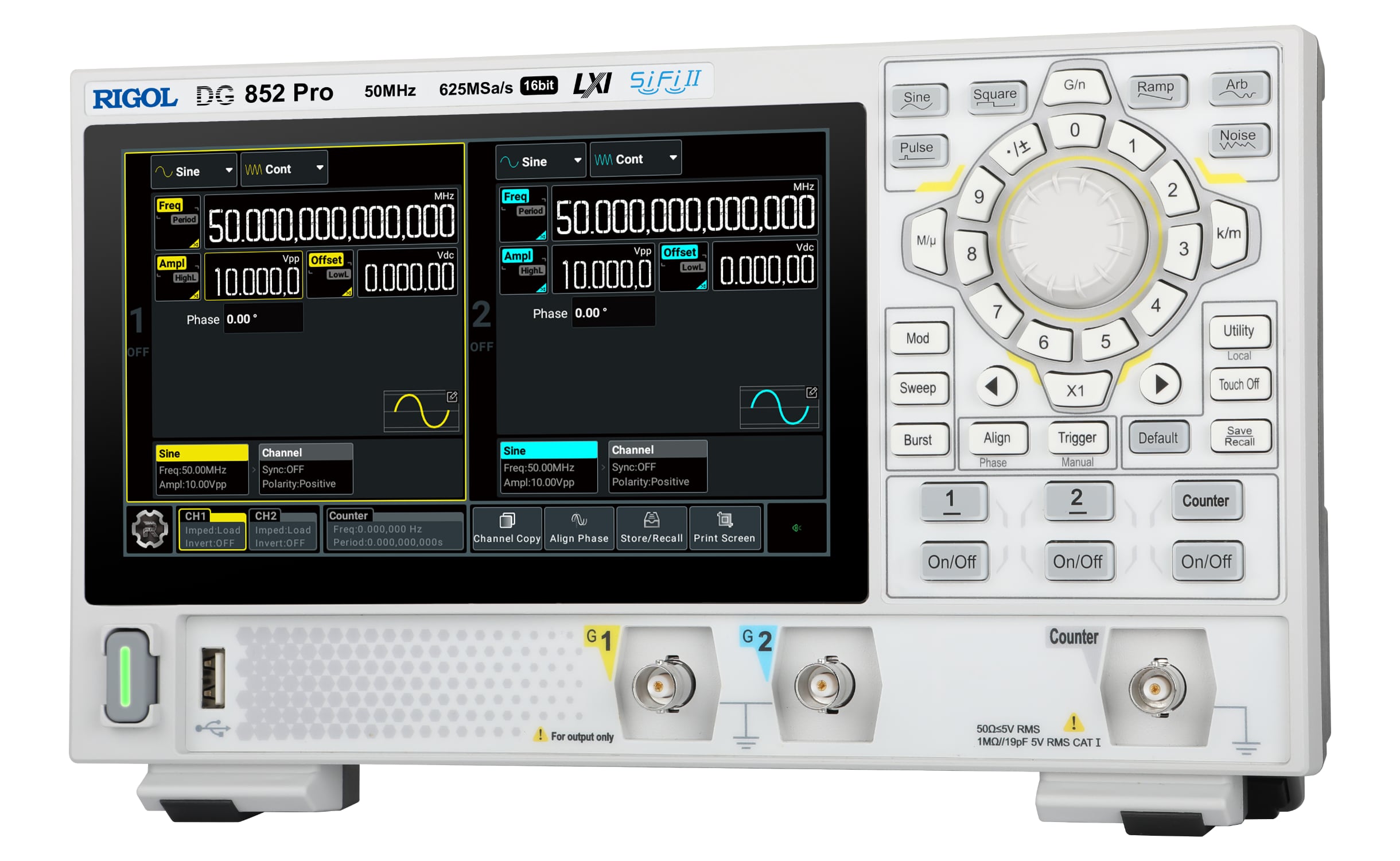

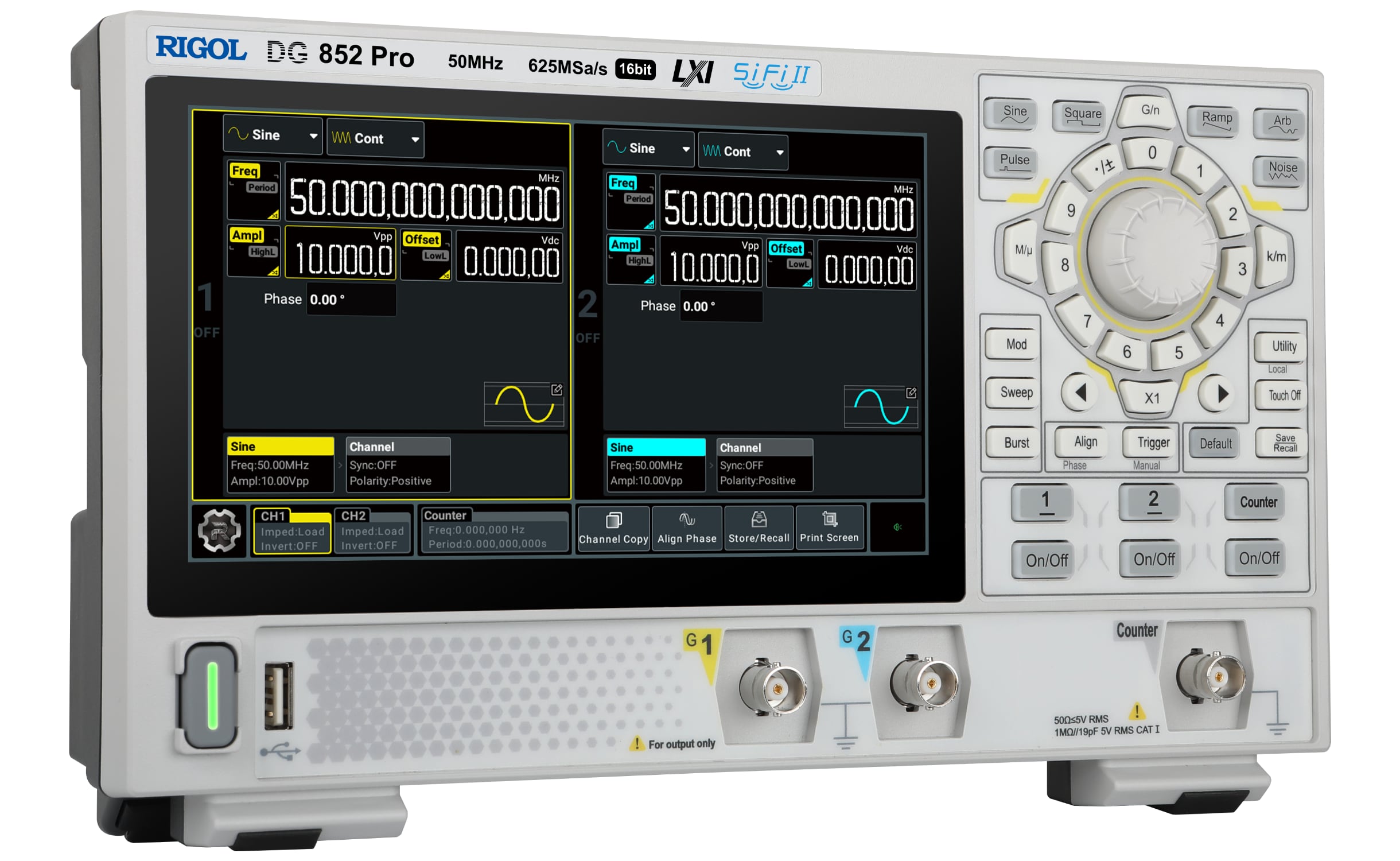

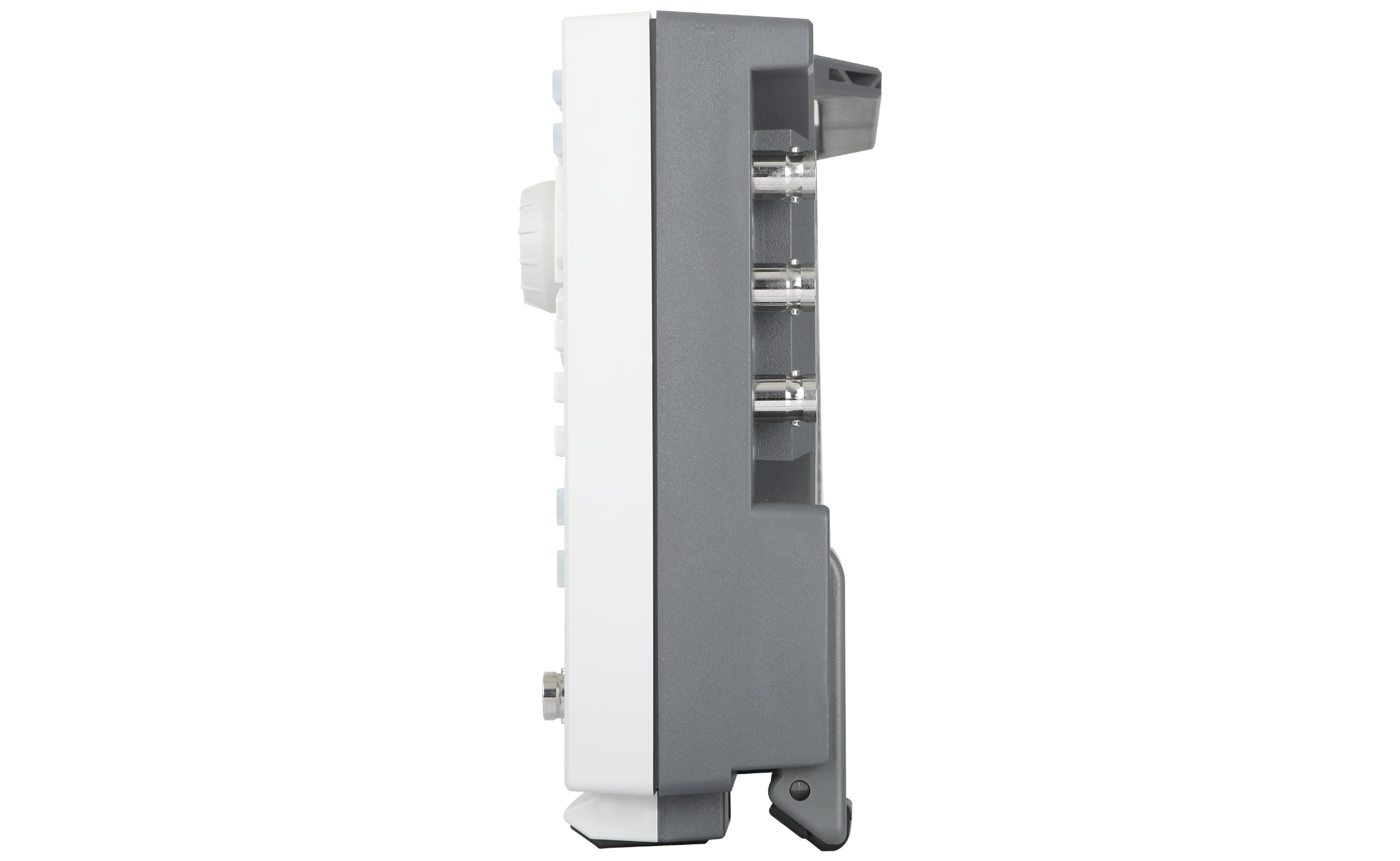

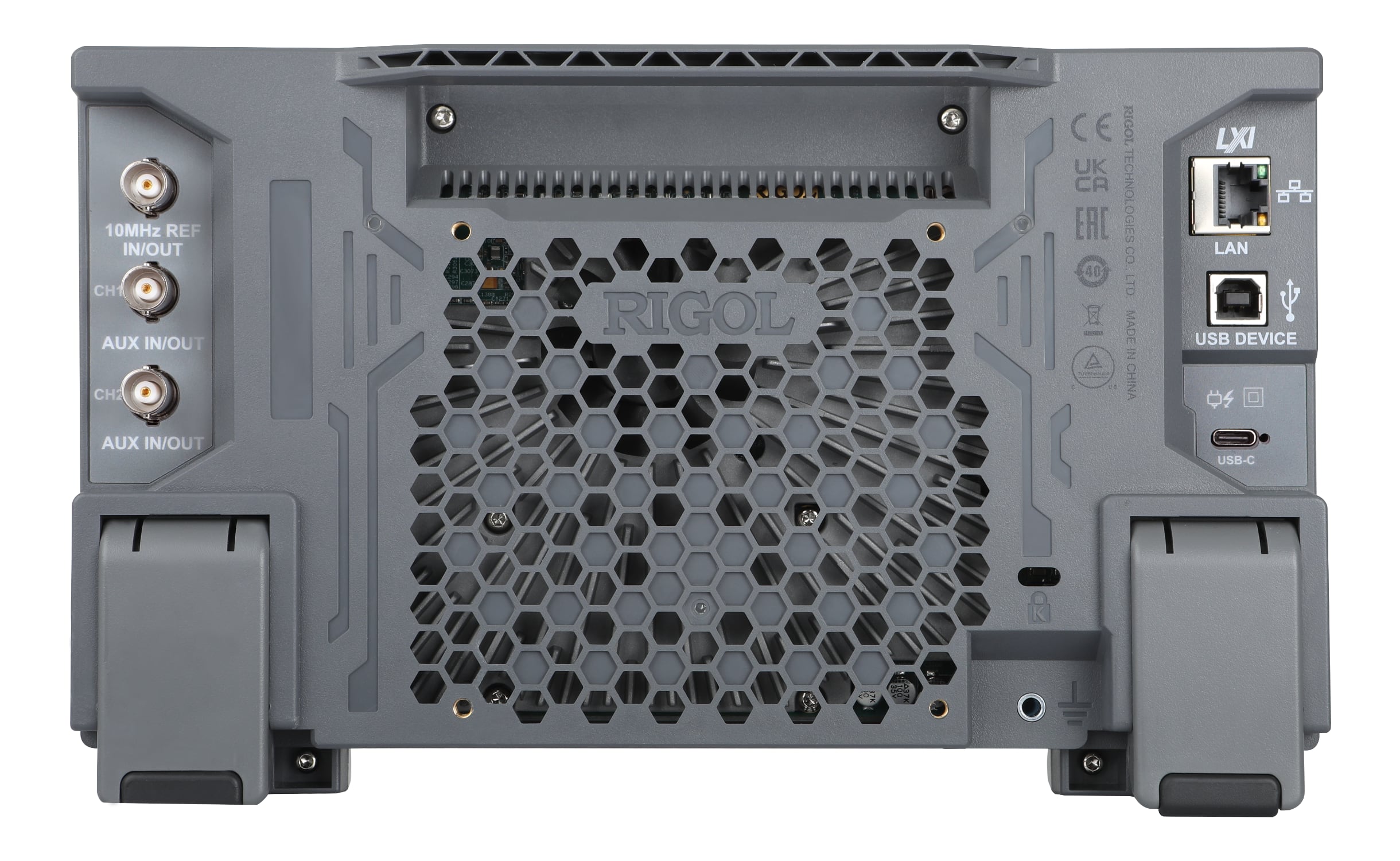

RIGOL DG800 Pro - Arbitrary Waveform Generators Series
RIGOL DG800 Pro, a Function/Arbitrary Waveform Generators series, provides up to 625 MSa/s sample rate and 2 Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.
Product Features:
- Maximum sample rate: 625 MSa/s
- Max. output frequency: 50 MHz
- 16-bit vertical resolution
- Arbitrary waveform editing function with a maximum Arbitrary waveform length of 2 Mpts/Channel (8 Mpts/Channel optional)
- Built-in high-order harmonic generator (maximum 20th order)
- Independent signal frequency measurement channel with a max. frequency of 500 MHz
- USB and LAN interfaces for remote connection
- Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
- Standard Web Control function for easier remote cooperation
| Model |
DG821 Pro |
DG822 Pro |
DG852 Pro |
| Maximum Frequency |
25 MHz |
25 MHz |
50 MHz |
| Number of Channels |
1 |
2 |
2 |
| Sample Rate |
625 MSa/s |
| Vertical Resolution |
16 bits |
| Waveform Memory Depth |
2 Mpts/channel (standard), 8 Mpts/channel (optional) |

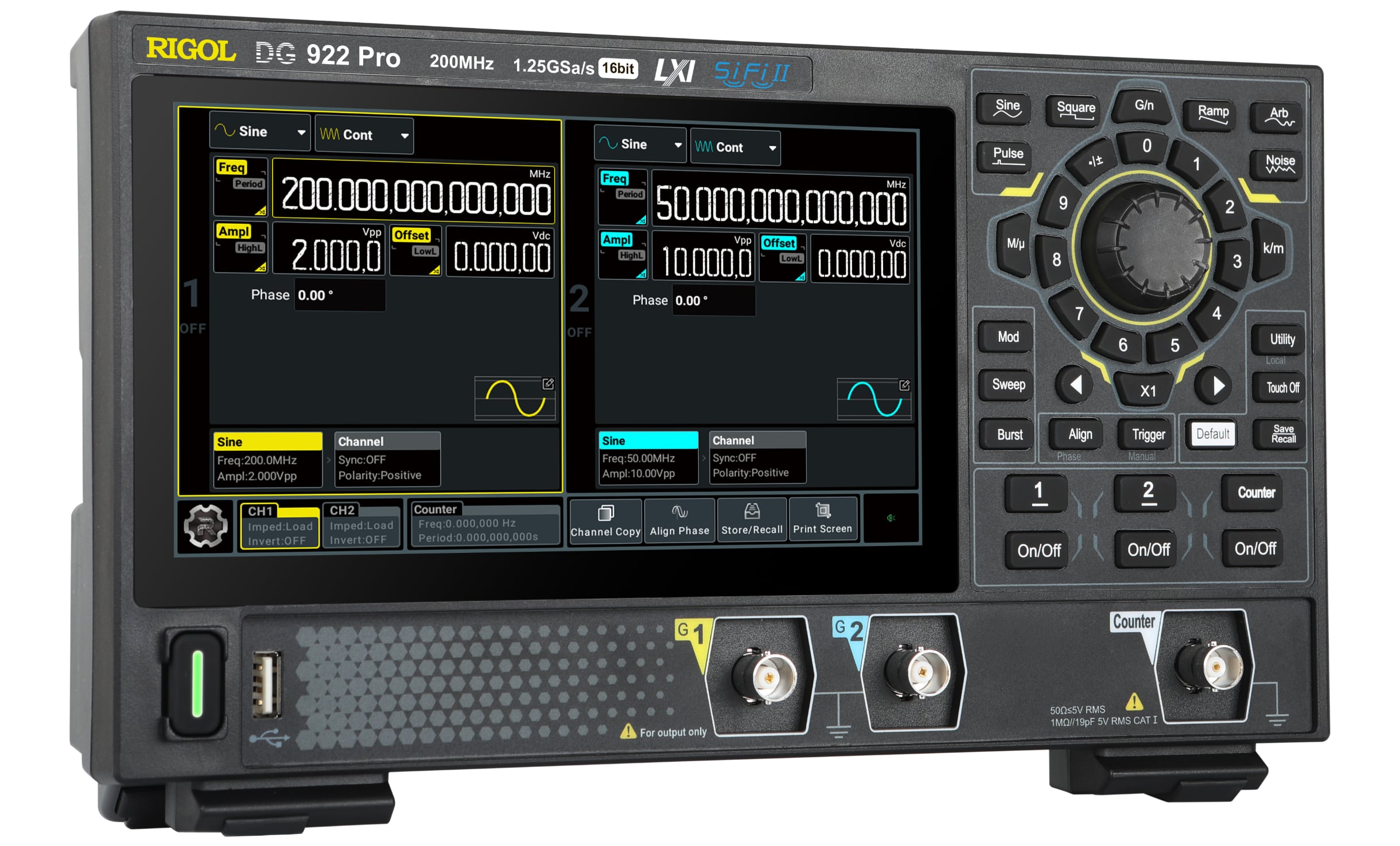

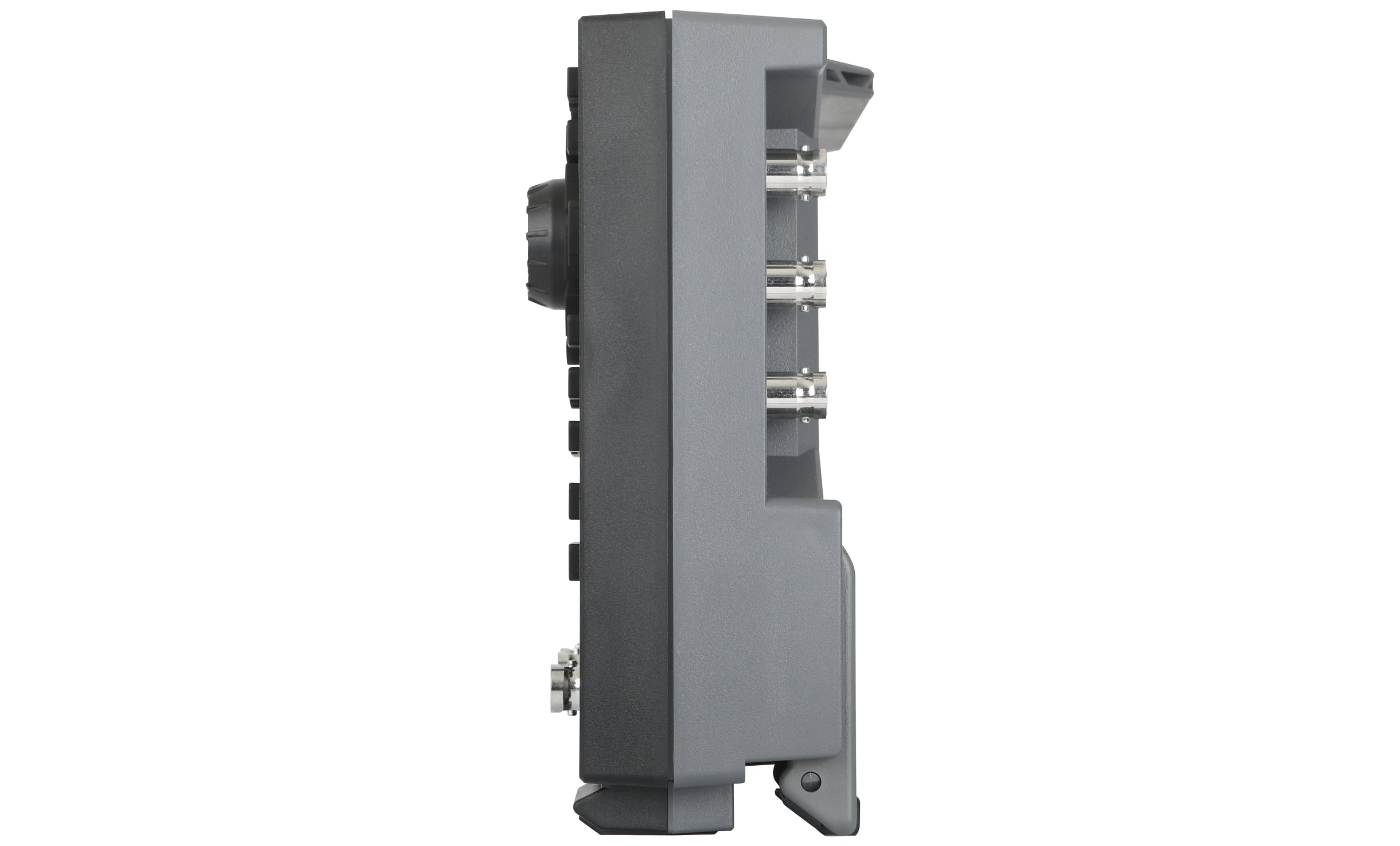

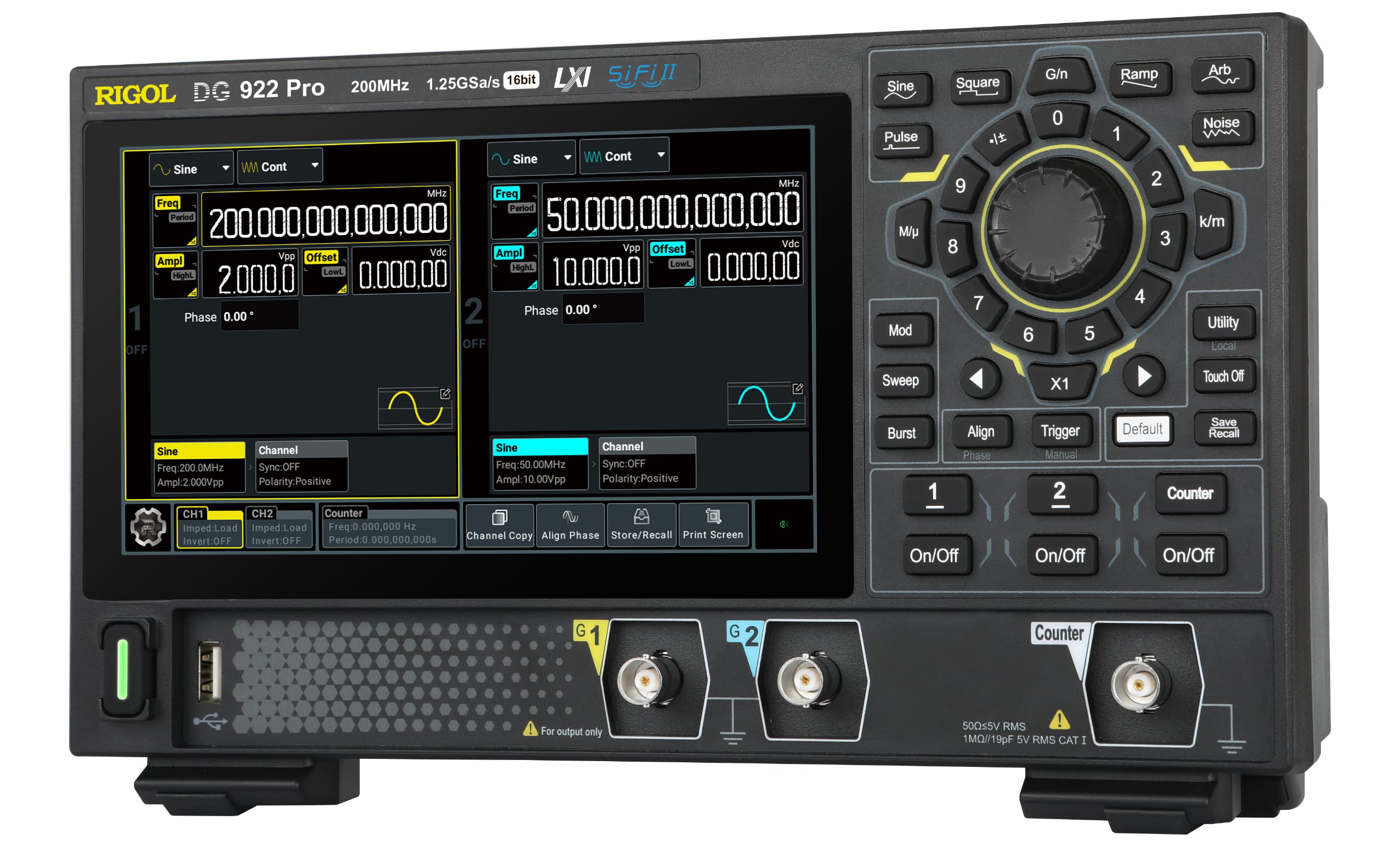

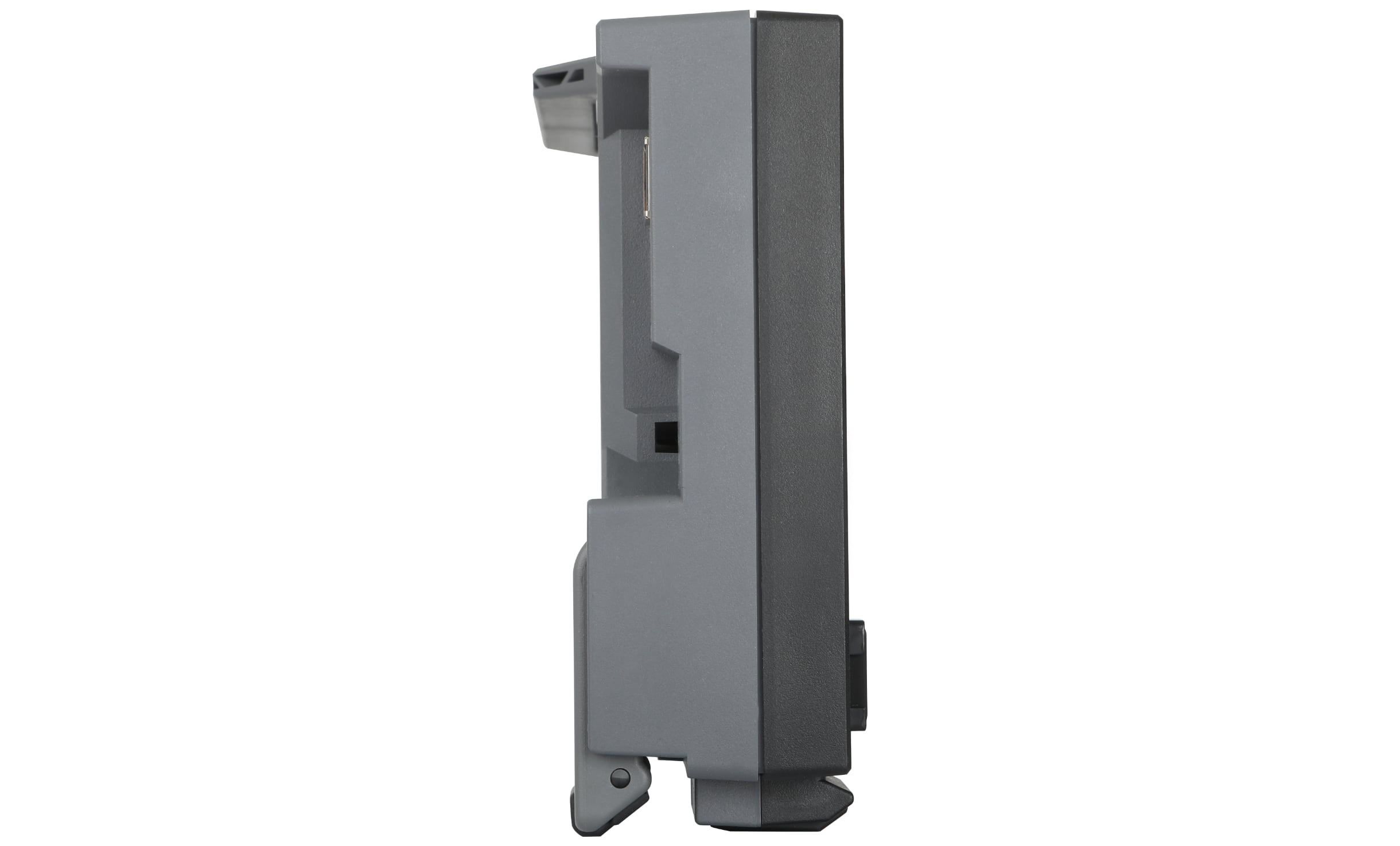

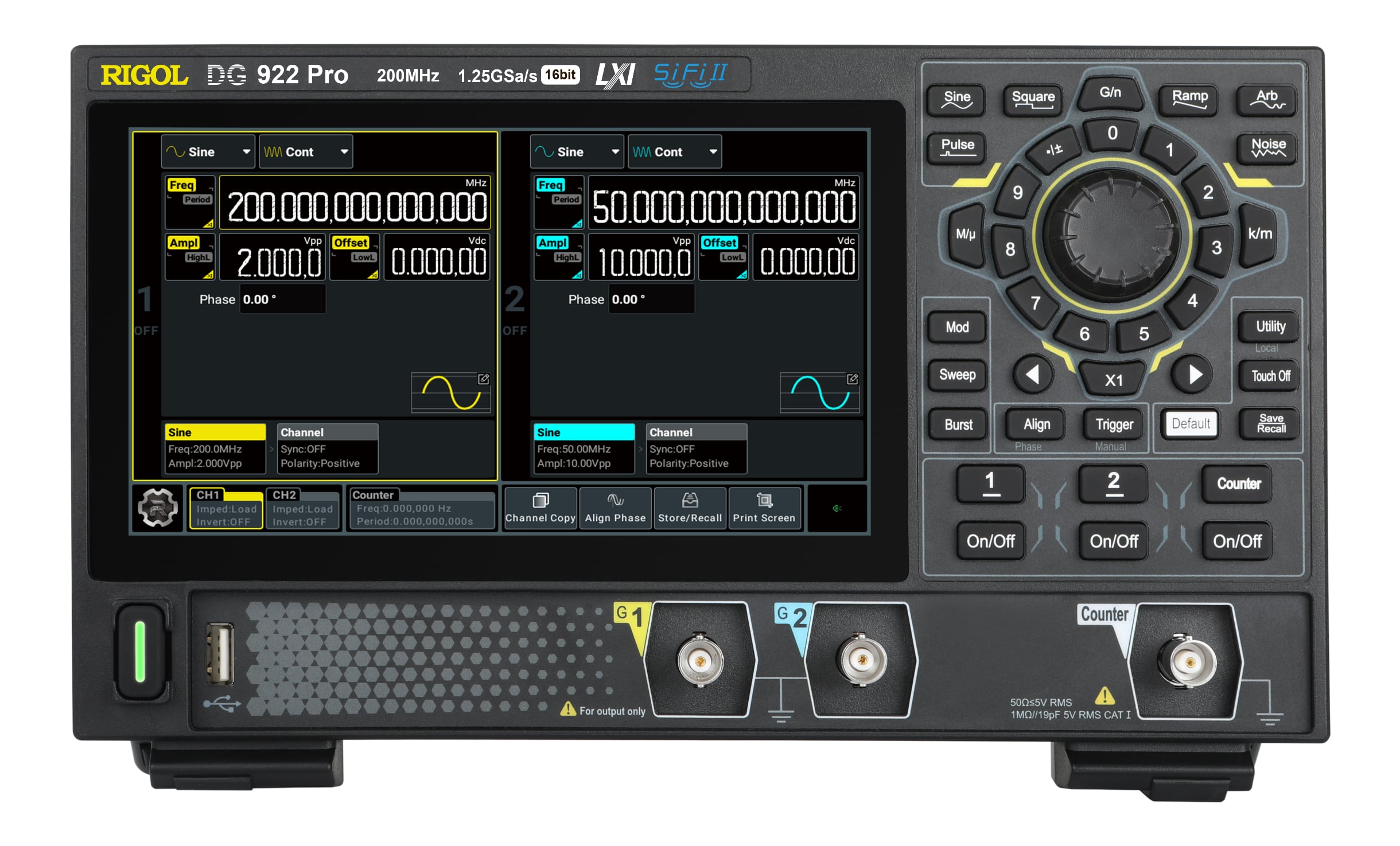

RIGOL DG900 Pro - Arbitrary Waveform Generators Series
RIGOL DG900 Pro, a Function/Arbitrary Waveform Generators series, provides up to 1.25 GSa/s sample rate and 16 Mpts/Channel memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and Counter.
Product Features:
- Maximum sample rate: 1.25 GSa/s
- Max. output frequency: 200 MHz
- 16-bit vertical resolution
- Arbitrary waveform editing function with a maximum Arbitrary waveform length of 16 Mpts/Channel (32 Mpts/Channel optional)
- Built-in high-order harmonic generator (maximum 20th order)
- Independent signal frequency measurement channel with a max. frequency of 1 GHz
- USB and LAN interfaces for remote connection
- Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
- Standard Web Control function for easier remote cooperation
| Model |
DG902 Pro |
DG912 Pro |
DG922 Pro |
| Maximum Frequency |
70 MHz |
150 MHz |
200 MHz |
| Number of Channels |
2 |
| Sample Rate |
1.25 GSa/s |
| Vertical Resolution |
16 bits |
| Waveform Memory Depth |
16 Mpts/channel (standard), 32 Mpts/channel (optional) |
