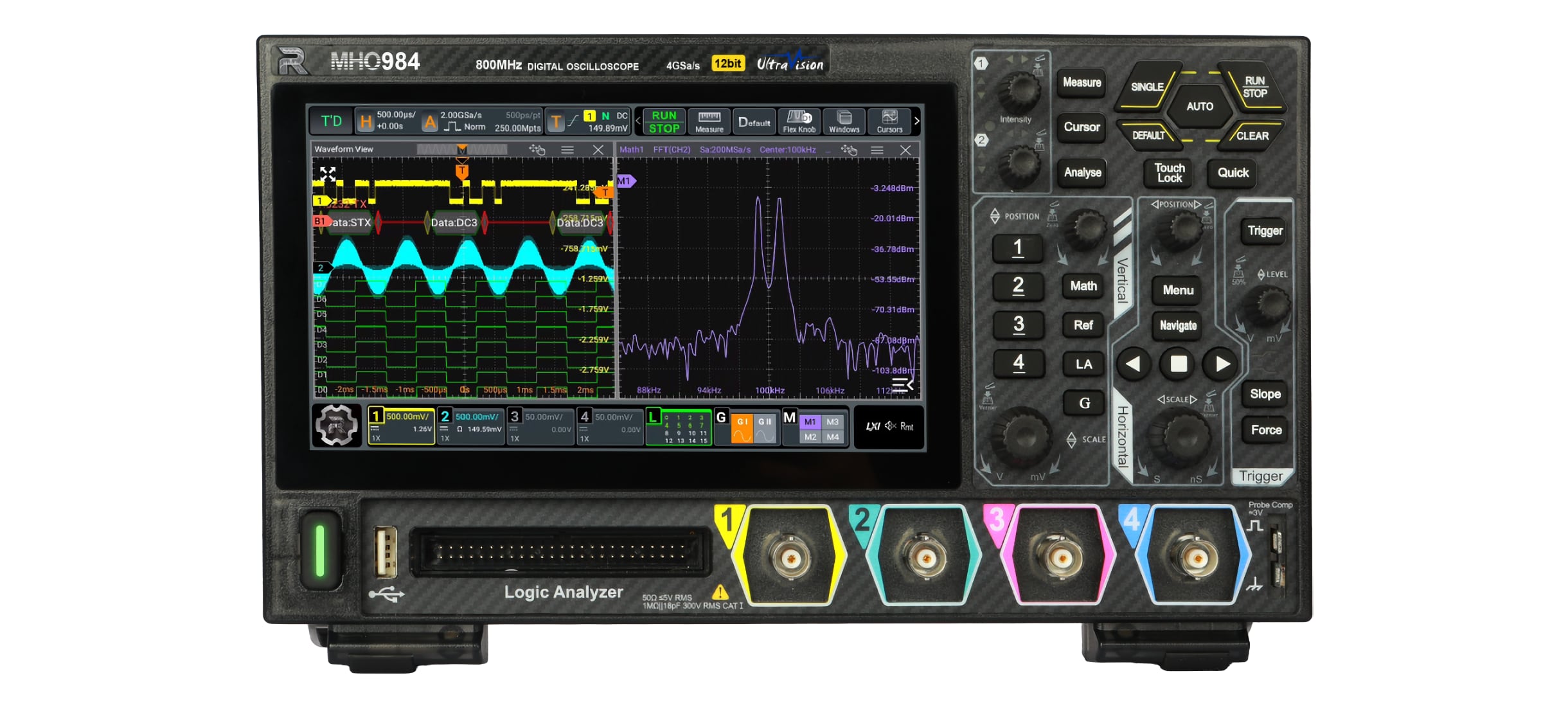

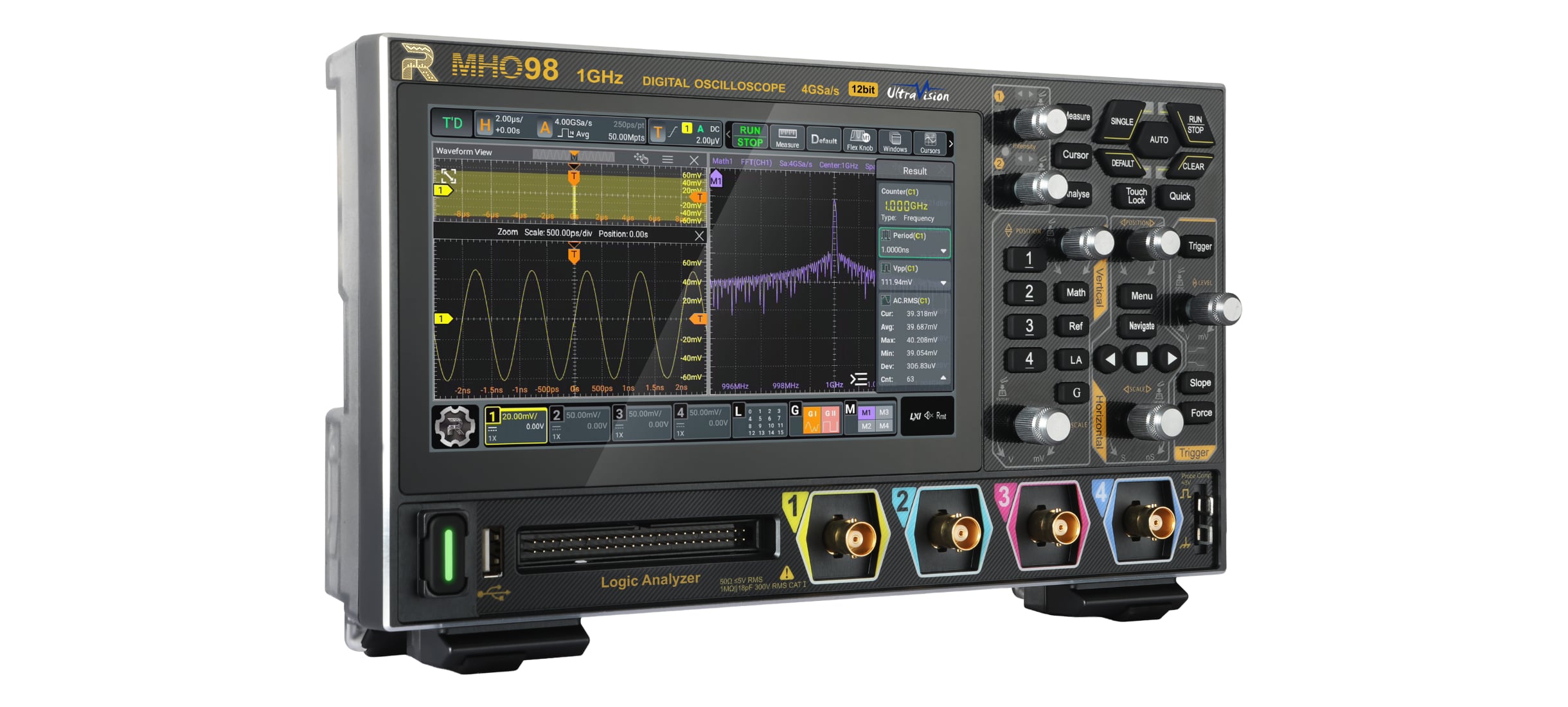

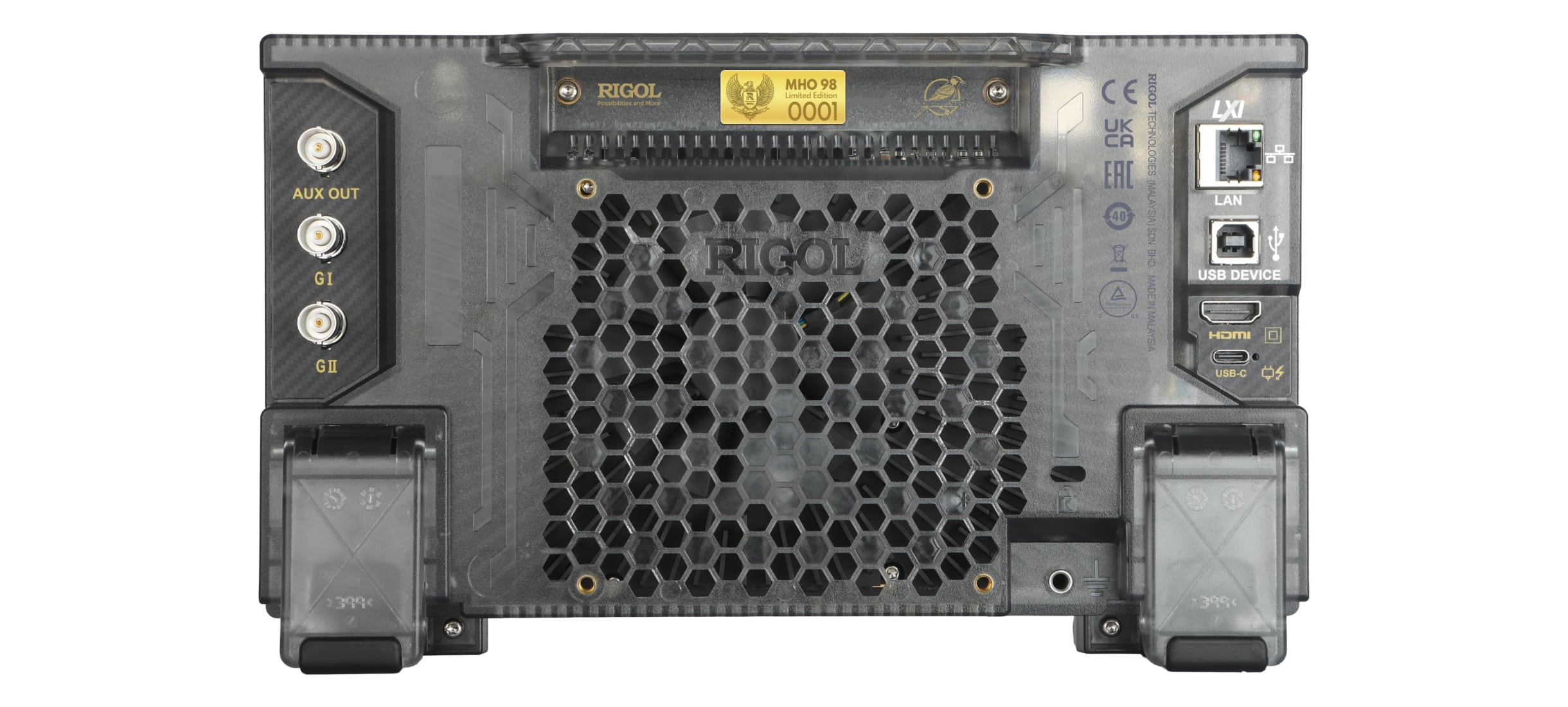

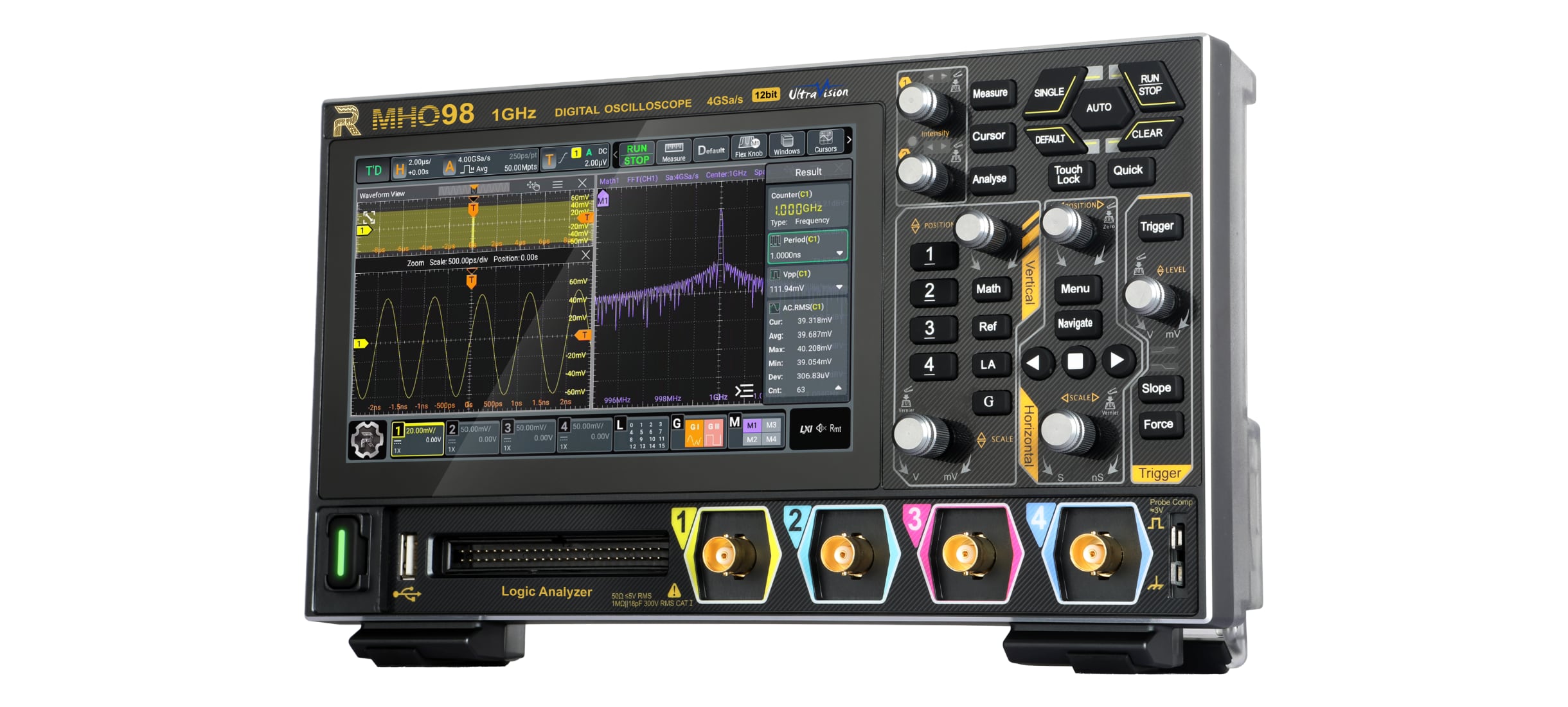

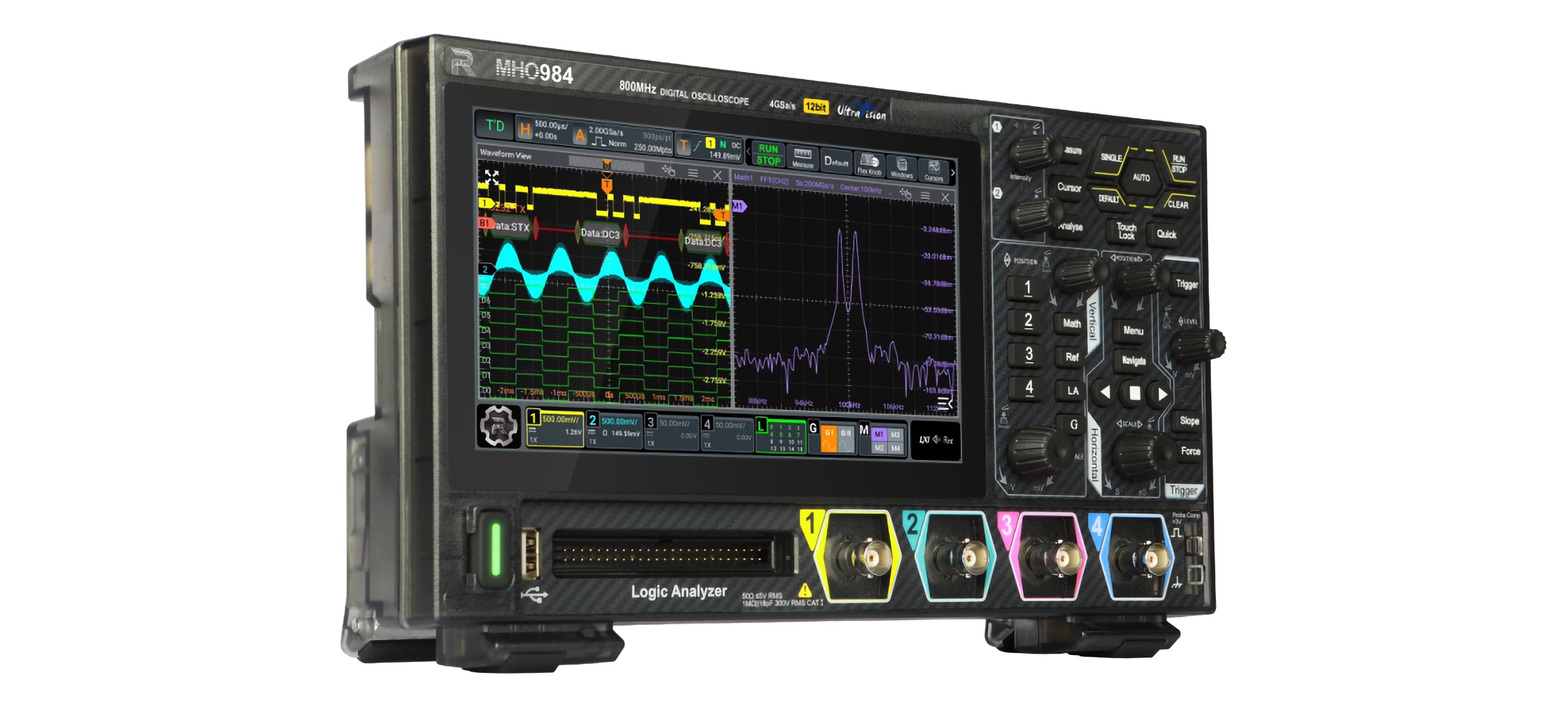

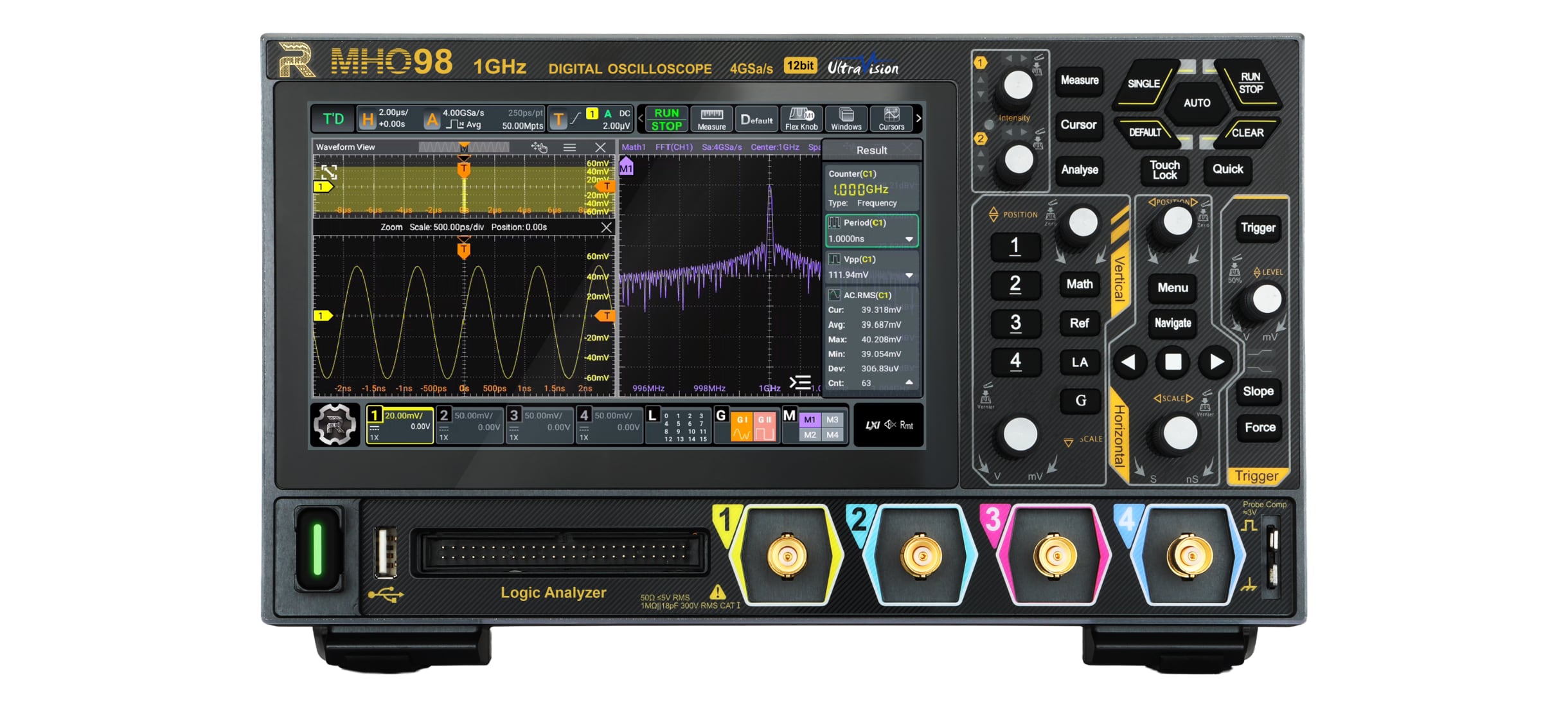

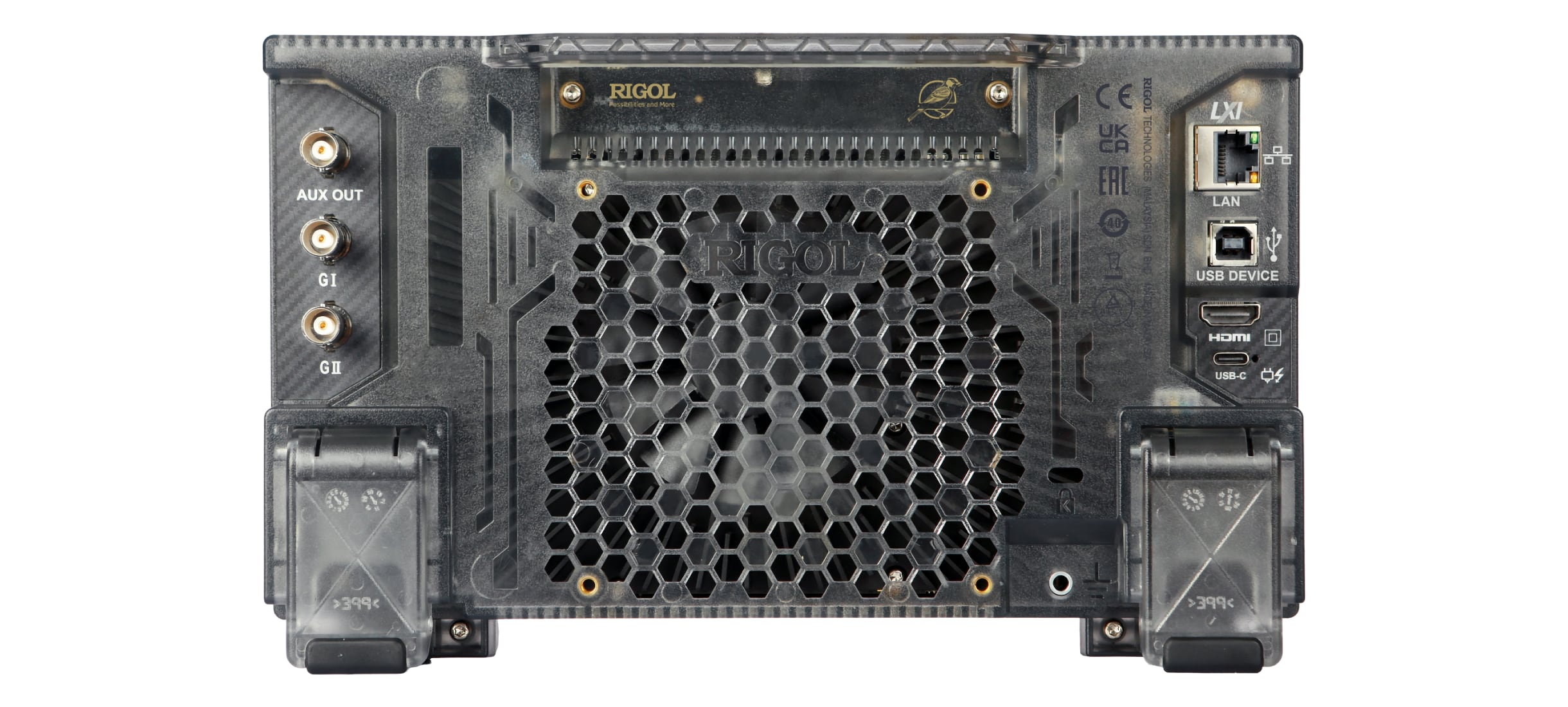

RIGOL MHO900 Series and the MHO98 special edition are high-resolution mixed-signal oscilloscopes designed to offer high performance at a competitive price. The MHO900 series (MHO934, MHO954, MHO984) offers bandwidth options up to 800 MHz, 12-bit vertical resolution, and a high capture rate of 1,000,000 wfms/s, making it ideal for a wide variety of test and debug applications. MHO98 is a limited special edition 1 GHz model, designed for the most demanding users, which includes all hardware and software options as standard, such as 16 digital channels and a 100 MHz function generator, all enclosed in an exclusive design with a transparent rear panel.

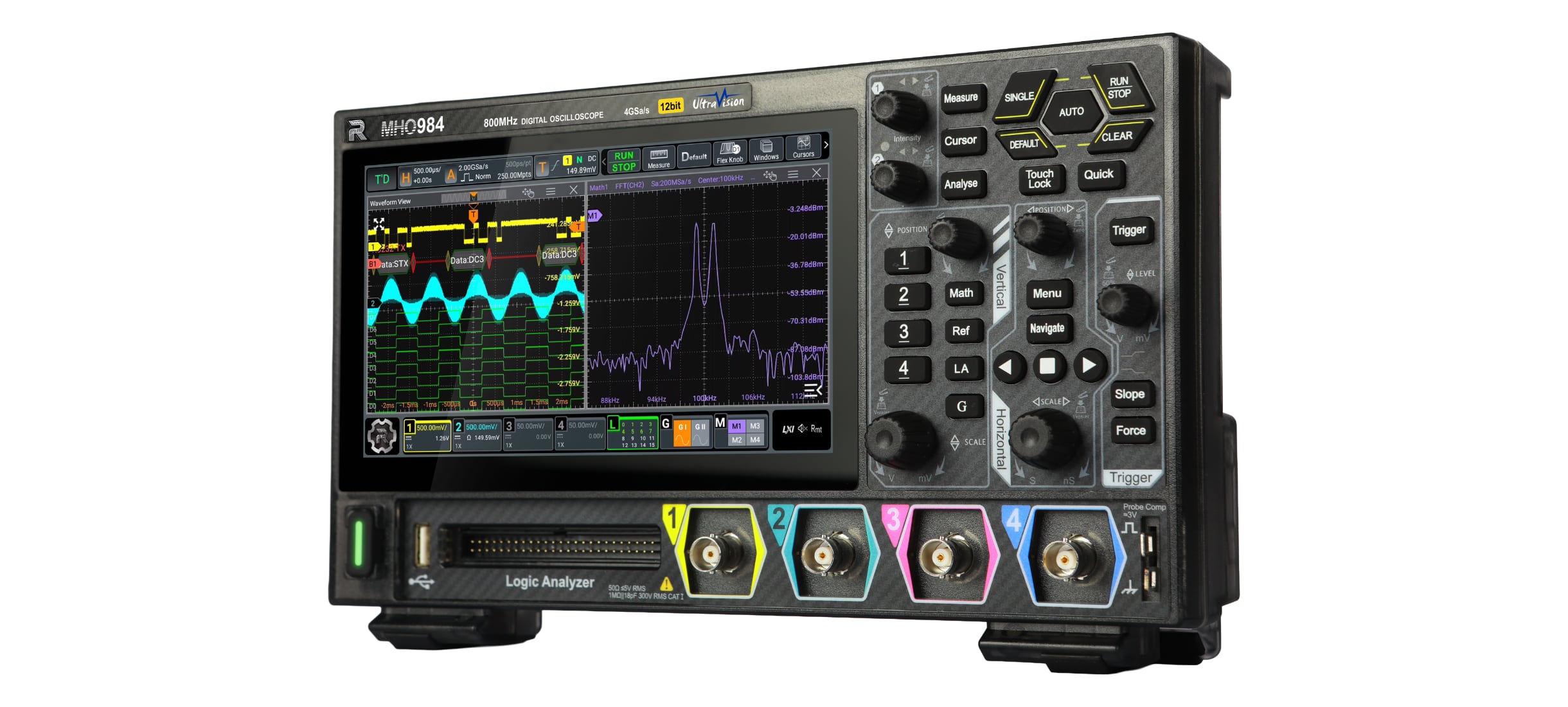

Absolute Precision: 12-Bit Resolution and Ultra-Low Noise
All models in the MHO900 series feature a true 12-bit ADC, offering 16 times more vertical resolution than traditional 8-bit oscilloscopes. This, combined with an ultra-low noise floor (down to 18 µVrms), allows you to see the smallest signal details with exceptional clarity, even on large-amplitude signals. It is the perfect choice for ripple analysis, switching power supply debugging, and characterizing weak signals.
The Lab in a Single Instrument: 7-in-1 Integration
The MHO900 series goes far beyond a simple oscilloscope, integrating up to seven instruments into a single compact device. In addition to the 4-channel oscilloscope, you can have a 16-channel logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a serial protocol analyzer. This incredible versatility not only saves valuable bench space but also provides a complete and powerful test and debug solution.
| Feature | MHO934 | MHO954 | MHO984 | MHO98 |
|---|---|---|---|---|
| Bandwidth | 350 MHz | 500 MHz | 800 MHz | 1 GHz |
| Analog Channels | 4 | |||
| Vertical Resolution | 12 bit | |||
| Max. Sample Rate | 4 GSa/s | |||
| Memory | 100 Mpts (Opt. 500 Mpts) | 500 Mpts (Standard) | ||
| Digital Channels (MSO) | Optional (16) | Standard (16) | ||
| AWG Generator | Optional (2-ch, 50/100 MHz) | Standard (2-ch, 100 MHz) | ||
