SensePeek SP200 200MHz Handsfree Oscilloscope Probe
SensePeek SP200 is the first truly handsfree 200 MHz oscilloscope probe with a 10:1 attenuation ratio.
Features:
- Makes instant measurements or long triggering sessions a breeze

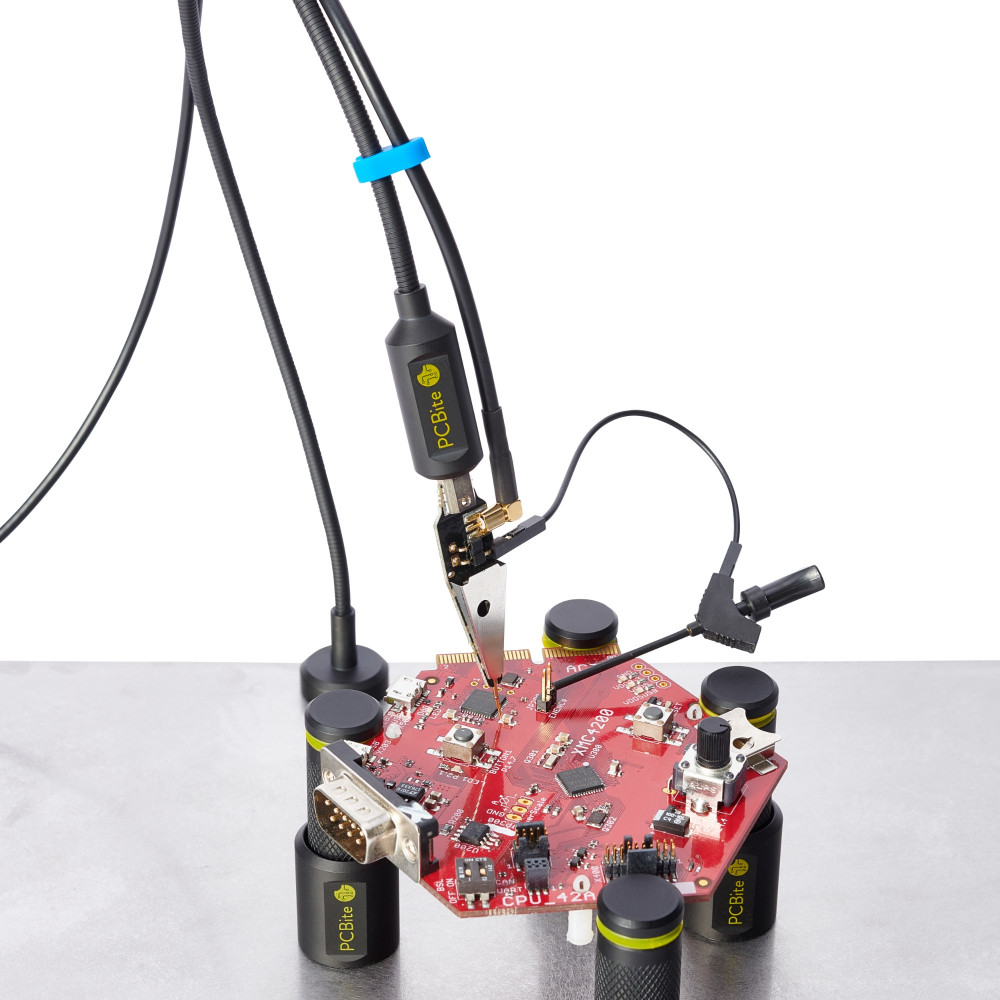

- No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release
- Saves time and frustration during development, verification and repairs
- The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals
- The ground probe connection has a detachable quality hook and the cable fits directly on a 2.54 mm (0.100") pitch pin header

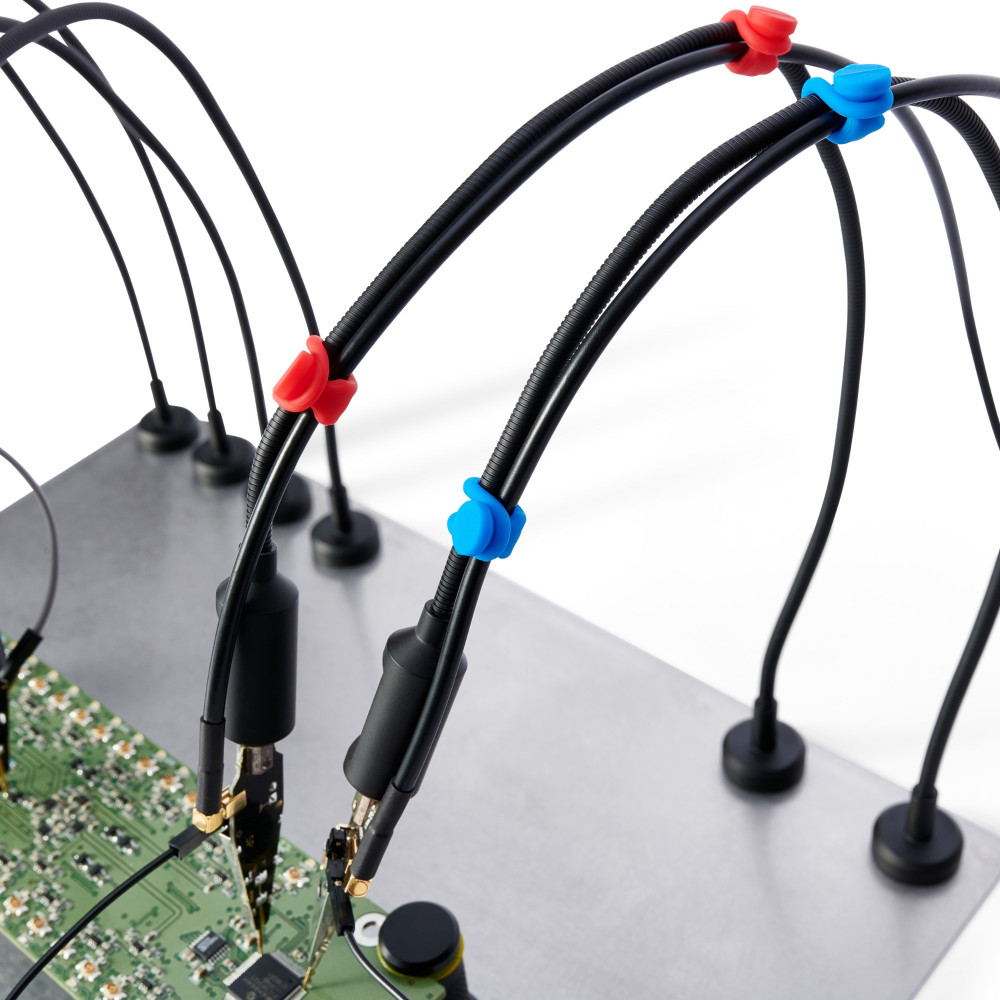

- The SP200 comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition
- This probe is perfect for those who already has a metal base plate and holders which is a must for the function

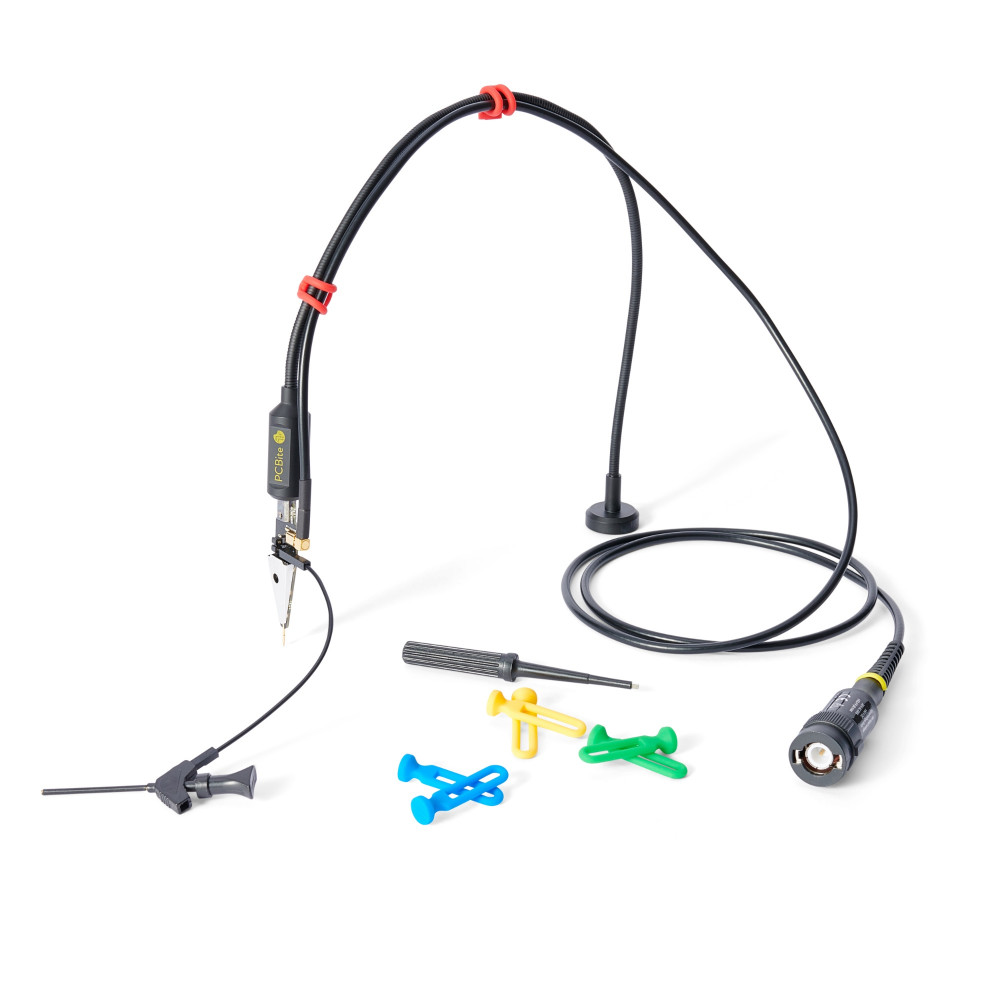

What's in the box:
1 x SP200 200MHz handsfree oscilloscope probe
1 x Testhook with detachable cables (5cm and 10cm) for ground connection

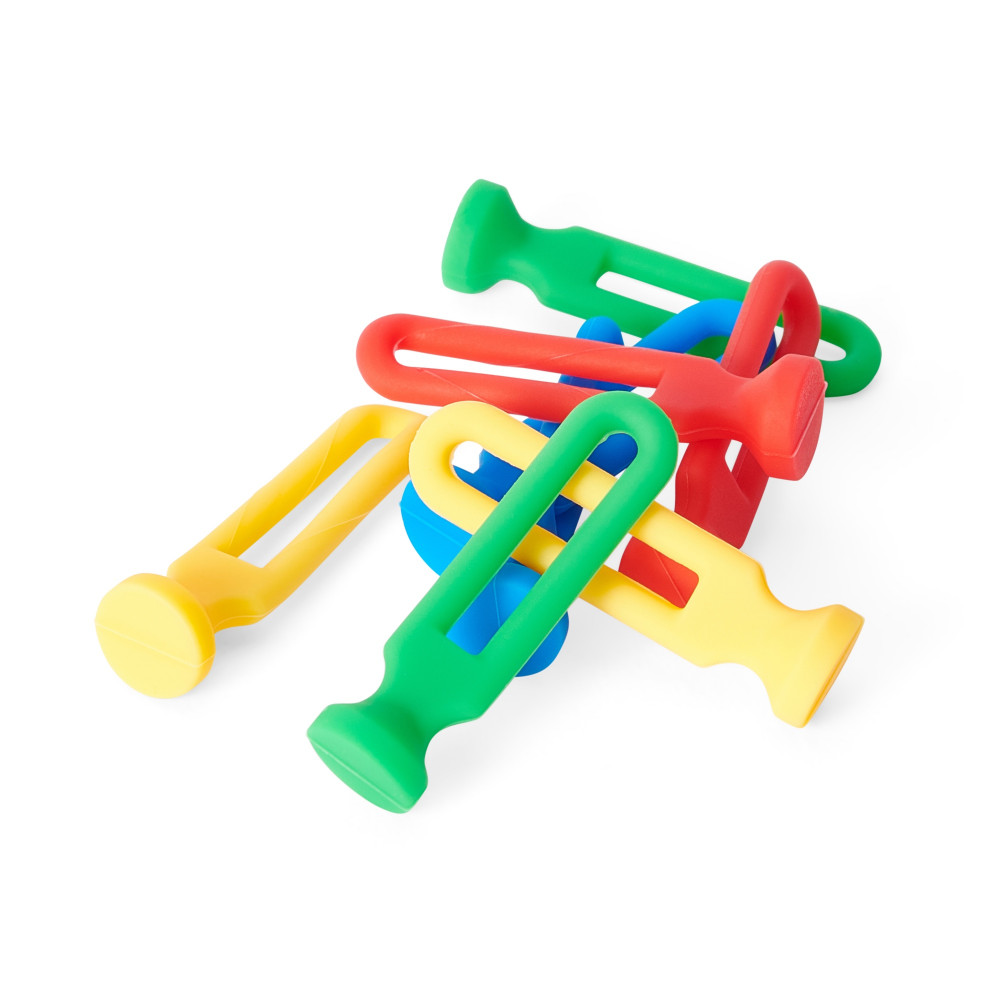

1 x Set of color coded cable holders (4 colors)
1 x Extra test needle
| Model | SP100 | SP200 |
| Bandwidth > = f3dB (MHz) | DC to 100 MHz | DC to 200 MHz |
| Rise time (ns), calculated | 3.2 | 1.75 |
| Attenuation Ratio | 10:1 | |
| Input Resistance (MΩ), ± 2% | 10 | |
| Input Capacitance (pF) | 14 - 18 | |
| Full-scale measurement range (for safe operation) Maximum Input: 10:1 Input Voltage, Fulfill the signal voltage limits of EN 61010-031:2015 |
Voltage: +/-60 V DC, 30 V AC RMS, +/-42.4 V pk max | |
| Overvoltage protection (voltage that will not damage) | 200 V DC + peak AC | |
| Compensation Range (pF) | 15 - 45 | |
| Cable length with BNC | 1.1m (approx. 3 ft 7 in) | 0.8m (approx. 2 ft 7 in) |
| Operating Environment, Maximum altitude 2 km | -20 to +60 °C, 0 to 80% RH | |
| Storage Environment, Maximum altitude 15 km | 20 to +60 °C, 0 to 80% RH | |
| Probe tip diameter | 0.5 mm | |
| Pollution Degree | 2 (As defined in IEC 61010-031. Only non-conductive pollution. Occasionally, however, a temporary conductivity caused by condensation must be accepted.) | |
| RoHS and REACH compliant | Yes | |
