Fluke 1777/FPC 3YR EU Analizator jakości zasilania trójfazowego w pakiecie z trzyletnim planem Premium Care
Fluke 1777/FPC 3YR EU Analizator jakości zasilania trójfazowego Fluke 1777 w pakiecie z trzyletnim planem Premium Care.
When you bundle the Fluke 1777 Three-Phase Power Quality Analyzer with Fluke Premium Care you're ensuring your money goes as far as possible. Fluke 1770 Series Three-Phase Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. The Fluke Premium Care bundle offers you additional coverage above and beyond your standard warrnaty for things like accidental damage coverage, expedited calibration and annual tool inspections.
Key features:
- Automatically measure power and power quality parameters
- At-a-glance power quality health for faster troubleshooting
- Easily view V/A/Hz, power, dips, swells, and harmonics data
- Capture high-speed transients up to 8 kV
- Power directly from measurement circuit without a line cord

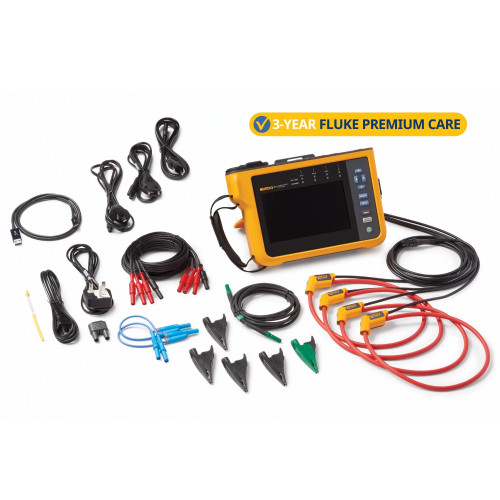

What's in the box:
4 x (I17XX-FLEX1500) 24" iFLEX 1500A (2m) current probes
1 x (FLUKE-17XX) flat cable voltage test lead 3-phase+N
4 x (AC285) black alligator clips
1 x (AC285) green alligator clip
1 x Black 1m USB-C cable
1 x Line cord
1 x (FLK-17XX) 0.18m test lead set
1 x Green test lead
1 x (MP1-3R/1B) Magnet Probe set
1 x (FLUKE-174X-HANGER) magnetic hanging kit
1 x (FLUKE-177X-4204) WI-FI/Bluetooth module
1 x Cable marker set (for voltage and current)
1 x (FLUKE-174X-MA-C8) wall outlet adapter
1 x (FLUKE-1777 HARDCASE) rolling hard case
| Model | 434 | 435 | 437 | 438 | 1773 | 1775 | 1777 | 174X |
| Maximum rms input voltage 1000 V AC / 1500 V DC | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Voltage channels / amp channels | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 |
| Flex 150 / 1500A 12 "4x | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| PQ Health (EN 50160) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DC voltage, DC current (with optional clamps) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Live Scope Diagram / Phase Indicator | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Measurements trends in real time | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Internal storage memory (external SD slot) | 16GB | 16GB | 16GB | 16GB | 8 GB (32 GB available) | 8 GB (32 GB available) | 8 GB (32 GB included) | 2GB |
| Battery (replaceable) | 10 hours | 10 hours | 10 hours | 10 hours | 1 hour | 1 hour | 1 hour | 4 hours |
| 20 MHz transients 8 kV (Volts only) | (200kHz - 6kV) | (200kHz - 6kV) | (200kHz - 6kV) | 1 MHz sampling | 20MHz sampling | |||
| Event list | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Acquisition of RMS profile and waveform data | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| 2x ac + dc 10V **** input | ✓ | ✓ | ✓ | ✓ | ||||
| IEC 61000-4-30 Class A Ed. 4 (not released) | Designed to meet the requirements of Class A Ed.4 | |||||||
| Harmonics 2-9 kHz (Volts and Amps) | ✓ | ✓ | ✓ | |||||
| Harmonics up to 30 kHz | ✓ | ✓ | ✓ | |||||
| Interval 200 ms rms 3s arm. | ✓ | ✓ | ✓ | |||||
| 7 "touch display | ✓ | ✓ | ✓ | |||||
| Ethernet/WiFi (2x)/BLE | ✓ (Optional Wi-Fi) |
✓ | ✓ | Ethernet/ BT | ||||
| Automatic feeding from the measuring line | ✓ | ✓ | ✓ | ✓ | ||||
| Verification and self-correction of the connection | ✓ | ✓ | ✓ | ✓ | ||||
Optional accessories:
| Fluke | Description |
| i17XX-FLEX1.5KIP | Flexible current probe IP65 FLUKE-17XX 1.5 KA 24 "/ 60 cm |
| i17XX-FLEX3KIP | Flexible current probe IP65 FLUKE-17XX 3 KA 24 "/ 60 cm |
| i17XX-FLEX6KIP | Flexible current probe IP65 FLUKE-17XX 6 KA 36 “/ 90 cm |
| I40S-EL3X | FLUKE-17XX I40S-EL clamp current transformer |
| FLUKE-I400S-EL | Clamp meter 17XX 400 A |
| 80i-2010s-EL | 2000 A AC / DC current clamp |
| MP1-3R/1B | Magnetic probe 1, 3 red / 1 black magnetic probe for 4mm banana plug |
| FTP17XXPQ | Fused Test Probe Set, 3 Red / 1 Black |
| FLUKE MA-C8 | Wall socket adapter, FLUKE-174X |
| i17XX-FLEX5M-EXT | 5m FLUKE-17XX IFLEX extension cable |
| Modulo WIFI/BLE FLUKE-177X | WiFi / BLE module |
| BP1770 | Battery (ambient temperature 50 ° C) |
| FLUKE-17XX AUX | Auxiliary input adapter, 17XX |
| Custodia morbida nera | Soft case |
| Custodia rigida FLUKE-1777 | Hard case with wheels, IP67 protection degree |
| FLUKE-PQ400 | FLUKE-PQ400, POWER QUALITY WINDOW |
