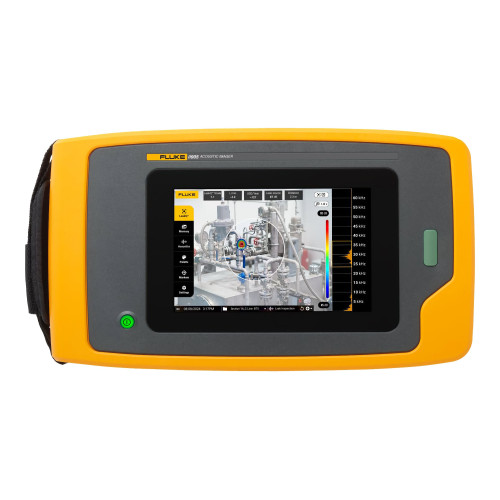

Fluke ii905/FPC Acoustic Imager with 1 Year Premium Care, da 2kHz a 65kHz, 1280x800px
Fluke ii905/FPC is an acoustic camera with 1 year Premium Care coverage, frequency from 2kHz to 65kHz and 1280x800 pixel resolution.
Fluke ii905 acoustic camera features LeakQ technology that enables maintenance teams to detect, locate and assess gas and vacuum leaks. Algorithms on the device and analysis software included in LeakQ mode estimate the extent and cost of leaks. Built-in visual and textual labeling and annotation capabilities allow important details to be added, facilitating reporting and follow-up actions. With no training required, maintenance teams can now check for gas and vacuum leaks even during production peaks. The 7-inch LCD touchscreen overlays a SoundMap over a visual image to quickly locate the leak and report results. Algorithms on the device and analysis software included in LeakQ mode realize an estimate of the extent and cost of leaks.
What's in the box:
1 x Fluke ii905 Acoustic Imager
1 x 1-year Premium Care coverage
1 x USB-C Charger with country-specific connectors
1 x Rugged lithium-ion smart battery pack
1 x USB-C cable
1 x Rugged, hard carrying case
1 x Adjustable hand strap and neck strap
1 x Sensor array protector
Key features:
- Easy, fast, and safe visual detection of compressed gas leaks with LeakQ mode including estimated leak size and cost
- The 7" LCD touchscreen overlays a SoundMap on visual images, facilitating rapid leak location identification
- The integrated visual- and textual tagging and annotation functionalities offer important details to optimize reporting and follow-up actions
- On-the-go wireless upload to Fluke Connect
Fluke ii905 Acoustic Imager with LeakQ: Detect, Locate, and Assess Gas Leaks
The Fluke ii905 Acoustic Imager equipped with LeakQ acoustic leak detection technology empowers maintenance teams to efficiently detect, locate, and assess gas and vacuum leaks. Whether you're dealing with compressed air systems, pipelines, or industrial equipment, the Fluke ii905 provides valuable insights to optimize your operations.
| Model | ii500 | ii905 | ii915 |
| LeakQ Mode™ | Scale (1-10) | Loss volume scale, loss rate, and loss cost estimation | Leakage volume scale, leakage rate, and leakage cost estimation |
| PDQ Mode™ | - | - | ✔ |
| MecQ Mode™ | - | - | ✔ |
| Wi-Fi | - | ✔ | ✔ |
| Frequency | 2 to 52 kHz | 2 to 65 kHz | 2 to 100 kHz |
| Detection range | Up to 50 meters | Up to 70 meters | Up to 120 meters |
| Camera resolution | 0.3 MP | 5 MP | 5 MP |
| Battery life | 6 hours | 6 hours | 6 hours |
| Memory | 20 GB | 32 GB | 32 GB |
| Tripod connector | - | ✔ | ✔ |
Other features:
- Ready-to-Use: The Fluke ii905 comes ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7" LCD display provides clear leak visualization
- Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQ severity index
- SoundMap Overlay: The 7" LCD touchscreen overlays a SoundMap on visual images, facilitating rapid leak location identification
- Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise
- Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization
- Leak Sizing: Prioritize repairs based on leak size
- Collaboration: The reporting tool allows seamless sharing of visuals, tagging, and notes with team members and repair personnel
Money-Saving Insights
Did you know that a 100 hp air compressor can consume around $50,000 in electricity annually? Shockingly, up to 30% of that electricity is wasted due to pressurizing airlines that leak. Many facilities overlook assessing the efficiency of their compressed air systems, leading to unnecessary capacity additions. The Fluke ii905 helps you identify leaks, optimize energy usage, and reduce costs.
LeakQ Mode
Automatic Distance Estimation: When a leak is detected, the imager determines the distance to the target (indicated inside the circle on the display). The LeakQ value on the screen reflects the leak's size, based on measured dB SPL value and distance.
Comprehensive Reporting
The LeakQ reporting tool combines data from your Fluke ii905 Acoustic Imager with direct inputs to create organized and detailed reports. These reports guide repairs, confirm fixes post-repair, and document the inspection process and results.
LeakQ online reporting tool:
- Local PC installed application
- No Leak Type selection (should be included at the time of capturing the measurement)
- Offers customization of reporting template
