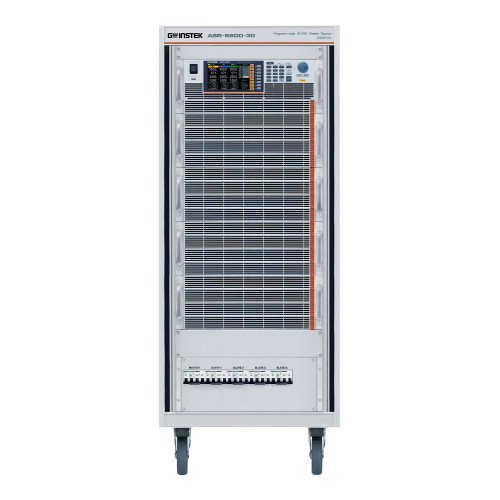

GW Instek ASR-6660-33, 33kVA AC/DC Rack Type Power Source
GW Instek ASR-6660-33 is a high-performance rack-type programmable AC/DC power source with an output power up to 33 kVA.
The new generation ASR-6000 series adopts Silicon Carbide (SiC) semiconductor technology to achieve high power density. It exclusively supports a three-phase AC input (380V - 415V) and offers single-phase (1P2W, 1P3W) and three-phase (3P4W) output modes. It features 10 output modes, a multi-channel function, programmable output impedance, advanced arbitrary waveform editing, and remote control via a web server. It is ideal for testing AI server power supplies, on-board chargers (OBCs), UPS, AC inverters, and three-phase motors.
- Rated power: 33 kVA
- Maximum AC phase voltage: 350 Vrms, line voltage: 700 Vrms
- Output frequency: up to 550 Hz
- Input: Three-phase only (380 V - 415 V)
- Output: Selectable single-phase or three-phase AC/DC
- Standard Interfaces: USB, RS-232C, LAN
| Model | Power | Description |
| ASR-6500 | 5 kVA | AC/DC Programming Source |
| ASR-6660 | 6.6 kVA | AC/DC Programming Source |
| ASR-6500-10 | 10 kVA | AC/DC Rack Type Power Source |
| ASR-6500-15 | 15 kVA | AC/DC Rack Type Power Source |
| ASR-6660-13.2 | 13.2 kVA | AC/DC Rack Type Power Source |
| ASR-6660-19.8 | 19.8 kVA | AC/DC Rack Type Power Source |
| ASR-6660-26.4 | 26.4 kVA | AC/DC Rack Type Power Source |
| ASR-6660-33 | 33 kVA | AC/DC Rack Type Power Source |
| ASR-6660-39.6 | 39.6 kVA | AC/DC Rack Type Power Source |
