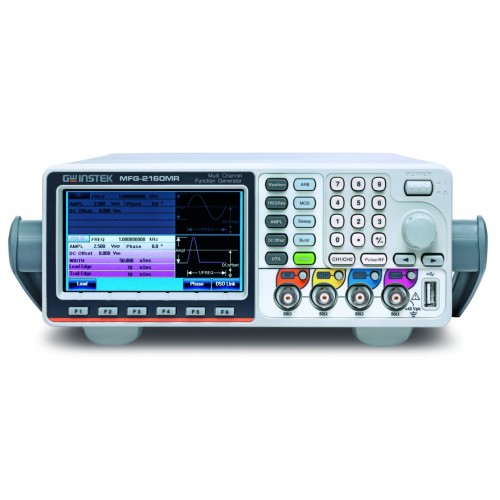

GW Instek MFG-2160MR 60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator
GW Instek MFG-2160MR 60MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator
| CH1 (Function With ARB) |
CH2 (Function With ARB) |
25MHz Pulse Generator | RF Generator (Function With ARB) |
Power Amplifier | Modulation/Sweep/Burst/Frequency Counter | |
| MFG-2110 | 10MHz | ● | ||||
| MFG-2120 | 20MHz | ● | ||||
| MFG 2120MA | 20MHz | ● | ● | ● | ||
| MFG-2130M | 30MHz | ● | ● | |||
| MFG-2160MF | 60MHz | ● | 160MHz | ● | ||
| MFG-2160MR | 60MHz | ● | 320MHz | ● | ||
| MFG-2230M | 30MHz | 30MHz | ● | ● | ||
| MFG-2260M | 60MHz | 60MHz | ● | ● | ||
| MFG-2260MFA | 60MHz | 60MHz | ● | 160MHz | ● | ● |
| MFG-2260MRA | 60MHz | 60MHz | ● | 320MHz | ● | ● |
| MFG-2220HM | 200MHz | 200MHz | ● | ● |
Features:
- Maximum Five Output Channels
- 2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60/200MHz
- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier : Low Frequency, 100kHz, Output 20W
- True Point by Point Output Arbitrary Waveform Function: MFG-2220HM Sample Rate: 250MSa/s, Repetition Rate: 125MHz; Other models Sample Rate: 200MSa/s, Repetition Rate: 100MHz, 14-bit Resolution, 16k Points Memory Depth
- Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis (MFG-2220HM Excluded)
- Frequency Counter : 150MHz, 8 bits Frequency Resolution
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
- Built-in Medical and Automotive Electronic Waveforms(MFG-2220HM Excluded)
- USB Host/USB Device/LAN (MFG-22XX only)
The MFG-2000 series is multi-channel function generator, including MFG-21XX entry-level models and MFG-22XX advanced models. The output channels of MFG-21XX models include one single-channel 10M/20M/30M/60MHz ARB generator ; one 25MHz pulse generator ; one 160MHz or 320MHz RF signal generator (MFG-2160MF/MFG-2160MR) and one power amplifier (MFG-2120MA only)；MFG-22XX models include one 30MHz/60/200MHz dual performance ARB generator; one 25MHzpulse generator; one 160MHz or 320MHz RF signal generator (MFG-2260MFA/MFG-2260MRA) ; and one power amplifier (MFG-2260MFA/MFG-2260MRA only).
Quick Start Guide *1, CD-ROM with MFG software and user manual *1
GTL-101 BNC-Alligator Test Lead *1 (MFG-2110/2120/2120MA/2130M/2160MF/2160MR)
GTL-101 BNC-Alligator Test Lead *2 (MFG-2230M/2260M/2260MFA/2260MRA)
GTL-110 BNC cable x 2 (MFG-2220HM)
