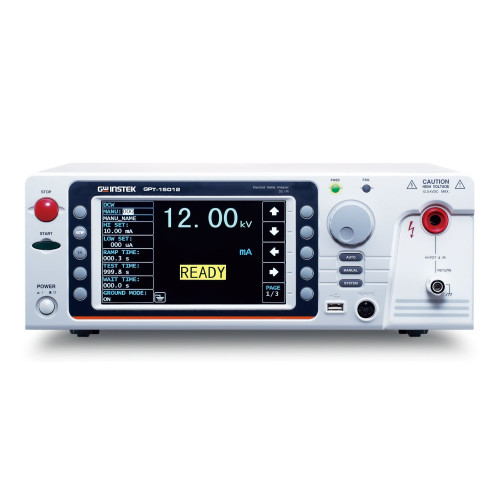

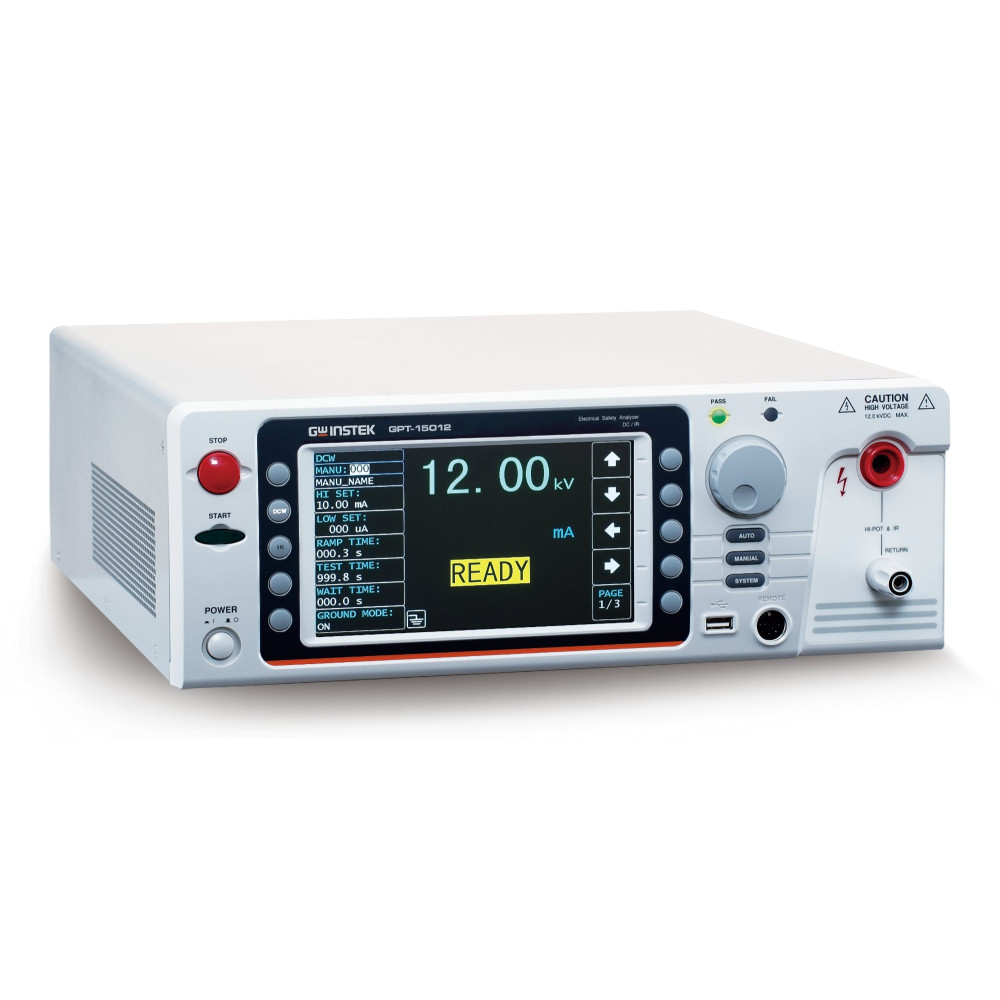

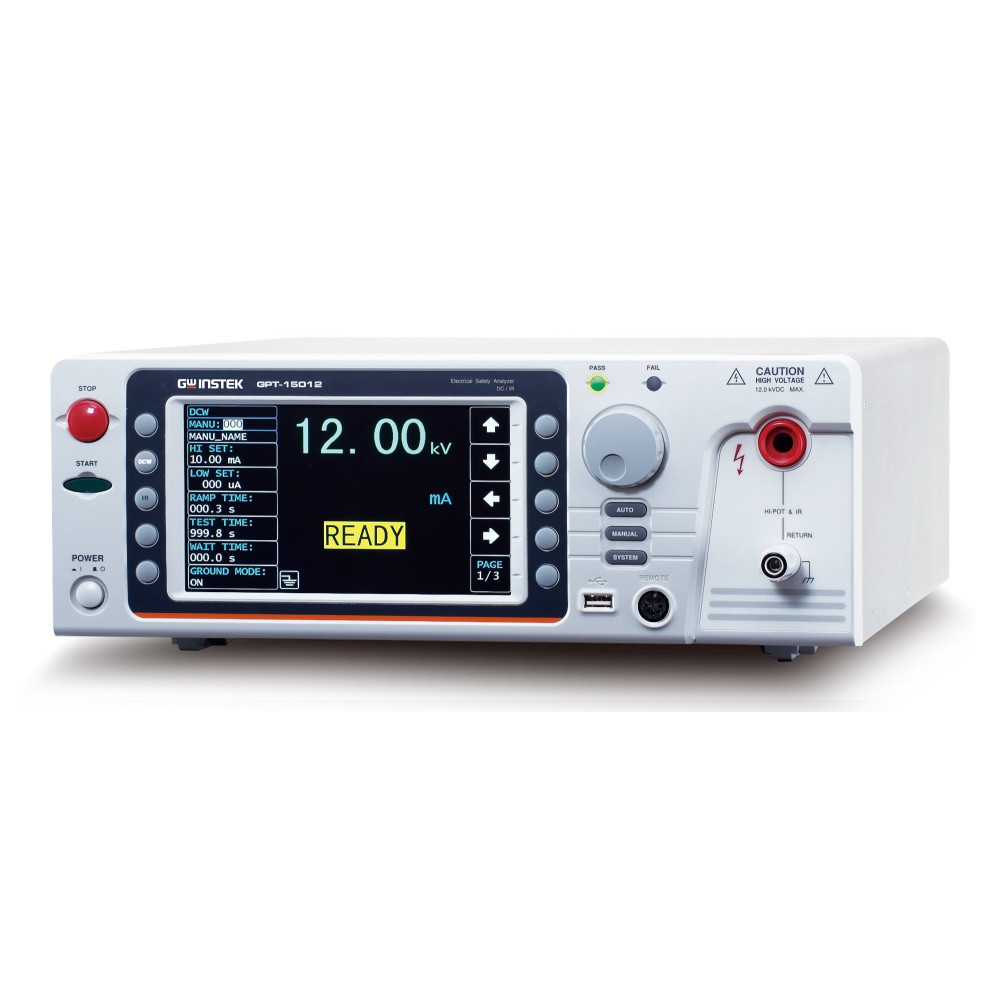

GW Instek GPT-15012 DC 12kV/IR 5kV Electrical Safety Analyzer
GW Instek GPT-15012 is a high DC voltage safety analyzer that comply with IEC 61010-2-034 (safety requirement for electrical requirement for measurement, control and laboratory use - particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.
Included accessories:
1 x Quick start guide
1 x Power cord
1 x Interlock key
1 x GHT-119 Remote terminal cable
1 x GHT-120 Test lead
Options and optional accessories:
GPT-10KG1 GPIB card
GPT-10KL1 LAN card
GTL-232 RS232C Cable, 9-pin Female to 9-pin, null Modem for Computer
GTL-246 USB Cable, A-B type, length 1.2m
GTL-248 GPIB Cable, length 2m
GRA-440 Rack Mount Kit (19" 4U)
Key features:
- DC 12kV / 10mA and IR 5kV / 50GΩ
- 7" TFT LCD
- Comply with IEC 61010-2-034 design requirement
- Manual and Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up and Ramp-down Time
- Statistics and Analysis Function
- Capacitive Load Testing Capability up to 47μF
- Sweep Function for DUT Characteristic Analysis
- Convenience Listed AUTO mode easy to read result and judge
- Internal Storage and USB Storage available
- Barcode function available
- Setting Data Export/Import
- Rear panel output available
- Included interfaces: RS-232C, USB host/device, Signal I/O
- Optional interfaces: GPIB or LAN
- Universal power input
Due to the high voltage output characteristics of GPT-15012, it is particularly suitable for the safety testing requirements of various high-voltage insulation products, such as energy storage and photovoltaic components, high-voltage relays, wires and cables and so on.
Analyze Your Safety Tests
- High Voltage output DC 12kV
- Meets IEC 61010-2-034 design requirements
- High Accuracy and High Resolution Testing Performance
- Flexible supplementary testing mechanism
- Statistic and analysis
- Sweep and tabular automatic test
- Complete test data retrieval interface
