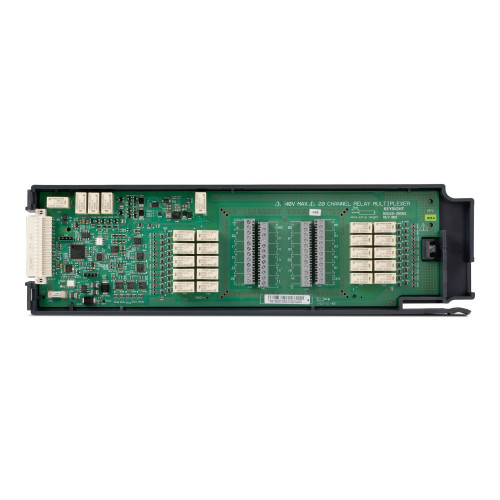

KEYSIGHT DAQM910A 20-Channel Low Voltage Multiplexer (2/4-Wire) Module for DAQ970A and DAQ973A
KEYSIGHT DAQM910A is a 20-channel low voltage multiplexer (2/4-wire) module for the DAQ970A and DAQ973A data acquisition systems.
Key features:
- Enhanced
Automated voltage safety monitoring circuit protect voltage sensitive DUTs in a mixed high voltage and low voltage system by preventing high voltage from appearing on low voltage protected channels. - Integrated
The DAQM910A low modules card can coexist with all other DAQ970A/973A modules. - Versatile
KEYSIGHT DAQM910A is a versatile multiplexer for general purpose scanning of low voltage and temperature measurements. It combines dense, multifunction switching with 80-channel/second scan rates to address a broad spectrum of data acquisition applications. - SCPI compatible with DAQM901A module (for voltage and temperature measurement applications).
What's in the box:
1 x DAQM910A, 20 Channel Low Voltage Multiplexer Module
1 x Functional Test Certificate
Enhanced User and DUTs Protection
A hardware protection monitor circuit detects any voltage above 40 Vpk on the module and opens all relays. KEYSIGHT DAQM910A protects voltage sensitive DUTs in a mixed high voltage and low voltage system.
| Specifications | |
| Relay type | 2-wire armature (4-wire selectable) |
| Number of multiplexed measurement channels | 20 |
| Maximum supported voltage | 40 Vpk |
| Automatic voltage safety monitoring | ✔ |
| Scanning speed | 80 ch/s |
| Built in cold reference junction | ✔ |
