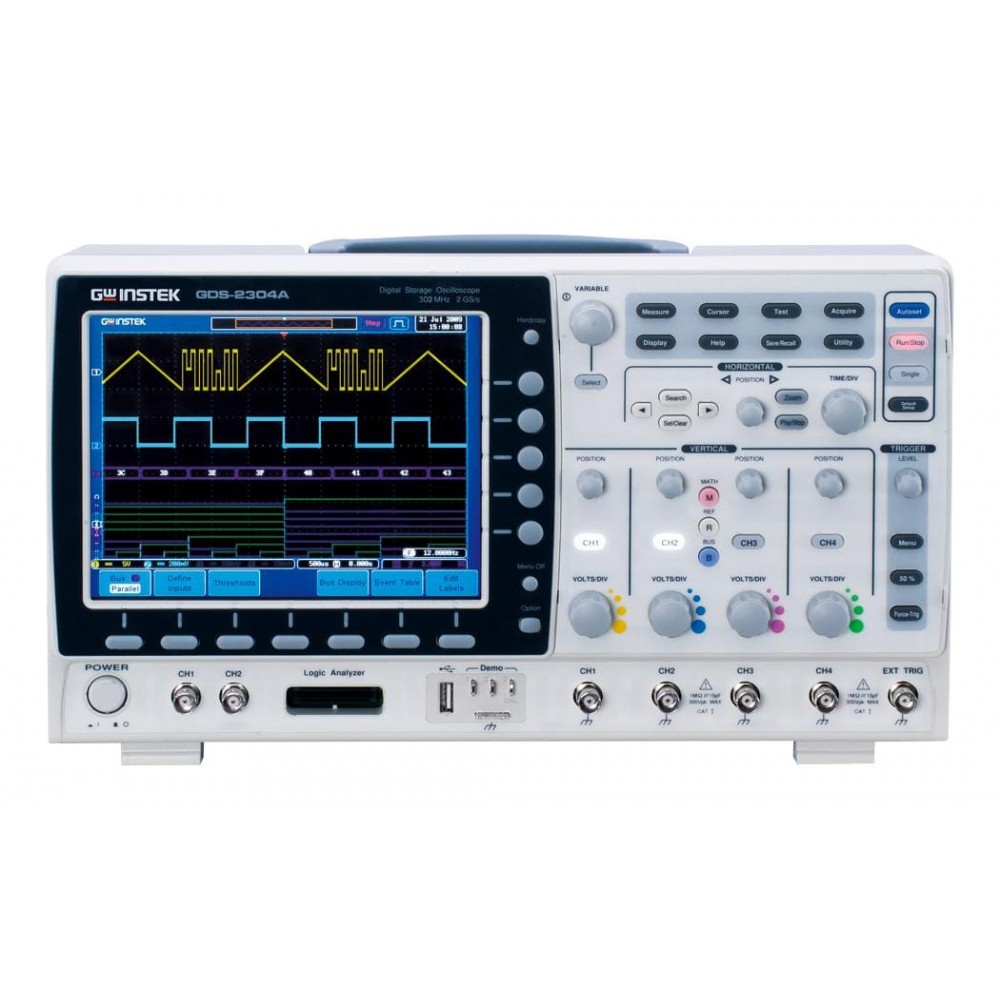

GW Instek GDS-2304A, 300MHz, 4-Channel, Digital Storage Oscilloscope
GW Instek GDS-2304A 300MHz, 4-Channel, Digital Storage Oscilloscope
Features:
- 300MHz/200MHz/100MHz/70MHz Bandwidth, 2 or 4 Input Channel
- 2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
- 2Mega Points Record Length
- 1mV /div to 10V/div of Vertical Range
- 1ns/div to 100s/div of Time Base Range
- 80,000 wfm/s of Waveform Update Rate
- 8 inch 800*600 High Resolution TFT LCD Display
- Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
- Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
- 36 Automatic Measurement Functions Offers Various Measurement Selections
- Optional 8 or 16 digital channel with Logic analyzer (MSO)
- Optional Function Generator
- Flexible Remote Control Connectivity (Standard: USB; Option: LAN)
- Upgradable CAN/LIN bus analysis, Advanced Logic, Datalog, DVM and H-expansion functionalities
2GSa/s Real-time Sampling Rate and up to 300MHz Bandwidth
GDS-2000A Series Digital Storage Oscilloscope offers 2 and 4-channel configurations and wide bandwidth selections, including 300MHz, 200MHz, 100MHz and 70MHz. Each model provides 2GSa/s maximum real-time sampling rate and 100GSa/s high-speed equivalent-time sampling rate. Equipped with an 8-inch 800 x 600 high-resolution TFT LCD display, 1mV/div to 10V/div vertical range and 1ns/div to 100s/div time base, the GDS-2000A Series is able to faithfully demonstrate waveforms of complicated and obscure signals.
2Mega Point Record Length, Waveform Search and Segmented Memory Functions
The GDS-2000A Series provides 2Mega point record length, and Waveform Search and Segmented Memory functions as standard features. The events of interest can be captured and saved into the Segmented Memory, which can be divided into 2048 sections, for observation, while the irrelevant waveforms can be ignored. Consequently, the overall efficiency of memory usage can be enhanced. Under Waveform Search mode, after the input signal is triggered, the GDS-2000A Series is able to Search and Mark the waveform sections, which comply with user-defined search condition and threshold level within the whole memory. Meanwhile, with Zoom window and Play/Pause button to scroll through whole displayed waveform, the user can rapidly navigate all the waveforms in an efficient way.
Accessory
User Manual CD x1, Power Code x1
GTP-070B-4 70MHz (10:1/1:1) Switchable passive probe for GDS-2072A/2074A (One per channel)
GTP-150A-2 150MHz (10:1/1:1) Switchable passive probe for GDS-2102A/2104A (One per channel)
GTP-250A-2 250MHz (10:1/1:1) Switchable passive probe for GDS-2202A/2204A (One per channel)
GTP-350A-2 350MHz (10:1/1:1) Switchable passive probe for GDS-2302A/2304A (One per channel)
Optional
DS2-LAN Ethernet & SVGA output
DS2-FGN DDS Function Generator
AFG-125 25MHz Single channel USB Modular Arbitrary Function Generator
AFG-225 25MHz Dual channel USB Modular Arbitrary Function Generator
DS2-16LA 16-Channel Logic Analyzer includes, 16 Channel Logic Analyzer Card (GLA-16), 16-Channel Logic Analyzer Probe (GTL-16LA)
DS2-08LA 8-Channel Logic Analyzer : includes, 8-Channel Logic Analyzer Card (GLA-08), 8-Channel Logic Analyzer Probe (GTL-08LA)
Optional Accessories
GTL-08LA 8-Channel Logic Analyzer Probe
GTL-16LA 16-Channel Logic Analyzer Probe
GLA-08 8-Channel Logic Analyzer Card
GLA-16 16-Channel Logic Analyzer Card
GRA-420 Rack Adapter Panel
GAK-003 50Ω Impedance Adapter
DS2-FH1 Module extension bay & USB Type A to Type A/B cable
GSC-008 Soft Carrying Case
GTL-232 RS-232C Cable, 9-pin, F-F Type, null modem, 2000mm
GTL-246 USB Cable, USB 2.0, A-B Type, 1200mm
GDB-03 Oscilloscope Education & Training Kit
GCP-005 Current Probe, 40Hz ~ 1kHz, 5A, Current Probe
GCP-020 Current Probe, DC ~ 100KHz, 10A, Current Probe
GCP-100 Current Probe, 40Hz ~ 10KHz, 20A, Current Probe
GCP-1030 Current Probe, DC ~ 100MHz, 30Arms, Current probe
GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
GCP-245P Current Probe - Power Supply, 4 Channel Power Supply for GCP-530/1030
GCP-530 Current Probe, DC ~ 50MHz, 30Arms, Current Probe
GDP-025 Differential Probe, 25M High Voltage Differntial Probe
GDP-050 Differential Probe, 50M High Voltage Differntial Probe
GDP-100 Differential Probe, 100M High Voltage Differntial Probe
GTP-033A Oscilloscope Probe, 35MHz 1:1 Passive Probe, BNC(P/M)
