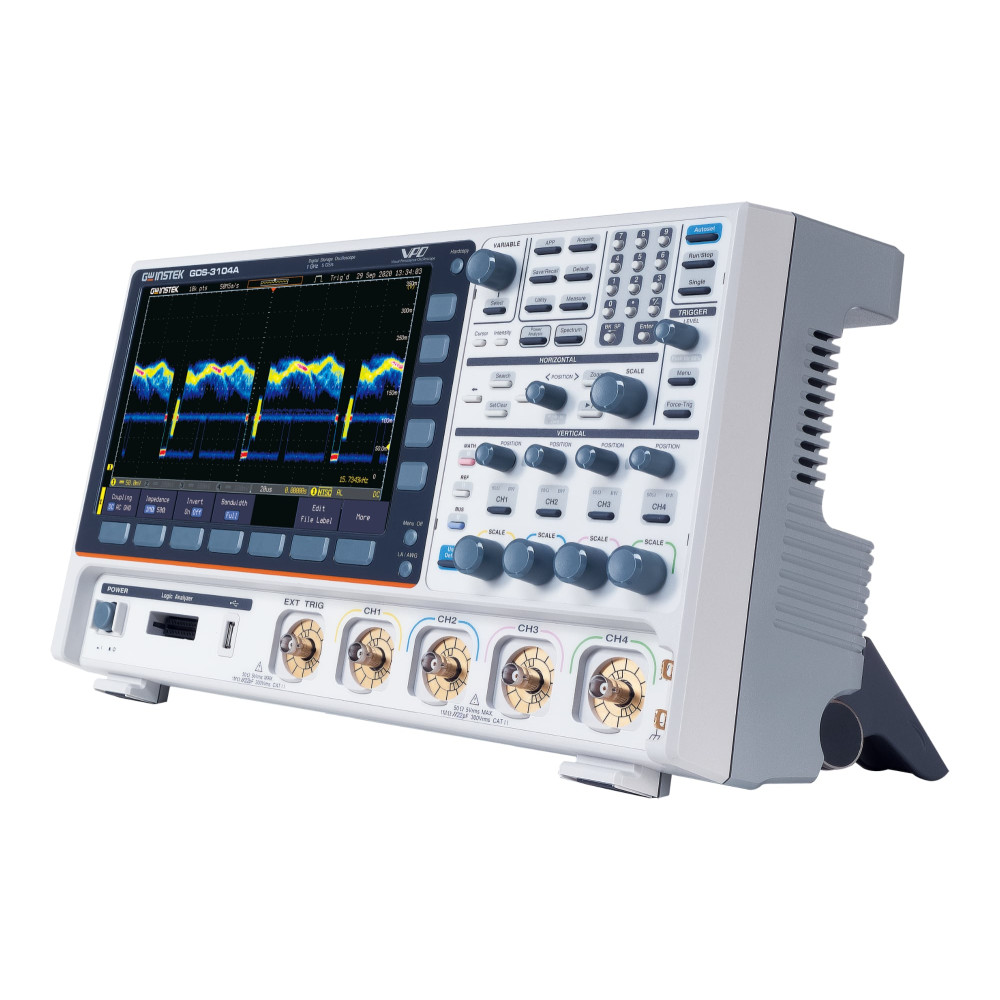

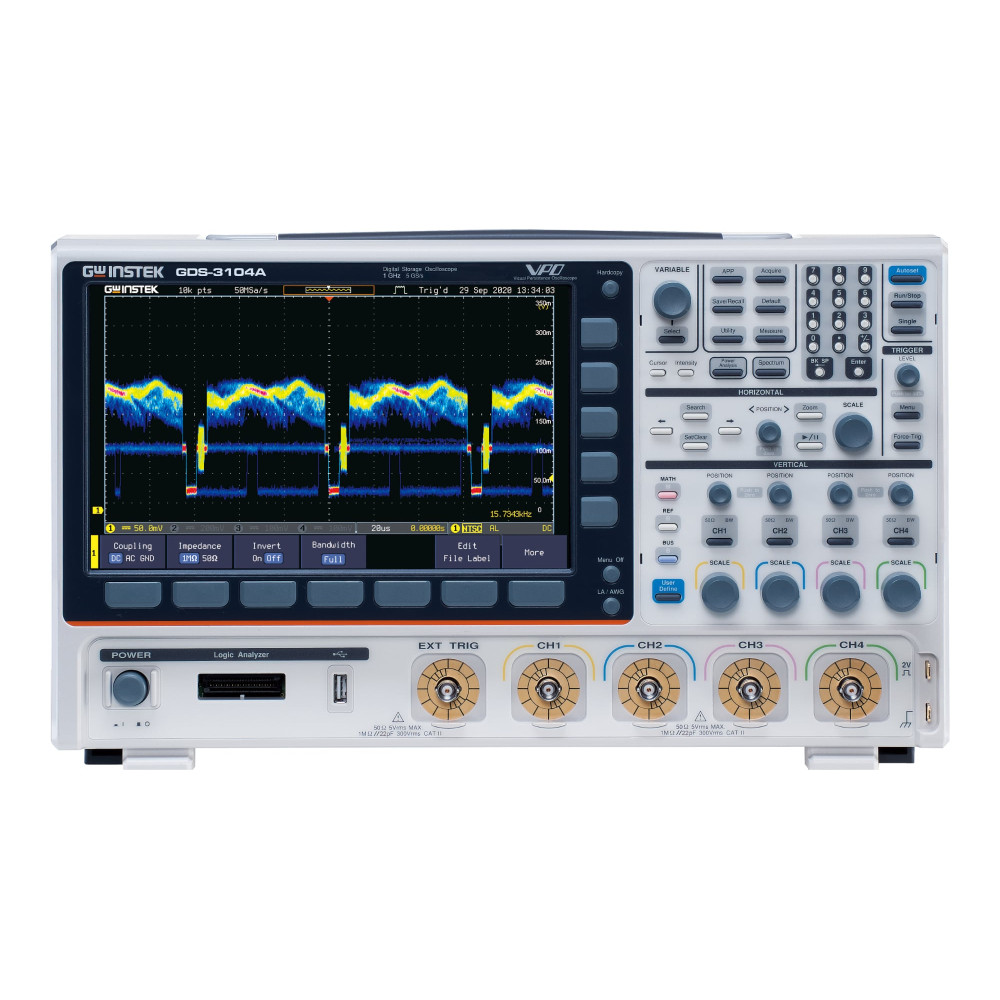

GW Instek GDS-3104A 1 GHz Digital Oscilloscope, 4 Channels
GW Instek GDS-3104A is a 1 GHz, 4-channel digital storage oscilloscope with a 10.2" LCD display, 200 Mpts memory depth per channel, and a sampling rate of 5GSa/s. It includes advanced features such as dual-channel spectrum analysis, a dual-channel 25 MHz arbitrary waveform generator, and serial bus decoding as standard.
Accessories included with the GW Instek GDS-3104A:
1 x Power cord
1 x Calibration certificate
4 x 500 MHz passive probes (GTP-501R), 10:1 ratio
Features of the GW Instek GDS-3000A Series (1GHz):
- 1 GHz bandwidth, 2 or 4 input channels
- Real-time sampling rate of 5GSa/s (half channels), 2.5GSa/s (all channels)
- Memory depth of 200 Mpts per channel
- Waveform update rate of 200,000 wfm/s
- 10.2" TFT LCD display (800 x 480 pixels) with 8-bit RGB color
- Segmented memory with 490,000 segments and waveform search functions
- 38 automatic measurement functions and statistics
- High-resolution acquisition mode
- Trigger and decoding functions for I2C/SPI/UART/CAN/LIN serial buses
- Dual-channel spectrum analyzer (DC~2.5GHz) with spectrogram
- Dual-channel 25 MHz arbitrary waveform generator with FRA (Bode Plot) function

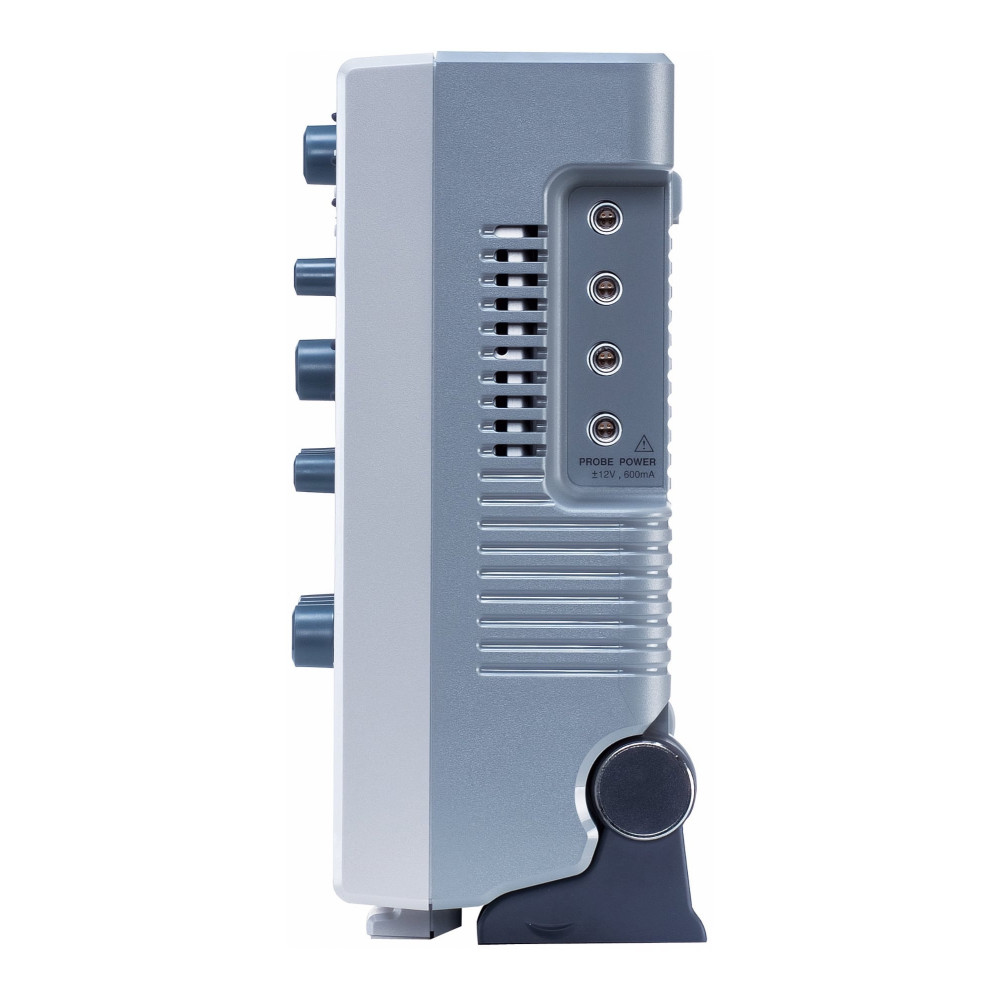

- Integrated power output for current probes (GCP-530 / GCP-1030)
- Optional: 13 sets of power analysis measurements (DS3A-PWR)
- Optional: 16 digital channels with logic analyzer (MSO) (DS3A-16LA)
The GDS-3000A 1 GHz series represents the pinnacle of GW Instek oscilloscopes for high-frequency analysis. The GDS-3104A model offers 4 analog channels with 1 GHz bandwidth. The ultra-deep memory of 200 Mpts per channel ensures the capture of fine details even over long recording periods.
The 10.2" display visualizes signals with 8-bit color gradations, making it easy to distinguish rare signals or noise. The oscilloscope integrates a dual spectrum analyzer (up to 2.5 GHz) that allows simultaneous frequency domain analysis on two channels, ideal for circuit verification and testing.
The GDS-3104A is equipped with a dual-channel 25 MHz arbitrary waveform generator and supports frequency response analysis (Bode Plot). A significant advantage for those working with power electronics is the presence of integrated power outputs for GW Instek current probes, avoiding the use of bulky external power supplies.
Options:
DS3A-16LA 16-channel Logic Analyzer
DS3A-GPIB GPIB Interface (factory installed)
DS3A-PWR Power Analysis Software
GTL-248 GPIB Cable, double shielded, 2m
GTP-1501R 1.5 GHz Passive Probe 10:1 (Recommended for full bandwidth)
GCP-530 Current Probe 50MHz/30A
GCP-1030 Current Probe 100MHz/30A
GRA-443 Rack Mount Kit
GTL-232 RS-232C Cable
