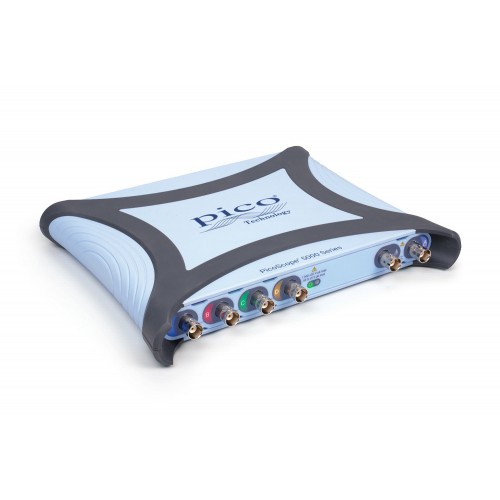

PicoScope 5462E 60 MHz 4-channel oscilloscope, 2.5 GS/s, 1GS
PicoScope 5462E is part of the PicoScope 5000E series, a line of PC-based oscilloscopes designed to offer high 16-bit precision in contexts where signal fidelity is paramount. Thanks to an extremely low noise floor (up to 23 µV RMS) and a wide dynamic range (> 73 dB), this series ensures a crisp and detailed visualization of waveforms. Each model integrates a function generator/AWG (Arbitrary Waveform Generator) and interfaces via a high-speed USB 3.0 port with a Type-C connector, including advanced serial decodings, math channels, and mask limit testing for free with no license costs.
The PicoScope 5462E model offers a 60 MHz bandwidth across 4 independent analog channels, combined with a native 16-bit vertical resolution and a deep capture memory of 1 GS. It represents the optimal choice for research and development laboratories and educational environments requiring accuracy and flexibility of use.
Technical Specifications:
- Analog Channels: 4 BNC(f) input connectors.
- Bandwidth: 60 MHz (in 16-bit mode).
- Vertical Resolution: 16 native bits (software expandable up to an additional 4 bits).
- Max Sampling Rate: Up to 2.5 GS/s (in single-channel 16-bit mode).
- Capture Memory: 1 GS total.
- Included Accessories: 4 TA375 100 MHz passive probes, USB-C cable (1.8 m), USB-A cable (0.9 m), PS017 USB-C power supply (5 V, 3 A) with interchangeable plugs, and a 5 mm BNC adapter.
