RIGOL T2R1000 Tektronix Active Probe Adaptor
RIGOL T2R1000 Tektronix Active Probe Adaptor
Product Overview

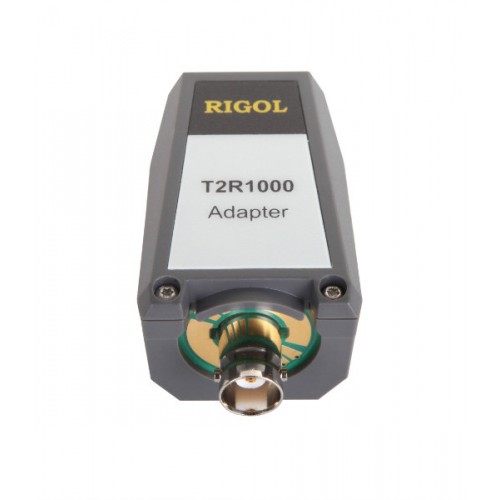

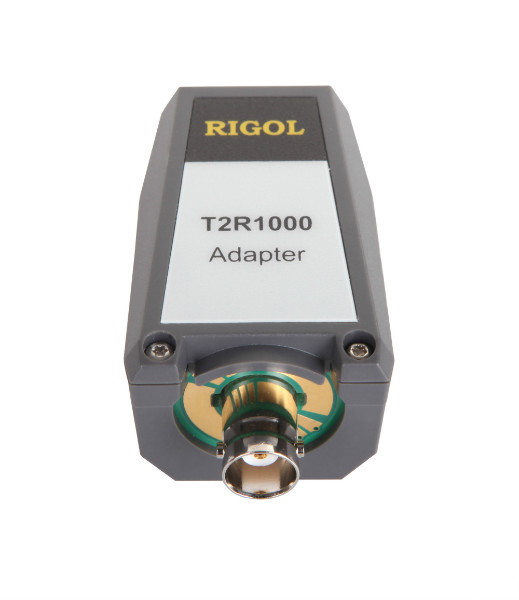

T2R1000 active probe adaptor can be used to connect the TekProbe-BNC level II probe with RIGOL DS6000 series or MSO4000/DS4000 series digital oscilloscope.

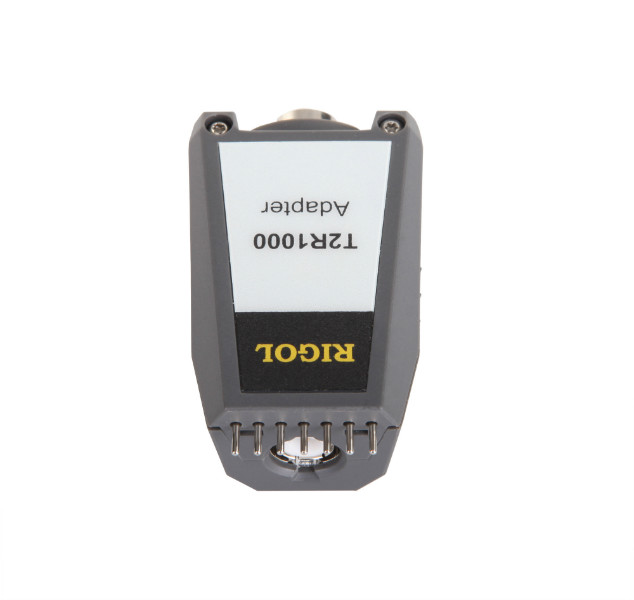

T2R1000 converts the TekProbe-BNC interface to RIGOL-Probe interface and supplies power, calibration and DC offset adjustment function for probe.
Connection Method

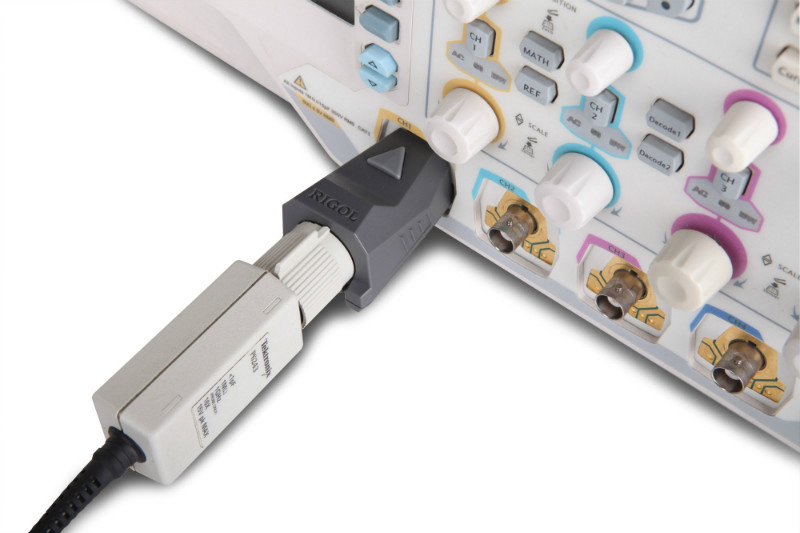

Firstly, connect the probe with TekProbe-BNC interface to T2R1000. Then, connect the other terminal of T2R1000 to the analog input terminal of the oscilloscope with RIGOL-Probe.
Selecting the corresponding probe model from the oscilloscope menu, the scope will automatically set the input impedance, attention ratio and unit. In additional, connecting the probe input terminal to ground and selecting self-calibration function from the oscilloscope menu can provide zero offset calibration function for the probes which support calibration function.
Tektronix Active Probes Supported by T2R1000 Single Ended Active Voltage Probes
Single Ended Active Voltage Probes
| Model | Bandwith | Attenuation | Support DC offset adjustment? |
|---|---|---|---|
| P6205 | 750MHz | 10:1 | NO |
| P6243 | 1GHz | 10:1 | NO |
| P6245 | 1.5GHz | 10:1 | YES |
| P6241 | 4GHz | 10:1 | YES |
| P6249 | 4GHz | 10:1 | YES |
Differential Active Voltage Probes
| Model | Bandwith | Attenuation | Support DC offset adjustment? |
|---|---|---|---|
| P5202 | 100MHz | 50:1 / 500:1 optional | YES |
| P5210 | 50MHz | 100:1 / 1000:1 optional | YES |
| P6246 | 400MHz | 10:1 / 1:1 optional | YES |
| P6247 | 1GHz | 10:1 / 1:1 optional | YES |
| P6248 | 1.5GHz | 10:1 / 1:1 optional | YES |
| P6250 | 500MHz | 50:1 / 5:1 optional | YES |
| P6251 | 1GHz | 50:1 / 5:1 optional | YES |
Current Probes
| Model | Bandwith | Attenuation | Description |
|---|---|---|---|
| TCP202 | 50MHz | 10A/V | AC/DC current probe |
Optical Probes
| Model | Bandwith | Attenuation |
|---|---|---|
| P6701B | 1GHz | 0.001W/V |
| P6703B | 1.2GHz | 0.001W/V |
| P6711 | 250MHz | 0.0002W/V |
| P6713 | 300MHz | 0.0002W/V |
