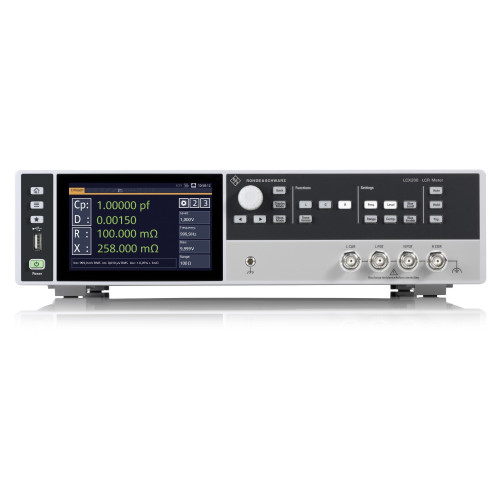

Rohde & Schwarz LCX200COM LCR Meter 10MHz, includes all software options
Rohde & Schwarz LCX200COM is a complete package for research, development, and production applications. Basic accuracy: ±0.05 %, Maximum test frequency: 10MHz, Maximum bias voltage: 40V, Sweep and binning measurements functionality.
The packaging of Rohde & Schwarz LCX200COM contains:
- LCX200 LCR Meter Advanced
- LCX-K106 Advanced Analysis Option
- LCX-K107 Binning Option
- LCX-K108 Extended Bias Option
- LCX-K210 Frequency Upgrade 10 MHz
The Rohde & Schwarz LCX LCR meters are versatile, extremely accurate and perform measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixtures expand the wide range of possible applications.
The Rohde & Schwarz LCX200 LCR has an upper frequency limit of 500 kHz and can be extended to 1 MHz or 10 MHz using software options when needed. All instruments offer DC measurements as well. Internally generated voltages of up to 10 V cover most applications. Optionally, bias voltages of up to 40 V can be applied externally.
A fast logging function records all measured values up to 10 times per second.
Dynamic impedance measurements can be performed using the advanced analysis function. In these sweep measurements, the impedance values are determined for a series of frequency values or other parameters.
Measurements can be triggered and controlled externally via digital I/O ports. The binning function enables the measured components to be sorted by their values into up to eight categories.
The large capacitive touchscreen is the central element for modern and intuitive operation of the instruments and enables the graphical display of the measurement results.
Remote controllability and rack installation predestine the Rohde & Schwarz LCX for system applications.
Features:
- Test signal frequency: DC, 4Hz to 10MHz (optional)
- Test signal voltage: < 1MHz: 100mV to 10V, > 1MHz: 100mV to 2V
- DC bias voltage (internal): 0V to +10V
- DC bias current (internal): 0mA to 200mA
- External DC bias voltage, input: 0V to +40V
- Source impedance: 100Ω, 10Ω
- Measurement range: 100mΩ to 100MΩ
- Basic accuracy for impedance measurements 0.05%
Options for advanced applications
LCX-K106 Software option for advanced analysis functions
LCX-K107 Software option for Digital I/O ports and binning function
LCX-K108 Software option for extended bias functions
LCX-K201 / LCX-K210 Software option for Frequency upgrade to 1MHz/10MHz, for LCX200
Test fixtures
LCX-Z1 Test fixture for axial/radial lead type devices
LCX-Z2 Kelvin clip lead
LCX-Z3 test fixture for SMD components
LCX-Z4 test tweezers for SMD components
LCX-Z5 Transformers and transducers test cables
LCX-Z11 BNC extension, 1m length
