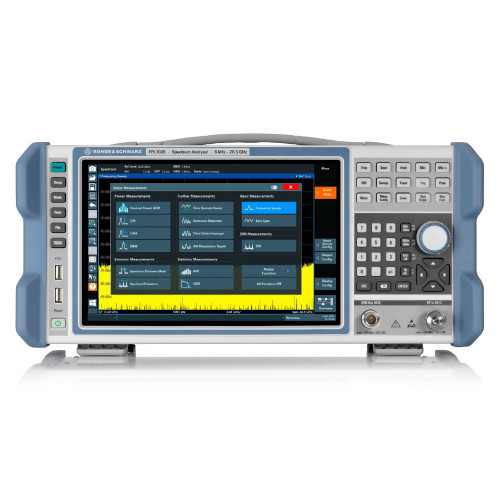

Rohde & Schwarz FPL1026 Spectrum analyzer 26.5GHz
Rohde & Schwarz FPL1026 is a signal and spectrum analyzer with frequency range from 5kHz to 26.5GHz , it makes measuring fast and simple. The intuitive touch screen is straightforward and easy to use. With its solid RF performance, light weight and small footprint, the Rohde & Schwarz FPL1026 combines the functionality of a benchtop instrument with the portability of a handheld instrument.
Key Facts
- Frequency range 5 kHz to 26.5 GHz
- SSB phase noise: -108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)
- DANL@1GHz with preamplifier: -163 dBm
- Lightweight with small footprint
- Battery or 12 V/24 V DC operation (option)
- Use with power sensors (option)
- 40 MHz analysis bandwidth (option)
- Analog and digital signal analysis (option)
- Internal generator (option)
- Gated sweep, narrowband resolution filters and spectrogram measurements as standard
In an RF lab, the Rohde & Schwarz FPL1000 family is as indispensable as an oscilloscope or multimeter. It is a single measuring instrument for a variety of measurement tasks. It supports not only spectrum analysis, but also highly accurate power measurement with power sensors and analysis of analog and digitally modulated signals.
Available models
| Model | Frequency range | Phase noise | DANL @ 1 GHz | Max. analysis bandwidth | Instrument type |
|
Order Number 1304.0004.03 |
5 kHz - 3 GHz | < -108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) |
< -163 dBm/Hz | 40 MHz (FPL1-B40) | Signal and spectrum analyzer |
|
Order Number 1304.0004.07 |
5 kHz - 7.5 GHz | < -108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) |
< -163 dBm/Hz | 40 MHz (FPL1-B40) | Signal and spectrum analyzer |
|
Order Number 1304.0004.14 |
5 kHz - 14 GHz | < -108 dBc (1 Hz) (f = 1 Ghz, 10 kHz offset) |
< -160 dBm/Hz Pre-amp on | 40 MHz (FPL1-B40, and FPL1-B11) | Signal and spectrum analyzer |
|
Order Number 1304.0004.26 |
5 kHz - 26.5 GHz | < -108 dBc (1 Hz) (f = 1 GHz, 10 kHz offset) |
< -160 dBm/Hz Pre-amp on | 40 MHz (FPL1-B40, and FPL1-B11) | Signal and spectrum analyzer |
