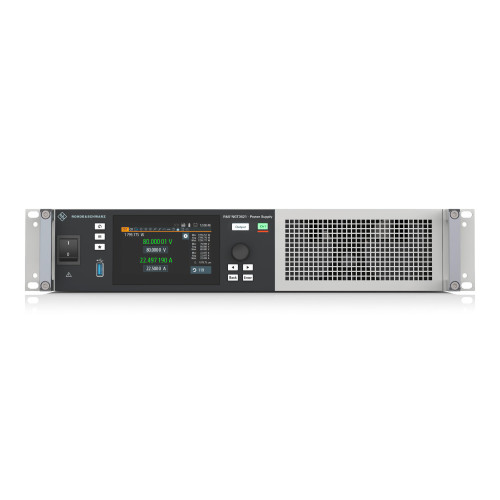

Rohde & Schwarz NGT3622 DC Power Supply, 2 Channels, 3600W, 80V/50A, 2U rack
Rohde & Schwarz NGT3622 is a high-performance DC power supply designed for challenging test applications in R&D and production. This two-channel model delivers a total power of 3600 W (1800 W per channel) in a compact, rack-mountable format. Thanks to Autoranging technology, it offers maximum operational flexibility, providing high currents at low voltages or high voltages at low currents (up to 80 V or 50 A per channel), covering a much wider operating area than traditional power supplies.
The user interface is operated via a large, high-resolution 4.3" touchscreen, which simplifies configuration and monitoring. It includes advanced functions such as arbitrary waveform generation (QuickArb), controlled voltage ramping (EasyRamp), and remote sensing to compensate for voltage drops across cables. It also supports the Channel Fusion function (series/parallel) and features standard LAN and USB interfaces for integration into automated test systems.
Key Features
- Channels: 2 independent and floating outputs.
- Total Power: Max 3600 W (1800 W x 2).
- Output: 0 - 80 V / 0 - 50 A (per channel).
- Autoranging: Maximizes available power over a wide V/I range.
- Display: 4.3" capacitive touchscreen (WQVGA).
- Special Functions: QuickArb, EasyRamp, Data Logging, Remote Sensing, Channel Fusion.
- Interfaces: USB, LAN (LXI), Digital I/O.
- Dimensions: 2U format, rack-mountable.
Package Contents:
- R&S NGT3622 base unit
- Power cord
- Output terminal block connectors
- Quick start guide and safety instructions
