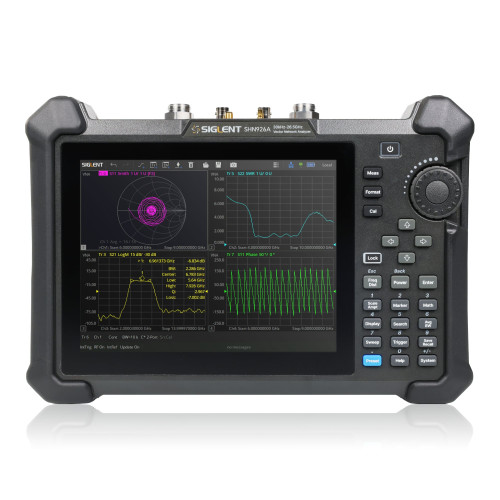

SIGLENT SHN920A 2 Ports, 20GHz Vector Network Analyzer (VNA)
SIGLENT SHN920A is a two-ports vector network analyzer (VNA) with frequency range from 30 kHz to 20 GHz, 110 dB (typical) dynamic range, -45 ~ +10 dBm output setting range and 8.4'' touch screen.
Included accessories:
1 x Quick Start Guide
1 x USB Type C Line
1 x Rechargeable lithium battery
1 x AC-DC adapter
1 x Portable bag
Key features:
- Frequency range: 30 kHz - 20 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.01 dB
- Range of IFBW: 10 Hz ~ 3 MHz
- Setting range of output level: -45 dBm ~ +10 dBm
- Dynamic range: 110 dB (Typical)
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
- Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement
- Internal Bias-Tee connections
- Support GPS, Time and Location Information Saving
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
- 8.4" touch screen, Mouse, Keyboard
SIGLENT SHN900A series of Vector Network Analyzers have a frequency range of 30 kHz to 26.5 GHz, which support 2-port scattering parameter, differential-parameter, and time-domain parameter measurements. SHN900A series is effective for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SHN900A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.
| Model | SHN914A | SHN920A | SHN926A |
| Frequency range | 30 kHz - 14 GHz | 30 kHz - 20 GHz | 30 kHz - 26.5 GHz |
| Ports | 2 | ||
| Frequency resolution | 1 Hz | ||
| Level resolution | 0.01 dB | ||
| Range of IFBW | 10 Hz~3 MHz | ||
| Setting range of output level | -45 dBm ~ +10 dBm | ||
| Dynamic range | 110 dB (Typical) | ||
| Types of calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration | ||
| Types of measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement, pulse measurement | ||
| Bias-Tees | Support | ||
| Interface | LAN, USB Device, USB Host (USB-GPIB) | ||
| Remote control | SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer | ||
| Display | 8.4-inch touch screen | ||
| GPS | Support | ||
