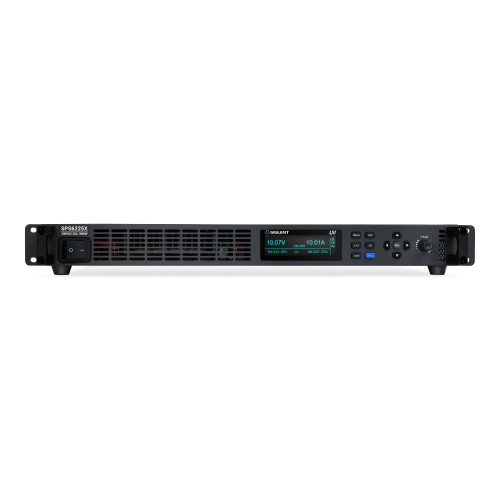

SIGLENT SPS6225X 200V, 25A, 1500W Single Output Power Supply, 1U
SIGLENT SPS6225X is a wide range single channel programmable switching DC power supply with a rated output voltage of 200V and current of 25A, a maximum output power of 1500W and 1U rack unit.
Included accessories:
1 x USB Cable
1 x Quick Start Guide
1 x Calibration Certificate
1 x Power Cord
1 x Output Guard
Key features:
- Rated voltage: 200 V
- Rated current: 25 A
- Rated power: 1500 W
- Single output
- Wide range of output voltage and current values in a high-efficiency power supply
- CV, CC priority mode selection, better protection of equipment under test
- Load transient recovery time (Load change from 50~100%) < 2.5 ms
- Adjustable voltage and current slew rates
- Setting and readback resolution: 10 mV, 10 mA
- User-enabled internal output discharge circuit to accelerate output voltage reduction
- Remote Sense function to decrease lead resistance error
- Local list function with up to 50 steps, USB import list sequence file
- External analog voltage control. Voltage and current monitoring outputs
- OVP, OCP, LPP, OTP protection
- 3.12" OLED high-brightness display with a wide viewing angle of 170 degrees
- Equipped with USB, LAN standard communication interface, optional USB-GPIB module
- 44 mm (1U) height, 19" width for convenient rack mounting
- Embedded Web Server offers remote control through a web browser without the need for drivers or additional software
