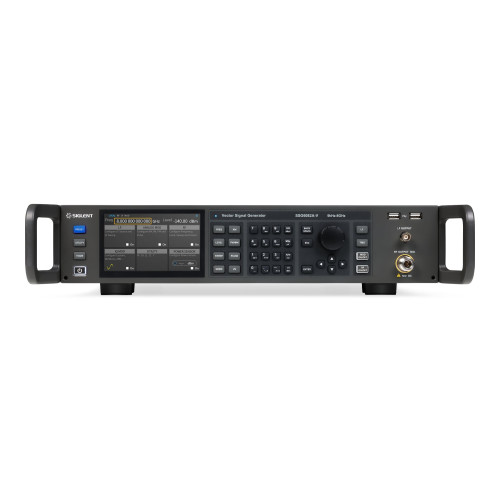

SIGLENT SSG6082A-V Vector Signal Generator up to 8GHz
The SSG6082A-V vector signal generator offers an output frequency range from 9 kHz to 8 GHz, with a frequency setting resolution of 0.001 Hz, amplitude resolution of 0.7 dB, and phase noise of -132 dBc/Hz at 1 GHz with offset of 10 kHz, and a 5-inch touchscreen (RGB) display with 800 × 480px resolution.
It supports AM, FM, and PM analog modulation, as well as pulse modulation and pulse sequence generator functions.
It features an internal 500 MHz bandwidth IQ baseband source, which, when combined with the SigIQPro PC software, can generate common digital modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, and IOT.
After factory calibration, the RF output exhibits excellent 1 GHz broadband characteristics and good ACPR performance, making it suitable for various applications in research and development, production, and other scenarios.
Accessories included:
- Quick Start Guide
- USB Cable
- Calibration Certificate
- Power Cord
Key Features:
- Highest Frequency: 8 GHz
- Output Frequency Resolution: Up to 0.001 Hz
- Level Setting Range: -140 dBm to 30 dBm
- Phase Noise: < -132 dBc/Hz @ 1 GHz, offset 10 kHz (typical value)
- Amplitude Accuracy: ≤ 0.7 dB (typical value)
- Modulation Support: Supports AM/FM/PM analog modulation, internal and external modulation options.
- Pulse Modulation: Supports pulse modulation function, pulse train generator, and user defined pulse sequences (optional).
- General Modulation: Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals. Supports playback of waveform files and sequences.
- Support waveform file playback: waveform sequence generation and playback.
- Communication Protocol Signals: Supports generation of common communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, IOT, etc., when used with SigIQPro software.
- MIMO and Other Applications: Supports MIMO and various other application scenarios.
- Real-time IQ Baseband AWGN: Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power, simplifying additional measurements and calculations required for receiver measurements.
- Power Meter Control Kit: Facilitates power measurement, control of power output, and line loss correction using a power meter.
- Vector Mode S-Parameter Compensation: Supports S-parameter compensation in vector mode to optimize the broadband characteristics of the test system.
- Web Remote Control: Supports web remote control for convenient remote operation by users
Optional accessories
| Modello | Descrizione |
| SSG6080AV-PU | Pulse modulation |
| SSG6080AV-PT | Pulse train generator |
| SSG6080AV-B1000 | 1G RF bandwidth |
| SigIQPro-BT | Bluetooth Signal Playback |
| SigIQPro-IOT | IOT Signal Playback |
| SigIQPro-OFDM | General OFDM Signal Playback |
| SigIQPro-5G NR | 5G NR Wireless Communication Protocol Signal Playback |
| SigIQPro-LTE FDD | LTE FDD Wireless Communication Protocol Signal Playback |
| SigIQPro-LTE TDD | LTE TDD Wireless Communication Protocol Signal Playback |
| SigIQPro-IEEE.802.11.ax | IEEE.802.11.ax Protocol Signal Playback |
| SigIQPro-IEEE.802.11.be | IEEE.802.11.be Protocol Signal Playback |
| SSG6000A-RMK | Rack Mount Kit |
| USB-GPIB | USB-GPIB Conversion Adapter |
