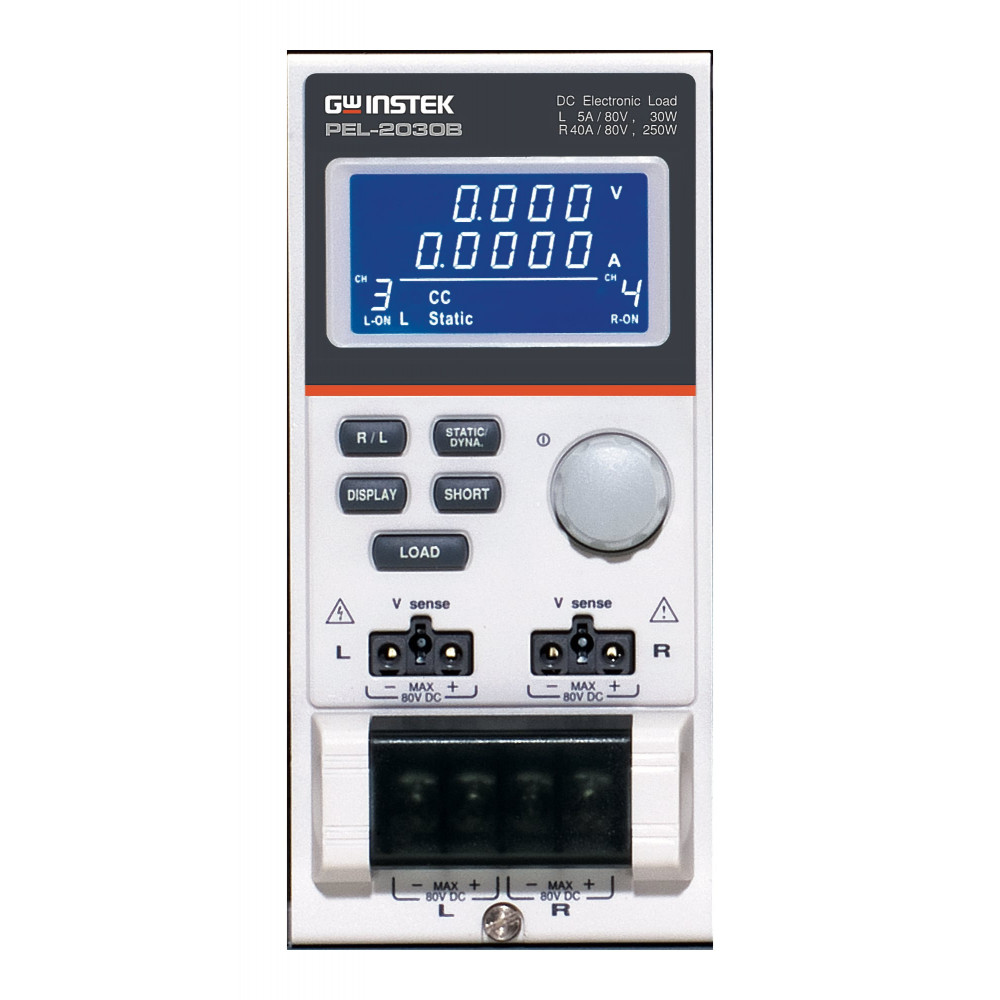

GW Instek PEL-2030B DC Electronic Load Module, Dual Channel 80V/5A/30W and 80V/40A/250W
GW Instek PEL-2030B is a 280W dual channel DC Electronic Load Module with the capacity of 80V, 5A and 30W for left channel, and 80V, 40A and 250W for right channel.
The modules require the Mainframe
The PEL-2000A Series is designed to meet the continuing shift toward high speed operation in today's semiconductor market. As the power supply units, DC-DC converters, and batteries that drive semiconductor circuits need to follow this shift, power supply design, quality inspection and characteristic certification using high-speed performance loads have become necessary.
Features:
- Sequence Function to do High Speed Load Simulations
- Flexible Configuration with Mainframes and Plug-in Modules
- Multiple Independent Load Inputs up to 8 Channels in a Mainframe
- Parallel Connection of Inputs for Higher Load Capacity
- Program Mode to Create Work Routines for Repetitive Tests
- OPP/OCP/OVP/OTP/RVP/UVP Protections
- External Channel Control/Monitoring via Analog Control Connector
- Multiple-Interface USB Device/Host, RS-232C/RS485, LAN and GPIB (optional)
Included accessories:
User Manual x 1, Power Cord x 1, Test Lead GTL-120 x 1, Sense Lead GTL-121 x 1
Optional Accessories：
PEL-001 GPIB Card
PEL-002 PEL-2000B Rack Mount Kit (Handle only)
PEL-003 Panel Cover
GTL-246 USB Cable 2.0 A-B Type Cable, 4P
GTL-248 GPIB Cable
GTL-249 Frame link cable
GTL-259 RS232 cable with DB9 & RJ 45
GTL-260 RS485 cable with DB9 & RJ 45
| Model | Maximum Power | Maximum Current | Maximum Voltage |
| PEL-2020A | 100 W | 20 A | 80 V |
| PEL-2030A | 250 W | 40 A | 80 V |
| PEL-2040A | 350 W | 70 A | 80 V |
| PEL-2041A | 350 W | 10 A | 500 V |
| PEL-2020B | 100 W | 20 A | 80 V |
| PEL-2030B | 250 W | 40 A | 80 V |
| PEL-2040B | 350 W | 70 A | 80 V |
| PEL-2041B | 350 W | 10 A | 500 V |
*Modules require PEL-2002A 2-Slot Mainframe or PEL-2004A 4-Slot Mainframe
