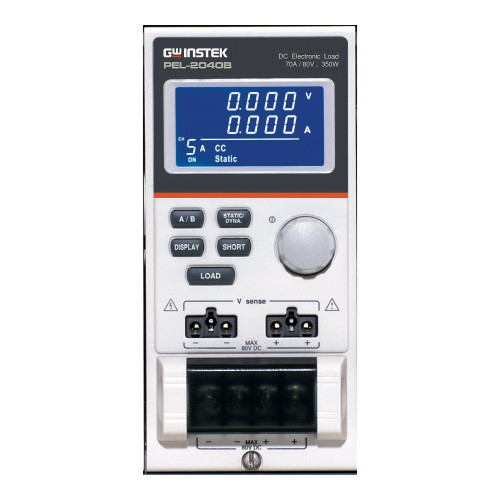

GW Instek PEL-2040B DC Electronic Load Module, Single Channel 80V/70A/350W
GW Instek PEL-2040B is a 350W single channel DC Electronic Load Module with the capacity of 80V and 70A.
The modules require the Mainframe
The PEL-2000A Series is designed to meet the continuing shift toward high speed operation in today's semiconductor market. As the power supply units, DC-DC converters, and batteries that drive semiconductor circuits need to follow this shift, power supply design, quality inspection and characteristic certification using high-speed performance loads have become necessary.
Features:
- Sequence Function to do High Speed Load Simulations
- Flexible Configuration with Mainframes and Plug-in Modules
- Multiple Independent Load Inputs up to 8 Channels in a Mainframe
- Parallel Connection of Inputs for Higher Load Capacity
- Program Mode to Create Work Routines for Repetitive Tests
- OPP/OCP/OVP/OTP/RVP/UVP Protections
- External Channel Control/Monitoring via Analog Control Connector
- Multiple-Interface USB Device/Host, RS-232C/RS485, LAN and GPIB (optional)
Included accessories:
User Manual x 1, Power Cord x 1, Test Lead GTL-120 x 1, Sense Lead GTL-121 x 1
Optional Accessories：
PEL-001 GPIB Card
PEL-002 PEL-2000B Rack Mount Kit (Handle only)
PEL-003 Panel Cover
GTL-246 USB Cable 2.0 A-B Type Cable, 4P
GTL-248 GPIB Cable
GTL-249 Frame link cable
GTL-259 RS232 cable with DB9 & RJ 45
GTL-260 RS485 cable with DB9 & RJ 45
| Model | Maximum Power | Maximum Current | Maximum Voltage |
| PEL-2020A | 100 W | 20 A | 80 V |
| PEL-2030A | 250 W | 40 A | 80 V |
| PEL-2040A | 350 W | 70 A | 80 V |
| PEL-2041A | 350 W | 10 A | 500 V |
| PEL-2020B | 100 W | 20 A | 80 V |
| PEL-2030B | 250 W | 40 A | 80 V |
| PEL-2040B | 350 W | 70 A | 80 V |
| PEL-2041B | 350 W | 10 A | 500 V |
*Modules require PEL-2002A 2-Slot Mainframe or PEL-2004A 4-Slot Mainframe
