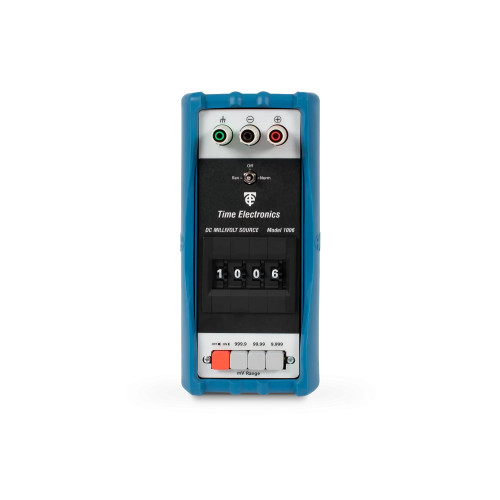

Time Electronics 1006 DC Millivolt Source
Time Electronics 1006 is an accurate millivolt source suitable for voltage injection applications. Three output ranges are provided to give adjustable output values from 1 μV to 1 V with a basic 0.02 % accuracy.
For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The instrument uses a precision reference diode and low temperature coefficient resistors to give a highly stable output.
Power is provided by 6 AA batteries. Battery life is several months, depending on usage. The battery condition is monitored by an indicator situated on the top of the unit.
The 1006 has up to 20 mA drive current and is short circuit and overload protected. An off, normal or reverse output polarity switch is provided.
Features:
- 3 ranges up to 1 V
- Accuracy 0.02%
- 20 mA output current
- Short circuit and overload protected
- Safety terminals
- Durable protective rubber cover
- Portable with 100 hours typical battery life
Safety Terminals
The 1006 connections are via safety terminals that are compatible with standard plugs, 4 mm shrouded plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Added Protection
The 1006 DC mV source comes fitted with an ergonomic rubber cover providing increased protection and durability. It has a textured grip for comfortable handling and a top opening for access to the battery level indicator and cell compartments.
It is easy to remove if the user prefers a stand-alone unit or to house the instrument in the optional 9027 carry case.
Optionals:
9027 Carry case
9529 Rechargeable battery pack - (6 NiMH cells + mains charger)
C150 Traceable calibration certificate (Factory)
C100 Accredited calibration certificate (ISO 17025)
